For manufacturers, especially in demanding fields like medical device development, this technology is compelling. It offers a way to blend the geometric freedom and rapid iteration of additive manufacturing with the enhanced stiffness, strength-to-weight ratio, and dimensional stability of composites. However, navigating this technology requires careful decision-making.
This guide will help you compare printing methods, understand material forms, and recognize design constraints. We’ll explore key applications and clarify when traditional composite fabrication or precision machining might still be the better choice for your project.
Key Takeaways
- Carbon-fiber-reinforced 3D printing uses chopped-fiber filaments, continuous-fiber deposition, or 3D-printed molds for traditional layups.
- Continuous fibers offer superior directional strength, while chopped fibers provide general reinforcement and are easier to print.
- Real-world performance is dictated by fiber orientation, layer adhesion, part geometry, and operating conditions.
- Choosing carbon fiber 3D printing is a process-selection decision, not an automatic upgrade over metals or molded composites.
What Is 3D Printing Carbon Fiber Composites?
A composite material combines two or more distinct materials to create a new one with enhanced properties. In this case, a matrix material (commonly a thermoplastic like nylon) provides the shape and toughness, while a reinforcing material (carbon fiber) adds stiffness and strength.
Carbon-fiber-filled materials and traditional woven laminates are not interchangeable.
There are two primary methods for directly printing carbon fiber composites:
- Chopped Fibers: Short strands (typically under a millimeter) mixed into thermoplastic filament or powder. They raise overall stiffness and dimensional stability for general-purpose strengthening.
- Continuous Fibers: A continuous carbon fiber strand laid along specific paths inside the printed polymer. You can place reinforcement where stresses peak, much like rebar in concrete.
A third, indirect workflow also exists: 3D printing molds or tooling. Instead of printing the final part, you print a mold or pattern that is then used for traditional composite processes like wet lay-up or resin-transfer molding.
Adding carbon fiber changes a polymer's properties in clear ways. A 2024 BASF catalog shows carbon-fiber-filled PA11 powder is over four times stiffer than the unreinforced grade in one direction.
That gain comes with lower elongation and impact resistance, so the part becomes more brittle. Designers need to weigh stiffness against toughness when setting load paths and wall thickness.
How Carbon Fiber Composites Are 3D Printed
The specific workflow for printing carbon fiber composites depends heavily on the type of reinforcement (chopped or continuous) and the printing technology used.

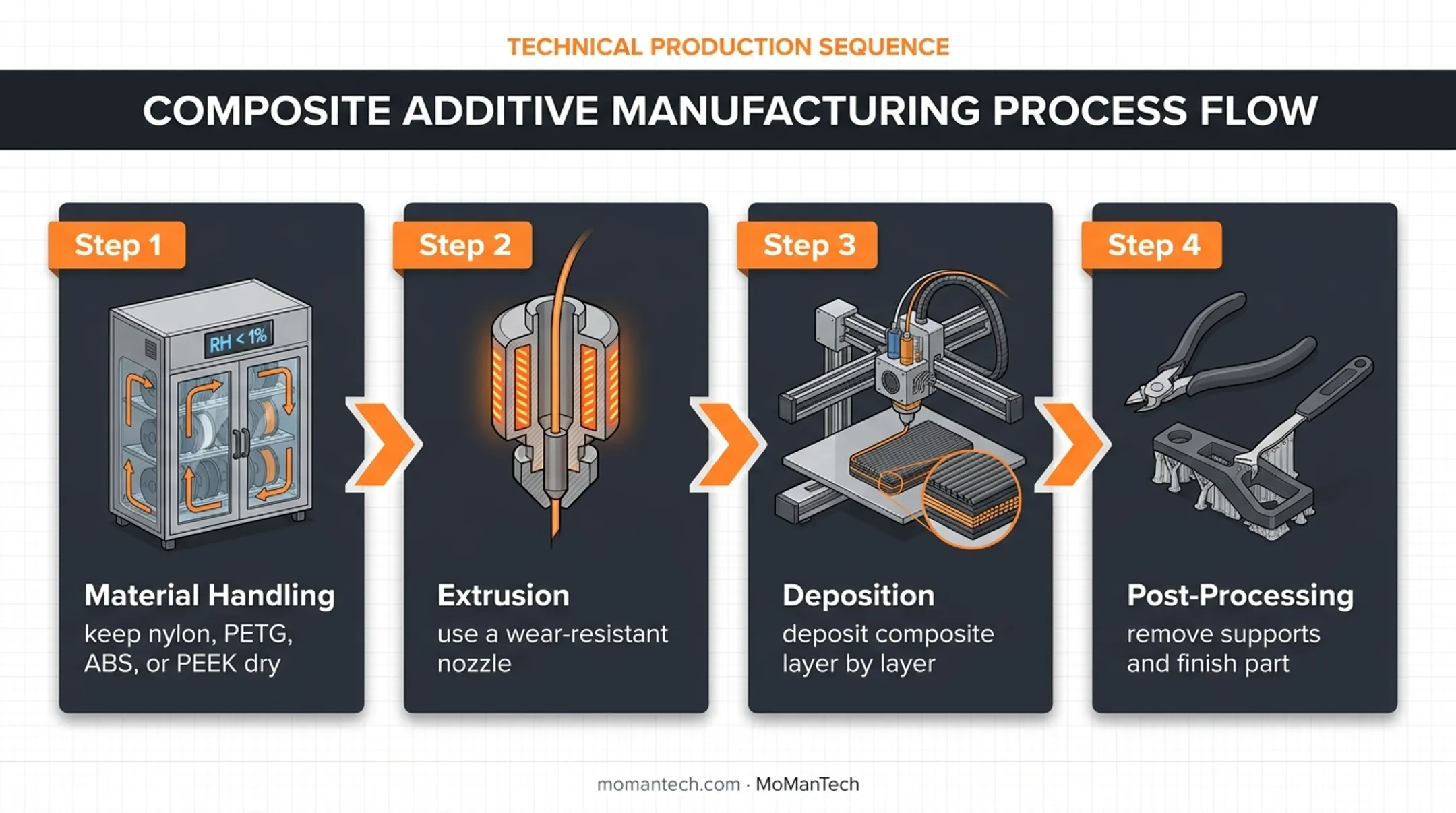

FFF/FDM with Chopped Carbon Fiber Filament
This is the most accessible method. The process is similar to standard Fused Filament Fabrication (FFF) or Fused Deposition Modeling (FDM) printing but with a few key differences.
- Material Handling: The filament, often a nylon, PETG, ABS, or PEEK base, must be kept perfectly dry to prevent voids and poor layer adhesion.
- Extrusion: The filament is fed through a heated, wear-resistant nozzle. Standard brass nozzles will be quickly destroyed by the abrasive carbon fibers.
- Deposition: The molten composite is deposited layer by layer to build the part.
- Post-Processing: Supports are removed, and the part can be finished as needed.
The polymer matrix sets the part's chemical resistance, toughness, and temperature limits.
Continuous Fiber Printing
This is a more complex, dual-material process.
A standard polymer matrix is printed to form the body of the part. Then, a second extrusion system lays a continuous strand of carbon fiber into specific layers or sections, often along exterior walls or within the infill.
Align those fiber paths with the predicted load paths of the final part. The result is highly directional, or anisotropic: very strong along the fiber path, with properties closer to the base polymer in other directions.
Comparing Printing Methods
Choosing the right method depends entirely on your application's requirements.
| Factor | Chopped-CF FFF | Continuous-Fiber Printing | CF SLS Powder | Printed Mold for Layup |
|---|---|---|---|---|
| Design Freedom | Good, but with support structure constraints. | Fair; constrained by fiber path requirements. | Excellent; powder supports complex geometry. | Limited by tool access and layup process. |
| Strength Direction | General improvement, but interlayer weakness is a concern. | Highly directional; strength is concentrated along fiber paths. | Directional; properties differ in X, Y, and Z axes. | Determined by the traditional layup fabric. |
| Best Fit | Functional prototypes, tooling, complex geometries. | Parts with predictable, high-stress load paths. | Small to medium batch production of complex parts. | Creating true laminated parts with a specific finish. |
| Post-Processing | Support removal, smoothing. | Support removal. | Depowdering, bead blasting, optional smoothing. | Machining the tool, then the standard layup process. |
Benefits and Applications of Carbon Fiber 3D Printing
The primary advantages of printing with carbon fiber composites are lower weight, higher stiffness, and improved dimensional stability compared to unreinforced polymers. This enables faster design iteration and the creation of complex internal geometries that are impossible with traditional methods.
Common applications include:
- Manufacturing Aids: Lightweight, rigid, and custom-fit jigs, fixtures, gauges, soft jaws, and assembly tooling improve ergonomics and reduce setup times.
- Functional Prototypes: Test form, fit, and function with parts that more closely mimic the mechanical properties of the final product.
- Low-Volume Production: Ideal for industries like robotics, drones, and motorsports where custom, high-performance parts are needed in small quantities.

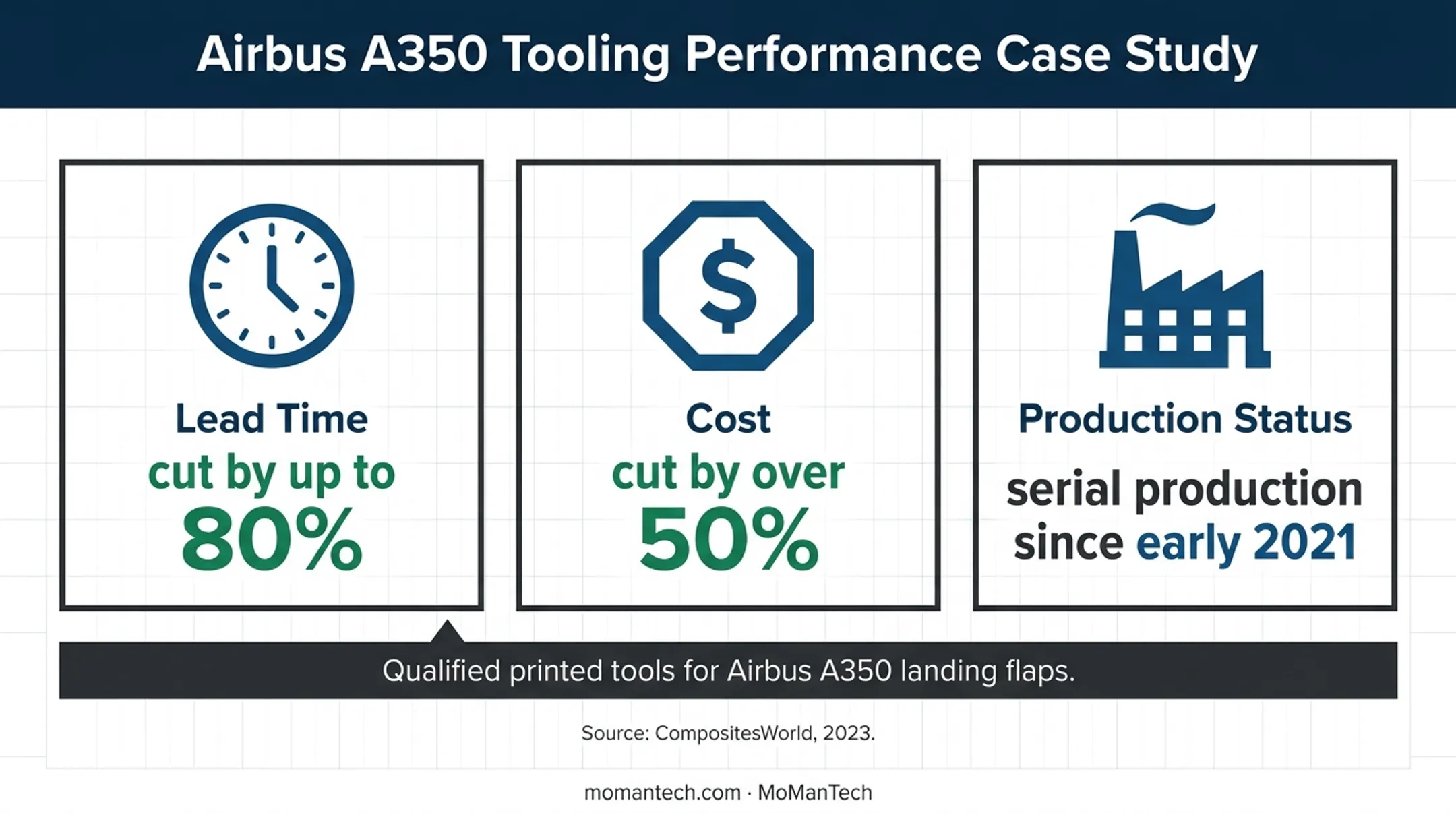

GKN Aerospace offers a clear industrial case. A 2023 CompositesWorld report details how GKN uses large-format 3D printing to create carbon-fiber-reinforced tooling for Airbus A350 landing flaps.
That approach cut lead times by up to 80% and costs by over 50% compared with traditional tool manufacturing. The printed tools were qualified and have been in serial production since early 2021.
Use in Automotive and Medical Fields
In the automotive sector, carbon fiber printing is a strong fit for prototypes, custom ducting, brackets, and interior components. However, safety-critical parts subject to crash loads or high temperatures require extensive, application-specific engineering and validation.
For medical and orthopedic applications, the distinction is even more critical. The technology is well-suited for anatomical models, development fixtures, and non-implantable prototypes. Permanent implants or surgical instruments still require strict material traceability, biocompatibility testing, process validation, and regulatory review far beyond what a standard 3D printer can provide.
Materials, Design Factors, and Printing Challenges
Success with carbon fiber 3D printing hinges on selecting the right material and designing for the process's unique characteristics and limitations.
Common Material Choices
- PETG-CF: Offers high stiffness, good surface quality, and low moisture absorption. A great all-around choice for functional parts and fixtures.
- Nylon-CF: Provides excellent stiffness and good heat resistance, but it's highly sensitive to moisture, which can affect print quality and final part properties.
- Polycarbonate-CF (PC-CF): Used for heat-resistant structural parts. It requires a heated print chamber to prevent warping and ensure layer adhesion.
- PEEK-CF: A high-performance polymer for applications requiring extreme heat and chemical resistance. Printing PEEK-CF requires specialized industrial equipment.
Hardware and Handling Requirements
Carbon fiber is extremely abrasive. Standard brass nozzles wear out quickly, so use a hardened steel, ruby-tipped, or other wear-resistant nozzle.
Material handling is just as critical:
- Store composite filaments in a dry environment
- Dry filament in a dedicated oven before printing when required
- Avoid moisture-driven stringing, voids, and weak parts
Critical Design Considerations
- Anisotropy and Layer Adhesion: Parts are weakest between layers (Z-axis). Orient critical loads along the X/Y plane so they do not pull layers apart.
- Design for Additive (DfAM): Prefer fillets over sharp corners, minimize supports, and add draft angles on printed molds for clean release.
- Common Failure Modes: Warping, clogged nozzles, weak interlayer bonding, and tough support removal are common. Careful design and process control usually prevent them.

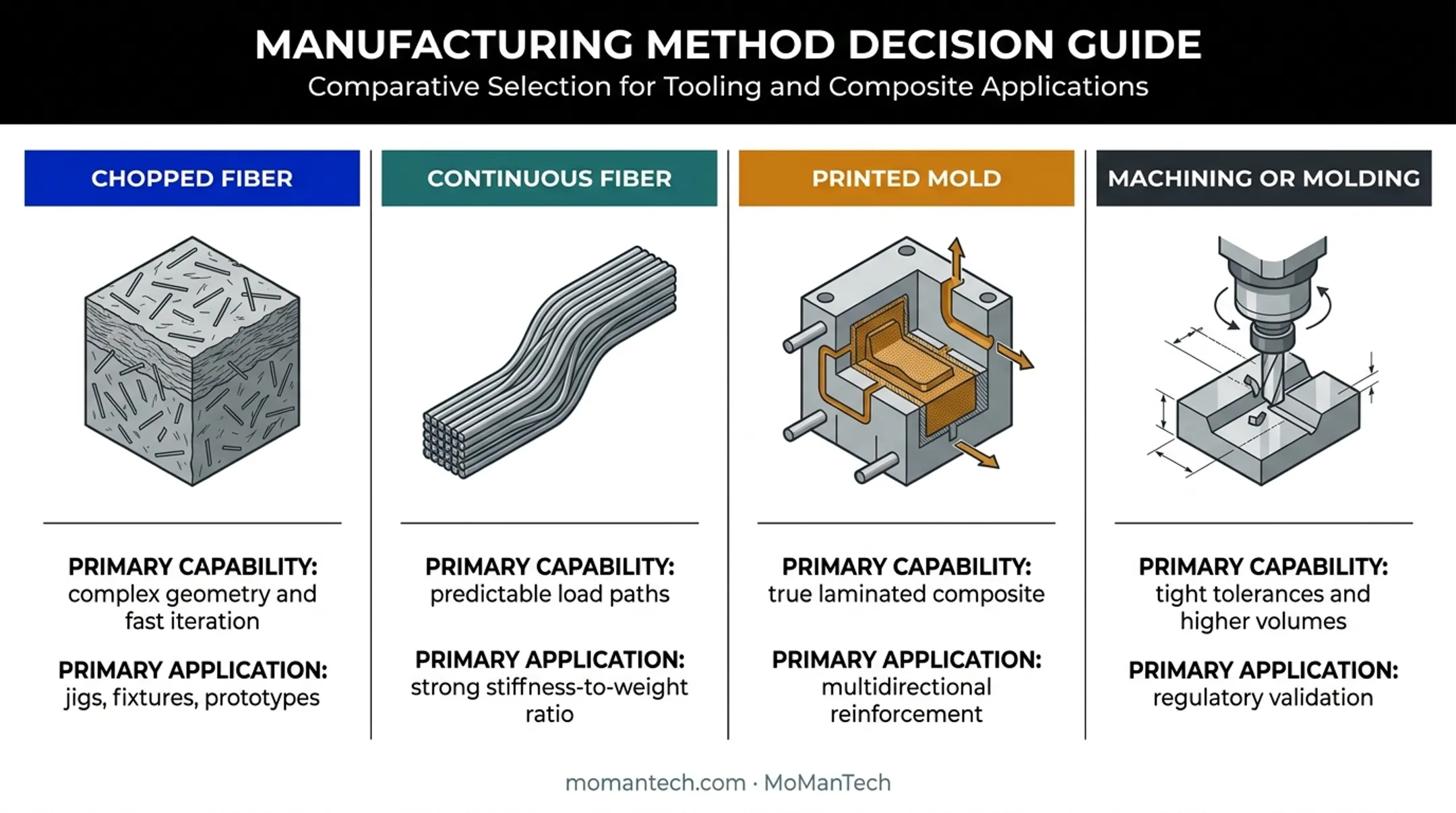

How to Choose the Right Carbon Fiber Manufacturing Route
Is 3D printing the right choice, or should you be looking at machining or traditional molding? The decision comes down to your part's specific requirements.
Use a Practical Selection Sequence
Start by defining the non-negotiable requirements for your part: strength, stiffness, temperature resistance, chemical exposure, surface finish, tolerances, and production volume.
- Choose chopped-fiber printing for dimensional stability, complex geometry, and fast iteration on jigs, fixtures, or prototypes when maximum directional strength is not the main goal.
- Choose continuous-fiber printing when load paths are predictable and can be selectively reinforced. It needs specialized equipment, but delivers a strong stiffness-to-weight ratio.
- Choose a printed mold plus conventional layup for a true laminated composite, Class-A surface finish, multidirectional fabric reinforcement, or geometry better suited to molding.
- Choose precision machining or molding for tight tolerances, specific finishes, higher volumes, or materials that need regulatory validation not available in printable form.
For orthopedic medical device OEMs, this evaluation is critical. Additive manufacturing works well for prototyping, but final surgical instruments or components often need the documented processes and material integrity of traditional manufacturing.
Partnering with a specialist in precision machining and DFM consultation helps bridge that gap. MoManTech can guide the move from a 3D-printed prototype to a production-ready, inspection-validated component built under an ISO 13485:2016-certified system.
Before requesting any quote, prepare a checklist:
- CAD model
- Expected load cases
- Operating environment
- Target quantity
- Dimensional tolerances
- Surface requirements
- Material and testing documentation needs
Quality, Safety, and Qualification Considerations
Moving from a one-off prototype to repeatable production requires a focus on process control and safety.
Quality and Repeatability
Consistency in carbon fiber printing depends on documented and controlled processes. This includes:
- Regular printer calibration
- Material lot traceability
- Documented print parameters (temperatures, speeds, etc.)
- Controlled build environment (especially temperature and humidity)
- Thorough operator training
Inspection methods should match the part's risk level. This can range from simple visual and dimensional checks for a prototype to mechanical coupon testing or non-destructive evaluation for a critical component.
Workshop Safety
Composite printing brings shop hazards that standard polymer FDM does not. According to OSHA guidance, dust from cutting or sanding composites can be a respiratory irritant.
- Ensure adequate ventilation, especially when materials emit fumes during printing
- Control abrasive dust with local exhaust or isolation during cutting, sanding, and finishing
- Wear eye protection and gloves; use a NIOSH-approved respirator for finishing work when needed
Qualification and Regulation
The level of qualification depends on the application. A simple assembly jig may require minimal documentation, while a component for a regulated industry like aerospace or medical devices demands a rigorous approach.
For medical devices, FDA guidance emphasizes that manufacturers must consider build orientation effects, maintain robust manufacturing controls, and complete finished-device testing. A material datasheet alone is not sufficient for device qualification.
Frequently Asked Questions
What are the uses of PETG-CF filament?
PETG-CF is typically used for functional prototypes, jigs, fixtures, and brackets that need higher stiffness and dimensional stability than standard PETG. Its suitability depends on the operating environment, as its base properties are still those of PETG.
Can you 3D print carbon fiber car parts?
Yes, for prototypes, tooling, interior components, and non-critical parts. Components subject to crash loads, high temperatures, or safety regulations need application-specific engineering and validation beyond a simple print.
Is carbon fiber filament stronger than regular filament?
It is often stiffer and more dimensionally stable, but not always stronger. Strength depends on the test (tensile, flexural, impact), print orientation, and layer adhesion. Fibers can also reduce toughness or Z-axis strength.
What is the difference between chopped and continuous carbon fiber 3D printing?
Chopped fiber involves short fibers mixed throughout the polymer for general reinforcement. Continuous fiber uses long, unbroken strands placed along specific paths to provide highly targeted, directional strength, much like rebar in concrete.
Do you need a special nozzle to print carbon fiber filament?
Yes. Carbon fiber is abrasive and will quickly destroy a standard brass nozzle. Use a wear-resistant nozzle such as hardened steel or ruby, per filament and printer manufacturer guidance.
