Introduction
Proximal humerus fractures are notoriously tricky to fix. The bone quality near the shoulder is often poor, the anatomy is crowded with tendon attachments, and the margin for error around the joint surface is thin.
That's exactly why shoulder bone plates for this region are some of the most technically demanding trauma implants to design and manufacture.
This article looks at proximal humerus plates from two angles:
- Clinical requirements that drive plate design, including anatomy, fracture patterns, and fixation goals
- Manufacturing realities OEMs face when developing or scaling these devices: machining challenges, material considerations, inspection, and quality documentation
We'll also cover what to look for in a contract manufacturing partner, since getting a plate from concept to repeatable production is its own engineering problem.
Key Takeaways
- Plate design must balance anatomical fit, stable fixation, low profile, and manufacturability simultaneously.
- Locking-hole placement, contour, and tuberosity fixation features directly affect clinical usability and machining difficulty.
- Production success depends on DFM input, controlled machining, rigorous inspection, and traceability from day one.
- Evaluate suppliers on orthopedic experience, prototyping speed, and proven ability to scale without losing quality.
Clinical Context: Why Proximal Humerus Plate Design Is Demanding
Anatomy That Won't Forgive Guesswork
The proximal humerus isn't a simple cylinder. It includes the humeral head, the surgical neck, and the greater and lesser tuberosities, each with its own job. The four-segment Neer framework (head, greater tuberosity, lesser tuberosity, and shaft) is still the common way surgeons describe where a fracture lives, according to a 2024 anatomy review.
The rotator cuff attaches directly to these tuberosities. Supraspinatus, infraspinatus, and teres minor insert on the greater tuberosity; subscapularis inserts on the lesser tuberosity. Any plate placed in this region has to account for those soft-tissue attachments, not just the bone underneath them.
Fracture Variability Drives Design Variability
No two proximal humerus fractures behave the same way. Variables include:
- Fragment displacement and angulation
- Degree of comminution
- Whether the articular surface is involved
- Tuberosity separation
- Bone density, which tends to decline sharply in older patients
Metaphyseal head-extension length and medial-hinge integrity are also meaningful predictors of whether the humeral head will retain its blood supply after injury. These factors change which fixation strategy a surgeon chooses, and they change what a plate needs to accomplish structurally.
The Implant's Job Is Narrow and Specific
A proximal humerus plate exists to do one thing: hold reduced fragments in a stable position long enough for bone healing and surgeon-directed rehabilitation to happen. It doesn't replace surgical judgment. The treating surgeon still selects the fixation approach based on imaging, fracture pattern, and patient-specific factors like bone quality and activity level.
Design Features of Proximal Humerus Bone Plates
Anatomic Contour Without the "One-Size-Fits-All" Trap
A well-contoured plate sits close to the lateral proximal humerus, minimizing prominence that could irritate surrounding soft tissue or rub against the acromion during arm elevation.
But anatomic contouring isn't a universal fix. Patient anatomy varies enough that plate families typically include multiple sizes or shapes rather than assuming one contour fits every shoulder.
Locking Fixation Matters More in Weak Bone
Locking screws thread directly into the plate, creating a fixed-angle construct instead of relying on friction between the plate and bone. This distinction becomes especially important in osteoporotic patients, where screw purchase in soft cancellous bone is unreliable.

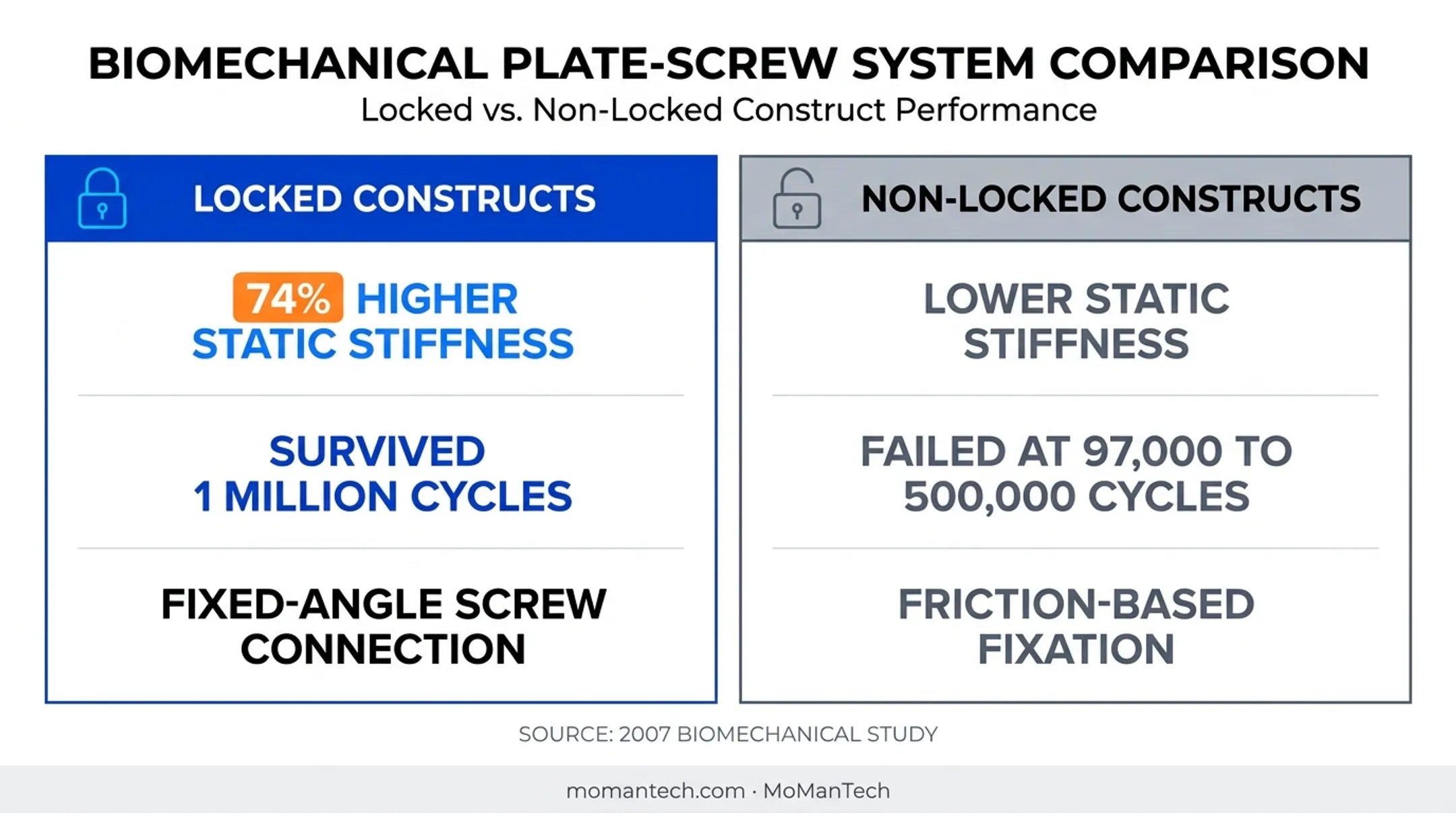

A paired-cadaveric study comparing identical plate-screw systems found that locked constructs had 74% higher static stiffness than non-locked versions of the same hardware. Under cyclic loading, non-locked constructs failed between 97,000 and 500,000 cycles, while locked constructs survived a full million cycles without failure, according to a 2007 biomechanical study.
Locking fixation still isn't a cure-all. Separate biomechanical work on severely osteoporotic humeri has reported early implant failure even with locked constructs, a reminder that screw-bone interface design has limits.
Variable-Angle Trajectories and Proximal Fixation
Many modern systems allow polyaxial or variable-angle screw placement before a secondary locking mechanism secures the angle. This lets the surgeon aim screws toward specific fragments, including calcar support, without being locked into a single predetermined trajectory.
Suture holes near the plate's proximal end are another common feature, allowing the rotator cuff to be tied directly to the plate after reduction.
Trade-Offs Engineers Have to Reconcile
Every design decision here involves a trade-off:
| Design Variable | Trade-Off |
|---|---|
| Plate thickness | Stiffness vs. soft-tissue prominence |
| Hole density | Fixation options vs. stress concentration risk |
| Edge transitions | Smooth profile vs. machining complexity |
| Screw clearance | Trajectory flexibility vs. plate strength |
Finite-element work on plated two-part fractures has shown high stress concentrations at screw-plate junctions, particularly around the most distal shaft screw hole. Changing proximal screw orientation to reduce fracture-gap motion can actually increase stress at that distal location.
Run this kind of modeling before committing to a final geometry.
Design review checklist before finalizing a concept:
- Does the contour match the targeted patient population and fracture indications?
- Is there adequate instrument access for screw insertion at every planned trajectory?
- Are screw-hole dimensions compatible with the intended screw system?
- Will the plate remain visible enough under intraoperative imaging?
- Are sterilization assumptions (material, surface finish) built into the design?
- Has a surgeon reviewed usability, not just a design engineer?
Manufacturing Proximal Humerus Plates: From Prototype to Production
The Development Path
Getting from concept to a repeatable production part generally follows this sequence:
- DFM review - identify features that will be difficult or costly to machine before tooling exists
- Material selection - handled by the device designer based on mechanical and biocompatibility requirements
- Prototype machining - typically small batches of 1-10 units
- Dimensional review and iteration - adjusting geometry based on fit and function findings
- First article inspection - verifying the design intent translates into a manufacturable part
- Process validation - confirming the production process is repeatable
- Repeat production - scaling to ongoing volume
Why These Plates Are Hard to Machine
Proximal humerus plates combine several features that complicate CNC work:
- Contoured surfaces that require multi-axis tool access rather than flat, 3-axis milling
- Angled screw holes that intersect at non-standard trajectories
- Thin sections near the plate's proximal head that are prone to deflection during machining
- Tight tolerances at locking-interface threads
- Recessed or clustered holes that limit tool clearance
Features like these often require specialized fixturing to hold the part stable without distorting it, plus multi-axis equipment capable of reaching compound angles in a single setup.
Material and Process Considerations
Implant-grade metals used in orthopedic plates are selected by the device designer, not the machine shop, based on biocompatibility documentation and mechanical requirements specific to the device. Common standards referenced in this space include ASTM specifications for wrought titanium alloys and corresponding ISO material standards, though the final specification always depends on the device design.
Regardless of material, machining quality hinges on:
- Burr control at edges and hole intersections
- Surface finish consistent with the intended sterilization and coating process
- Tool wear monitoring to catch dimensional drift before it affects a batch
- Coolant and contamination controls appropriate for implant-grade stock
Keeping Variants Straight
Plate families often include multiple sizes, left/right versions, and contour variants that look nearly identical at a glance. Strong workholding protocols, in-process verification, and clear part marking all help prevent mix-ups between similar components, something that becomes more important as product lines grow.
Where Automation Fits

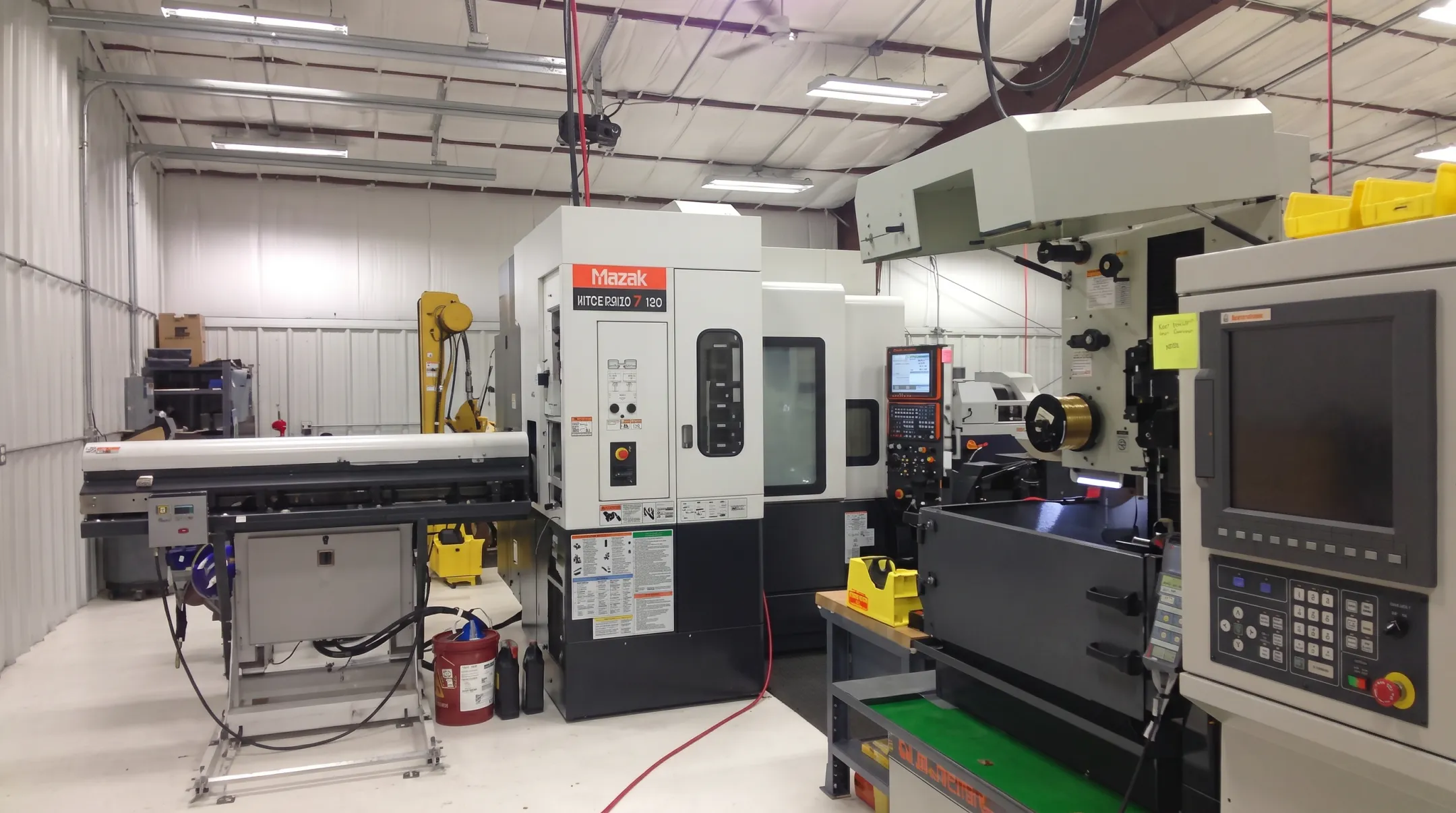

Automated loading and multi-axis machining can meaningfully reduce lead times and expand capacity, but they don't replace process validation or inspection. At MoManTech, automated part-loading on high-volume milling operations has supported lights-out manufacturing and shortened turnaround, while skilled machinists focus on setup, verification, and process control rather than repetitive loading tasks.
MoManTech provides orthopedic medical-device manufacturing support spanning DFM consultation, precision CNC machining, wire EDM, and additive prototyping, backed by documented inspection processes. That combination can support a proximal humerus plate program at the prototype, first-article, or production stage, depending on where an OEM's design currently stands.
Quality, Inspection, and Documentation Requirements
What Gets Inspected and Why
Proximal humerus plates have several features where a small deviation can create a real clinical problem:
- Overall contour and thickness
- Hole location and spacing
- Thread or locking-interface geometry
- Surface condition and edge quality (burr-free is non-negotiable near soft tissue)
A risk-based inspection plan ties measurement methods, sampling frequency, and acceptance criteria back to the design outputs and known process risks, rather than inspecting everything the same way regardless of criticality.
ISO 13485 and the Regulatory Backdrop
ISO 13485:2016 governs quality management systems for organizations involved in medical-device design, production, and related services, and it was reviewed and reconfirmed as current in 2025. It shapes documentation control, personnel training, traceability, supplier controls, and change management, but it does not itself guarantee product clearance or clinical performance.

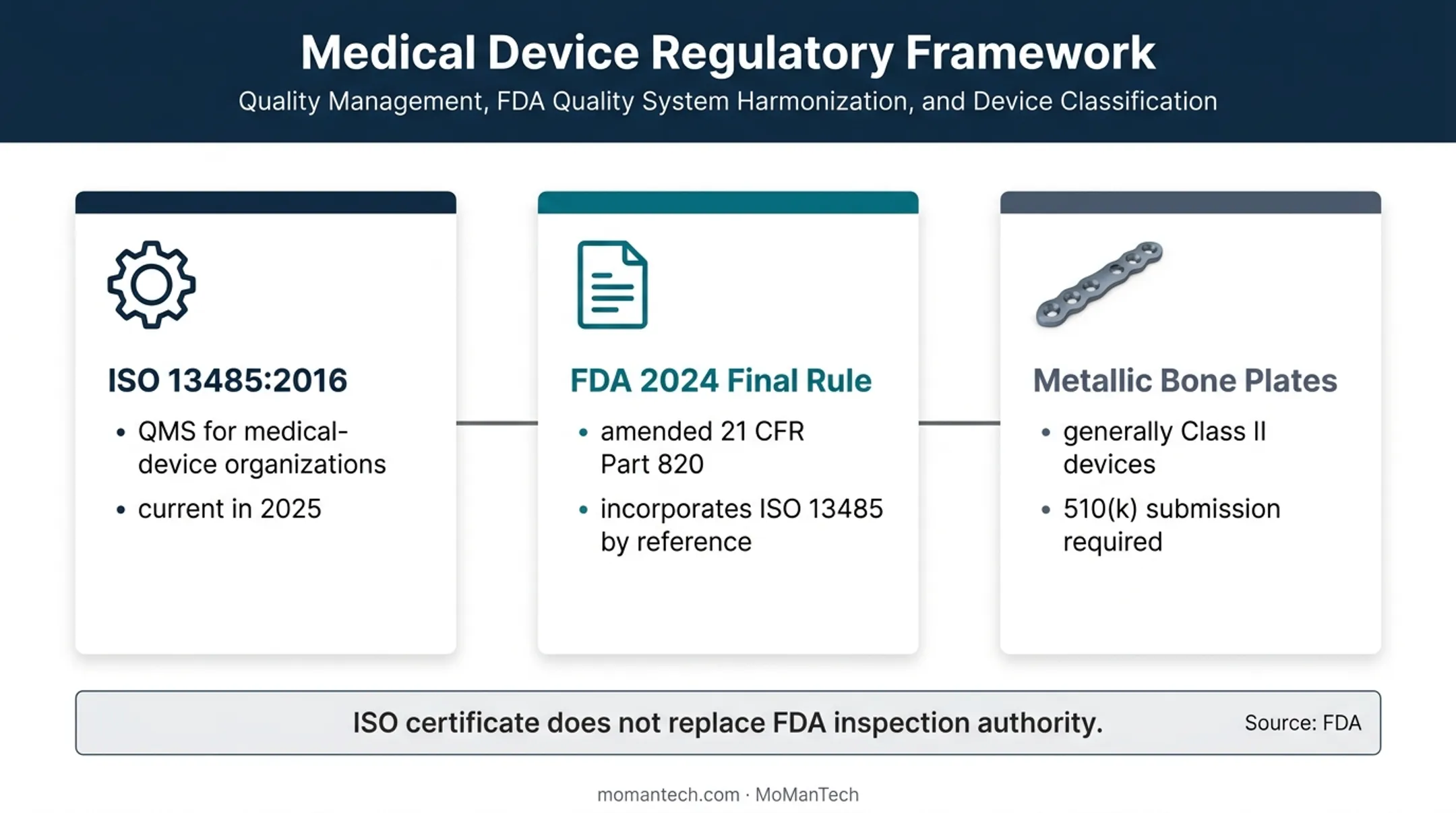

On the regulatory side, FDA's 2024 final rule amended 21 CFR Part 820 to incorporate ISO 13485:2016 by reference, creating the Quality Management System Regulation. Metallic bone fixation plates are generally classified as Class II devices requiring a 510(k) submission, and FDA does not treat an ISO 13485 certificate as a substitute for its own inspection authority.
Equipment and Traceability
Dimensional verification for plate features typically relies on coordinate measurement or optical comparison methods, calibrated equipment, and documented lot or batch traceability for both raw material and finished components. At MoManTech, this includes an OGP Flash 302 vision system with CMM and laser measurement, along with standard dimensional tools, and the company states that no component leaves its facility without comprehensive inspection.
A caveat worth repeating: the specific quality and regulatory obligations for any given plate depend on its classification, intended use, and the OEM's own design history file. Confirm requirements with qualified regulatory and quality professionals before finalizing a program.
How OEMs Should Evaluate a Proximal Humerus Plate Manufacturing Partner
Supplier Assessment Checklist
Before committing to a manufacturing partner, confirm they can cover:
- Direct orthopedic manufacturing experience, not just general precision machining
- Active ISO 13485:2016 certification
- Willingness to participate in DFM review during the design phase
- Material traceability practices
- Documented inspection reports and acceptance records
- Change control and nonconformance handling procedures
Why Prototype Capability Matters
Pre-revenue and small-to-mid-size trauma OEMs often need several rounds of prototype iteration before a design is locked. Partners that treat small batches as an afterthought slow that process down.
A supplier comfortable with runs of 1-10 units lets a design team test, adjust, and retest without waiting on minimum order thresholds built for high-volume customers.
Scaling Without Losing Consistency
The harder question is what happens after the prototype phase. A capable partner should demonstrate:
- Dimensional consistency across batches, not just within one
- Documented processes that don't rely on informal institutional knowledge
- Inspection capacity that scales alongside production volume
- Honest lead-time communication, especially during ramp-up
MoManTech is built around this transition. The shop pairs orthopedic specialization and DFM expertise with runs from prototype quantities of 1-10 units to production volumes of 100-plus, and comprehensively inspects parts at every stage.
Questions to Ask Before You Commit
- Which operations happen in-house versus through subcontractors?
- How are design revisions documented and controlled once production begins?
- What inspection reports come standard with each shipment?
- How are supplier or process changes communicated and approved?
- What evidence demonstrates the facility is actually ready for your volume, not just capable on paper?
Frequently Asked Questions
How long does it take to recover from shoulder plate surgery?
Radiographic union typically averages 12 to 15 weeks, though full functional recovery often takes longer. Timelines depend on fracture complexity, fixation stability, and rehab protocol. Your orthopedic surgeon can give a timeline specific to your injury.
How long does it take for a broken growth plate in the shoulder to heal?
Pediatric growth-plate injuries differ from adult proximal humerus fractures and use Salter-Harris classification. Healing depends on the child's age and fracture pattern, so a pediatric orthopedic specialist should evaluate the injury.
Do bone plates need to be removed?
Not routinely. Studies find no general need to remove locking plates after healing, since removal means a second surgery. Surgeons typically consider it only for pain, impingement, or infection.
