CNC Milling and Turning: What Is the Difference? CNC milling and CNC turning are both computer-controlled subtractive processes. The difference is motion: milling rotates the cutting tool, while turning rotates the workpiece.

That distinction shapes part geometry, setup count, cycle time, inspection and lead time. For orthopedic-device OEMs, a poor process choice can mean extra handling, alignment risk and a longer path to first articles.

This guide covers how each process works, where each fits, when a hybrid mill-turn route wins, and what quality-system factors matter for orthopedic parts.

Key Takeaways

  • Milling suits non-round, prismatic, pocketed and multi-sided parts.
  • Cylindrical, conical, threaded and rotationally symmetric parts are best turned.
  • Round parts with flats, cross-holes or keyways call for a mill-turn comparison.
  • Choose by geometry, tolerance, setups, volume and inspection, not hourly machine rate.

CNC Milling and CNC Turning: Quick Comparison

According to SME Tooling U, milling uses a rotating cutter to create flat surfaces, grooves and pockets, while turning spins the workpiece against a cutting tool to make cylindrical parts.

Factor CNC Milling CNC Turning
Motion Cutter rotates; workpiece is held in a vise or fixture Workpiece rotates in a chuck or collet; tool feeds along the axis
Best geometry Flats, pockets, slots, angled faces, 3D contours Shafts, pins, bushings, screws, bores, tapers, threads
Machines 3-, 4- and 5-axis mills 2-axis lathes, live-tool turning centers, Swiss lathes
Main risk Tool reach, wall stability, re-fixturing Support of slender parts, chip control
Quality focus Feature-to-feature alignment, pocket accuracy Concentricity, diameters, radial finish

Axis count alone does not pick the process. Part geometry and tool access come first. A 5-axis mill still machines a round pin less naturally than a lathe does.

When one part needs both process families, a mill-turn machine or a planned two-operation route can cut handling and alignment risk. Repeated clamping introduces error, and integrated machining supports concentricity and repeatability.

What Is CNC Milling?

CNC milling uses programmed toolpaths to guide a rotating cutter through a secured workpiece. CAD/CAM software generates the toolpaths from a digital model, and a postprocessor translates them into machine-specific code, usually G-code.

The Basic Workflow

  1. Secure the stock in a vise or fixture.
  2. Establish work coordinates and datums.
  3. Rough away excess material.
  4. Run finishing passes.
  5. Inspect critical features.

Milling Variations

Three-axis machines handle simpler prismatic geometry. Four- and five-axis machines add rotary motion for angled surfaces, multiple faces, and complex contours. Indexed 3+2 machining and simultaneous five-axis machining are different capabilities, so specify which one your part needs.

Benefits and Tradeoffs

Benefits include:

  • Flexibility for complex designs
  • Repeatability across batches
  • Reduced manual intervention

Tradeoffs include tool access, workholding, material removal time, and internal corner radii. Sandvik Coromant notes that sharp internal corners increase cutter engagement and vibration, so a programmed radius helps.

Use Cases of CNC Milling

CNC milling handles non-round orthopedic parts such as bone plates, instruments, fixtures, housings, and knee implants. DMG MORI documents titanium bone plates and cobalt-chrome knee implants machined with simultaneous five-axis milling.

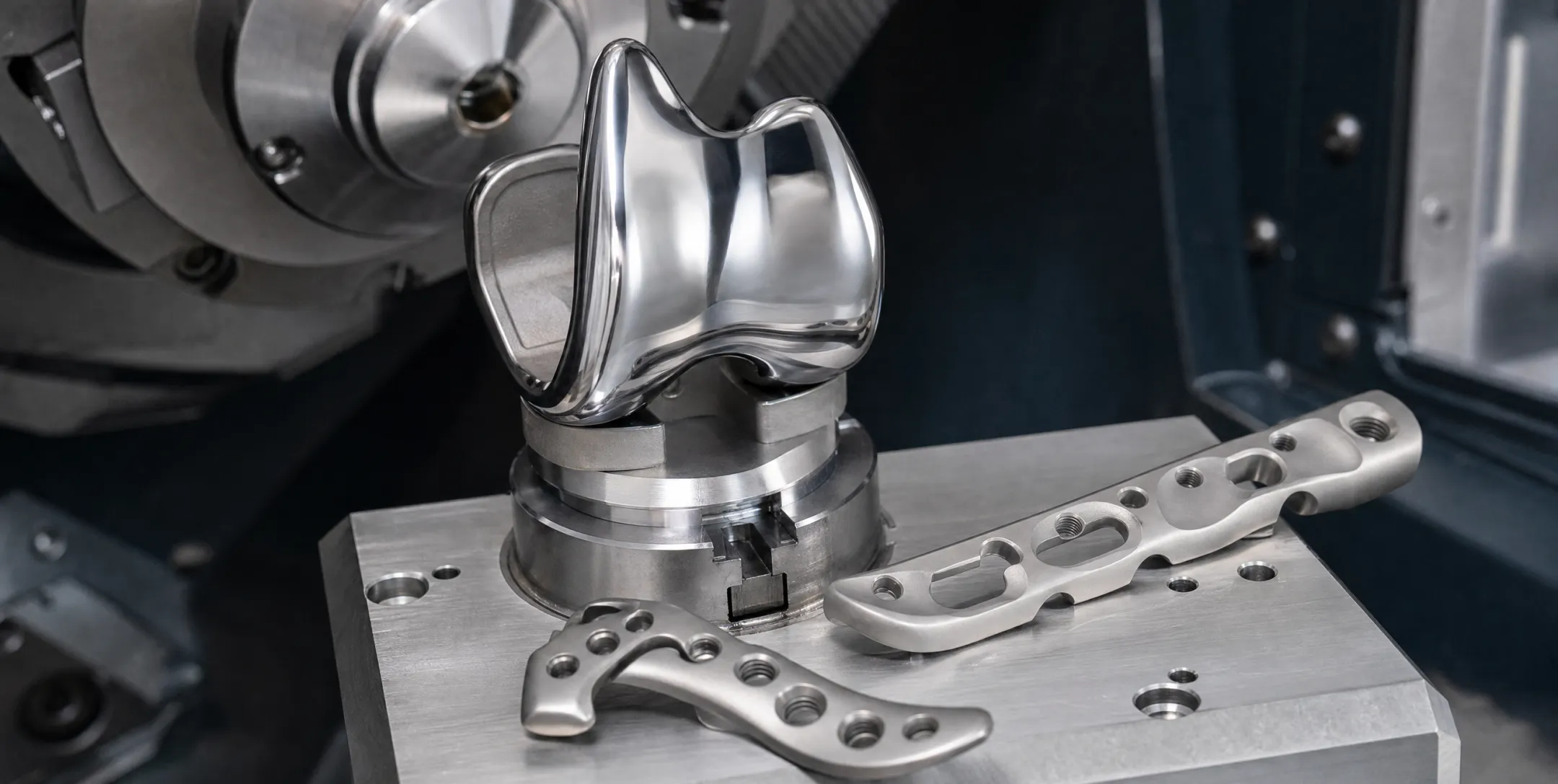

Orthopedic bone plates and knee implants produced through CNC milling

Design-for-manufacturability checks that matter most:

  • Internal radii sized to standard cutters
  • Deep pockets, where long overhangs limit tool reach
  • Thin walls, which need strategies based on height and thickness
  • Datum strategy that avoids unnecessary re-fixturing
  • Hole orientation, since each new angle can add a setup

Milling suits both prototypes and repeat production. At MoManTech, milling capacity includes a 4-axis Haas VF2SS and a 3-axis Hurco VM-1. An automated loader runs a high-volume part on a Haas mill for lights-out production.

What Is CNC Turning?

In CNC turning, a chuck or collet spins the workpiece while a controlled tool performs facing, profiling, boring, grooving, threading, and drilling.

The Basic Workflow

  1. Select bar or near-net stock.
  2. Secure and align it.
  3. Set spindle speeds and toolpaths.
  4. Remove material along the part axis.
  5. Inspect diameters, bores, threads and concentric features.

Turning Variations

  • 2-axis lathes: X controls diameter, Z controls length.
  • Live-tool turning centers: driven tools add milling, and a C-axis positions the spindle.
  • Sub-spindle machines: integrate front and back machining in one run.
  • Swiss-type lathes: sliding-head machines with a guide bushing for long, small-diameter work, as Citizen describes.

Benefits and Limits

Turning is strong on round work:

  • Removes material efficiently around a central axis
  • Holds repeatable diameters
  • Often needs fewer operations for round parts

It is a weaker fit for prismatic shapes, off-axis features, deep cross-holes, and complex 3D surfaces.

Use Cases of CNC Turning

CNC turning suits shafts, pins, bushings, threaded parts, fittings, and primarily round orthopedic components. DMG MORI identifies bone screws as production-turning applications and notes that slender geometries are prone to vibration.

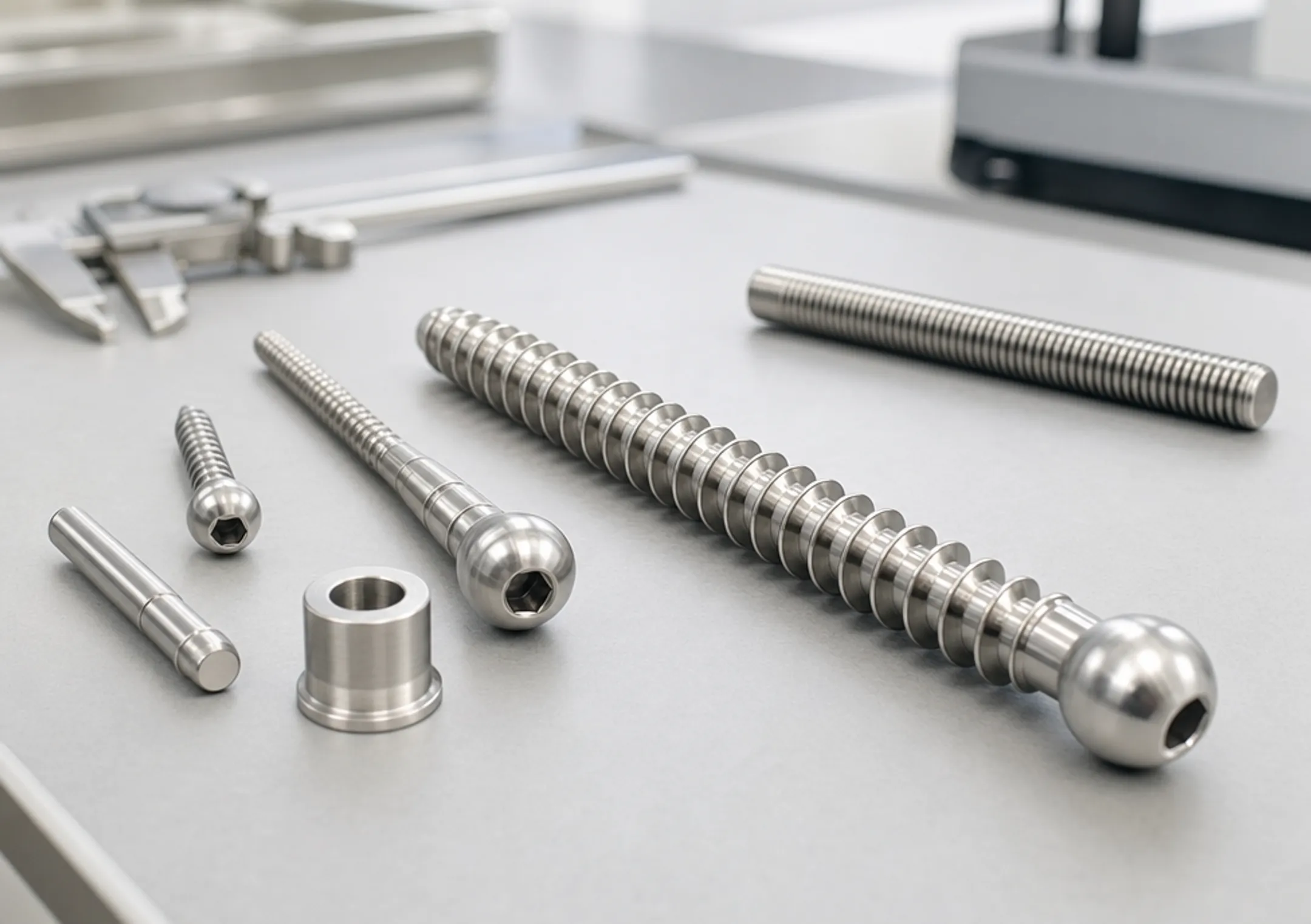

CNC-turned orthopedic bone screws and cylindrical medical components

Factors to settle early:

  • Bar-stock diameter and part length-to-diameter ratio
  • Chuck or collet access
  • Chip evacuation, since chips can jam in grooves or wrap around tools
  • Thread requirements and surface finish
  • Concentricity targets
  • Whether later milling is needed

CNC Milling vs. CNC Turning: What Is Better?

Neither wins universally. Match the process to the dominant geometry, then confirm it can hold your tolerances, finish, and inspection plan.

  • Milling handles non-round parts with pockets, flats, angled faces, irregular contours, or multiple hole orientations.
  • Turning is the better path for cylindrical or conical parts that depend on accurate diameters, bores, threads, or concentric surfaces. Milling a fundamentally round part adds passes and setups.
  • A combined workflow makes sense when a turned body also needs keyways, flats, cross-holes, or slots. Compare mill-turn against separate operations on alignment risk, equipment, batch size, programming complexity, and quality needs.

Total Cost Is More Than Machine Time

Protolabs identifies material, complexity, quantity, lead time, tool wear, fixturing and multi-direction setups as cost drivers. Small batches often cost more per part because setup is spread over fewer units. No universal hourly rate or breakeven quantity exists, so compare the complete route.

How to Apply the Decision to Orthopedic Medical-Device Manufacturing

Process selection should sit alongside the quality systems orthopedic manufacturing requires:

  • Traceability and documented inspection
  • Material certification and design records
  • Supplier quality controls

Material specifications matter too. ASTM F136 covers Ti-6Al-4V ELI, F138 covers 18Cr-14Ni-2.5Mo stainless steel, and F1295 covers Ti-6Al-7Nb. They are not interchangeable, so name the exact specification on your drawing.

MoManTech is an ISO 13485:2016-certified contract manufacturer focused exclusively on orthopedic components. Equipment includes:

  • Haas SL-10 turning center
  • Two 6-axis Mazak Integrex I-150 machines with work-hand subs
  • 9-axis Quicktech S42ATM with full C-axis on the sub-spindle
  • Swiss lathes

Support runs from 1–10 prototype units to 100+ production units, with design-for-manufacturability consultation in planning.

Before requesting a process recommendation or quote, send:

  • CAD model and material specification
  • Critical dimensions, tolerances, and finish requirements
  • Expected quantities
  • Inspection needs
  • Required secondary operations

Real-World Examples and Case Studies

A DMG MORI magazine case describes SQ Products making shoulder-implant sockets. The complex part previously needed two to three machines. A six-sided complete-machining center consolidated five process steps into one, and lead time fell from what often took several weeks to one day.

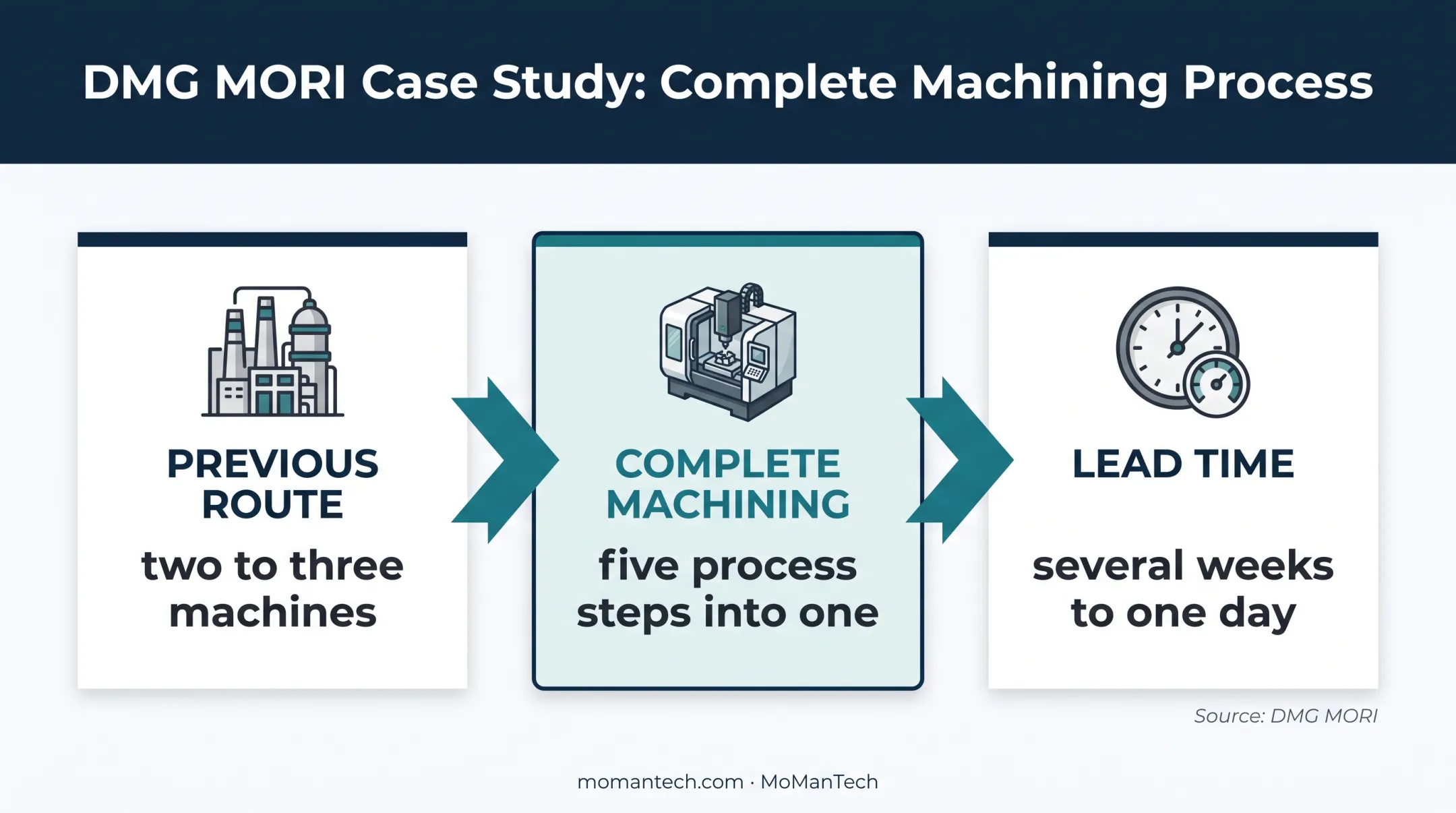

Complete machining case study showing five steps consolidated into one

That figure is lead time, not cutting cycle time, and it reflects one shop's route rather than an industry average.

If your part has a round body plus off-axis features, price the whole route, not just each machine's time. Include:

  • Transfers between machines
  • Waiting between operations
  • Re-alignment after each setup

To discuss your part geometry and requirements, contact MoManTech for a process-fit and DFM review.

Conclusion

Milling is the natural choice for non-round and multi-sided geometry. Turning is typically more efficient for cylindrical and rotationally symmetric parts. Mixed parts often benefit from a combined approach.

Before choosing a process or partner, weigh:

  • Geometry and tolerances
  • Setup count and production volume
  • Quality documentation needs
  • Secondary operations and total cost
