Medical Device Prototyping and Development

Introduction

You have a concept for a new trauma plate, a spinal interbody component, or a foot-and-ankle instrument. The surgical need is clear. The CAD model looks solid on screen.

Converting that concept into a safe, manufacturable part—without committing to full production tooling before you know it works—is where many orthopedic teams get stuck.

Medical device prototyping is the process of building and testing physical or digital representations of a device to evaluate form, fit, function, materials, manufacturability, and user needs before locking in a final design.

This article covers the prototype types orthopedic OEMs rely on, how the development process unfolds, and which manufacturing methods fit which questions. It also covers what quality and regulatory readiness require, and how to move from an early prototype to a production-ready component.

Key Takeaways

• Prototypes exist to answer specific design questions, not to serve as default production parts
• Purpose drives material, fidelity, manufacturing method, and test plan
• Early design-for-manufacturability input prevents costly late-stage redesigns
• Choose a partner with medical-device quality systems, precision capability, and room to scale into production

What Is Medical Device Prototyping?

A prototype is a representation built to evaluate a specific question, not a finished, commercially released device. It can be physical or digital, anatomical or functional, depending on what the team needs to learn at that stage. A 3D-printed bone model built to check surgical workflow serves a completely different purpose than a machined titanium component built to test mechanical performance.

Prototypes help development teams evaluate:

• Dimensions and fit against anatomy or mating components
• Mechanical function, including movement, load response, and assembly
• Ergonomics and surgical workflow for instruments handled in the OR
• Material behavior under expected use conditions
• Manufacturability, including tool access, fixturing, and secondary operations
• Design risks that only surface once a part exists in physical form

In orthopedics, that might mean a spinal cage prototype checked for fit against a sawbone model, or a trauma plate tested for contouring. It can also mean a large-bone component evaluated for assembly tolerance, or a foot-and-ankle instrument checked for handling.

None of these are approved for implantation or clinical use simply because a prototype exists. That approval comes later, through a separate, documented regulatory path.

Prototype Fidelity Levels

Not every prototype needs to look or perform like the final part. Fidelity should match the question being asked:

1. Low-fidelity models communicate proportions, concept, and general handling feel early in development
2. Functional prototypes test mechanisms, interfaces, fit, and real-world performance
3. Production-representative prototypes use intended materials and manufacturing routes, supporting rigorous inspection and verification planning

Teams typically move from a basic proof of concept, to a full-functioning build, to a product-equivalent part used for serious testing. Jumping straight to final fidelity before answering earlier questions tends to waste time and tooling budget.

Why This Matters Beyond the Design Table

Good prototyping surfaces design issues early, informs material and process decisions before they get expensive to change, and improves communication between engineering, quality, regulatory, and manufacturing teams.

It is not the same thing as regulatory readiness. Testing a prototype answers design questions; your quality and regulatory team still has to define what evidence is needed for verification, validation, risk management, and the pathway that applies to your device.

Medical Device Prototyping and Development Process

Development is iterative, not a straight line from sketch to shipped product. Each stage produces evidence that feeds the next design revision, and teams often loop back more than once before moving forward.

Concept and Feasibility

Lock these inputs before detailed design starts:

• Clinical or surgical need, intended use, and intended users
• Operating conditions, critical dimensions, and performance requirements
• Initial risk considerations
• Review of existing solutions and intellectual-property constraints
• Likely material requirements and manufacturing routes

Design and Engineering

Here the concept becomes a real design. Typical work includes:

• CAD development and tolerance definition
• Material selection and interface design
• Assembly features and ergonomics
• Cleaning or sterilization considerations, where applicable

A design-for-manufacturability review at this stage—not after tooling is cut—is what separates smooth production transitions from expensive redesigns later.

MoManTech’s Design for Manufacturability Consultation fits at this planning step, using process know-how to refine precision-machined orthopedic component designs before fabrication begins.

Prototype Progression

Designs typically move through proof-of-concept, functional, refined, and pilot or production-representative builds. Each step increases how closely the material, tolerances, finish, and inspection approach match the intended production part.

Fabrication itself needs controls, even at the prototype stage:

• Controlled drawings and revision status
• Material certifications or traceability where required
• Documented process steps
• Clear notes on any deviation from the intended production design

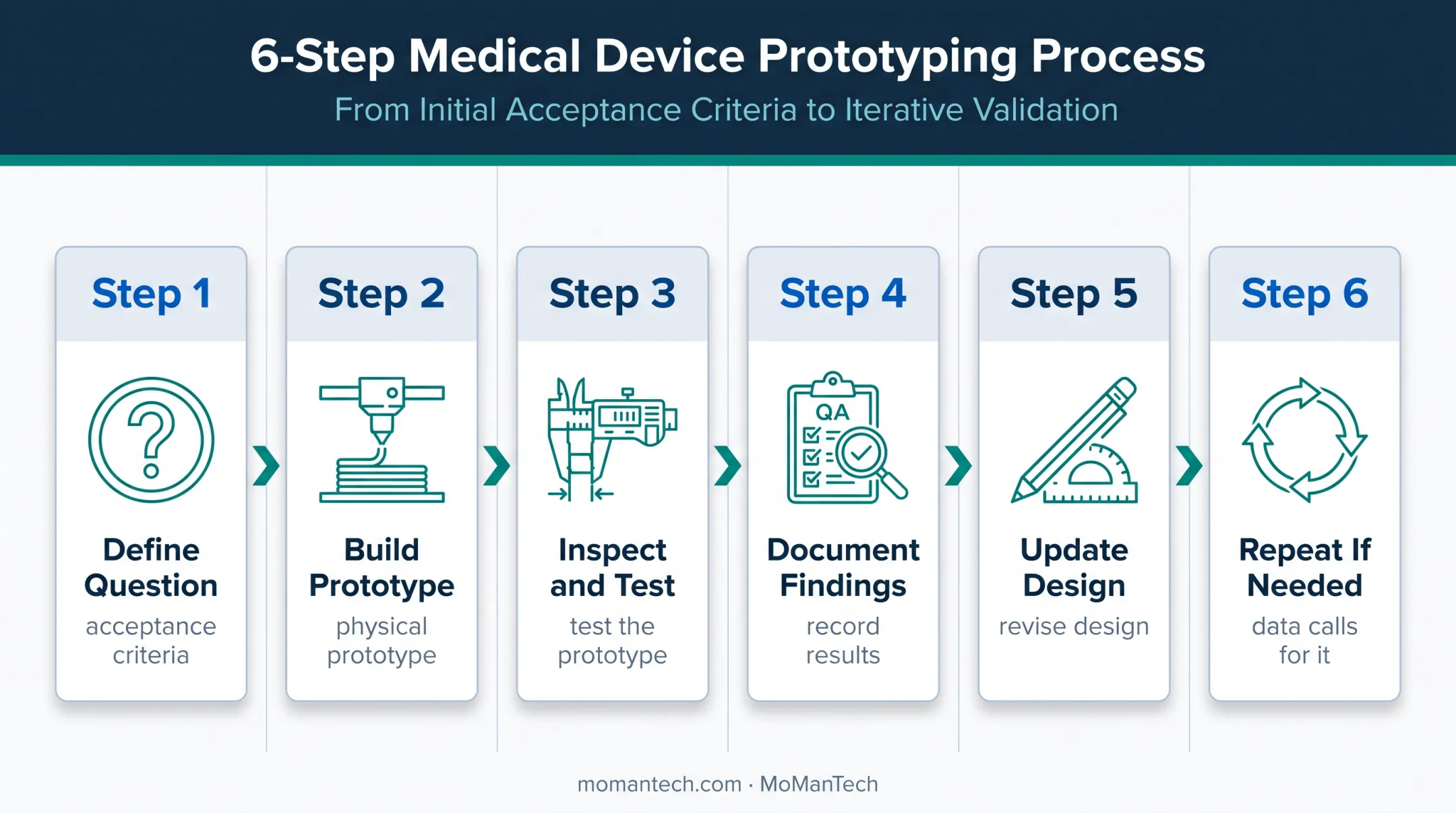

Test-and-Revise Cycle

1. Define the question and acceptance criteria
2. Build the prototype
3. Inspect and test it
4. Document the findings
5. Update the design
6. Repeat only if the data calls for it

Those test results should also drive design transfer—work that should not wait until the cycle ends.

Process planning, tooling and workholding, inspection strategy, and supplier coordination need to take shape well before commercial production. That early work confirms the chosen method can hit expected quantities and repeatability.

Choosing a Manufacturing Method for Medical Device Prototypes

The right manufacturing method depends on what the prototype needs to prove: fit, function, manufacturability, or all three. Quantity, material, geometry, tolerance, and how closely the process needs to mirror eventual production all factor in.

Method	Best suited for	Key consideration
CNC machining	Precise orthopedic prototypes, low-volume components, tight dimensional control	Strong fit when teams need machined metals or engineering polymers and quick design iteration
Additive manufacturing / 3D printing	Concept models, complex geometries, anatomical models, fit checks	Material availability, surface finish, biocompatibility, and sterilization must match intended use
Injection molding / soft tooling	Stabilized designs that need multiple similar parts	Tooling investment trades off against iteration speed and production representativeness

CNC machining tends to be the workhorse for orthopedic prototypes that need tight tolerances and functional interfaces. Published tolerance capabilities vary by shop and process: Protolabs lists a general CNC tolerance of +/-0.005 in., with network partners achieving tighter results.

Those figures are a starting point, not a guarantee for any specific critical feature. Confirm tolerance and finish requirements directly with your manufacturer rather than relying on published averages.

Additive manufacturing earns its place for anatomical models, fit checks, and certain functional evaluations, but material anisotropy, surface finish, and biocompatibility all need separate assessment for the intended use. A powder material being suitable for a surgical cutting guide model doesn't automatically mean it's cleared for patient contact.

Injection molding and soft tooling make sense once a design has stabilized and the team needs multiples of a similar part, but the tooling investment only pays off if the design isn't still changing.

A Practical Decision Framework

Define the prototype's purpose first. Then compare methods against:

• Required quantity and fidelity
• Material and geometry constraints
• Critical-to-quality features
• Inspection plan
• Schedule and budget

Design-for-manufacturability should happen during this stage, not after. Cover feature geometry, tool access, fixturing, burr and edge control, surface requirements, and opportunities to reduce secondary operations.

A prototype must show more than whether the design works. It must show whether that design can be manufactured consistently, inspected objectively, documented properly, and scaled to match your expected order pattern.

Testing, Quality, and Regulatory Readiness

Verification and validation sound similar but answer different questions. Verification confirms the design output meets specified requirements. Validation confirms the device meets user needs and intended use under appropriate conditions.

Confirm the exact terminology and requirements that apply to your device with your quality and regulatory team rather than assuming one general definition covers every situation.

Test categories that may apply to orthopedic prototypes include:

• Dimensional inspection
• Functional and mechanical testing
• Usability or human-factors evaluation
• Durability and environmental exposure testing
• Material assessment
• Cleanliness, packaging, or sterilization-related testing

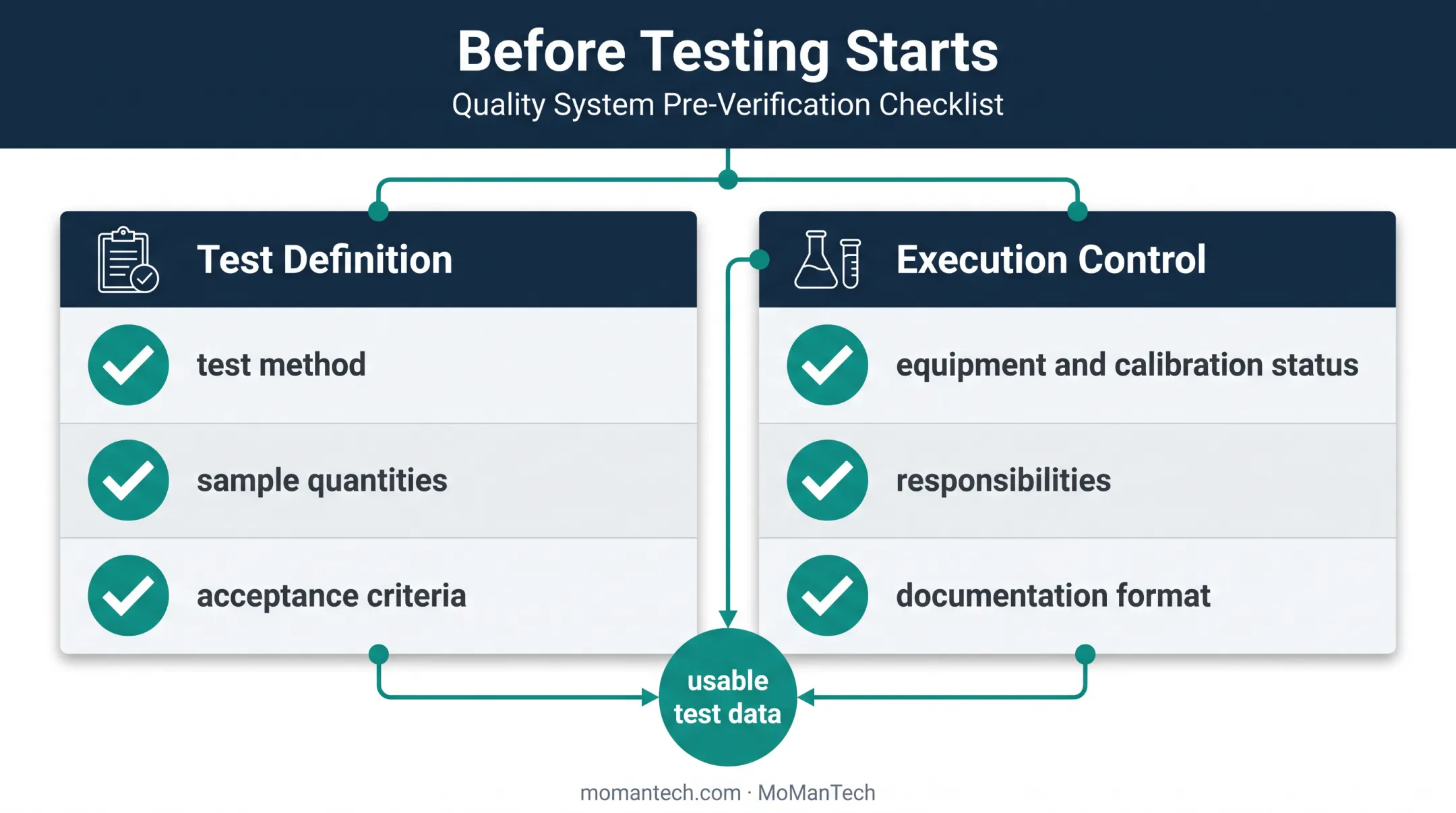

Before testing starts, define the test method, sample quantities, acceptance criteria, equipment and calibration status, responsibilities, and documentation format. Skipping this step is how teams end up with test data nobody can actually use later.

Even at the prototype stage, quality-system basics still apply:

• Drawing and revision control
• Material and lot traceability
• Nonconformance handling
• Inspection records
• Documented process controls and approvals

ISO 13485:2016 certification is a useful signal when evaluating a manufacturing partner, but it doesn't replace your responsibility for product classification, risk management, and regulatory strategy. A certified shop building your prototype doesn't make the prototype itself cleared for clinical use.

MoManTech's quality approach reflects this: controlled processes, trained personnel, and comprehensive inspection on every component, with a system built to meet or exceed ISO 13485:2016 and FDA requirements. That's a supplier-evaluation signal, not a substitute for your own regulatory work.

From Prototype to First Article and Repeat Production

An exploratory prototype, a first article, and a production part aren't the same thing, and treating them as interchangeable causes problems. Each carries different expectations for design maturity, process control, inspection, and documentation.

To quote or plan work, a manufacturer typically needs:

• Current drawings and CAD files
• Material specifications
• Target quantities
• Critical-to-quality features and tolerances
• Surface requirements and inspection expectations
• Certifications and delivery objectives

First-article activity confirms the design, manufacturing process, and inspection approach all line up before repeat orders go out the door. Any deviations get resolved, and documentation gets updated before release, not after.

Once the first article is approved, production planning has to cover more than unit price. Key factors include:

• Quantity patterns and repeatability targets
• Available capacity and automation opportunities
• Secondary operations and inspection resources
• Realistic lead-time expectations

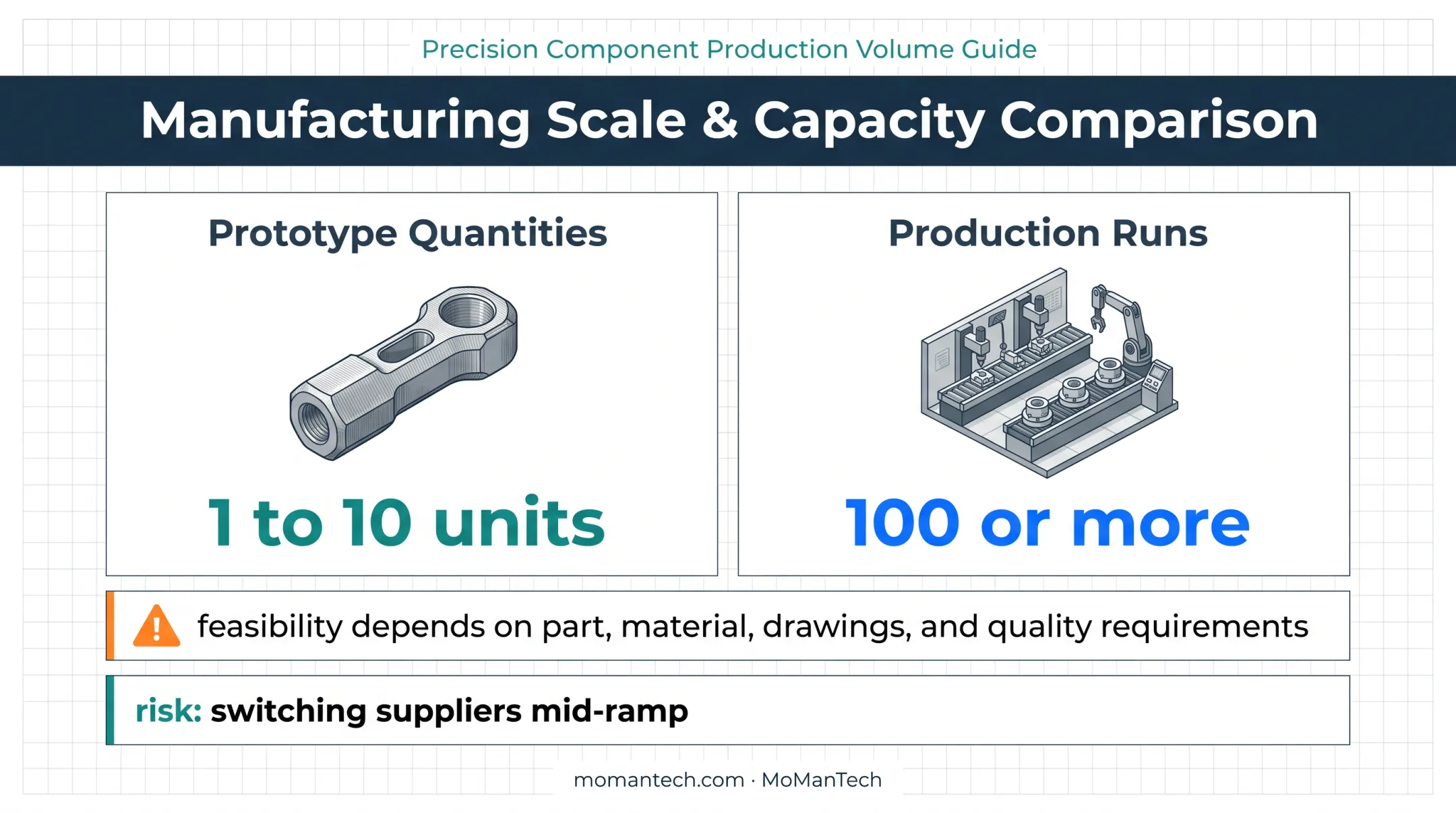

Orthopedic OEMs often start at prototype quantities of 1 to 10 units, then move toward production runs of 100 or more. Feasibility still depends on the part, material, drawings, and quality requirements. The real risk is being forced to switch from a small job shop to a high-volume supplier mid-ramp.

MoManTech is built to cover both ends of that range. Automated loading on CNC equipment has increased capacity for repeat orders without giving up the responsiveness smaller OEMs need in prototype rounds.

A partner that supports prototype through repeat production means faster iteration, clearer lead times, and a smoother ramp as order volume grows.

How to Choose a Medical Device Prototyping and Manufacturing Partner

Supplier selection deserves the same rigor as design work. Before committing, check:

• Relevant orthopedic experience with spine, trauma, large joint, or extremity components
• Precision machining capability, including multi-axis and Swiss machining for complex geometries
• Design-for-manufacturability input, not just build-to-print execution
• Quality-system maturity, including ISO 13485:2016 certification
• Inspection capacity, including CMM, vision, or laser measurement equipment
• Material traceability and documentation practices
• Confidentiality and communication practices for early-stage concepts

Ask specifically how a potential partner manages drawing revisions, engineering changes, material certifications, nonconforming parts, inspection reports, and first articles. The answers tell you more about day-to-day reliability than a capabilities list ever will.

That same day-to-day reliability is harder to find when you're a startup or small-to-mid-size OEM. These teams often get overlooked by suppliers chasing only large accounts. A partner willing to run a 1–10 unit prototype lot and still scale with you into three-digit production runs solves a real problem that high-volume-only shops create by default.

MoManTech is an ISO 13485:2016-certified contract manufacturer focused exclusively on orthopedic medical-device components. The shop supports spine, trauma, large joint, and foot-and-ankle applications from prototype quantities through production. If you have part drawings, intended quantities, materials, and inspection requirements ready, reach out to see whether it's a fit for your next build.

Frequently Asked Questions

What is a medical device prototype?

A medical device prototype is a physical or digital representation built to evaluate a device's design, function, fit, materials, usability, or manufacturability before final production. It is not automatically approved for clinical or commercial use.

What are the main types of prototypes used in medical device development?

Common types include concept or visual models, proof-of-concept builds, functional prototypes, anatomical or user models, and production-representative or pilot prototypes. Each supports a different stage of development.

What is rapid prototyping, and what methods are used for medical device prototypes?

Rapid prototyping is an accelerated build-test-revise cycle used to answer design questions quickly. Common methods include CNC machining, additive manufacturing (including 3D printing), and soft tooling, chosen based on material, geometry, quantity, and the specific test objective.

What medical devices can be 3D printed?

3D printing supports anatomical models, fit and workflow checks, select instrument or housing prototypes, and some custom components. Material strength, biocompatibility, sterilization, and regulatory suitability must still be assessed for the intended use.

What are some examples of medical device prototypes?

Examples include spinal or trauma components, surgical instruments, orthopedic implant models, patient-specific anatomical models, and device housings. The required fidelity and testing always depend on the prototype's purpose.
