Introduction
An external fixation device holds bone steady with a frame you can see from outside the body. Pins, screws, or wires anchor into bone and connect to rods, rings, or struts. Surgeons turn to it when fracture complexity or soft-tissue damage makes other options risky.
The tradeoffs are real. In a multicenter prospective study, pin-site infection (score >1) appeared in 63 of 132 patients (47.7%). That is a design, technique, and care problem all at once.
This article explains how these devices work, compares the main configurations, covers applications and risks, and outlines what surgeons and orthopedic OEMs should weigh when evaluating design.
Medical disclaimer: Device selection, placement, pin-site care, activity restrictions, and treatment duration must be determined by the treating orthopedic team.
Key Takeaways
- External fixation stabilizes bone through pins, screws, or wires linked to an outside frame.
- Monolateral, circular, hybrid, and hinged systems trade off stability, adjustability, and soft-tissue access.
- Safety depends on indication, technique, follow-up care, materials, verification, and documented manufacturing controls.
- OEMs should assess clinical usability and production readiness together.
What Are Orthopedic External Fixation Devices?
External fixation stabilizes bone with anchorage elements placed into bone and connected to rods, rings, struts, or clamps outside the body. The AAOS notes that fixation can be temporary or definitive.
Core Components
- Half-pins or bone screws: anchor the frame to bone; diameter and placement influence stability
- Wires: tensioned across rings in circular systems
- Rods and rails: connect fixation points in linear frames
- Rings and struts: form circular frames and allow alignment adjustment before locking
- Clamps and couplings: join components and permit repositioning
- Instrumentation: supports frame assembly with drills, sleeves, wrenches, and tensioners
How Frames Manage Force
A frame can hold alignment (neutral stabilization), bring bone ends together (compression), or gradually separate them (distraction) for lengthening or correction. No single configuration suits every case.
External vs. Internal Fixation
Internal fixation places plates, screws, nails, or rods beneath the skin. External fixation keeps the frame outside, so the surgical team can reach the limb and adjust the construct. Neither is universally better.

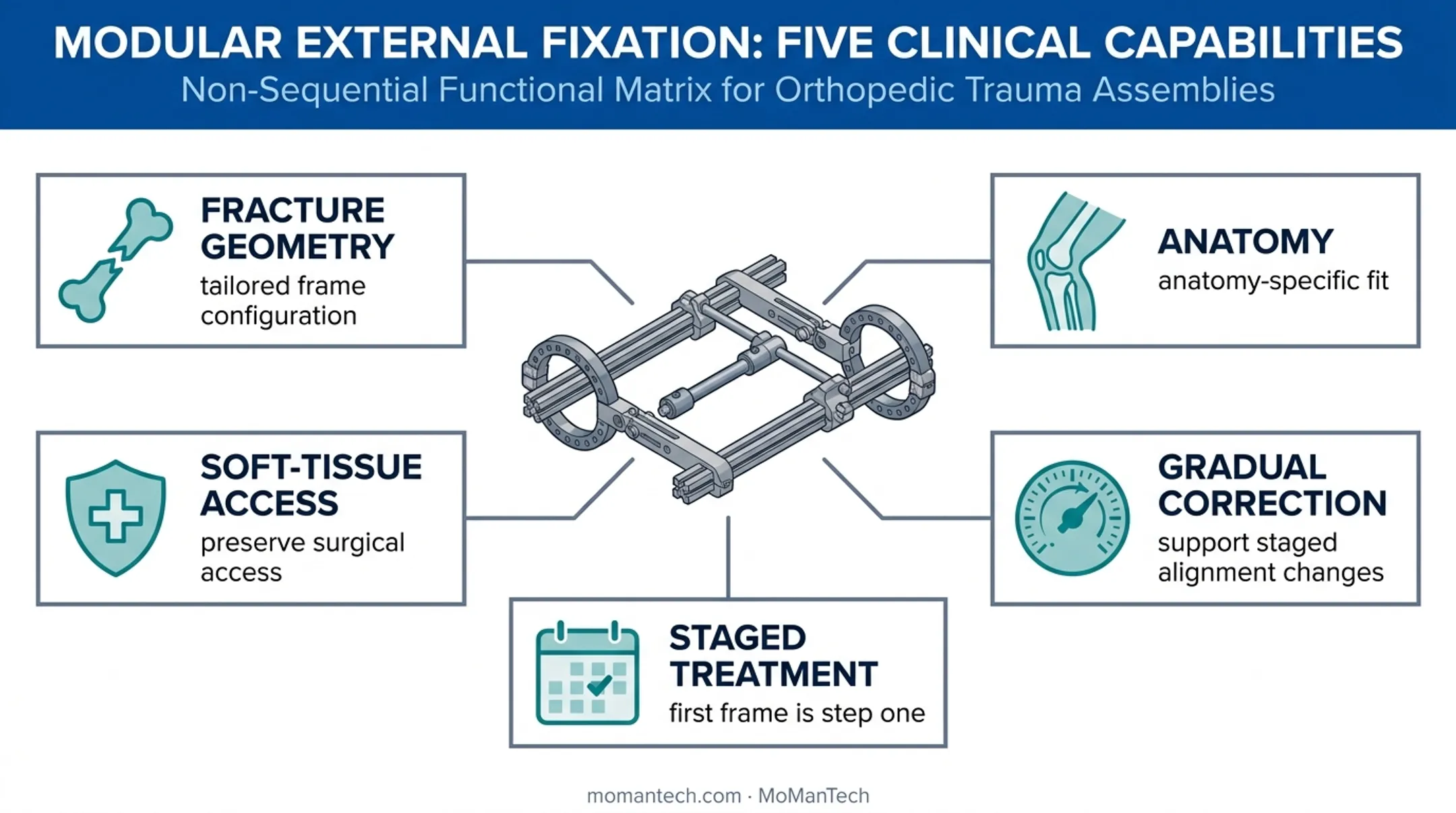

Why Modularity Matters
Modular frames can be tailored to fracture geometry, anatomy, and soft-tissue access. They also support gradual correction and staged treatment, where the first frame is only step one.
Device-level attributes matter as much as frame design. MRI compatibility, sterilization status, material composition, and permitted use are device-specific. Hoffmann 3 labeling covers certain MR Conditional constructs, while Hoffmann LRF is labeled MR Unsafe. Always confirm with the manufacturer's labeling.

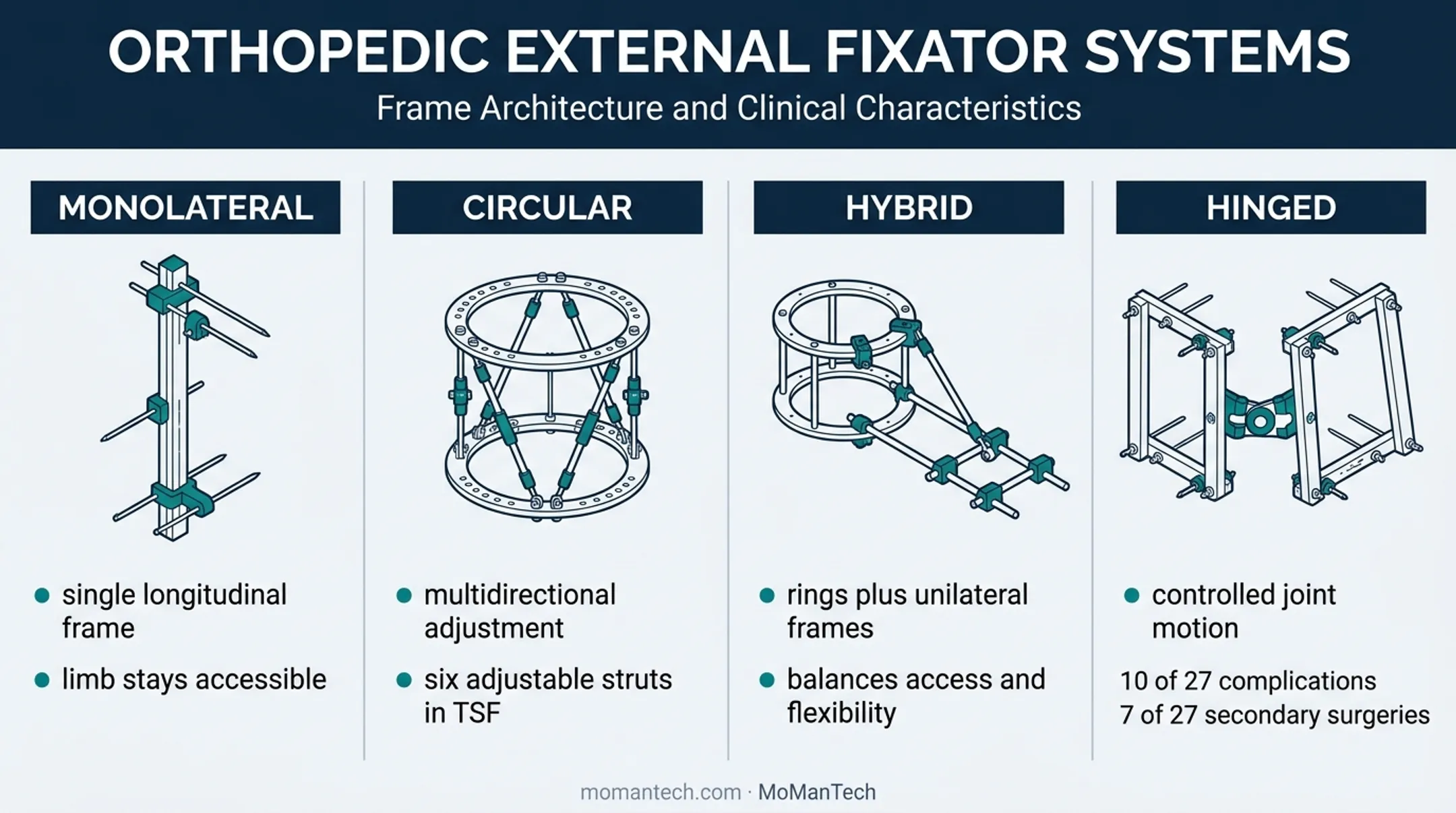

Types of Orthopedic External Fixation Devices
Monolateral or Unilateral Fixators
Half-pins enter from one side of the bone and connect to a single longitudinal frame. Assembly is relatively straightforward and the limb stays accessible.
Limits include:
- Frame position relative to the bone
- Pin spread and soft-tissue anatomy
- Rigidity the injury demands
According to biomechanical research, larger half-pins, extra fixation points, reduced bone-to-frame distance, and out-of-plane pins increase unilateral stability.
Circular or Ring Fixators
These systems use full or partial rings joined by tensioned wires, half-pins, and struts. They suit multidirectional adjustment, deformity correction, gradual lengthening, and complex alignment control. Hexapod (TSF-type) designs connect two rings with six adjustable struts for multiaxial correction.
Geometry drives performance:
- Smaller equal-thickness rings are more stable
- Long unsupported connecting rods allow more inter-ring movement
- Wire tension, diameter, and crossing angle change stiffness
- Lost pretension can destabilize the frame
These findings depend on configuration and are not universal specifications.
Hybrid Fixators
Hybrids pair ring or partial-ring elements with unilateral frames, pins, or wires. In selected complex cases, this combination balances access, flexibility, and fixation options, though mechanical behavior mixes characteristics of both systems.
Hinged and Specialized Configurations
Some frames add hinges to permit controlled joint motion while supporting an unstable joint. In a 2015 hinged-elbow series of 27 adults, 10 (37%) had fixator-related complications and 7 (26%) needed secondary surgery, even though pain and function improved. Hinge axis positioning matters.
Choice of configuration rests on the injury, bone and soft-tissue condition, treatment plan, and surgeon judgment, not device type alone.
Clinical Applications and Potential Benefits
Where These Devices Are Used
- Open fractures and soft-tissue injury: temporary fixation when surrounding tissue is badly damaged, or definitive fixation in selected cases
- Damage control orthopedics: rapid stabilization in polytrauma patients
- Infected nonunion and bone loss: a 2026 review describes bone transport through controlled distraction
- Deformity correction and lengthening: adjustable linear, circular, and hexapod systems support distraction osteogenesis
Potential Benefits
- Stabilization while keeping access to injured soft tissue
- Adjustability during healing
- Room for soft-tissue swelling
- Possible avoidance or delay of extensive internal hardware in selected cases
Benefits Have Limits
Those advantages do not apply in every case. The 2022 FIXIT randomized trial assigned 127 patients to external ring fixation for severe open tibial fractures. The one-year major-limb-complication probability was 62.1%, and the authors argued against routine ring fixation for those injuries.
Bone transport also carries burdens:
- Prolonged frame wear
- Nerve damage
- Joint contracture
- Pin-tract scarring
- Infection
A Selection Framework
Surgeons weigh:
- Fracture pattern and anatomic location
- Bone quality and soft-tissue condition
- Infection risk
- Required correction
- Rehabilitation goals and patient factors
- Surgeon experience
Outcomes depend on indication, configuration, technique, and follow-up, not on the device alone.
Risks, Complications, and Practical Considerations
Common Complications
- Pin-tract infection
- Pin or screw loosening
- Frame instability or clamp and rod problems
- Soft-tissue irritation
- Neurovascular injury
- Joint stiffness
- Delayed healing from inadequate mechanics
- Frame adjustment or revision

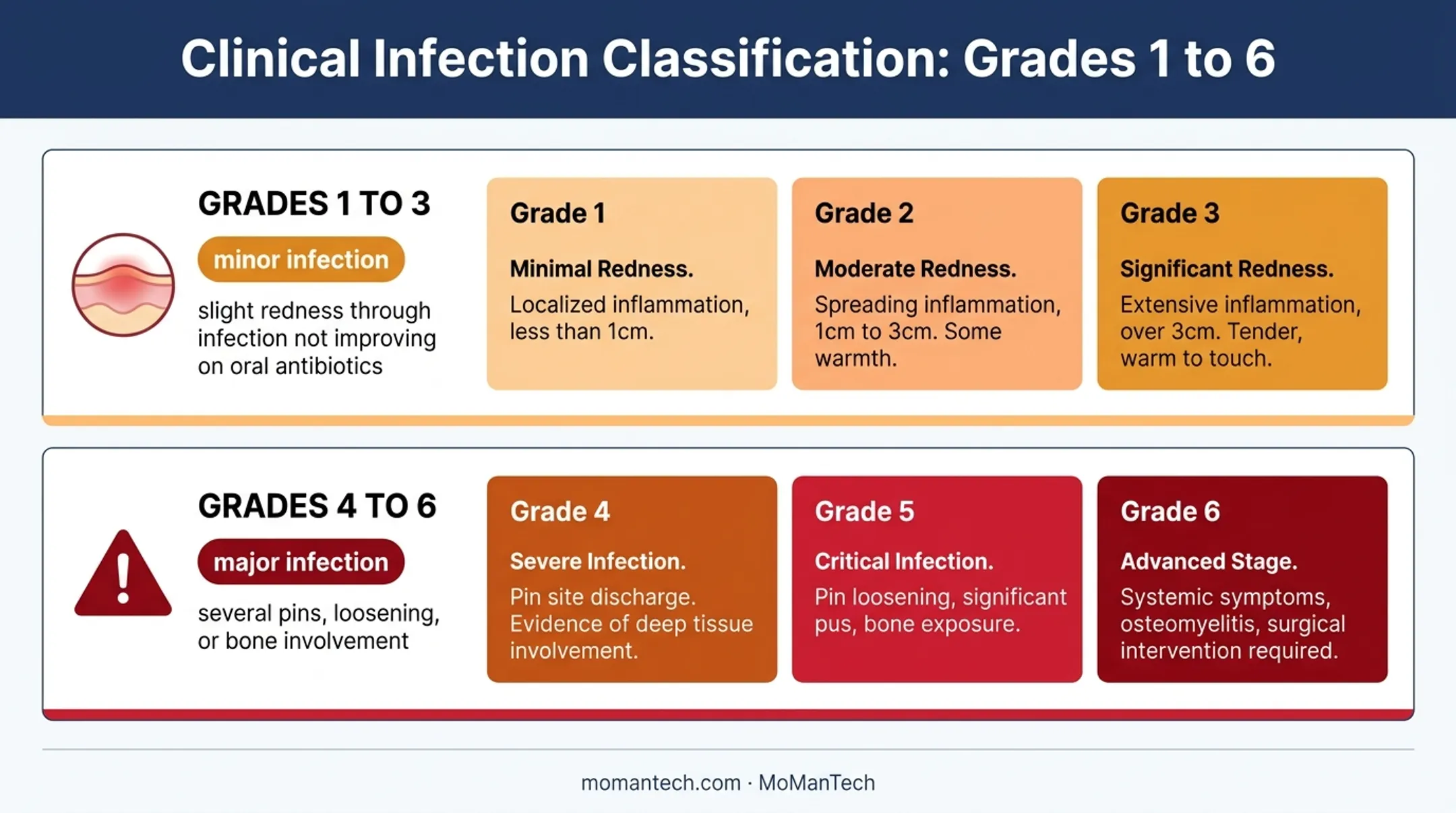

Infection is graded on the Checketts-Otterburn scale. Grades 1 to 3 are minor, from slight redness through infection that does not improve on oral antibiotics. Grades 4 to 6 are major and involve several pins, loosening, or bone involvement.
A 2016 literature review found no consensus on the best prevention strategy.
Warning Signs
Contact the treating team promptly for:
- Worsening or persistent pin-site pain
- Increasing redness or swelling
- Thick or colored drainage
- Fever
- Pin movement or new instability
- Numbness or changes in limb color
Do not self-diagnose or adjust the frame.
Living With a Frame
Clothing, bathing, sleeping, and using mobility aids all get harder. In a deformity and lengthening survey, 71.7% of respondents were satisfied despite pain, walking difficulty, and frame weight. The sample was small, so interpret cautiously.
Body-image concerns, loss of independence, and anxiety are common. Rehabilitation and mental-health support can help. Follow your surgeon's instructions and the device's official labeling over generic online advice.
Design and Manufacturing Considerations for External Fixation Devices
Design for Manufacturability and Functional Performance
Tolerances, thread geometry, clamp interfaces, locking mechanisms, surface finish, and component interchangeability all affect assembly and fixation reliability. Frame ergonomics shapes the user experience.
Designers should evaluate:
- Low-profile geometry
- Instrument access
- Intuitive assembly
- Radiographic visibility
- Compatibility between modular components (never assumed across manufacturers)
Run design-for-manufacturability reviews early. They expose difficult features, needless complexity, tolerance-stack risks, inspection challenges, and avoidable delays.
Materials, Finishing, and Device-Specific Safety
Material choice ties to corrosion resistance, biocompatibility, cleaning, sterilization, packaging, and shelf life. Relevant standards include:
| Domain | Standard |
|---|---|
| Mechanics | ASTM F1541 |
| Materials | ASTM F136 (Ti-6Al-4V ELI), ASTM F138 (stainless) |
| Risk | ISO 14971:2019 |
| Biocompatibility | ISO 10993-1:2025 |
| Packaging | ISO 11607-1 and -2 |
| Shelf life | ASTM F1980 |
MRI safety is a verification and documentation issue for the complete configuration. One component's material does not establish eligibility; FDA's 2023 MR guidance and ASTM F2503, F2052, F2213, F2182, and F2119 apply.
Verification and validation should include mechanical testing, simulated-use evaluation, and usability. ASTM F1541 does not predict individual clinical outcomes, and adjustability alone is not proof of clinical performance.
Instrumentation and Surgical Workflow
Stryker's LRF guide lists wire tensioners, cutting and bending pliers, several wrenches, a drill brace, sleeves, a pin driver, and a trocar. Typical sets also include guides, depth gauges, torque tools, and reduction tools, depending on the system.
Ergonomics, tray organization, cleaning access, and a clear workflow affect operating-room efficiency and reduce assembly and placement errors. Multi-component instruments need disassembly for cleaning.
Quality Systems and OEM Production Readiness
For devices sold in the US, plan for:
- Risk management
- Documented processes
- Material and lot traceability
- In-process controls and final inspection
- Nonconformance management
- Supplier qualification

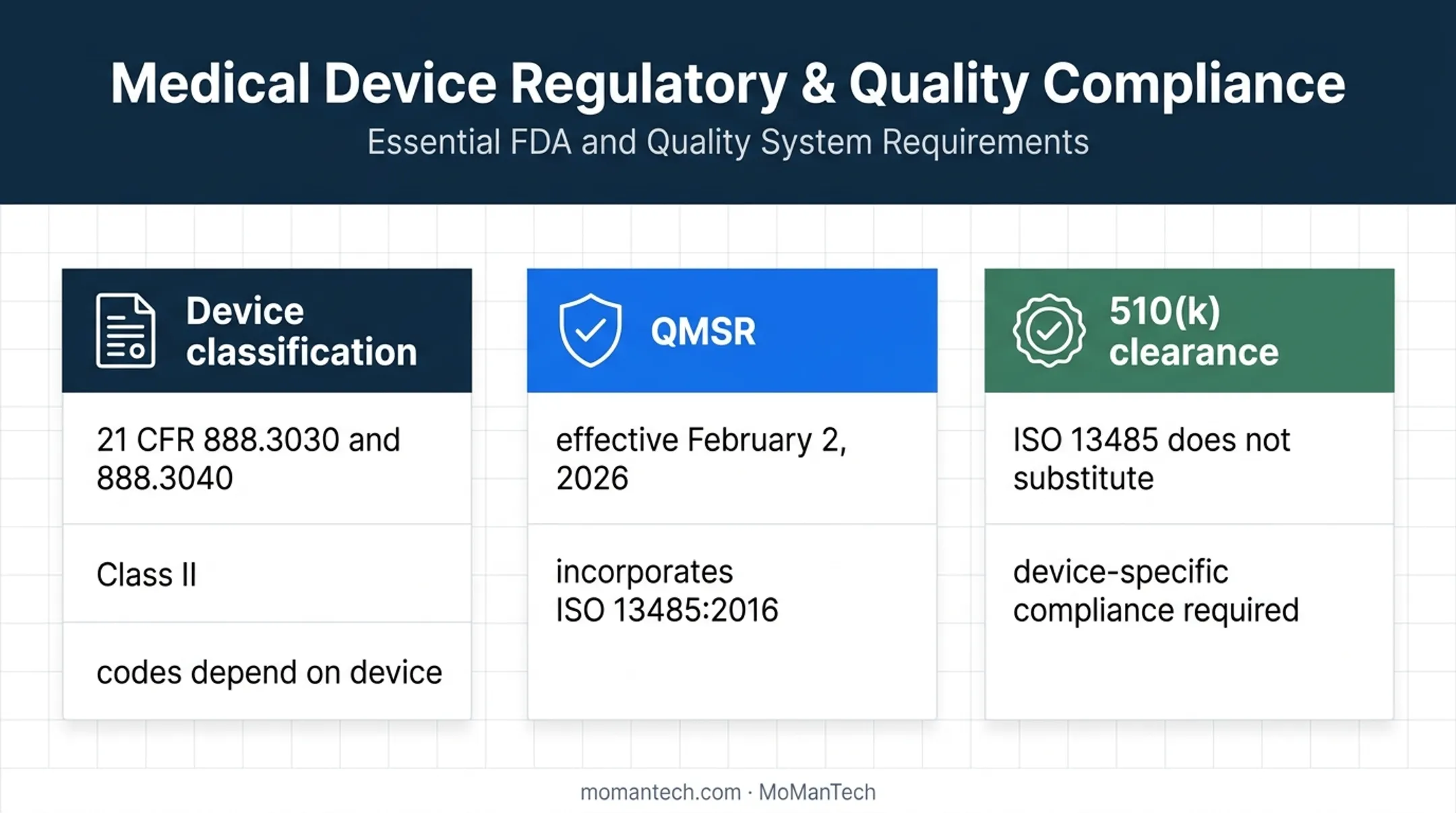

External fixation components typically fall under 21 CFR 888.3030 and 888.3040 (Class II), with codes that depend on the device. FDA's revised QMSR, effective February 2, 2026, incorporates ISO 13485:2016. ISO 13485 does not substitute for 510(k) clearance or device-specific compliance.
MoManTech, an ISO 13485:2016-certified contract manufacturer in Sheridan, Montana, focuses on orthopedic components. Capabilities include:
- CNC milling, Swiss turning, and wire EDM
- Metal 3D-printed prototyping (17-4 and 316L stainless, titanium)
- Ultrasonic cleaning and citric passivation
- CMM and laser measurement
It offers design-for-manufacturability consultation during planning. Lot sizes range from 1 to 10 prototype units to 100+ production units. Every component is inspected before shipping. Its fit is components for trauma and extremity work; standalone instrumentation manufacturing is outside its scope.
Questions to Ask a Manufacturing Partner
- What prototype support and first-article process do you offer?
- Which tolerances can you hold, and how do you verify them?
- What inspection documentation ships with each lot?
- What are realistic lead times for prototypes and production?
- How do you handle process validation?
- Can you scale from pilot lots to larger runs?
- How do you communicate from design review through production?
Frequently Asked Questions
What is an internal fixation device?
Internal fixation uses hardware beneath the skin, such as plates, screws, nails, or wires, to hold reduced bone. External fixation keeps the frame outside. Neither is universally better.
How painful is an external fixator?
Discomfort can occur during placement, recovery, pin-site care, movement, and adjustments, and it varies by injury and patient. Persistent pin-site pain is a warning sign. Ask your clinical team for individualized guidance.
What instruments are used in external fixation?
Common tools include drills, pin or wire guides, sleeves, wrenches, torque tools, tensioners, cutters, and reduction tools. The exact set depends on the system.
What are the main types of orthopedic external fixation devices?
The main types are monolateral, circular, hybrid, and hinged or specialized systems. The right type depends on the injury, anatomy, soft tissues, and treatment goals.
When are external fixation devices used?
They are used in selected complex or open fractures, soft-tissue damage, staged trauma care, infection, deformity correction, and limb lengthening, as determined by an orthopedic specialist.
How long does an external fixator stay in place?
Duration varies with bone healing, injury complexity, soft-tissue recovery, infection, and correction goals. One lengthening survey reported 21 to 376 days. Never remove or adjust the device without your care team.
