This guide is for medical-device engineers, OEMs, product developers, and startup teams weighing Nitinol for implants, instruments, catheters, or minimally invasive systems. It covers properties, major applications, manufacturing challenges, safety, cost drivers, and how to choose a supplier.
Key Takeaways
- Nitinol is a nickel-titanium alloy prized for shape memory and superelasticity.
- Those properties enable self-expanding, kink-resistant, minimally invasive designs.
- Performance hinges on composition, heat treatment, surface condition, and fatigue control.
- Vet traceability, validation evidence, and inspection systems before choosing a partner.
What Is Nitinol? Properties That Enable Medical Devices
What Nitinol is and how its phase transformation works
Nitinol is a near-equiatomic nickel-titanium alloy. FDA's 2021 Nitinol guidance describes a reversible transformation between austenite (the stiffer, high-temperature phase) and martensite (the softer, low-temperature phase). That transformation drives two distinct behaviors:
- Shape memory: temperature-driven. A deformed part returns to its set shape when heated through its transformation range.
- Superelasticity: stress-driven. At body temperature, the material absorbs large strain and springs back when the load is removed.
Most implants and catheter components rely on superelasticity. Shape memory suits parts designed to change form when warmed.
Transformation temperatures are written as As/Af (start/finish of transformation to austenite on heating) and Ms/Mf (the same on cooling). Small shifts in nickel content strongly change them. Cold work lowers them, and aging can raise them. No universal Af value exists, so specify it for your alloy and process.
Measurement method matters too. ASTM F2004 uses thermal analysis (DSC), while ASTM F2082 uses bend and free recovery. FDA cautions that Af values from the two methods need not agree.
Shape memory and superelasticity in device design
A Nitinol component can be crimped into a catheter, delivered, and released to recover its geometry. That supports smaller delivery profiles, navigation through tortuous anatomy, self-expansion, controlled outward force, and repeated flexing.
Compare a stainless steel part and a Nitinol part crimped by the same amount. Stainless steel has an elastic limit near 0.2% strain, so it deforms permanently.
Nitinol can recover up to roughly 8% strain in a manufacturer's illustration from Memry's technical overview. Treat that figure as a benchmark under stated conditions, not a design allowable.
Biocompatibility, corrosion resistance, and fatigue performance
Implants live in a corrosive, cyclically loaded environment, so corrosion behavior and fatigue life matter as much as strength. But the alloy name alone does not establish biocompatibility. Surface condition, processing residues, coatings, geometry, and the finished-device configuration all need evaluation.
FDA ties corrosion and nickel-release performance to manufacturing and surface processing. It points to biological evaluation under ISO 10993-1 and, where indicated, nickel-release testing. For fatigue, it recommends device-specific constant-life curves using representative finished-device samples. Nitinol is not risk-free; it simply carries risks you can test for and control.
Forms used in medical devices
- Wire and wireforms: guidewires, baskets, coils, and braided structures
- Tubing: laser-cut stents and hypotube shafts
- Sheet and strip: formed or cut components
- Braid and mesh: expandable catheter shafts, EP catheters, and occluders
The form shapes flexibility, radial force, pushability, fatigue behavior, and the manufacturing route. Laser cutting, wire forming, and braiding are all documented routes.
Why engineers compare Nitinol with other medical metals

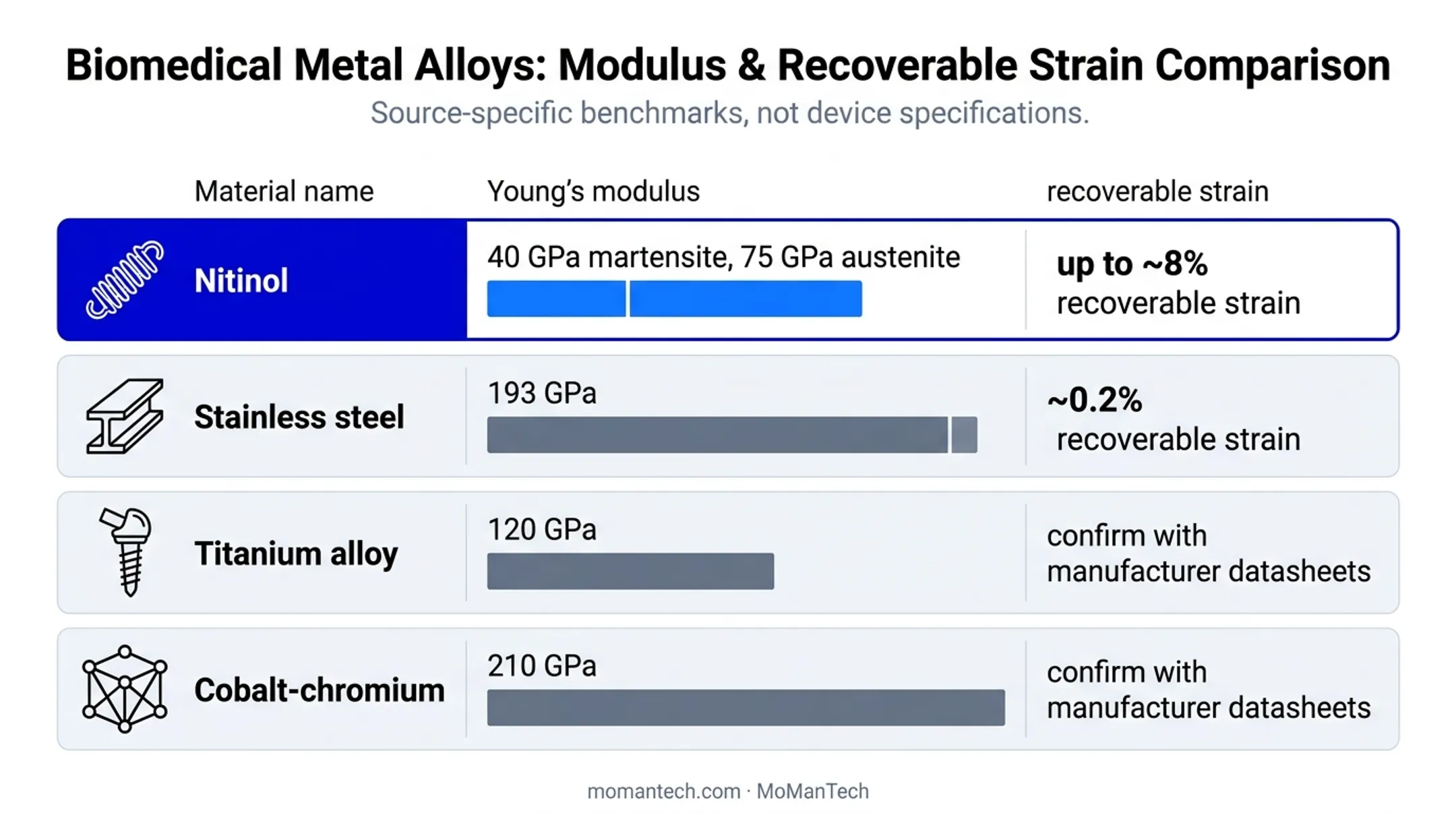

| Material | Young's modulus benchmark | Recoverable strain |
|---|---|---|
| Nitinol | 40 GPa (martensite), 75 GPa (austenite) | Up to ~8% |
| Stainless steel | 193 GPa | ~0.2% |
| Titanium alloy | 120 GPa | Confirm with manufacturer datasheets |
| Cobalt-chromium | 210 GPa | Confirm with manufacturer datasheets |
These are source-specific benchmarks, not device specifications. Nitinol is not automatically the stronger or better choice. It is more compliant and more recoverable, while stainless steel and cobalt-chromium are stiffer.
Even among transcatheter valves, the Edwards SAPIEN 3 uses a balloon-expandable cobalt-chromium frame. Let clinical function, loading, delivery method, and regulatory needs decide.
What Is Nitinol Used for in Medical Devices?

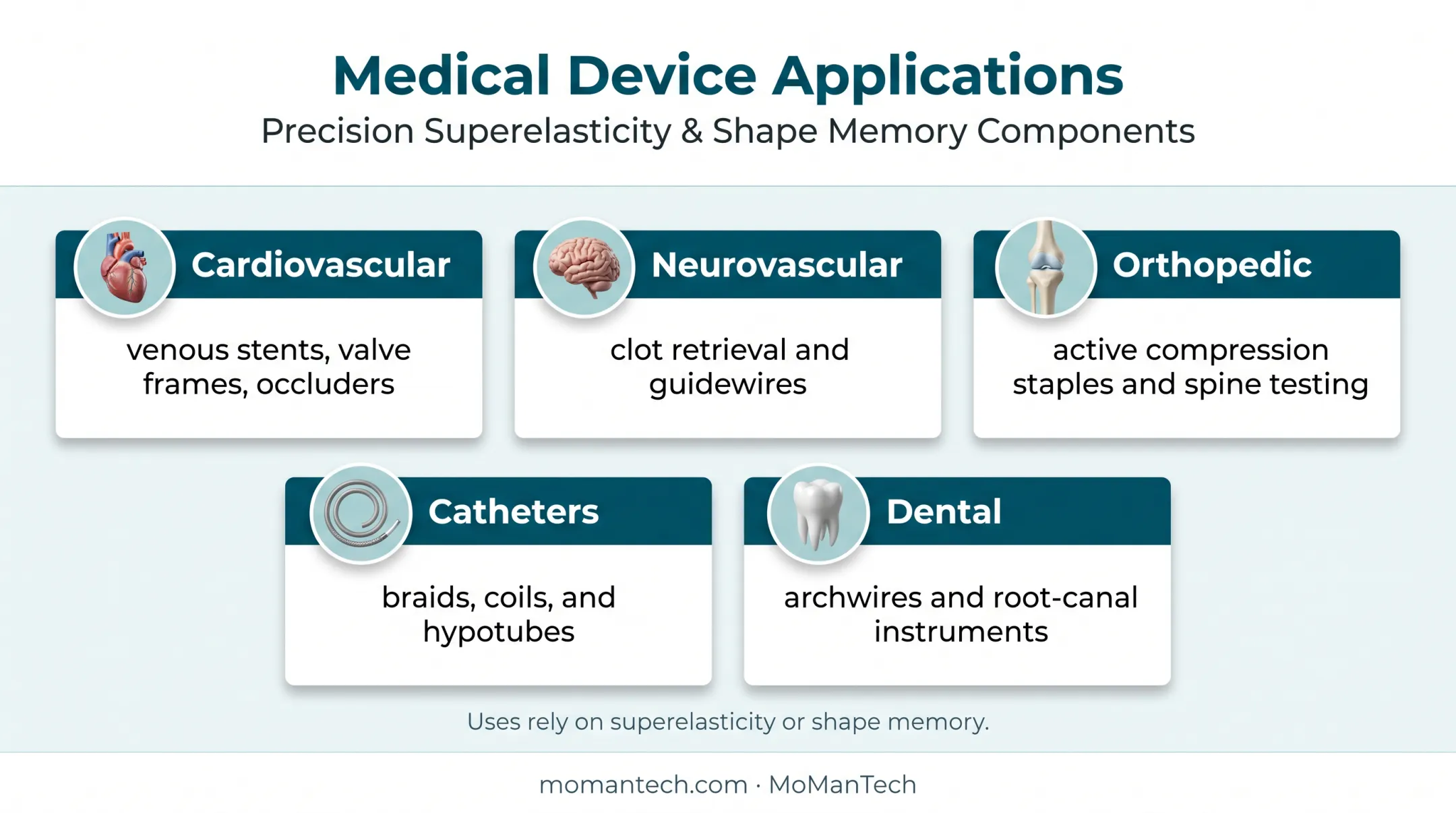

Cardiovascular and structural-heart devices
Self-expanding designs are constrained in a catheter, positioned, then released to their intended geometry. Documented examples:
- Medtronic Abre: a Nitinol venous stent that exerts outward force after deployment, indicated for symptomatic iliofemoral venous outflow obstruction
- Medtronic Evolut PRO+: a Nitinol frame supporting a tissue valve
- AMPLATZER PFO Occluder: a self-expanding double-disc device made from Nitinol wire mesh
Neurovascular and interventional devices
- Solitaire FR: a self-expanding, fully retrievable Nitinol stent-based clot-retrieval design, per its 2012 FDA 510(k) summary
- Stryker Synchro guidewires: a microfabricated Nitinol distal hypotube for torque transmission (not an all-Nitinol wire)
Superelasticity helps navigation and retrieval, but performance also depends on braid design, coatings, tip design, surface finish, and delivery-system integration.
Orthopedic, spinal, joint, and extremity devices
Orthopedic uses lean on sustained compression. The Stryker EasyClip is a superelastic Nitinol staple providing active compression across an osteotomy site. In spine, Nitinol rods have been tested in a synthetic corpectomy model, which is bench evidence rather than proof of a marketed indication.
Compression level, load cycle, bone interface, geometry, and deployment method all drive material and design decisions. Orthopedic OEMs in spinal, trauma, large-bone, and foot-and-ankle work often evaluate Nitinol for these reasons.
Catheters, tubing, and reinforcement structures
Braids, coils, and hypotube structures balance flexibility with pushability and torque control. Braided Nitinol appears in expandable catheter shafts and EP catheters. The role varies:
- Medtronic Sphere-9: a Nitinol lattice tip whose electrode delivers pulsed-field or RF energy; mini-electrodes support mapping and thermocouples provide feedback
- Symplicity Spyral: its spec lists a "nickel/titanium" spiral shaping element, which does not by itself establish a Nitinol heating or sensing role
Dimensional consistency, surface quality, radiopacity, fatigue life, and compatibility with adjoining polymers or metals must be settled during design.
Dental and other medical applications
NiTi orthodontic archwires and endodontic root-canal instruments are documented uses. Sustained force and flexibility explain the fit.
Less common uses vary in maturity:
- Established: the Hydrus Microstent (ophthalmic, FDA labeling 2018) and WallFlex Colonic stent (2020 FDA clearance)
- Experimental: a 2022 study of ultrasound localization of thin Nitinol wires in a gelatin phantom, which is proof-of-concept, not clinical validation
Benefits, Limitations, and Safety Considerations
Device and patient benefits
Nitinol enables:
- Smaller access routes
- Self-expanding deployment
- Conformability
- Sustained force
Commercial devices such as Abre and AMPLATZER illustrate how that deployment works in practice. Those examples do not, on their own, prove fewer complications. Outcome claims still need clinical or regulatory evidence.
Practical limitations and cost drivers
Material price is only one slice of program cost. Key cost drivers include:
- Raw-material purity and controlled melting, which affect cleanliness and inclusions, per Fort Wayne Metals
- Cold work, heat treatment, and shape setting that alter transformation and mechanical behavior
- Removal of the recast layer on laser-cut parts, followed by surface finishing
- Finished-device transformation, corrosion, nickel-release, and fatigue testing
Low-volume prototypes, custom geometries, scrap risk, tooling, and validation all add to total cost. No universal price benchmark exists, so get quotes against your actual design.
Safety, nickel exposure, and MRI considerations
Nickel content, surface condition, corrosion behavior, and coatings must be assessed through biological-safety and regulatory processes.
MRI safety is device-specific. FDA's October 2023 guidance addresses testing and labeling of the complete device, not an alloy-level label. ASTM F2503 defines MR Safe, MR Conditional, and MR Unsafe. Related tests cover:
- Magnetically induced displacement force (F2052)
- Magnetically induced torque (F2213)
- RF-induced heating (F2182)
- Image artifact (F2119)
Never assume "Nitinol means MRI-safe."
How Nitinol Medical Devices Are Designed and Manufactured
Material selection and transformation-temperature control
Composition, cold work, and heat treatment set transformation temperatures, stiffness, and recovery. Engineers first decide whether the part should be superelastic at body temperature or programmed for a temperature-triggered response, then specify Af accordingly.
ASTM F2063-18 covers wrought medical Nitinol bar, flat-rolled products, and tubing. Require lot traceability, material certificates, and incoming inspection, then verify properties before production use.
Forming, shape setting, and thermal processing

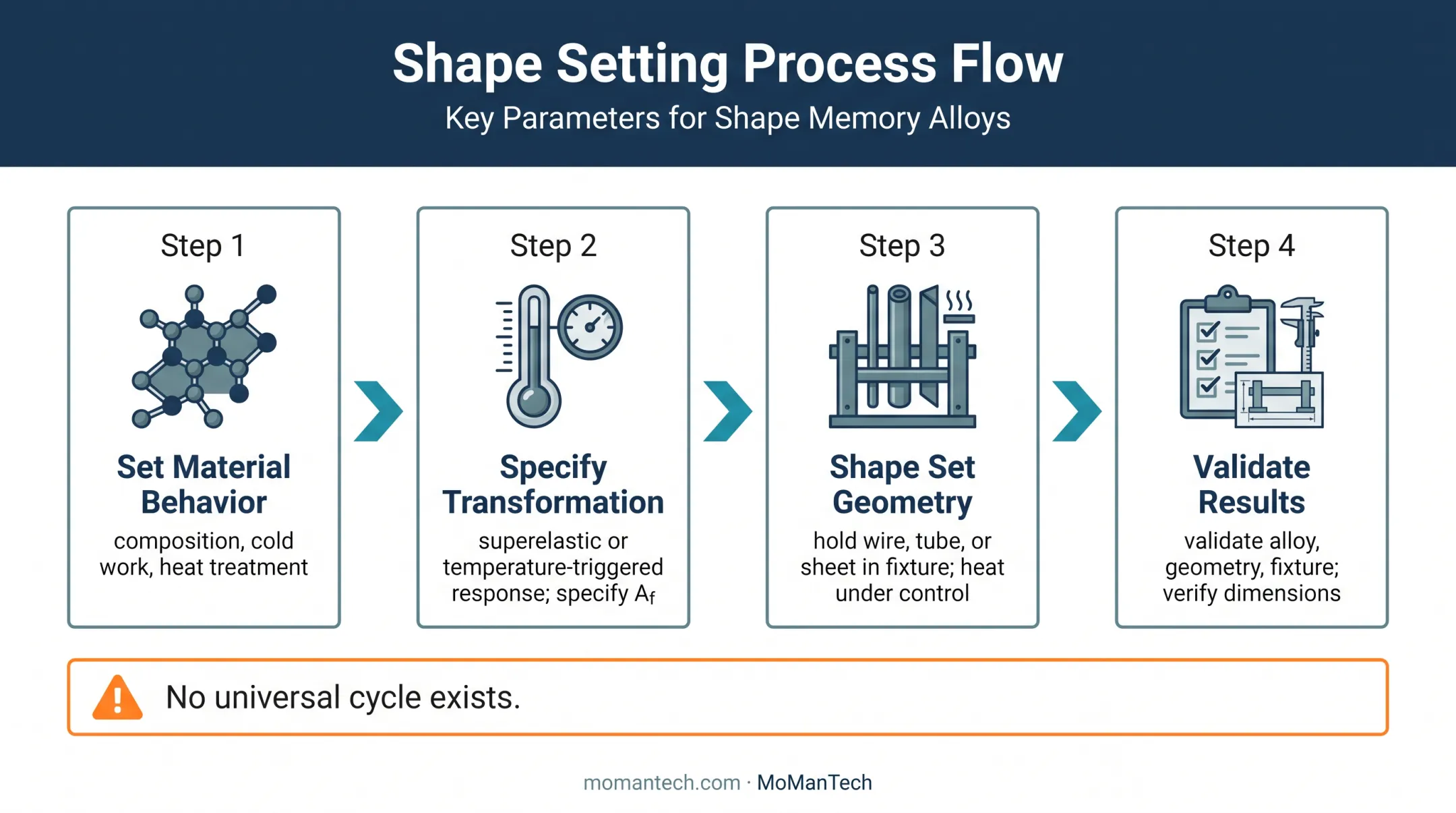

Shape setting holds wire, tube, or sheet in a mandrel or fixture and heats it under control to establish the final geometry. Fixture thermal mass and heating method affect results. Uncontrolled thermal exposure later can shift transformation behavior.
No universal cycle exists. Validate the process for your alloy, geometry, and fixture, and verify dimensions after setting.
Machining, laser processing, tubing, and surface finishing
Typical steps include:
- Precision machining
- Laser cutting of drawn tubing
- Wire or tube processing
- Electropolishing, chemical finishing, deburring, and cleaning
In a typical stent process, laser cutting leaves a thermally damaged, recast oxide layer. That layer is removed before electropolishing smooths and passivates the surface.
Inclusions can initiate fatigue cracks and promote corrosion. Burrs, scratches, recast layers, and contamination hurt fatigue life, corrosion performance, and biocompatibility. Confirm which processes a partner actually runs for your form and geometry.
Testing and validation
Depending on the device, expect:
- Dimensional inspection and mechanical or tensile testing
- Transformation-temperature measurement
- Fatigue testing, including ASTM F2477 for vascular stents
- Corrosion evaluation (ASTM F2129)
- Cleanliness verification and biological testing (ISO 10993-1)
FDA recommends characterizing transformation on the final finished form, ideally across at least three production lots. Validation should reflect sterilization, packaging, intended use, and worst-case loading, all within an ISO 14971 risk-management plan.
Design for manufacturability and scale-up
Settle tolerances, wall thickness, bend radii, transition zones, joining methods, and inspection access before freezing the design. Bring the OEM, material supplier, designer, and manufacturer together early to cut rework, scrap, and late validation changes.
Then move prototypes and first articles into repeatable production with documented process controls and inspection plans.
How OEMs Should Evaluate a Nitinol Manufacturing Partner
Technical and quality qualifications
Under the QMSR, effective February 2, 2026, FDA's quality rule amends 21 CFR Part 820 and incorporates ISO 13485:2016. Ask any candidate for:
- Documented Nitinol experience
- Batch-level material traceability
- Controlled thermal processing
- Surface finishing and cleaning capability
- Dimensional inspection and fatigue-related testing
- Process validation where results cannot be fully verified
- Supplier-change notification agreements and regulatory documentation
ISO 13485:2016 certification, trained personnel, defect prevention, and thorough inspection all signal a disciplined production partner.
Prototype-to-production responsiveness
Look for DFM reviews, prototypes, first articles, low-volume launches, and scaling without losing process knowledge. Ask about:
- Lead times and engineering communication
- Automated capacity
- Change control
- Quality records
- Handling of nonconformances
MoManTech as an orthopedic manufacturing partner
MoManTech is an ISO 13485:2016-certified contract manufacturer in Sheridan, Montana, focused exclusively on orthopedic components for spine, trauma, large joint, and foot-and-ankle programs. Its offering includes CNC milling, turning, wire EDM, multi-axis Swiss machining, DFM consultation, and documented inspection.
Lot sizes run from 1-10 prototypes to 100+ production units, and the team brings more than 70 years of collective orthopedic manufacturing leadership.
Nitinol is not part of MoManTech's standard material offering, so Nitinol-specific processing should not be assumed. If you have a Nitinol-containing implant or instrument project, MoManTech can discuss whether its precision manufacturing and quality systems fit your needs.
Frequently Asked Questions
Why is nitinol so expensive?
Controlled melting, tight composition control, difficult processing, heat treatment, finishing, testing, and medical-grade traceability all add cost. Volume and geometry also affect total program cost.
Can I buy nitinol?
Yes, in wire, tube, sheet, rod, and custom components. Medical programs should use qualified material, such as ASTM F2063-compliant stock with documentation, not unverified generic stock.
What is nitinol used for in medical devices?
Stents, guidewires, catheter reinforcement, clot-retrieval devices, heart-device frames, orthopedic staples, and orthodontic wires. Each relies on superelasticity or shape memory.
Is nitinol safe for MRI?
It depends on the complete device, configuration, labeling, and tested scan conditions. Check the product's official MRI safety information and consult clinicians.
How is nitinol processed for medical devices?
Through controlled forming or machining, shape setting, heat treatment, finishing, cleaning, inspection, and device-level validation. Exact steps depend on geometry and intended use.
Is nitinol stronger than stainless steel?
They excel differently. Stainless steel is stiffer, while nitinol offers far greater recoverable strain. Choose based on loading, flexibility, deployment, fatigue, and cost.
