316 Stainless Steel Machining 316 stainless steel earns its place in demanding environments because of what it resists: chlorides, bodily fluids, sterilization cycles, and years of mechanical loading. That same chemistry — higher chromium, nickel, and molybdenum content — also makes it harder to cut than 303 or 304 stainless.

Machinists dealing with 316 face faster tool wear, gummy chip formation, and a real risk of work hardening if a tool rubs instead of cuts. This guide is written for engineers, OEMs, and sourcing teams who need reliable 316 or 316L components and want to understand material selection, tooling, cutting parameters, finishing, and quality documentation before they sign off on a supplier.

One note before you read further: every cutting parameter and setup recommendation here is a starting point. Your machine, toolholder, workholding, material condition, part geometry, tolerance, and production volume will all shape the final process.

Key Takeaways

  • 316 resists chloride-driven corrosion better than 303 or 304 but costs more to machine.
  • Success depends on sharp tooling, rigid setups, and consistent chip formation, not slower speeds alone.
  • 316L is the low-carbon variant used where welding or carbon control matters; always verify against the applicable spec.
  • A strong supplier contributes DFM input, inspection, and documentation beyond spindle time.

Understanding 316 Stainless Steel and When to Use It

316 is an austenitic stainless grade built around three alloying elements that do the heavy lifting:

  • Chromium (roughly 16–18%): Provides the passive oxide layer that fights corrosion
  • Nickel (10–14%): Stabilizes the austenitic structure and adds toughness
  • Molybdenum (2–3%): Separates 316 from 304 and drives chloride resistance

That molybdenum addition matters more than it sounds. According to ATI's technical data sheet for 316/316L, the calculated pitting resistance equivalent number for 316/316L is 24.2, versus 19.0 for 304.

That's a meaningful jump in resistance to pitting and crevice corrosion in chloride-rich environments.

Here's the catch: 316 is not corrosion-proof. ATI's own guidance cautions against recommending the grade for full seawater immersion service. Corrosion resistance is relative to the exposure, not absolute.

How 316, 304, and 303 compare

Factor 303 304 316
Machinability Easiest (sulfur-enhanced, free-machining) Moderate, stringier chips More difficult, gummy chips
Corrosion resistance Lower, limited by sulfur additions Good general resistance Better chloride/pitting resistance
Weldability Poor Good Good
Typical use Non-welded fittings, fasteners General fabrication Medical, marine-adjacent, chemical exposure

Industry machinability charts (such as the one published by the Specialty Steel Industry of North America) often group 304 and 316 together rather than ranking them separately. Treat specific numeric machinability ratings as directional, not absolute.

Always confirm composition and machinability data against current ASTM specifications before finalizing a process plan.

The real selection driver should be the application, not habit. Ask what the part will be exposed to:

  • Salt or chloride-containing fluids
  • Cleaning or sterilization chemicals
  • Bodily fluids or tissue contact
  • Elevated temperature or cyclic loading
  • Abrasive wear conditions

Choosing 316 adds machining cost and complexity. But specifying a lower grade to save machining time can backfire with premature corrosion, failed validation, or field replacement — all of which cost far more than the extra minutes on the mill.

316 vs. 316L for manufactured components

The "L" stands for low carbon — typically 0.03% maximum versus 0.08% maximum in standard 316. That difference matters most around welds. Lower carbon slows carbide precipitation during welding heat exposure, which reduces the risk of intergranular corrosion near the heat-affected zone.

This doesn't make 316L immune to sensitization. Thick welds, prolonged exposure in the 550–850°C range, or slow cooling can still increase risk, even in low-carbon material.

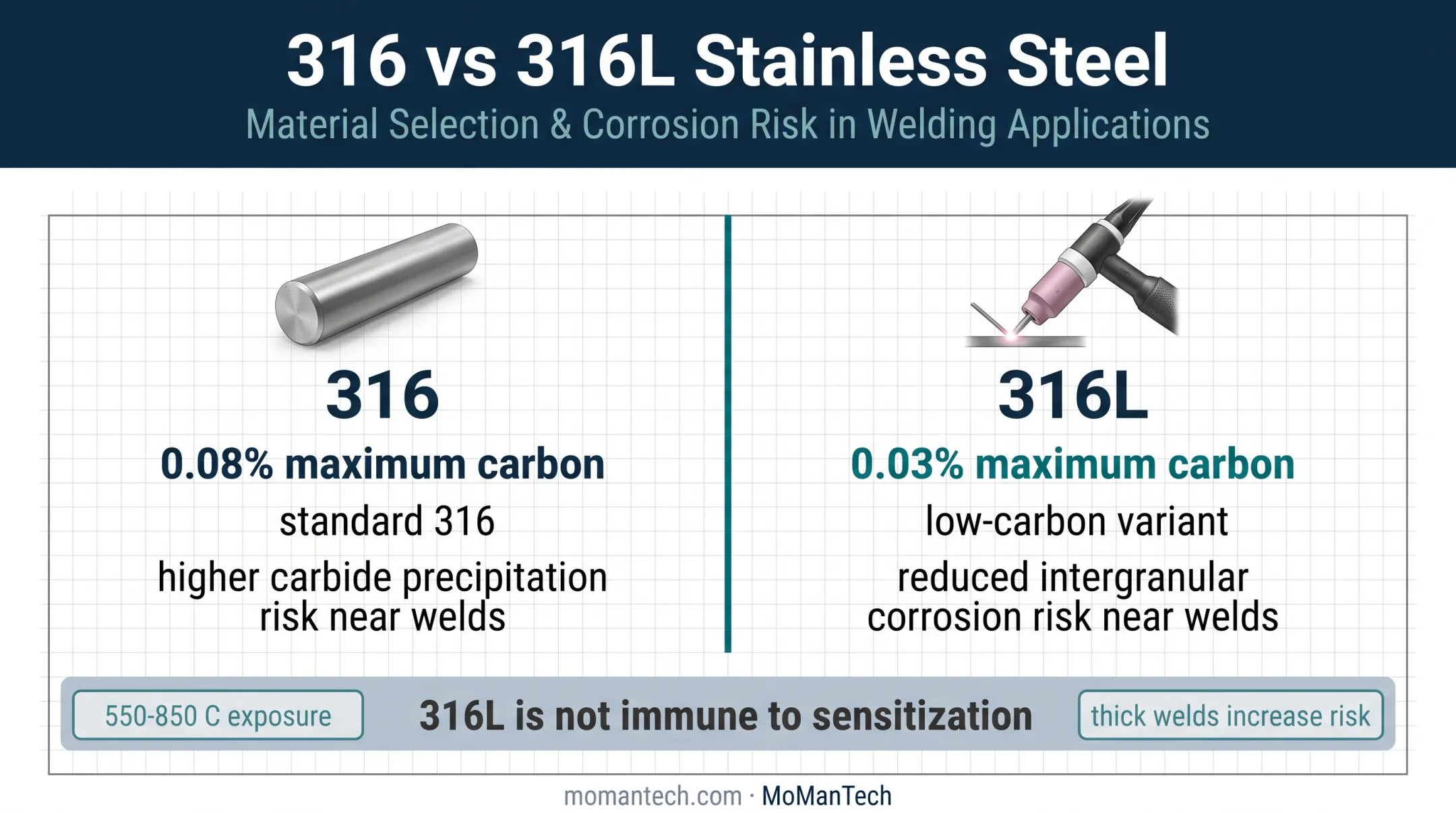

316 versus 316L carbon content and welding suitability comparison

316 and 316L are not interchangeable by default. Before substituting one for the other:

  1. Check the engineering drawing's exact material callout
  2. Review the material certification against the required UNS designation
  3. Confirm welding plans, if any, align with the carbon-content requirement
  4. Validate end-use requirements, including any regulatory specification

Note also that commercial 316L (UNS S31603) and implant-grade material (UNS S31673, sometimes informally called "316LVM") are governed by different specifications with different composition limits. A generic "316L" callout should never be assumed to satisfy an implant-material standard.

Why 316 Stainless Steel Is Difficult to Machine

316's corrosion resistance comes from the same metallurgical traits that fight your cutting tool. The grade work-hardens readily, meaning the surface layer gets harder every time a tool rubs instead of shears cleanly.

Common causes of work hardening include:

  • Dwelling or pausing mid-cut
  • Worn or dull cutting edges
  • Shallow depths of cut that rub rather than bite
  • Interrupted cuts that repeatedly re-engage a hardened layer

Once hardened, that surface resists the next pass even more, creating a compounding problem through a part's machining sequence.

Two other properties stack the deck against you. 316 has low thermal conductivity (ATI lists it around 14.6 W/(m·K)), so heat concentrates at the cutting edge instead of dissipating into the chip and workpiece.

Combine that with high toughness, and you get long, stringy, gummy chips that don't break cleanly.

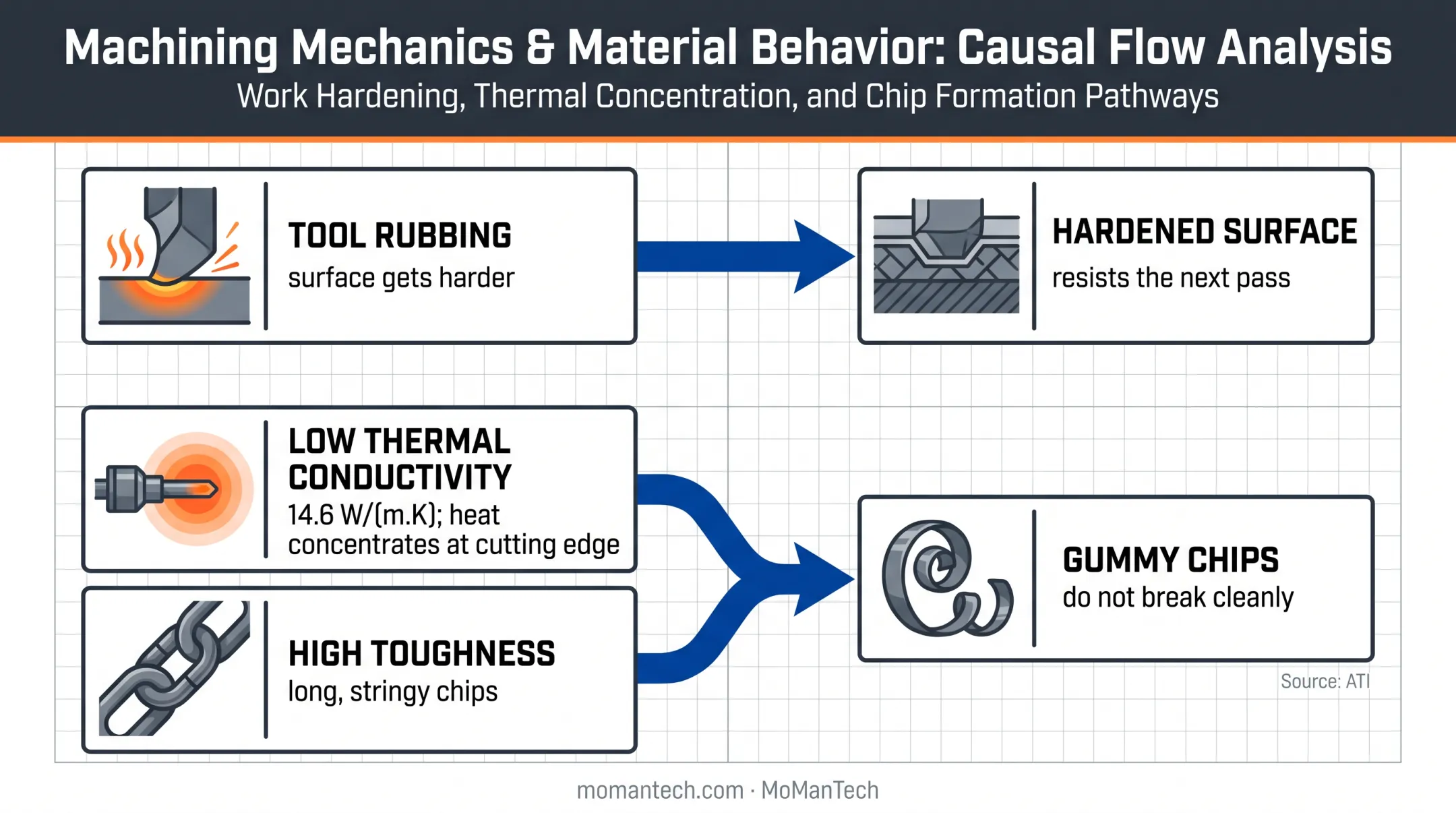

316 stainless steel work hardening heat and gummy chip formation diagram

Symptom-to-cause troubleshooting

Symptom Likely cause First adjustment to try
Excessive heat/discoloration Poor coolant delivery, rubbing Redirect coolant to cutting zone; increase feed
Burrs on edges Dull tool, excessive speed Check edge condition; reduce speed slightly
Chip wrapping around tool Chips too long, poor chip control Add chip breaker geometry; adjust feed
Premature tool failure Built-up edge, wrong coating Confirm coating/grade match to 316; increase speed slightly
Chatter Insufficient rigidity Shorten tool overhang; check workholding
Inconsistent dimensions Heat-driven deflection, work hardening Verify thermal stability; avoid dwell

When several symptoms appear together, work backward: chip shape and tool wear usually tell you more than the dimensional result alone.

Best Practices for Machining 316 Stainless Steel

Tool selection and geometry

Carbide tooling with appropriate coatings generally outperforms HSS for 316, especially in production settings. Look for:

  • Sharp cutting edges with positive rake geometry where the operation allows it
  • Adequate relief angles to reduce rubbing
  • Chip-control features (chip breakers) suited to stainless, not general-purpose steel

Different operations need different tool strategies:

  • Roughing: robust edge preparation and strong chip evacuation
  • Finishing: sharp edges and stable engagement
  • Drilling: split-point geometry
  • Threading: edge prep that resists 316's gummy chips

Workholding and machine setup

Cutting forces in 316 run higher than in free-machining grades, and work hardening punishes any flex in the system. Rigidity isn't optional here.

  • Keep tool overhangs as short as practical
  • Secure clamping to eliminate part movement under load
  • Minimize unsupported stock, especially in turning operations

Thin walls, deep pockets, small-diameter tools, and interrupted cuts each introduce their own deflection and heat-management challenges. These features often need a dedicated strategy: reduced engagement, slower feed into the cut, or a separate finishing pass, rather than a one-size-fits-all parameter set.

Cutting speeds, feeds, and depth of cut

Published starting data for enhanced-machinability 316L stock gives a useful baseline. Alleima's Sanmac 316/316L datasheet lists these turning starting points:

Operation Geometry/insert Speed (m/min) Speed (SFM) Feed
Finish/copy turning MF geometry, GC2015 250 ~820 0.15 mm/rev
Medium turning MM geometry, GC2015 220 ~720 0.30 mm/rev
Short-hole drilling (12.7–58 mm / 0.5–2.3 in) R416.2 U-drill 160 ~525 0.04–0.18 mm/rev

These figures apply to a specific enhanced-machinability stock and tooling combination. Treat them as a starting range, not a universal prescription for every 316 bar stock or tool diameter.

The variables that matter most when dialing in your own parameters:

  • Chip load relative to tool diameter
  • Radial and axial engagement
  • Coating and insert grade
  • Available machine power
  • Actual condition of the incoming material

The core principle: keep enough feed and engagement that the tool cuts rather than rubs, while avoiding the heat and deflection that come from pushing too hard. Validate through test cuts and direct observation of tool wear before committing to production parameters.

Coolant, lubrication, and chip evacuation

316's low thermal conductivity makes coolant delivery a priority, not an afterthought. Flood coolant, high-pressure delivery, and through-tool coolant all have their place; the right choice depends on the operation, not a blanket rule.

For drilling specifically, internal/through-tool coolant tends to evacuate chips more reliably than external flood alone. Whatever method you use, aim it at the cutting zone itself rather than simply flooding the machine enclosure.

Stringy 316 chips create a separate hazard: recutting. Chips that wrap around the tool or workpiece get reprocessed, damaging surface finish and risking tool breakage. Clear evacuation paths and coolant cleanliness both help prevent this.

Process monitoring and parameter refinement

Treat published cutting data as a starting draft. The reliable approach:

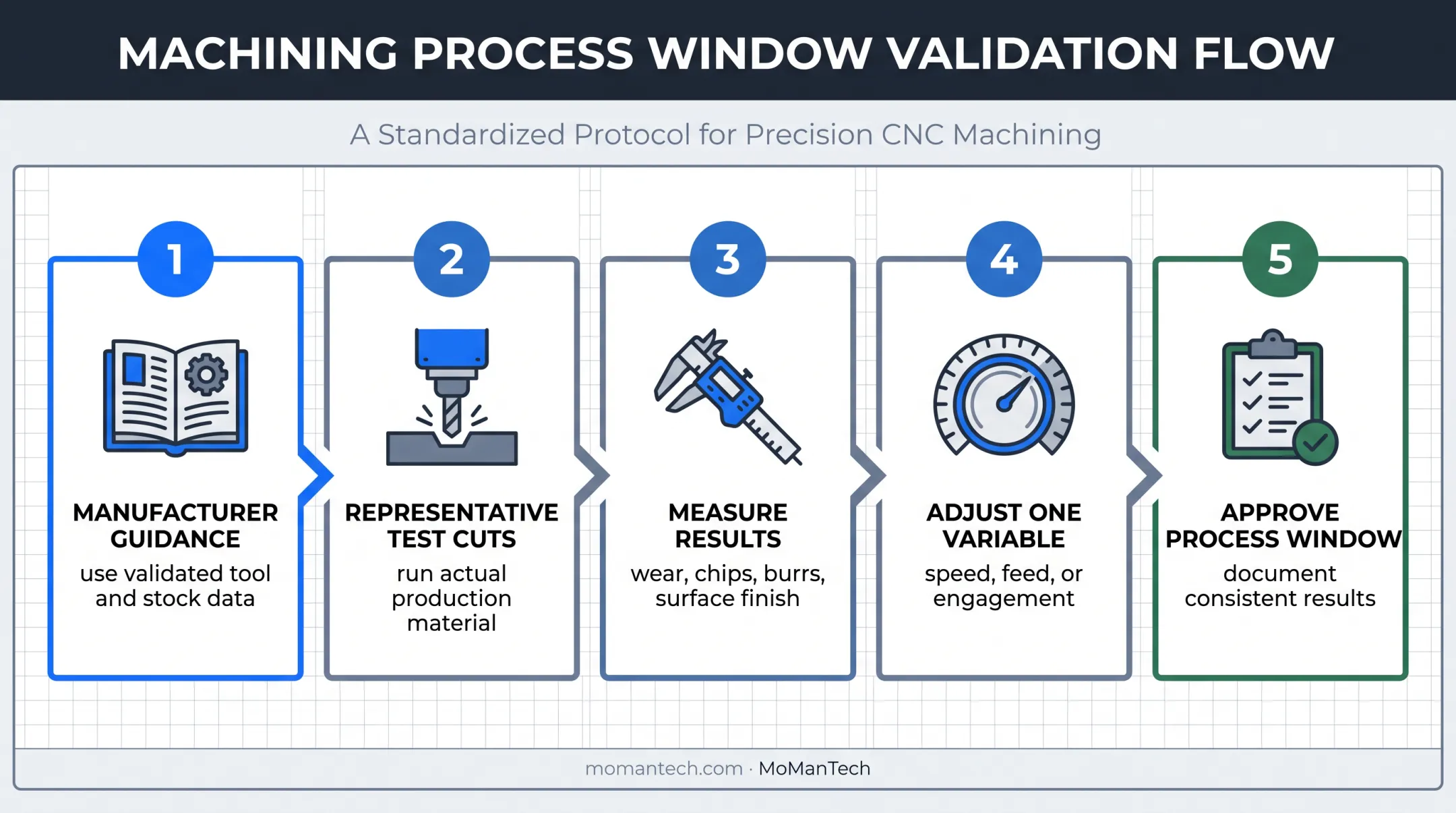

Five-step 316 machining process monitoring and parameter refinement workflow

  1. Start with validated manufacturer guidance for your specific tool and stock
  2. Run representative test cuts on actual production material
  3. Measure tool wear, chip shape, burr formation, and surface finish
  4. Adjust one variable at a time (speed, feed, or engagement), not all three together
  5. Document the approved process window once results are consistent

Watching spindle load and vibration during first articles catches problems before they show up as scrap.

Precision, Surface Finish, and Post-Processing

Tight-tolerance 316 parts fight several sources of dimensional drift at once: heat buildup, tool deflection under high cutting forces, work hardening mid-process, and material lot-to-lot variation. Thin sections are especially sensitive, since they have less mass to resist deflection and absorb heat.

Finishing strategy that holds tolerance:

  • Leave adequate stock for a dedicated finishing pass rather than trying to hit final dimension in one operation
  • Use a sharp, stable finishing tool; a marginal edge at finishing is worse than at roughing
  • Control engagement carefully to avoid re-triggering work hardening on a near-finished surface
  • Allow the workpiece and machine to reach thermal stability before final critical measurements, especially on tight tolerances

Specifying surface finish by function

Surface roughness callouts should tie to what the surface actually does, not just appearance:

  • Sealing surfaces need controlled roughness to maintain contact integrity
  • Fatigue-loaded features benefit from finishes that minimize crack-initiation sites
  • Fluid-contact surfaces often need smoothness for flow and cleanability
  • Corrosion-exposed surfaces may require passivation or electropolishing in addition to a roughness spec

Reference current standards like ASME B46.1 for profile roughness terminology, or ISO 21920-2 and ISO 25178-2 for profile and areal texture parameters, when writing drawing callouts.

Secondary operations frequently required on 316 components include deburring, ultrasonic cleaning, passivation (per ASTM A967/A967M), electropolishing (per ASTM B912), or mechanical polishing. The correct combination depends entirely on the design intent and end-use environment. There's no universal finishing recipe.

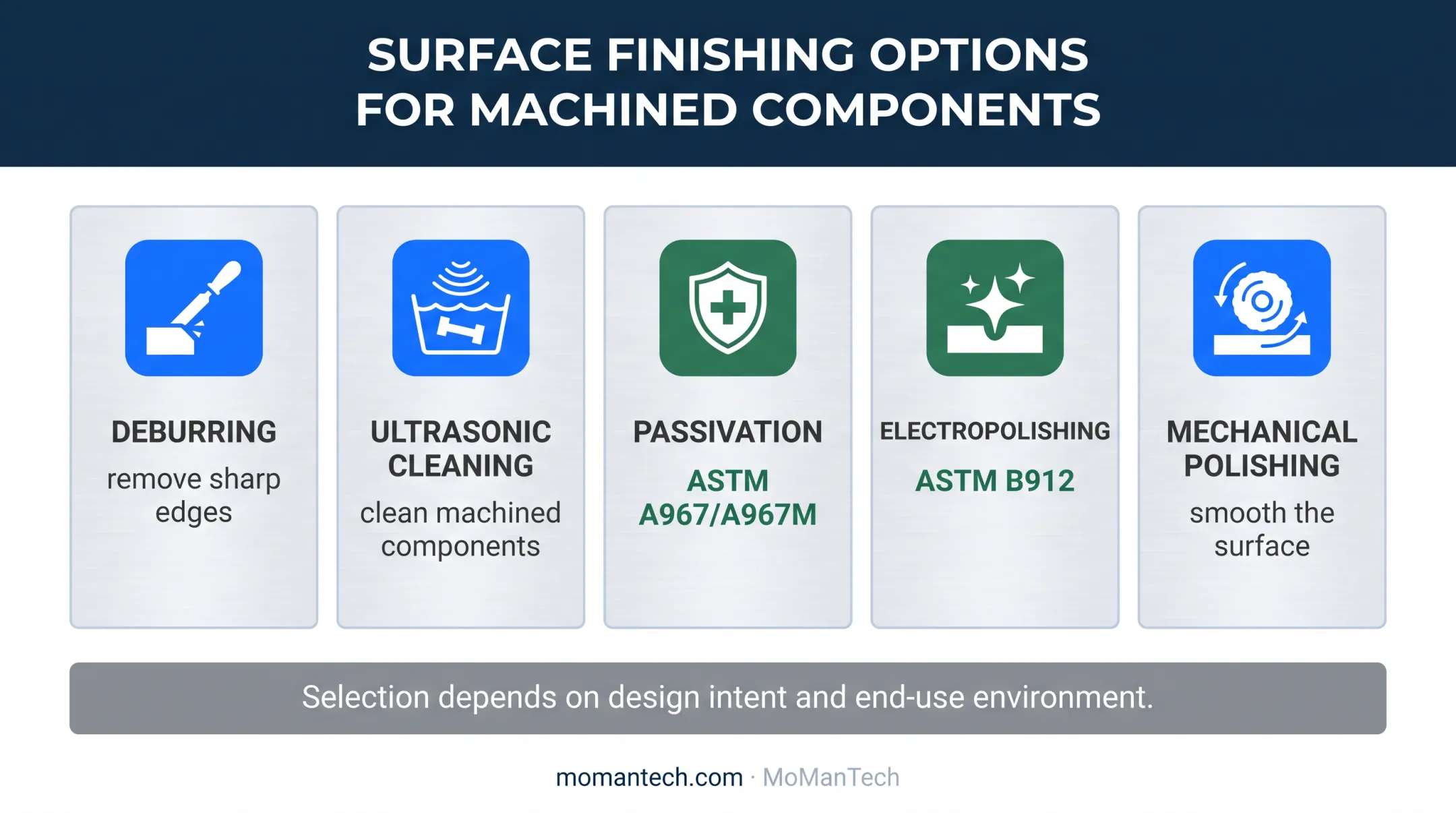

316 stainless steel post-machining finishing operations and applicable standards

Quality and documentation for critical parts

Inspection planning for 316 components should cover dimensions, thread and bore features, surface finish, burr condition, and material identity, with equipment matched to the tolerance in question. A caliper won't tell you what a CMM will on a critical feature.

For medical-device-adjacent work, documented inspection and defect prevention support regulatory expectations, though machining alone doesn't establish compliance. ISO 13485:2016 applies not only to device manufacturers but also to organizations that supply products or services to them, including contract machine shops.

When OEMs evaluate a manufacturing partner, the quality system matters as much as the machine list. MoManTech operates under ISO 13485:2016 certification and inspects every component before it ships.

Inspection equipment includes:

  • OGP Flash 302 vision system with CMM and laser measurement
  • 14-inch Mitutoyo PHA 14 with DRO
  • Thread ring and plug gages, radius gages, and surface plates

Post-machining capability includes:

  • ESMA ultrasonic clean/citric passivation line
  • VibraHone mass-finish tumbling
  • Trinco blast cabinets for secondary finishing

Applications, Design Decisions, and Choosing a Machining Partner

316 and 316L show up most often where corrosion exposure, sterilization cycles, or regulatory specifications leave little room for compromise: surgical instruments, fluid-handling components, medical-device parts, and equipment exposed to harsh cleaning chemicals.

Substituting a different grade should always go through engineering approval—never an informal shop-floor decision.

DFM considerations specific to 316

Design choices made early can save significant machining headaches later:

  • Avoid unnecessarily deep features that trap heat and complicate chip evacuation
  • Minimize inaccessible internal corners where tool access is limited
  • Specify tolerances and finishes that reflect actual functional need, not a default "tightest possible" callout
  • Flag critical surfaces early so finishing and inspection plans account for them from the start

Evaluating a machining partner

For prototype and production sourcing, look beyond raw cutting capacity:

  • Material traceability — can they document the exact heat lot and certification?
  • Manufacturability feedback — do they flag design risks before cutting metal?
  • Inspection documentation — is every critical feature measured and recorded?
  • First-article support — do they validate before committing to a production run?
  • Scalability — can they move from a handful of prototypes to repeat production runs without a process overhaul?

Partners who clear those checks can carry 316 work from first article to repeat production without re-qualifying the process midstream.

MoManTech's precision CNC machining covers milling, turning, wire EDM, and multi-axis Swiss. Equipment includes 6-axis Mazak Integrex I-150 machines and a 9-axis Quicktech S42ATM. That setup supports prototype lots of 1–10 units through production runs of 100+ units, with Design for Manufacturability consultation from the planning stage forward.

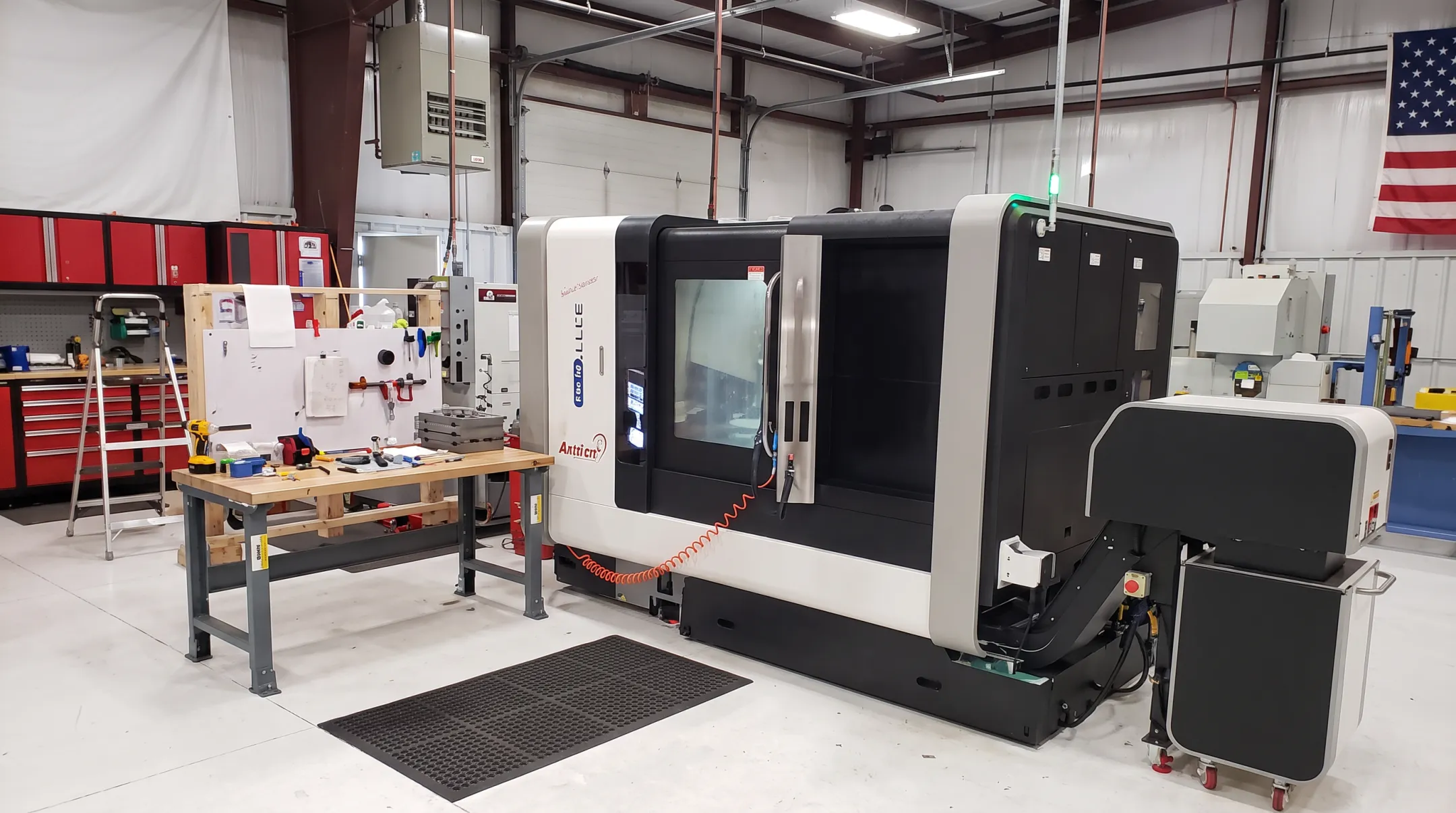

Company CNC machining equipment supporting prototype and production components

Working with MoManTech

MoManTech focuses exclusively on orthopedic medical-device components — spinal, trauma, large joint, and foot/ankle instrumentation — and works with OEMs and startups from first-article through production scale-up. If you're evaluating a partner for 316 or 316L components, share your drawings, material specification, target quantities, tolerances, and finish requirements for an application review or quote.

Frequently Asked Questions

Can 316 stainless be machined?

Yes. 316 machines successfully with carbide tooling, rigid setups, controlled cutting parameters, effective coolant delivery, and good chip management. It's more demanding than free-machining grades like 303, but entirely manageable with the right process.

Is 316 easier to machine than 304?

No, 304 is generally easier to machine. 316 offers stronger chloride and pitting corrosion resistance in many environments, so the right choice depends on what the part will be exposed to, not machining convenience alone.

Which stainless steel is easiest to machine?

303 is the commonly selected free-machining stainless grade, thanks to its sulfur additions. However, its corrosion resistance and weldability limitations often rule it out where 304 or 316 performance is required.

What is the recommended cutting speed for 316 stainless steel?

Published starting data for turning enhanced-machinability 316/316L stock ranges from roughly 720–820 SFM (220–250 m/min) for finishing and medium turning passes. Validate against your specific tool, coating, feed, and machine rigidity before production.

What's the difference between 316 and 316L stainless?

316L has a lower maximum carbon content (around 0.03% versus 0.08%), which reduces the risk of carbide precipitation and intergranular corrosion near welds. The applicable drawing or material specification should always control the final selection.
