This matters most for orthopedic OEMs, startups, and product teams developing implants or surgical instruments. A manufacturing decision made at the drawing-release stage can affect patient safety, device performance, regulatory compliance, and whether first articles ever become repeat production.
A 2023 engineering paper on medical-device manufacturing notes that discovering a needed design change later in development generally makes that change more expensive and time-consuming to fix (Schoemaker, Design for Manufacturing: Last Things First). This article covers how DFM works, when it should start, which design factors matter for orthopedic components, and how it supports the move from prototype to repeatable production.
Key Takeaways
- DFM ties design intent to real manufacturing capabilities, materials, tooling, controls, and inspection—so parts are production-ready earlier.
- Applying DFM before design finalization reduces avoidable redesign, variability, and production delays.
- Orthopedic DFM reviews must protect clinical function, never simplify at its expense.
- Have a qualified contract manufacturer review the design and document feedback before release.
What Is DFM in Medical Devices?
DFM is an ongoing, cross-functional method, not a single final inspection or sign-off. Design, manufacturing, quality, and sometimes supplier teams evaluate a component together, often multiple times, as the design matures from concept sketch to released drawing.
The goal is specific: a device or component that can be made repeatedly to specification, at the required scale, with controlled variation, through an economically viable process. A part that works once in a machine shop prototype but can't be reproduced consistently hasn't met that bar.
DFM vs. DFA, Verification, and Design Transfer
These terms get used interchangeably, but they aren't the same thing:
- Design for Assembly (DFA) focuses on how parts fit and join together, not just how one component gets made.
- Design verification confirms that design outputs meet design inputs.
- Design transfer is the documented move from design outputs to production specifications, confirming manufacturing capability can meet device requirements.
A peer-reviewed article on implantable orthopedic device design separately names DFM, DFA, and the combined DFMA approach, along with tolerance-stack analysis and inspection requirements, as part of detailed design. DFM contributes evidence and input to each of these activities. It doesn't replace any of them.
Why Orthopedic Devices Need a Stricter Approach
Patient safety, load-bearing performance, biocompatibility, traceability, and controlled change processes all raise the bar above general industrial manufacturing. A missed burr on a consumer bracket is a nuisance. A missed burr on a trauma plate is a patient-safety issue.
Skip DFM, and the business impact shows up fast:
- Prototypes that machine fine as one-offs but need heavy manual intervention at volume
- Designs tied to materials with unreliable supply
- Inspection bottlenecks that slow every batch that follows
Why DFM Is Used in Medical-Device Development
Early DFM aligns drawings, specifications, process capability, inspection methods, and manufacturing instructions before anyone commits to tooling or validation. That alignment is what makes design transfer predictable instead of a scramble.
Regulatory context matters here, but DFM isn't the compliance mechanism itself. The FDA's Quality Management System Regulation (QMSR) incorporates ISO 13485:2016 by reference. Under current 21 CFR 820.10(c), ISO 13485 clause 7.3 design-and-development requirements apply to Class II and III devices and specified Class I devices. DFM supports those controls by feeding manufacturing-ready inputs into the process. It doesn't substitute for them.
The 2009 orthopedic device design review calls for liaison with manufacturers during design, noting that manufacturing processes should be repeatable and reliable before design transfer, not discovered to be unreliable after (2009 PMC review).
That's the practical argument for involving a manufacturing partner early—especially for startups moving from initial design to first articles without an in-house manufacturing engineering team.
DFM also protects time-to-market and cost by catching, before tooling or validation:
- Unnecessary design complexity
- Tolerances tighter than function requires
- Features that are difficult or slow to machine
- Part counts that could be consolidated
- Processes unsuited to the material or geometry
A quick example: A radiused internal corner that improves fatigue life on a load-bearing trauma component is a legitimate design decision, backed by function.
A decorative chamfer pattern with no documented clinical purpose that doubles setup time is the kind of feature DFM should flag. Simplification should never come at the cost of safety or intended use, but plenty of complexity adds cost without adding function.
How DFM Works and Where It Is Applied

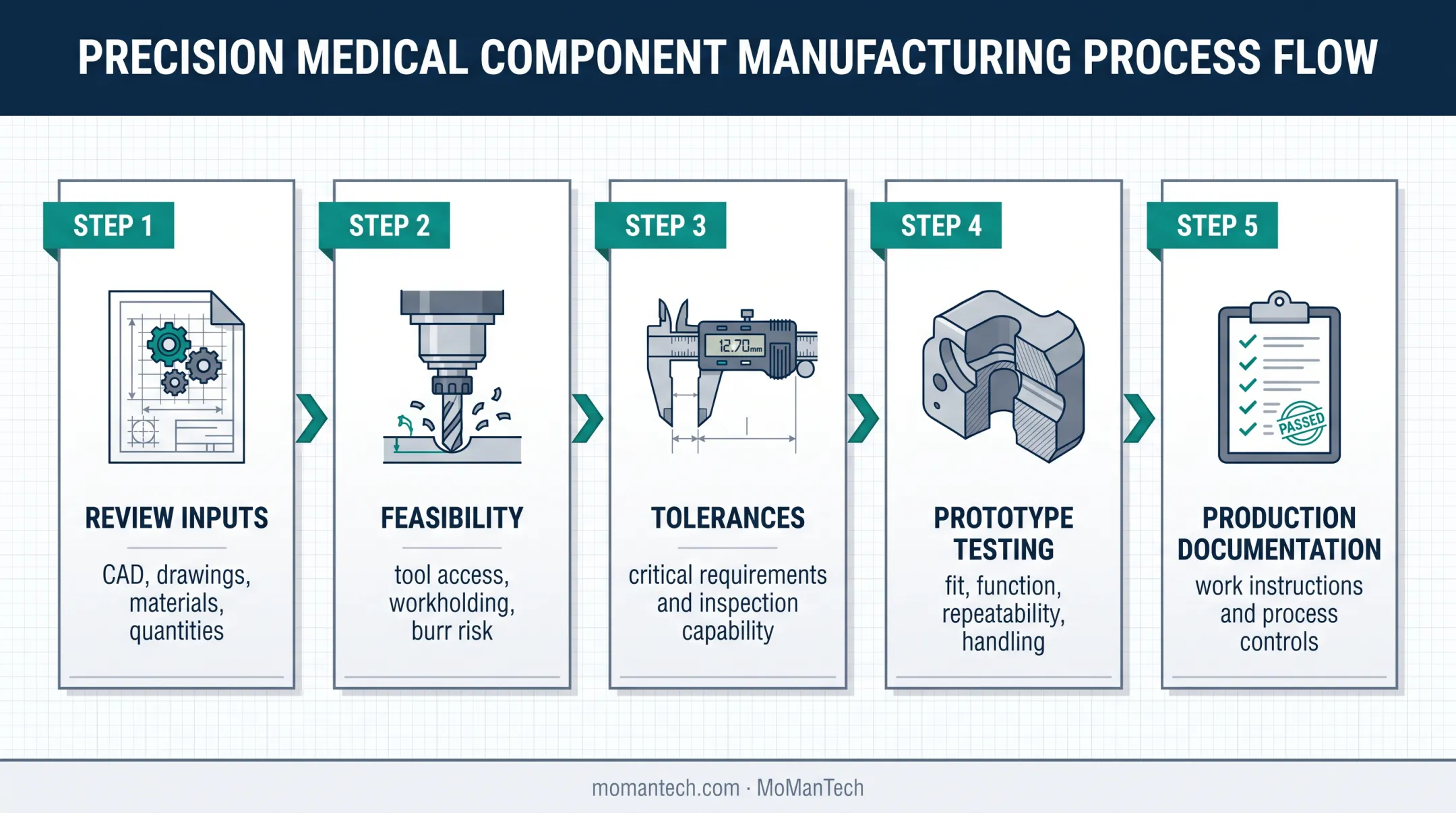

DFM moves from design intent to repeatable production in a sequence that repeats as the design matures—not a one-time meeting.
- Review product definition and manufacturing inputs — CAD, drawings, CTQ features, materials and finishes, quantities, target process, and inspection expectations.
- Evaluate machining and production feasibility — tool access, workholding, setup count, thin walls, deep cavities, burr risk, and finish requirements.
- Review tolerances and inspection strategy — separate functionally critical requirements from unnecessarily tight specifications, and check tolerance stack-up against measurement capability.
- Test recommendations through prototypes or first articles — evaluating fit, function, repeatability, fixturing, cleaning, and operator handling.
- Lock approved decisions into production documentation — work instructions, inspection plans, process controls, and change records for design transfer.
The same loop applies across the full lifecycle:
- Concept development and CAD/drawing release
- Prototype machining and first-article production
- Design transfer and production scale-up
- Later material or design changes
For additively manufactured components, FDA guidance on additive manufactured medical devices calls for comparing finished-feature sizes to process tolerances, documenting dimensional specs, and planning support removal and surface roughness on hard-to-reach areas. Those are design-stage questions, not post-production fixes.
How an Orthopedic Manufacturing Partner Can Support DFM
A specialized machining partner reviews spinal, joint, trauma, or extremity components alongside the design team and flags production risk before release, not after tooling is cut.
MoManTech, an ISO 13485:2016-certified contract manufacturer, offers DFM consultation in the planning stage for precision-machined spine, trauma, large joint, and foot/ankle components. That work runs with CNC machining, wire EDM, and 3D-printed prototyping, from 1–10 prototype units through 100+ production runs.
Automated load/unload on repetitive operations and full inspection on every part turn that feedback into controlled process—not notes left on paper.
If you're developing an orthopedic implant or instrument, share drawings, target quantities, materials, and critical requirements early. A manufacturing partner can open a DFM or production-readiness review before those choices lock in and become expensive to reverse.
Key Factors, Common Issues, and When DFM Is Not Appropriate
A practical DFM review checks several factors at once. Here's the working checklist for orthopedic components:
| Factor | What to Evaluate |
|---|---|
| Materials & supply chain | Biocompatibility specs, machinability, availability, lot traceability, effect of substitutions on validation |
| Geometry & tolerances | Wall thickness, tool reach, datum schemes, tolerance accumulation, whether every spec ties to function |
| Process & equipment fit | Whether machining, finishing, cleaning, and inspection methods scale to expected volumes |
| Inspection & quality controls | How critical dimensions get measured, fixtured, and documented for traceability |
| Scale & volume | Whether the design works at prototype quantities and at higher-volume repeat orders |
Material choice carries real downstream weight. Titanium alloys like Ti-6Al-4V ELI offer strength and biocompatibility but bring machining challenges from low thermal conductivity and chemical reactivity (PMC materials review on Ti-6Al-4V ELI). That's a DFM consideration, not just a materials-selection footnote.

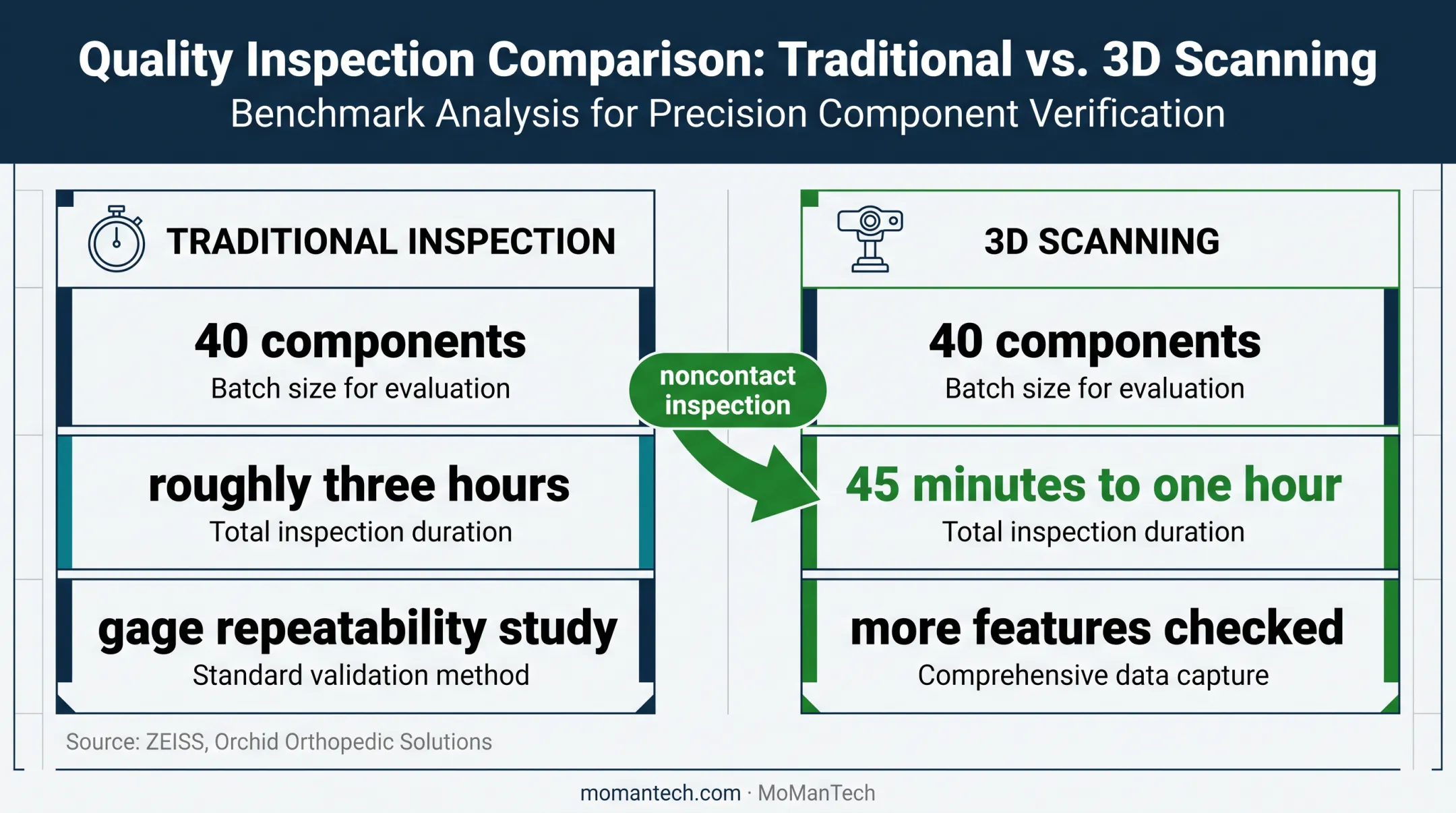

Inspection strategy can make or break throughput. In one documented case, Orchid Orthopedic Solutions adopted noncontact 3D scanning for knee-implant components after a gage repeatability study.
Inspection of 40 components dropped from roughly three hours to 45 minutes to one hour while checking more features, not fewer (ZEISS, Orchid Orthopedic Solutions case study). That's one site's reported result, but it shows why inspection method belongs in the DFM conversation, not bolted on afterward.
Common Issues and Misconceptions
The biggest misconception: DFM means making a part as simple or cheap as possible. It doesn't. The real objective is a controlled, repeatable process that preserves safety, performance, and intended use. Cost and simplicity are secondary outcomes, not the goal.
Common issues that show up repeatedly:
- Manufacturer brought in too late to influence the design
- Tolerances tighter than functional requirements justify
- Complex geometry without documented performance benefit
- Incomplete drawings or inaccessible inspection features
- Material choices that create supply or finishing risk
Not every issue is a design problem. Some require changing the part; others get solved through fixturing, tool selection, process controls, or a revised inspection method.
Document that distinction in design reviews, risk-management records, and approved manufacturing documentation. Informal shop-floor feedback disappears when people change roles.
When DFM May Not Be Appropriate

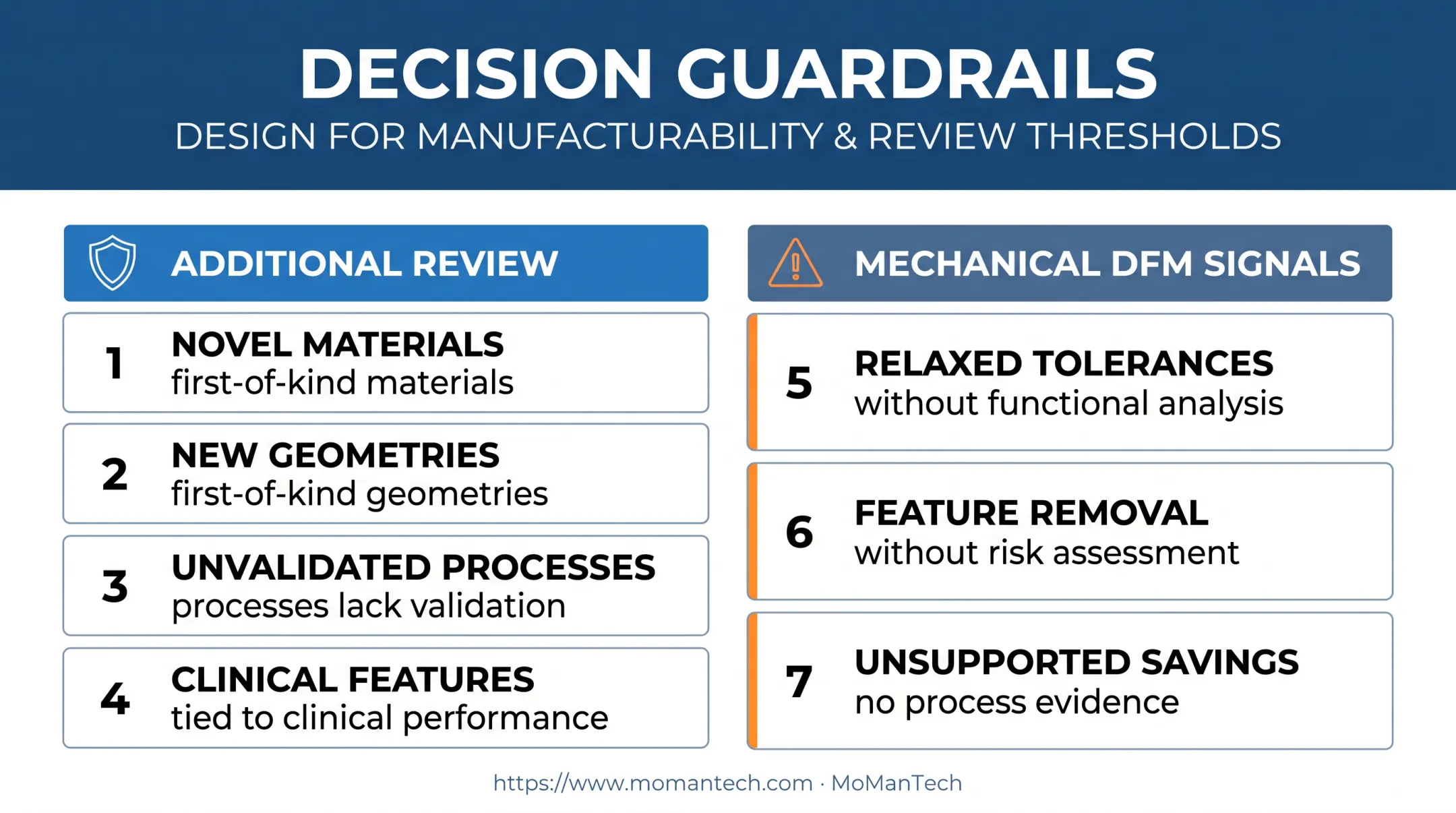

A design change should never happen solely for manufacturability if it compromises a validated clinical requirement, patient-contact performance, mechanical strength, or regulatory strategy. Some situations call for additional review instead of immediate simplification:
- Novel materials or first-of-kind geometries
- Unvalidated processes
- Design changes after formal design controls begin
- Features tied directly to clinical performance
DFM also isn't a substitute for design verification, validation, biocompatibility assessment (FDA's ISO 10993-1 guidance governs that risk-based evaluation separately), sterilization evaluation, or lifecycle risk management under ISO 14971.
Watch for signals that DFM is being applied mechanically rather than thoughtfully: repeated requests to relax tolerances without functional analysis, feature removal without risk assessment, or cost reductions unsupported by actual process evidence.
Conclusion
DFM is structured collaboration between design, manufacturing, quality, and regulatory stakeholders. It turns a functional medical-device concept into a repeatable production process.
For orthopedic OEMs managing complex machined implants or instruments, limited initial quantities, and tight inspection requirements, applying DFM early and documenting it well pays off long before production volumes arrive.
So evaluate manufacturability before design decisions become expensive to change. If you're planning a spinal, trauma, large joint, or foot/ankle component and want a DFM or production-readiness discussion, MoManTech's team can review drawings, materials, and target quantities alongside your engineering team.
Frequently Asked Questions
What does DFM stand for in medicine?
In medical-device manufacturing, DFM means Design for Manufacturability: designing a device so it can be produced consistently, efficiently, and within quality and performance requirements. This article uses DFM only in that engineering sense.
What is DFM after MBBS?
After MBBS, “DFM” usually names a diploma or other clinical credential—not Design for Manufacturability. That education path is separate from the manufacturing engineering practice covered here.
Is a diploma in family medicine good?
That depends on country, accreditation, and recognition by the relevant medical authorities. It sits outside medical-device DFM, which covers manufacturing design and production—not clinical training credentials.
