But that flexibility creates a planning problem. The material machines well in its solution-treated state, known as Condition A. Once aged to its final hardness, it behaves very differently under a cutting tool. Get the sequence wrong, and you're either machining a part that's too hard to hold tolerance or aging a finished part that shrinks out of spec.
This guide covers the material science, the machining practices, the heat-treatment sequencing, and the questions you should answer before requesting a quote on a 17-4 PH component.
Key Takeaways
- "PH" means precipitation hardening — aging changes strength, hardness, toughness, and how the material cuts.
- Machining is typically planned in Condition A (solution-treated), with aging and finish machining sequenced per the drawing.
- Prevent work hardening and early tool wear with rigid workholding, the right tools, and consistent cutting engagement.
- Confirm material condition, specification, heat-treatment plan, and inspection documentation before production starts.
Understanding 17-4 PH Stainless Steel Properties and Conditions
17-4 PH is a martensitic, precipitation-hardening stainless steel. It carries the UNS designation S17400, is often called Type or Grade 630, and corresponds to EN 1.4542 in European standards.
Per common mill specifications, its chemistry runs roughly:
- 15–17.5% chromium — primary corrosion resistance
- 3–5% nickel
- 3–5% copper — drives precipitation hardening in aging
- 0.15–0.45% niobium plus tantalum — supports the hardening response
Drawings rarely specify just "17-4 PH." They reference a product-form standard as well:
- ASTM A564/A564M — bars and shapes
- ASTM A693 — plate, sheet, and strip
- AMS specifications — aerospace and tightly controlled forms, varying by product type
Always verify which standard applies to your specific stock form before cutting a single part.
Condition A vs. Aged Conditions
Condition A is the solution-treated state — cooled so the material can later age-harden, and it's the condition most shops machine in. Aging conditions carry H-numbers tied to temperature:
- H900 — aged near 900°F, roughly 1 hour, highest strength and hardness
- H1025 — moderate strength, improved ductility
- H1075 — further toughness gain
- H1150 — lowest strength of the common conditions, highest ductility and toughness

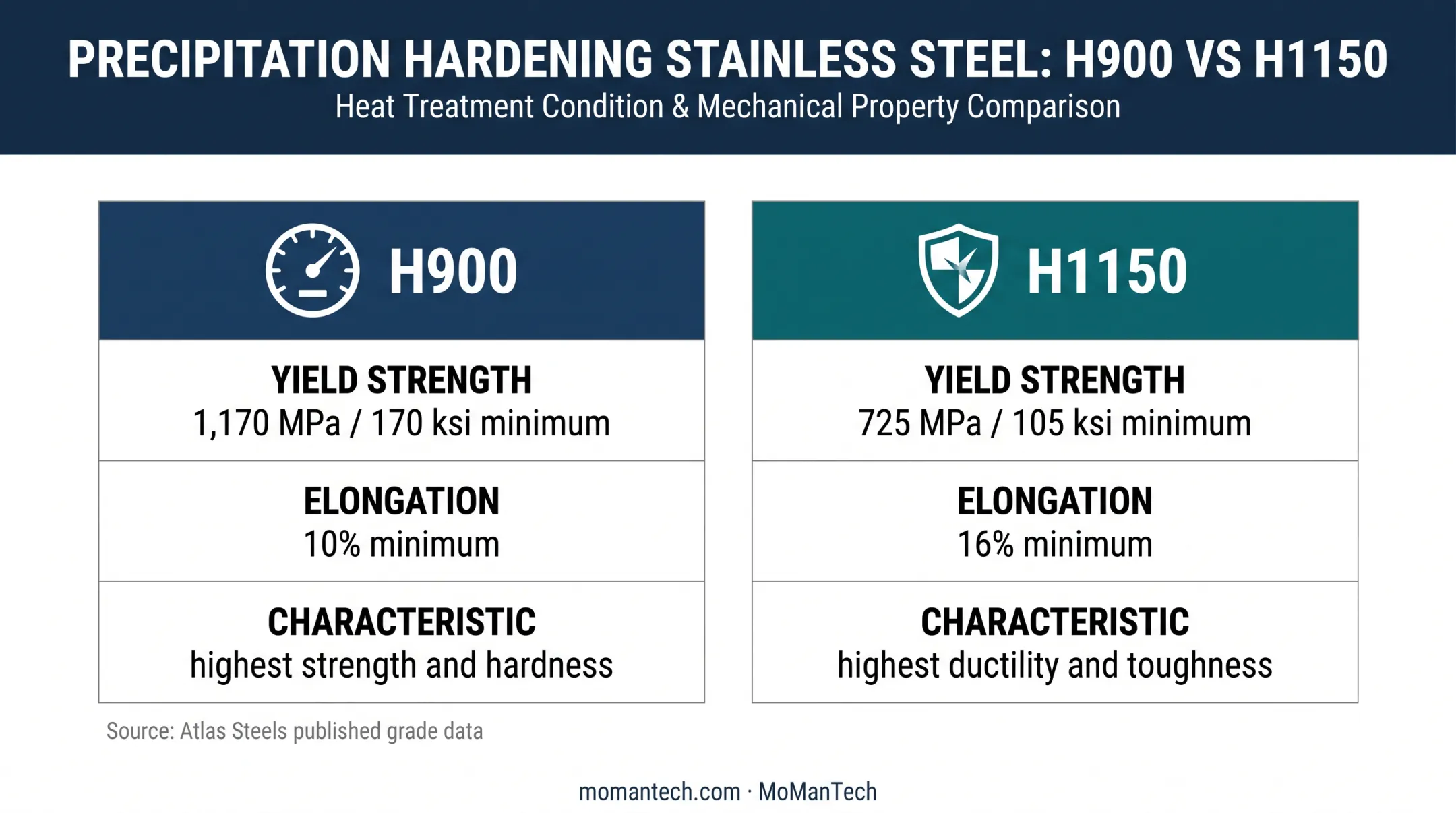

According to Atlas Steels' published grade data, H900 carries a minimum yield strength around 1,170 MPa (about 170 ksi). H1150 drops to roughly 725 MPa (about 105 ksi) minimum. That is nearly a 40% swing depending on which aging condition the drawing calls out.
Elongation moves the other way: about 10% minimum at H900 versus 16% minimum at H1150.
These figures vary by product form and test basis, so always confirm against the governing specification for your actual stock — don't assume one mill's sheet data applies to another supplier's bar.
Condition choice is only half the material decision; service environment matters too. 17-4 PH performs comparably to 304 stainless in many settings, but it is not a chloride specialist.
If the part sees warm chloride exposure or crevice conditions, 316 or 316L (with molybdenum) typically outperform 17-4 PH. Do not swap in 17-4 PH for 316 only because it is stronger. Strength and chloride resistance are separate requirements.
How to Machine 17-4 PH Stainless Steel
Most shops machine 17-4 PH in Condition A, before aging. Aged 17-4 PH, especially at H900, is significantly harder. Harder material means higher cutting forces, faster tool wear, more heat at the cutting edge, and a tougher time holding finish on tight features.
Tooling and Cutting Strategy
Sharp carbide tooling with edge preparation suited to stainless steel is the starting point. A few things matter more here than with free-machining alloys:
- Keep the setup rigid; deflection under load shows up as poor finish and dimensional drift
- Select coatings rated for stainless, not general-purpose steel work
- Maintain consistent engagement; avoid dwelling or light "rubbing" cuts
That last point deserves emphasis. Light cuts or hesitation at the surface can work-harden the material, creating a skin harder than the bulk metal underneath. The next pass then fights that hardened layer instead of cutting fresh material.
The fix is straightforward: maintain consistent feed engagement and cut below the hardened zone rather than skimming it repeatedly.
Coolant, Chips, and Process Planning
Heat and chip control go hand in hand on this alloy:
- Apply coolant for heat removal and lubrication, not just chip flushing
- Evacuate chips actively in deep cavities and complex internal features so recut chips do not damage finish
- Plan workholding for rigidity so reduced deflection keeps cutting forces predictable
Turning, milling, drilling, threading, and deep-hole work each carry their own deflection and chip-evacuation challenges. A 1,000-rpm Swiss-turning setup and a slow peck-drilling cycle on a deep bore need different toolpaths entirely.
ARMCO's published machinability data shows relative cutting rates of roughly 60–80 surface feet per minute in Condition A, dropping to 20–30 sfm at H900. That gap is why speeds and feeds need validating against the actual grade, condition, tool, and machine setup, not copied from a generic chart.
Heat Treatment, Tolerances, and Inspection

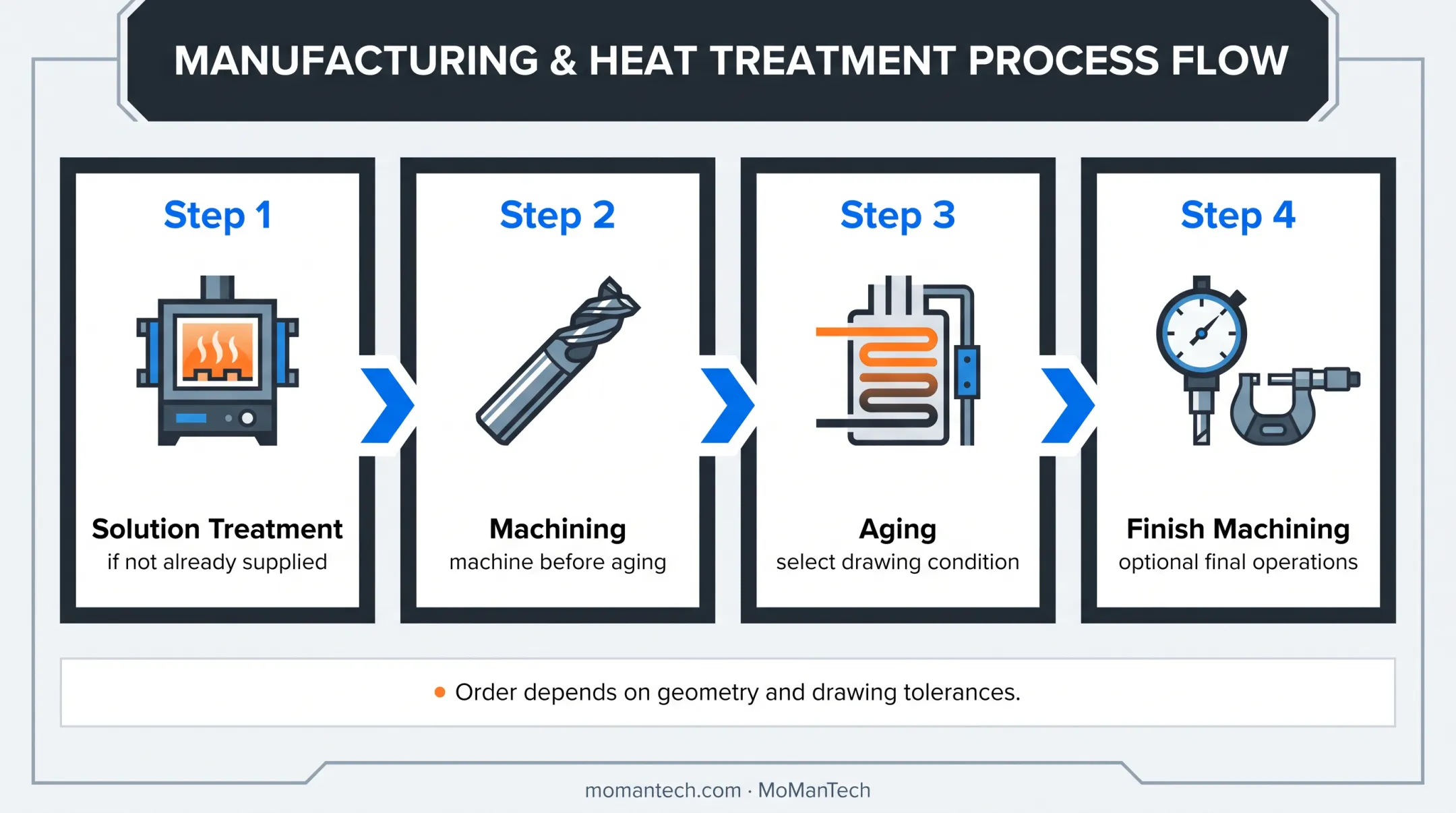

The typical production sequence runs: solution treatment (if not already supplied that way) → machining → aging → optional finish machining. Which steps apply, and in what order, depends on part geometry and the tolerances on the drawing.
Dimensional Change Is Real, Even on a "Stable" Alloy
17-4 PH has a reputation for dimensional stability, but aging isn't dimensionally free. Published linear contraction figures from aging range from roughly 0.05% at H900 to 0.10% at H1150, based on mill data. Those are small numbers, but enough to matter on a tight-tolerance bore or a precision mating surface.
This means:
- Build stock allowance into critical features machined before aging
- Plan finish machining after aging for bores, threads, and mating surfaces where tolerance is tightest
- Identify datum features early so heat treatment doesn't shift inspection reference points
Thin walls deserve particular attention — they're more prone to distortion during thermal cycling than heavier sections, and a part that measured in-spec before aging can walk outside tolerance afterward if nobody accounted for it.
What to Have in Your Quality Documentation
A solid quality-control checklist for a 17-4 PH order includes:
- Material certification matching grade, product form, and condition
- Heat-treatment certification with the actual cycle performed
- Lot traceability back to melt source
- Dimensional inspection against the aged-condition drawing requirements
- Surface-finish verification
- Any customer-specific documentation requirements
MoManTech builds that documentation into every order. No component leaves the facility without comprehensive inspection against the aged-condition requirements.
The shop's quality system centers on controlled processes, trained personnel, and defect prevention, and is ISO 13485:2016-certified and FDA-compliant. Dimensional verification uses an OGP Flash 302 Vision system with CMM and laser measurement, plus precision gauging for threads, bores, and critical features.
Choosing 17-4 PH for an Application
Comparing 17-4 PH against the stainless alloys it's most often confused with shows when it is the better choice.
| Alloy & Condition | Strength (UTS/YS, MPa / ksi) | Corrosion Notes | Machining & Magnetism |
|---|---|---|---|
| 17-4 PH, H900 | 1,310 / 1,170 (190 / 170) min | ~304-like; chloride and H900 stress-corrosion cracking (SCC) limits | Strongly ferromagnetic; harder to machine aged |
| 17-4 PH, H1150 | 930 / 725 (135 / 105) min | Same base resistance, better SCC tolerance | Easier to machine than H900 |
| 304, annealed | 515 / 205 (75 / 30) min | Susceptible to warm-chloride attack | Nonmagnetic annealed; good machining baseline |
| 316/316L, annealed | 515 / 205 (75 / 30) for 316; 485 / 170 (70 / 25) for 316L min | Molybdenum improves chloride resistance over 304 | Nonmagnetic annealed |
| 410, annealed/tempered | 480 / 275 (70 / 40) min (annealed) | Below 17-4 PH and 304 in most comparisons | Magnetic; easiest annealed, harder as tempered hardness rises |
(Figures from Atlas Steels' grade datasheets; verify against your specific product-form standard.)
17-4 PH tends to win when a part needs high strength and controlled corrosion resistance in one alloy. That tradeoff fits orthopedic instruments, structural shafts, and fittings where strength-to-weight matters as much as rust resistance.
Look elsewhere when:
- Chloride exposure is the primary design driver → consider 316 or 316L
- General corrosion resistance without the strength premium is enough → 304 often suffices
- A hardenable martensitic grade at lower cost fits the application → 410 remains an option
Planning a Manufacturable 17-4 PH Part
Before requesting a quote, resolve these details:
- Material grade and product form — bar, plate, sheet, or additive feedstock
- Required condition — Condition A delivery, or pre-aged to a specific H-number
- Heat-treatment requirement — who performs it, and against what specification
- Critical tolerances — especially on features affected by aging contraction
- Surface finish — pre- or post-aging requirements
- Thread and hole details — tap drill sizes, depth, finish requirements
- Inspection requirements — what gets measured, documented, and retained
- Expected quantity — prototype (1–10 units) versus production (100+ units)
A design-for-manufacturability review catches problems before they reach the shop floor:
- Thin unsupported walls that distort during aging
- Features a tool can't reach
- Finish tolerances tighter than the application needs
- Datum schemes that complicate post-aging inspection

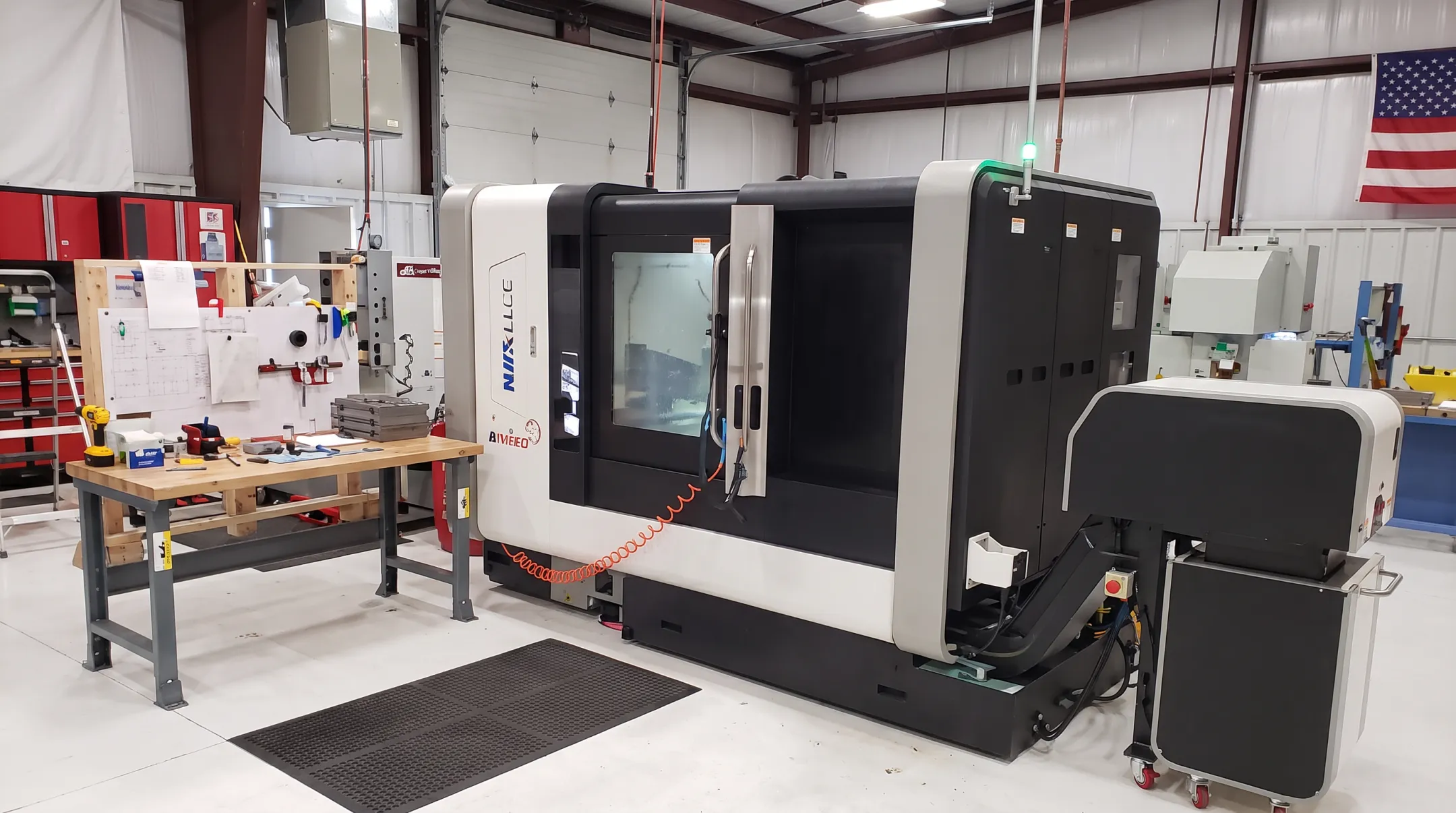

This is the stage where MoManTech's orthopedic-focused experience matters. As an ISO 13485:2016-certified contract manufacturer working exclusively on orthopedic device components — spine, trauma, large joint, and foot/ankle — the team provides design-for-manufacturability support with precision CNC machining, Swiss turning, wire EDM, and additive prototyping in 17-4 PH and 316L.
Prototype lots of 1–10 units and production runs of 100+ units run through the same controlled, documented quality process. The part you validate early matches what scales into production.
Frequently Asked Questions
What is the density of 17-4 stainless steel?
In Condition A, published density is approximately 0.280 lb/in³ (7.75 g/cm³). This figure can shift slightly by reference source, product form, and aging condition, so confirm against your governing specification.
Can you harden 17-4 PH?
Yes. 17-4 PH hardens through solution treatment followed by precipitation aging, not through quenching like conventional martensitic grades. The aging condition you select (H900 through H1150) controls where the final part lands on the strength-versus-toughness spectrum.
What are the differences between 410 stainless steel and 17-4 PH?
Both are magnetic martensitic grades, but 410 hardens through quenching and tempering while 17-4 PH hardens through solution treatment and aging. 17-4 PH generally achieves better corrosion resistance and a more favorable strength-to-toughness balance across its aging range.
Is 17-4 PH stainless steel easy to machine?
It machines comparably to 304 stainless in Condition A, which is why most shops cut it before aging. Aged conditions, particularly H900, demand more rigid tooling and tighter process control due to increased hardness and cutting forces.
Which heat-treatment condition is best for machining 17-4 PH?
Condition A is standard practice for machining, since post-aging hardness increases cutting forces and tool wear. The final aged condition should still be selected based on the part's required strength, toughness, corrosion environment, and drawing tolerances, not machining convenience alone.
