But speed is only part of the story. A print that comes off the build plate in two hours can still be a useless prototype if it's made from the wrong material, oriented poorly, or never tested against a clear question. Rapid prototyping is a process. 3D printing is one tool inside it — and the tool only works when the surrounding decisions are right, according to Manufacturing.gov's definition of rapid prototyping.
This guide walks through the full workflow: setting objectives, preparing files, choosing technology and material, controlling print parameters, and knowing when to move from a printed prototype to a production-representative manufacturing process.
Key Takeaways
- Rapid prototyping is a development process; 3D printing is one manufacturing method used inside it.
- Concept, visual, fit/form, and functional prototypes each demand different fidelity and materials.
- Match the printing technology to the design question, not the lowest print cost.
- Printed parts accelerate learning but rarely replicate final-part mechanical or regulatory performance.
- Documenting iterations and involving a manufacturing partner early reduces late-stage redesign.

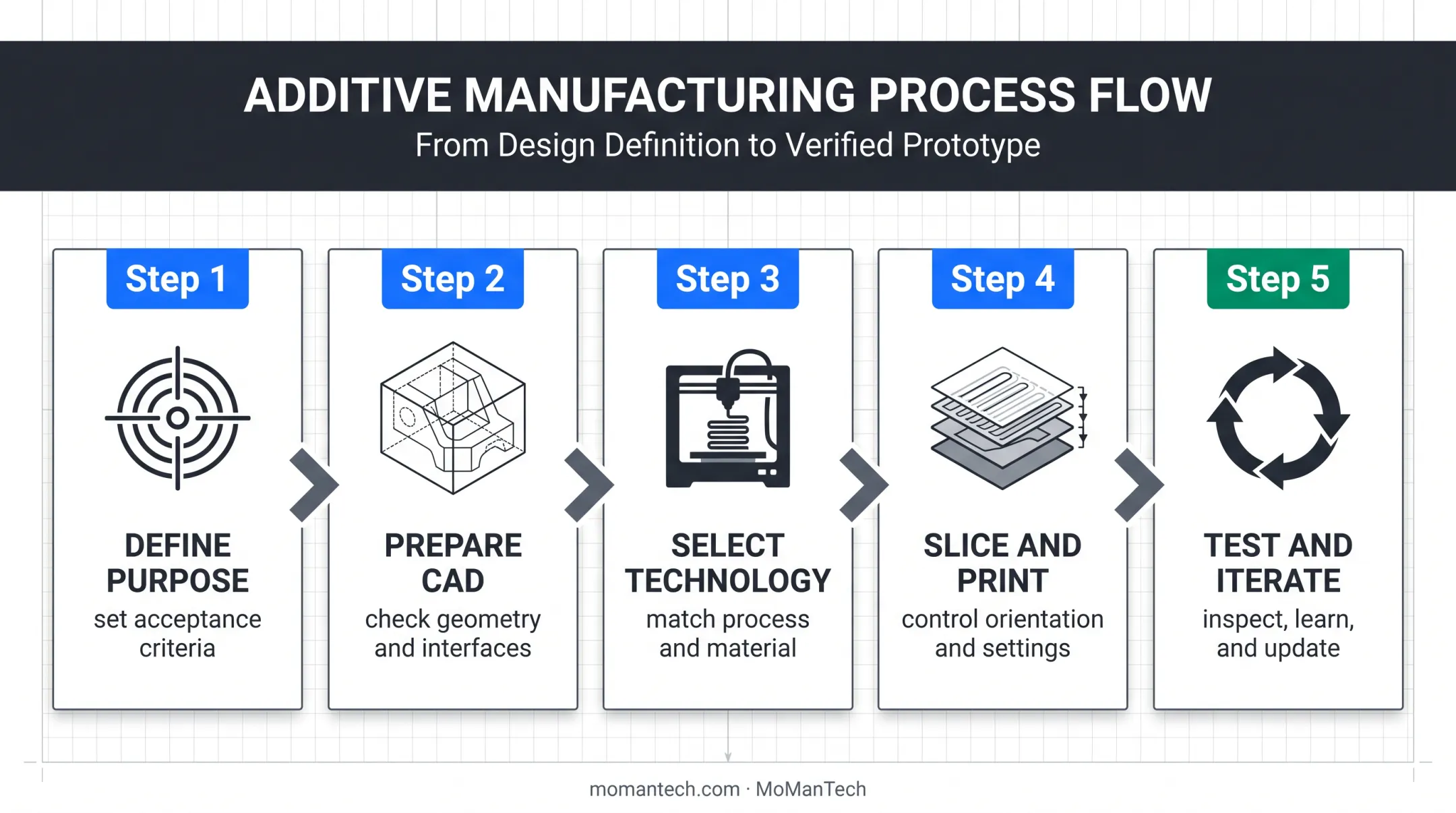

How to Rapidly Prototype with 3D Printing
Treat every print as an experiment with a hypothesis, not a shortcut to a finished part. Here's the five-step sequence that keeps a prototyping program on track.
Step 1: Define the Prototype's Purpose and Acceptance Criteria
Before opening your CAD software, decide what question this build needs to answer. Is it overall form? Ergonomic feel? Fit with a mating component? Load-bearing behavior?
Write down measurable acceptance criteria before you print:
- Critical dimensions and tolerances
- Interfaces that must mate correctly
- Load or motion conditions, if applicable
- The specific observation that determines pass or fail
Protolabs' guide to rapid prototyping processes frames this as a classification exercise: concept, visual/appearance, form/fit, or functional. Each category demands different fidelity. A concept model proving an idea needs far less precision than a functional prototype meant to survive a simulated load cycle. Match your expectations to the category you've chosen, and don't let one print try to answer three unrelated questions at once.
Step 2: Create and Prepare the CAD Model
Check the model for watertight geometry, correct units, adequate wall thickness, and unsupported overhangs before you slice anything. Holes, threads, and assembly interfaces need particular attention. A thread that prints fine visually may not actually function.
If you're simplifying features for printability, document it. A chamfer removed for easier support removal, or a dimension nudged to compensate for shrinkage, should be recorded so the next person on the project knows it was intentional. For medical-device programs, preserve revision control and flag which surfaces and dimensions are meant to represent the eventual production design versus which are print-only workarounds.
Step 3: Select the Printing Technology and Material
Four processes cover most prototyping needs, and they are not interchangeable:
| Process | Best for | Trade-off |
|---|---|---|
| FDM | Durable thermoplastic form studies, larger parts | Visible layer lines, directional strength |
| SLA | Fine detail, smooth appearance surfaces | Requires washing, curing, support removal |
| SLS | Functional geometries without external supports | Grainier surface, powder handling |
| PolyJet | Multi-material and appearance models | Higher cost per part |
Choose material based on the test, not the budget line item:
- PLA works for checking hand feel
- Detailed resin captures fine features for a design review
- Engineering polymers support limited functional testing
None of them substitute for the real material's heat resistance, wear behavior, or biocompatibility. A printed shape can imitate geometry without matching how the final part performs under stress, sterilization, or machining.
At MoManTech, additive prototyping covers 17-4 and 316L stainless steel, titanium beta, Onyx, and composites reinforced with carbon fiber, Kevlar, fiberglass, or HSHT fiberglass. Onyx alone tests at roughly 1.4 times the strength of ABS. That margin matters when a prototype must survive handling in a design review, not just look right in a photo.
Step 4: Slice, Orient, and Print
Layer height, infill, wall count, and support placement all trade off against accuracy, strength, and print time. Orientation deserves special attention: it changes which surfaces get support scars, how layers bond, and where the part is weakest.
A bracket printed flat and loaded across its layer lines can fail at a fraction of the load it would survive if oriented to print along the stress direction. This is not a cosmetic choice. It determines whether your functional test tells you anything real.
Record the printer, material batch, settings, orientation, and file revision for every build. Without this log, you can't tell whether a successful iteration improved because of a design change or a lucky print.
Step 5: Post-Process, Inspect, Test, and Iterate
Remove supports and wash or cure resin parts carefully. Aggressive post-processing can change the dimensions you're trying to evaluate. Inspect against your acceptance criteria using calibrated tools, not just a visual check. Protolabs pairs 100% visual inspection with sampled dimensional measurement on printed parts, which is a reasonable baseline for most prototypes.
Test the part, record what failed, gather stakeholder feedback, and update the design. Then repeat. The print-test-learn loop only works if each cycle produces a clear answer and a documented change.
When Should You Use Rapid Prototyping with 3D Printing?
3D printing earns its keep when the design is still moving, tooling would be premature, or you need a physical part in hand within days rather than weeks.
Good fits include:
- Early concept exploration and stakeholder communication
- Ergonomic and hand-feel review
- Fit checks against mating components or housings
- Assembly validation before committing to tooling
- Surgical-instrument form studies
- Jigs, fixtures, and enclosures for internal use
- Limited functional testing where exact material performance isn't the question
Poor fits include:
- Production-scale quantities where per-part cost and consistency matter more than speed
- Tight critical tolerances that printing processes can't reliably hold
- Demanding material-performance tests (fatigue, sterilization cycling, long-term wear)
- Validated medical-device production requiring documented process qualification
- Any case where the printed material differs materially from the final production material
If the answer you need depends on how titanium behaves under cyclic load, a plastic print won't give it to you — no matter how fast it comes off the printer.
What You Need Before Doing Rapid Prototyping with 3D Printing
Getting useful results depends on more than owning a printer. Five areas need attention before the first build:
- Equipment and process fit: Match build volume, resolution, repeatability, and material compatibility to the prototype's real requirements. A printer built for large FDM parts won't capture fine surgical-instrument detail.
- Inputs and material readiness: Controlled CAD file, defined revision, material data sheets, required tolerances, and a clear call on appearance, dimensional, or mechanical similarity to the final design.
- Safety and compliance readiness: Ventilation for resin and powder, PPE, curing and cleaning procedures, and routine maintenance. For medical-device programs, keep exploratory prototypes separate from documented design-validation work.
- Documentation readiness: Record file revision, printer, material, settings, inspection results, and the next design action for every iteration.
- Production handoff planning: Decide early which features will later be machined, molded, or cast so prototype changes don't create manufacturability problems downstream.
Bringing a production partner in early pays off here. MoManTech works with orthopedic OEMs on design-for-manufacturability input before prototype quantities move toward first articles, catching issues a prototyping team alone might miss.
Key Parameters That Affect Results
A prototype is only as useful as the control you have over how it was made. Loosely controlled variables produce results you can't repeat or trust.
| Parameter | What it affects | Practical note |
|---|---|---|
| Technology and material | Detail, strength, flexibility, finish, chemical resistance | Capability tables from manufacturers describe the process, not a guaranteed part outcome |
| Layer height and feature size | Surface quality vs. print time; minimum reliable wall and hole size | Thin walls below a material's minimum spec can warp or detach entirely |
| Infill and wall thickness | Weight, stiffness, and functional-test validity | A hollow, low-infill part will fail a load test that a solid production part would pass |
| Tolerances and shrinkage | Final dimensions after cooling, curing, and support removal | Verify tolerance by process, not by a universal printing claim |

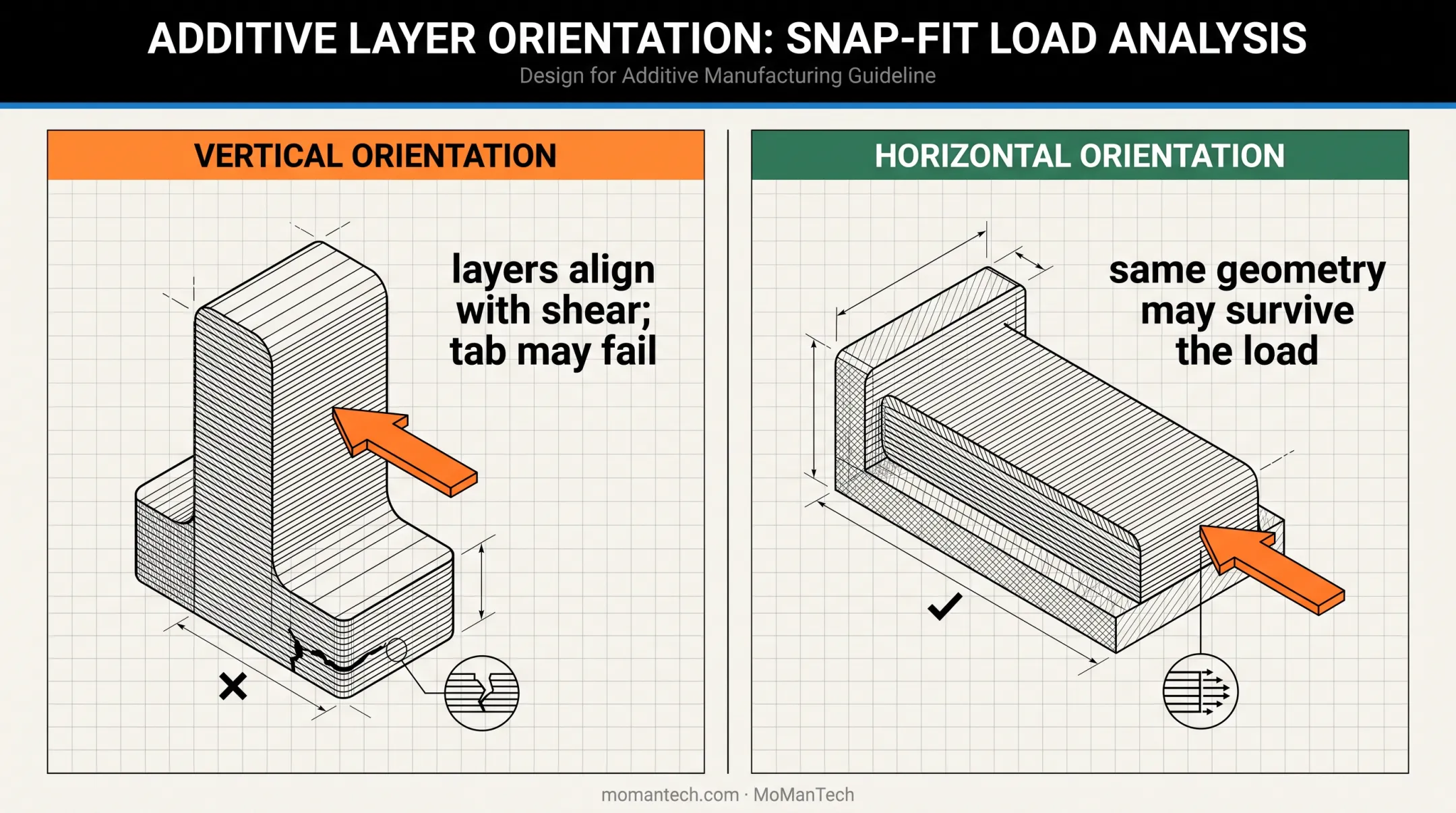

Build Orientation and Anisotropy
Orientation sets layer direction, and layer direction sets strength. A snap-fit tab printed vertically may shear along its layer lines under a load the same geometry would survive if printed horizontally. Reorienting the part, not redesigning it, is often the correct fix.
Tolerances, Shrinkage, and Post-Processing
Printer calibration, material shrinkage, thermal behavior during curing, and even how aggressively supports are removed all shift final dimensions. Don't assume a single tolerance figure applies across processes or materials. Verify it for the specific combination you're using, and measure the actual part rather than trusting the slicer's preview.
Common Mistakes and Troubleshooting Issues with Rapid Prototyping
Most disappointing prototype results trace back to a handful of recurring errors.
- Skipping the objective and acceptance criteria. An attractive print can still fail to answer the engineering question it was built for. Start troubleshooting by asking what decision this prototype was supposed to support.
- Choosing material or technology by cost alone. A low-cost material can produce a brittle part, excess flexibility, or poor heat resistance that misrepresents the eventual production material entirely.
- Ignoring orientation, supports, and critical dimensions. Warping, weak layer interfaces, support scars, and blocked holes are usually orientation problems, not design flaws. Fix the build setup before touching the CAD file.
- Treating the printed part as the final production part. A printed model doesn't prove sterilization compatibility, biocompatibility, or regulatory suitability. The FDA's technical considerations for additive manufactured medical devices call for worst-case dimensional measurement and process-specific validation. An exploratory print alone does not satisfy those steps.
- Failing to document iterations. Without recorded settings, material batch, and inspection results, nobody can explain why one build worked and the next one didn't.
Troubleshooting sequence:
- Confirm the correct file and settings were used
- Inspect printer and material condition
- Verify orientation and support placement
- Measure the failed feature directly
- Determine whether the root cause is process or design
- Reprint a single, controlled revision and compare
Alternatives to Rapid Prototyping with 3D Printing
The right method depends on material, quantity, tolerance, finish, and the design question you need answered. Habit is a poor guide.
| Method | Best for | Trade-off |
|---|---|---|
| 3D printing | Fast iteration, complex geometry, low quantities | Limited material-performance equivalence |
| CNC machining | Accurate metal or engineering-polymer prototypes, production-representative surfaces | Programming and setup cost for frequent design changes |
| Injection molding / urethane casting | Production-representative materials, appearance, larger prototype quantities | Higher upfront tooling cost, risk of locking in a design too early |
| Low-volume contract manufacturing | Validated designs ready for controlled production with documented inspection | Requires a finalized, production-ready design |
CNC machining makes sense once a design stabilizes and you need isotropic material behavior or tighter interfaces than printing can reliably hold.
Tooling-based methods like injection molding become worthwhile when quantities grow or the prototype must closely match final material properties. The trade-off is early geometry lock-in: committing to a tool freezes the design sooner than many teams expect.

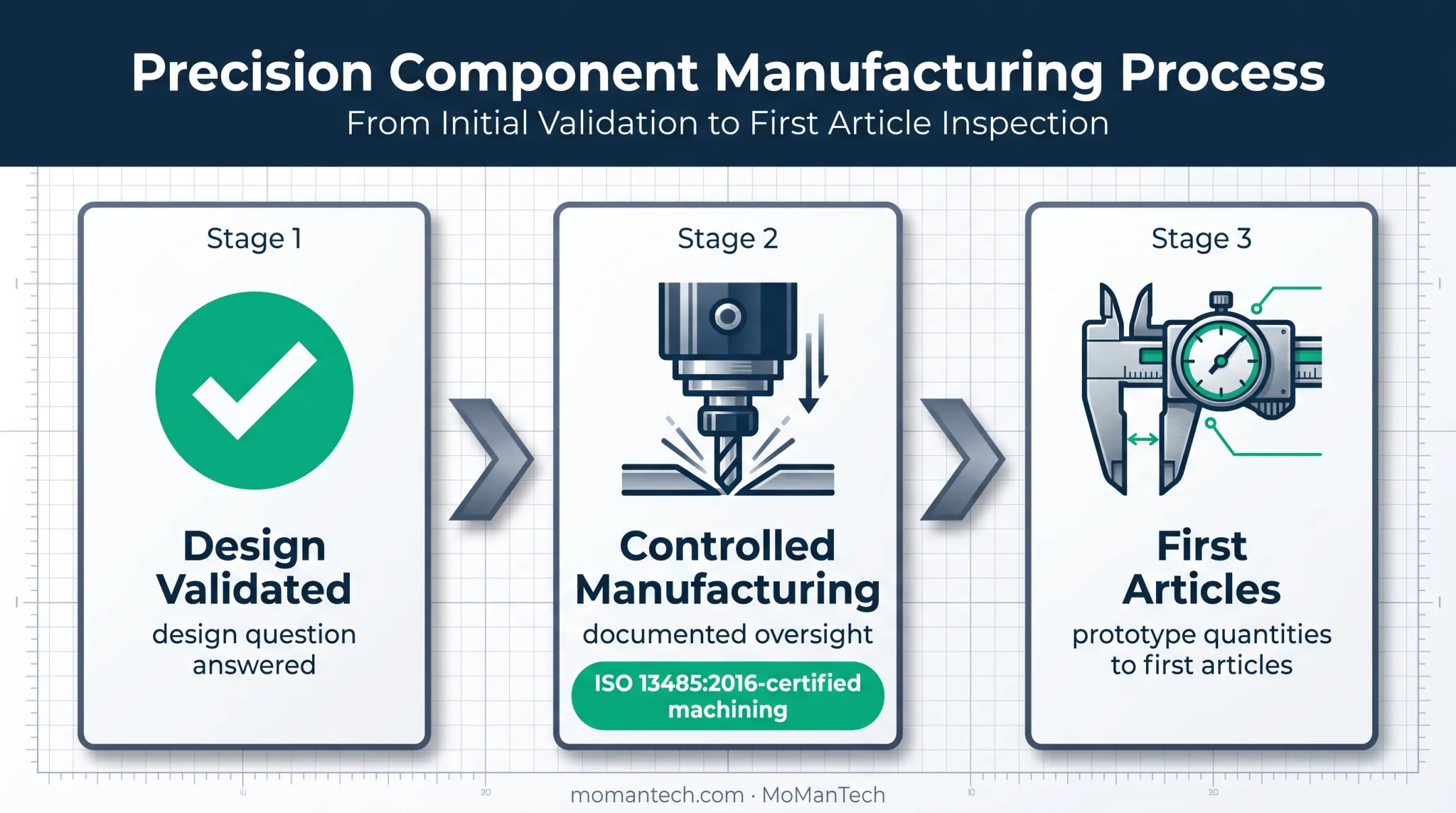

Once a design is validated, the next step is controlled manufacturing with documented oversight. MoManTech's ISO 13485:2016-certified machining supports qualified US orthopedic OEMs at that handoff, from prototype quantities into first articles, after the design question has been answered.
Conclusion
Rapid prototyping with 3D printing works best when a team follows a deliberate process:
- Define the test objective first
- Choose technology and material intentionally
- Control print parameters with intent
- Check every iteration against measurable criteria
Skip any of those steps and you get a print that looks right but tells you nothing useful.
Most disappointing results trace back to unclear requirements, a material chosen for cost instead of purpose, poor orientation, or mistaking a printed model for proof of final production performance. These are process problems, not printer limitations.
Planning the handoff to production early makes the path from printed prototype to machined first article far smoother. If you're an orthopedic startup or a small-to-mid-sized OEM thinking through that transition, MoManTech's team is a reasonable place to start that conversation.
Frequently Asked Questions
How much does it cost to 3D print a prototype?
Cost depends on part size, material, technology, print time, supports, post-processing, and whether the work happens in-house or through a service provider. There's no universal price without project-specific details.
How is 3D printing used in prototyping?
Teams use printed models to evaluate form, fit, appearance, ergonomics, assembly, and key functional requirements before committing to tooling or production.
What is prototyping in 3D printing?
It's the use of additive manufacturing to create an early physical version of a product from a digital design, built for review, testing, and iteration.
Is 3D printing the same as rapid prototyping?
No. 3D printing is one manufacturing method. Rapid prototyping is the broader iterative development process, which may or may not use 3D printing to produce each build.
Is 3D printing a good way to make prototypes?
Yes, for fast design changes, low quantities, and early feedback. It's less suited to final-material equivalence, tight tolerances, regulated validation, or production-scale economics.
What are the four types of prototyping?
Concept, visual/appearance, fit/form, and functional prototypes. Each requires a different level of fidelity, material performance, and testing rigor.
