Precision CNC Swiss-type lathes, also known as sliding-head machining centers, are designed to produce small, slender, and complex parts with exceptional accuracy. They achieve this by supporting the material right next to the cutting zone, combining multiple operations like turning, milling, and drilling into a single, efficient setup.
This article explores the anatomy and operation of these machines. We will compare them with conventional CNC turning, outline their unique benefits for medical applications, and detail what OEMs should look for when selecting a Swiss machining partner for their next project.
Key Takeaways
- Swiss-type lathes feed bar stock through a guide bushing, supporting the part near the tools to minimize deflection.
- Live tooling, multi-axis motion, and sub-spindles finish turning, drilling, milling, and threading in one cycle.
- Swiss machining delivers small-diameter, intricate, repeatable parts with less handling and fewer secondary ops.
- Medical-device quality still depends on programming, inspection, process control, and a qualified manufacturing partner.
What Is a Precision CNC Swiss-Type Lathe?
You may hear them called Swiss-type lathes, Swiss CNC machines, or sliding-head lathes. These terms all describe a machining technology that originated in the Swiss watchmaking industry in the late 1800s, as detailed by Production Machining's history. Today, "Swiss-type" refers to the machine's design, not where it's built.
The defining feature is a sliding headstock that advances bar stock through a stationary guide bushing. The cutting tools engage the material just millimeters from where it exits the bushing. This rigid support is the key to its precision.
This design is critical for small or slender components because it reduces deflection and vibration. The result is improved stability, better control over delicate features, and more consistent dimensions along the length of the part.
In contrast, a conventional CNC lathe typically holds the workpiece in a chuck while the tools move along a more stationary part, leaving longer sections unsupported during turning.
Precision still depends on the full production system, not the machine alone:
- Keep the machine well maintained for stable accuracy
- Hold material securely without distortion
- Match cutting tools to the material and features
- Optimize toolpaths and cutting parameters
- Verify dimensions with advanced metrology equipment
- Document every step so the process stays repeatable
At MoManTech, our precision CNC machining services operate under an ISO 13485:2016 certified system, ensuring these elements work together to produce comprehensively inspected, high-quality parts.
How Do Swiss-Type Lathes Achieve Precision?
The unique mechanics of a Swiss-type lathe allow it to consolidate multiple complex operations into a single, automated process. This integration is what makes it so effective for intricate medical components.
The Machining Sequence

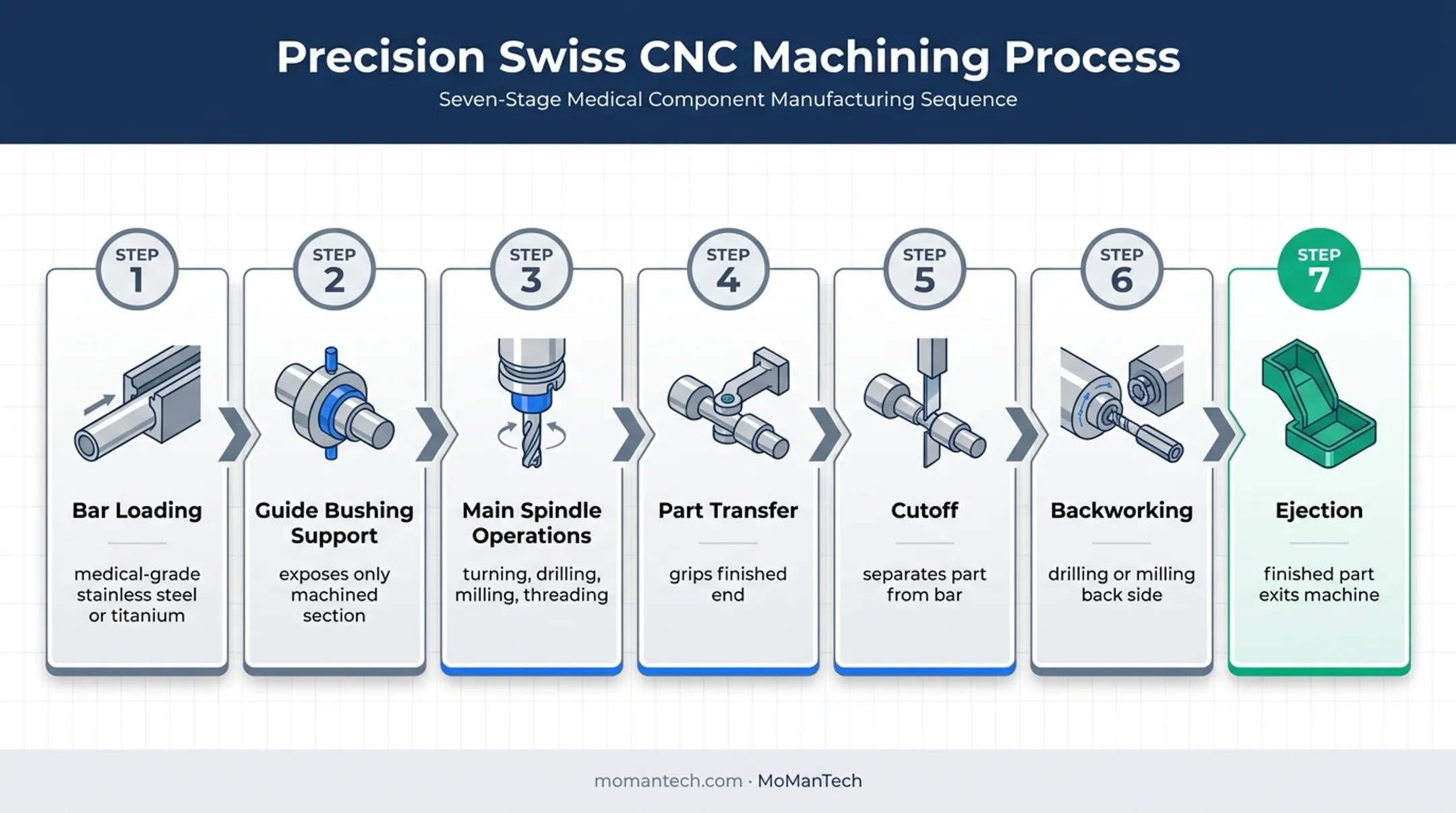

Imagine producing a small bone screw. The process on a Swiss-type machine like MoManTech's 8-axis NexTurn SA20PYII would follow a sequence like this:
- Bar Loading: An automatic bar feeder pushes a long rod of medical-grade stainless steel or titanium into the machine's sliding headstock.
- Guide Bushing Support: The headstock advances the bar through the guide bushing, exposing only the section being machined.
- Main Spindle Operations: Turning tools shape the screw's head and shaft. Live (powered) tools can then drill, mill, or slot features on the part's face or diameter. For a bone screw, a specialized attachment might perform thread whirling.
- Part Transfer: The sub-spindle travels to grip the finished end of the part before it's cut from the bar stock.
- Cutoff: A cutoff tool separates the part from the main bar.
- Backworking: With the part held securely in the sub-spindle, a second set of tools can perform operations on the back side, such as drilling a cannulation hole or milling a hex drive feature.
- Ejection: The finished part is ejected into a part catcher, and the cycle begins again on the next section of the bar.
Reducing Setups and Improving Consistency
By combining these steps, Swiss machining eliminates the need to move a part from a lathe to a mill and back again. Every time a part is re-fixtured, there is a risk of misalignment. Consolidating operations on a single machine programmed with software like Autodesk Partmaker ensures that features are perfectly concentric and located relative to each other, run after run.
Swiss-Type vs. Conventional CNC Turning
| Feature | CNC Swiss-Type Lathe | Conventional CNC Lathe |
|---|---|---|
| Workpiece Movement | Workpiece (bar stock) moves on Z-axis. | Workpiece is largely stationary; tools move. |
| Workpiece Support | Guide bushing supports material very close to the cut. | Held in a chuck/collet, often unsupported at length. |
| Ideal Part Geometry | Small diameters, long L:D ratios, complex features. | Larger diameters, shorter parts, simpler geometries. |
| Setup Strategy | Optimized for one-hit, complete machining. | Often one of several operations in a sequence. |
| Secondary Ops | Many secondary operations are integrated. | Often requires separate milling or drilling setups. |
Benefits and Applications for Medical-Device Manufacturing
For orthopedic medical device OEMs, the capabilities of Swiss machining translate directly into practical benefits for quality, lead time, and cost-effectiveness, especially for complex spinal and extremity components.
Machining Intricate Geometries
The close support of the guide bushing is ideal for producing features that are difficult to control on conventional machines. This includes:
- Long, slender parts: Pins, shafts, and probes with high length-to-diameter ratios.
- Small diameters: Tiny, precise diameters without the part bending under tool pressure.
- Thin walls: Cannulated screws or thin-walled instruments machined without distortion.
- Complex features: Multi-axis contouring and fine detail work on parts such as spinal implants and orthopedic nails, as noted in a Tornos medical brochure.
The Power of "One-Hit" Machining
Completing a part in a single setup gives OEMs clear production advantages:
- Less manual handling, which lowers the risk of damage or contamination
- No setup variation from moving a part between machines, so lots stay consistent
- Shorter lead times and faster response on repeat orders
Quality and Traceability for Medical Devices
In medical manufacturing, process control matters as much as the finished part. Swiss machining supports a controlled, documented workflow that fits medical-device quality expectations. For a component supplier, that means running inside a robust quality system.
The FDA's quality framework, detailed in its inspection program guidelines, requires device manufacturers to maintain strong purchasing controls and ensure product conformity. A capable contract manufacturer must support this with:
- Controlled Processes: Validated programs and documented procedures.
- Comprehensive Inspection: Using tools like our OGP Flash 302 vision system to verify every critical dimension.
- Documented Results: Providing inspection reports and certificates of conformance.
- Full Traceability: Tracking materials and processes from start to finish.

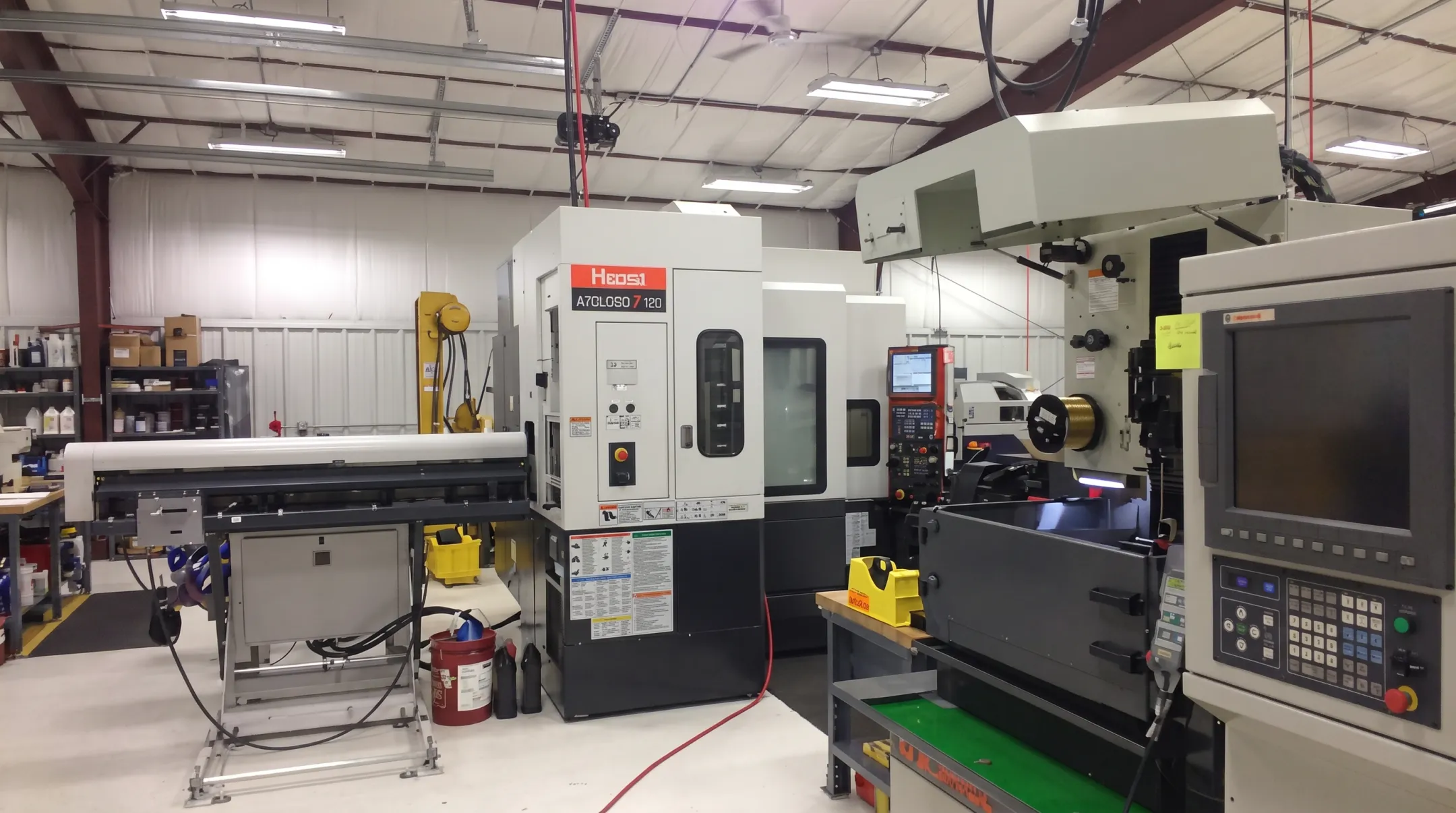

As an ISO 13485:2016-certified partner focused exclusively on orthopedics, MoManTech provides the process control and quality assurance spinal, trauma, and extremity device OEMs need. We pair Swiss machining with documented inspection and full traceability on prototype runs of 1-10 pieces and production orders of 100+.
Choosing Swiss Machining for a Part or Program
Is a Swiss-type lathe the right choice for your component? The decision depends on the part's geometry, tolerance, and production volume.

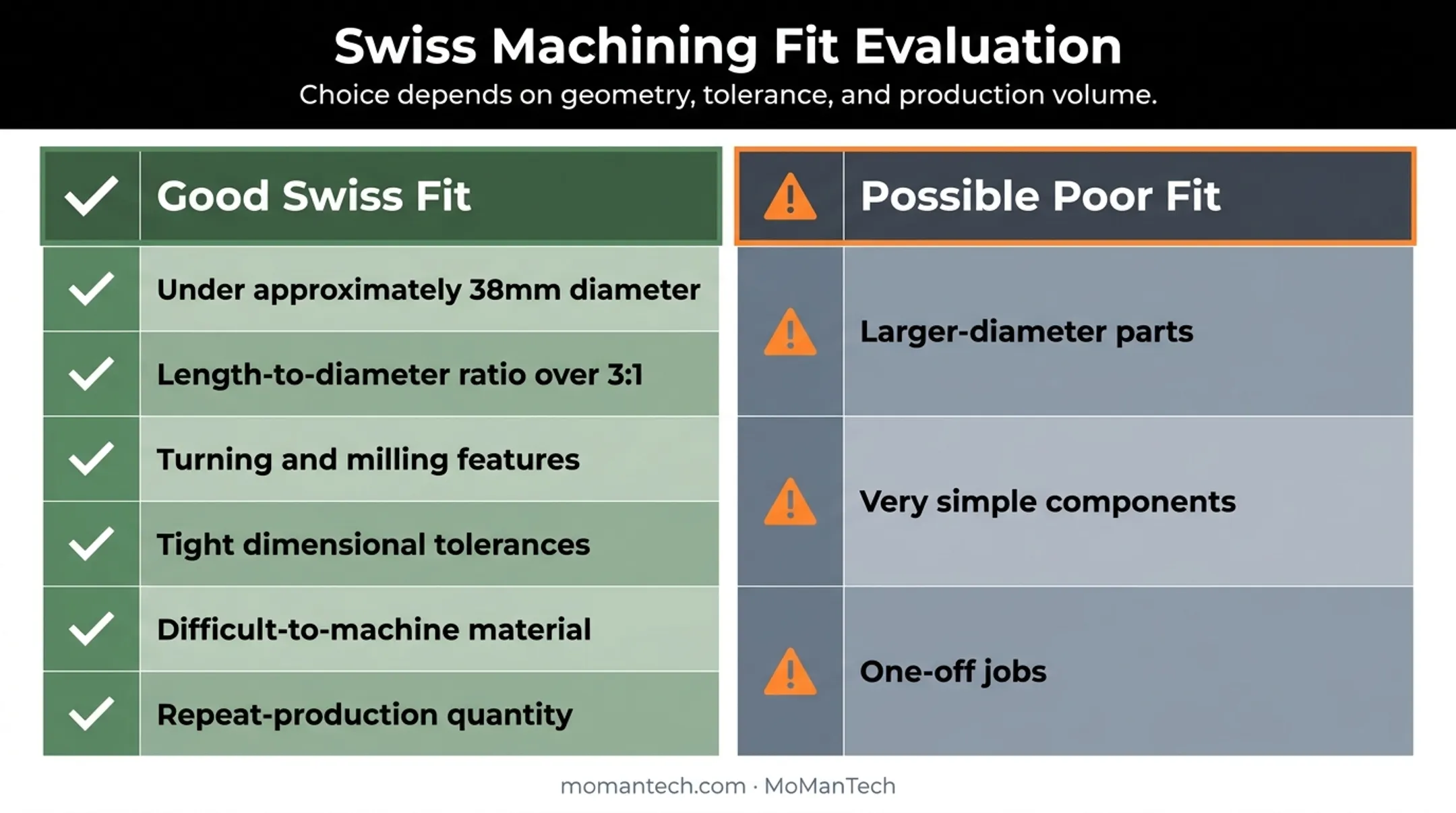

Here is a practical checklist to determine if your part is a good fit:
- Part Geometry: Does it have a diameter under ~38mm? Does it have a length-to-diameter ratio greater than 3:1?
- Complexity: Does the part require both turning and milling features (such as flats, cross-holes, or slots)?
- Tolerances: Does it have tight dimensional or geometric tolerances that would be difficult to hold across multiple setups?
- Material: Is it made from a difficult-to-machine material where rigid support is beneficial?
- Quantity: Is it a repeat-production part where automated process efficiency pays off?
Swiss machining may not be the best choice for larger-diameter parts or very simple components that run faster on another machine. One-off jobs rarely justify the setup time either.
Questions to Ask a Manufacturing Partner
When you engage a potential supplier, their answers will tell you a lot about their capabilities.
- Do they offer design-for-manufacturability (DFM) feedback to optimize the part for the process?
- How do they support prototyping and first-article inspection before scaling to production?
- What inspection documentation and material traceability will they provide with each shipment?
- Can they demonstrate validated processes and a commitment to quality that aligns with your regulatory needs?
With over 70 years of collective experience in orthopedic manufacturing, the MoManTech team is ready to work through these questions with you. We partner with customers from planning through production to deliver peace of mind with every piece we create.
Have a drawing for a complex orthopedic component? Contact MoManTech today to discuss your production goals.
Frequently Asked Questions
What is a 2-axis lathe?
A standard 2-axis lathe typically moves the cutting tool along two axes (X for diameter and Z for length). A Swiss-type machine is far more complex, often incorporating a sub-spindle, live tooling, and 8 or more axes for advanced operations.
What is a CNC Swiss-type lathe used for?
It is used to produce small, precise, and often complex components for industries like medical/orthopedic, aerospace, and electronics. It excels at parts like bone screws, electrical connectors, and intricate shafts.
How is a Swiss-type lathe different from a conventional CNC lathe?
The main difference is that a Swiss-type lathe feeds the material through a guide bushing with a sliding headstock, supporting it right at the point of the cut. A conventional lathe usually holds the part still while the tools move around it.
What parts are best suited for Swiss machining?
Small-diameter, slender, and intricate parts requiring tight tolerances are ideal candidates. This includes components with multiple turned, milled, and drilled features that benefit from being completed in a single setup.
Can Swiss-type lathes support medical-device manufacturing?
Yes. When operated within a robust quality system like MoManTech's ISO 13485:2016 framework, they are well suited for producing orthopedic implants and instruments that require stringent process controls and documentation.
Does Swiss machining eliminate secondary operations?
It can reduce or eliminate many secondary operations by consolidating milling, drilling, and turning. However, some processes like heat treating, surface finishing, or laser marking may still be required depending on the part's specifications.
