Electropolishing is a controlled electrochemical finishing process. It removes a thin layer of metal to smooth, brighten, deburr, and clean the surface. It does not add a coating.
This article covers how the process works, what it can and cannot fix, how it compares with passivation and electroplating, and what medical-device manufacturers should settle before specifying it.
Key Takeaways
- Electropolishing removes stainless steel through current and an electrolyte; it never plates.
- It levels microscopic high points but cannot repair deep scratches, pits, or porosity.
- Passivation and electropolishing serve different purposes and are sometimes specified together.
- Alloy, geometry, tolerances, inspection, and documentation decide whether it suits a part.
What Is Stainless Steel Electropolishing?
What electropolishing means
Electropolishing is an electrochemical process in which stainless steel is deliberately dissolved in a controlled way to remove microscopic irregularities. NASA defines it as a process that improves a metal's surface finish by making it anodic in an acidic solution.
You'll see several names for the same idea: electropolish, electrochemical polishing, electrolytic polishing, and anodic polishing.
The "reverse electroplating" shorthand helps, with a caveat. Electroplating deposits metal onto a workpiece. Electropolishing erodes the workpiece, sending metal ions into the solution.
How it changes the surface
Burrs and projections see higher current density, so they dissolve faster than valleys. The result is a smoother, more uniform surface that offers fewer places for particles and contaminants to hide and looks brighter.
The outcome depends heavily on the starting surface, alloy, geometry, electrolyte, electrical settings, and process control.
What it does not do
Electropolishing is not a rescue for poor machining. It won't fix:
- Deep scratches, pits, or seams
- Large burrs
- Porosity or unsuitable casting surfaces
- Heavy orange peel
Because it removes material, you must weigh it against tolerances, thread fit, edge conditions, thin walls, and critical features. And don't judge success by shine alone. Check roughness, dimensions, cleanliness, corrosion requirements, and customer or regulatory specifications too.
How Does Stainless Steel Electropolishing Work?
The electrochemical setup

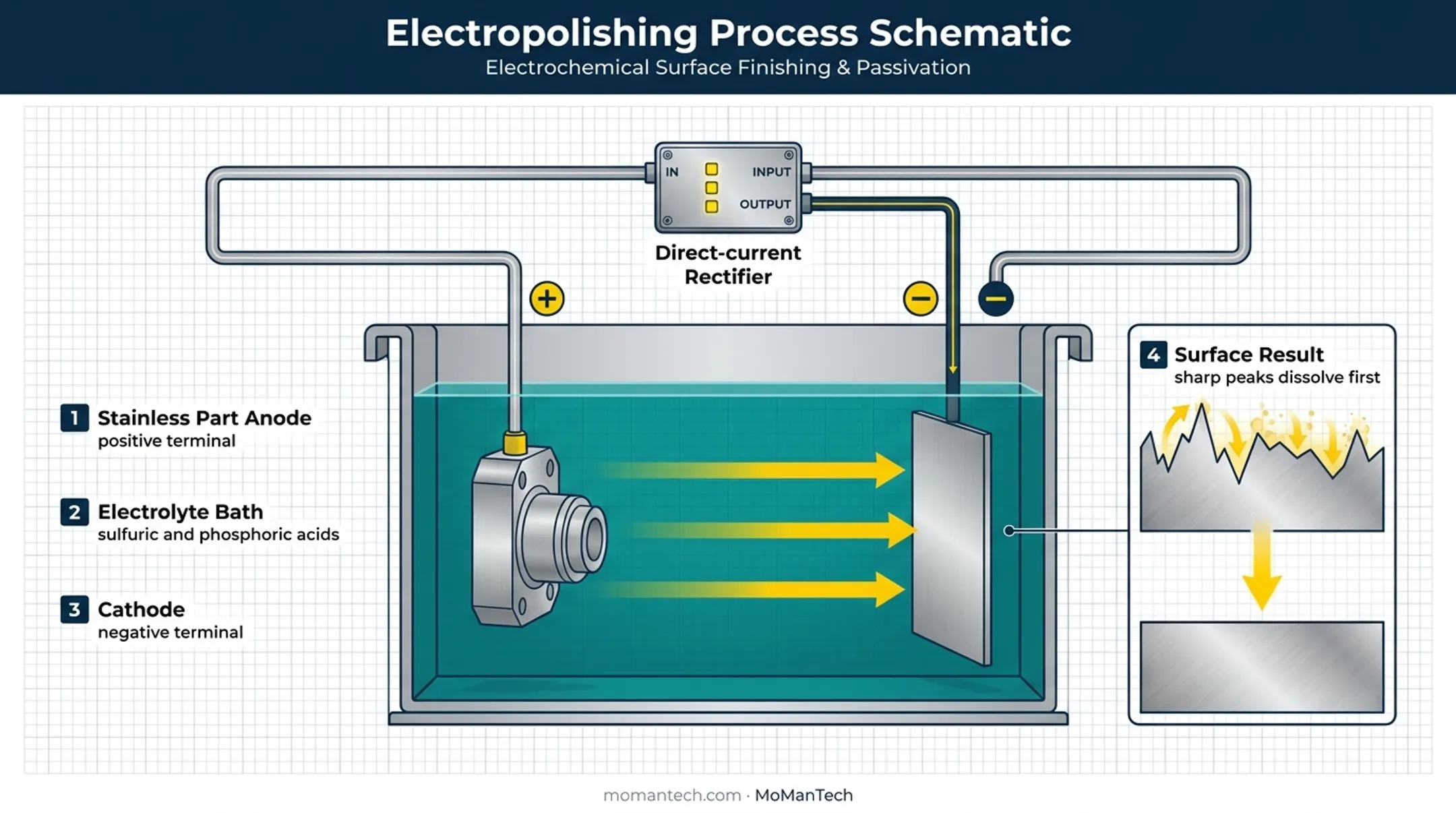

A rectifier converts AC to DC. The stainless part connects to the positive terminal (the anode), and a separate conductor connects to the negative terminal (the cathode). Both sit in an electrolyte bath, commonly based on sulfuric and phosphoric acids.
Current drives metal ions from the part into the bath. This is anodic dissolution, not abrasion.
As current flows through the electrolyte from the anode to the cathode, the sharpest surface peaks dissolve first and the surface levels at a microscopic scale.
Process variables that control the finish
Several variables shape the result:
- Electrolyte composition and concentration
- Current density and processing time
- Bath temperature and agitation
- Alloy composition and initial roughness
- Cathode placement, part spacing, and racking
Correct settings vary by alloy, geometry, equipment, and finish requirement, so there is no universal recipe. NASA's specification requires qualification for each alloy and fixed process, with requalification after changes.
Trouble shows up in predictable ways:
- Oxygen formation can cause streaking
- Low current density with high temperature can produce orange peel
- Residual moisture can stain parts
- Inadequate preparation is a common reason for rejection
Typical sequence
A typical flow looks like this:
- Degrease and clean
- Rinse
- Pickle or descale if heat oxides are present
- Electropolish
- Intermediate rinse
- Post-treat where specified (nitric is one documented option)
- Final rinse and dry
Oils, machining residue, and fingerprints must come off first, because they interfere with uniform results. Keep the roles distinct: electropolishing changes topography and removes material, while post-treatment removes reaction films and may support required surface chemistry.
Quality control and safety
Repeatable production depends on controlled chemistry, equipment maintenance, bath monitoring, fixture inspection, and documented parameters.
The hazards are real: acid electrolytes, electrical current, heat, fumes, and metal-bearing waste. OSHA's 29 CFR 1910.124 governs dip-tank operations, and wastewater rules may apply. This overview is educational, not a DIY recipe. Use a qualified finishing provider or validated industrial system.
Benefits and Applications of Electropolished Stainless Steel
Key benefits
- Reduces microscopic roughness and removes small burrs
- Produces a surface that is easier to clean and inspect
- Removes free iron, heat tint, and oxide scale per ASTM B912
- Reaches small or complex areas abrasive tools can't
- May reduce friction on suitable parts such as forged 304/316 fasteners

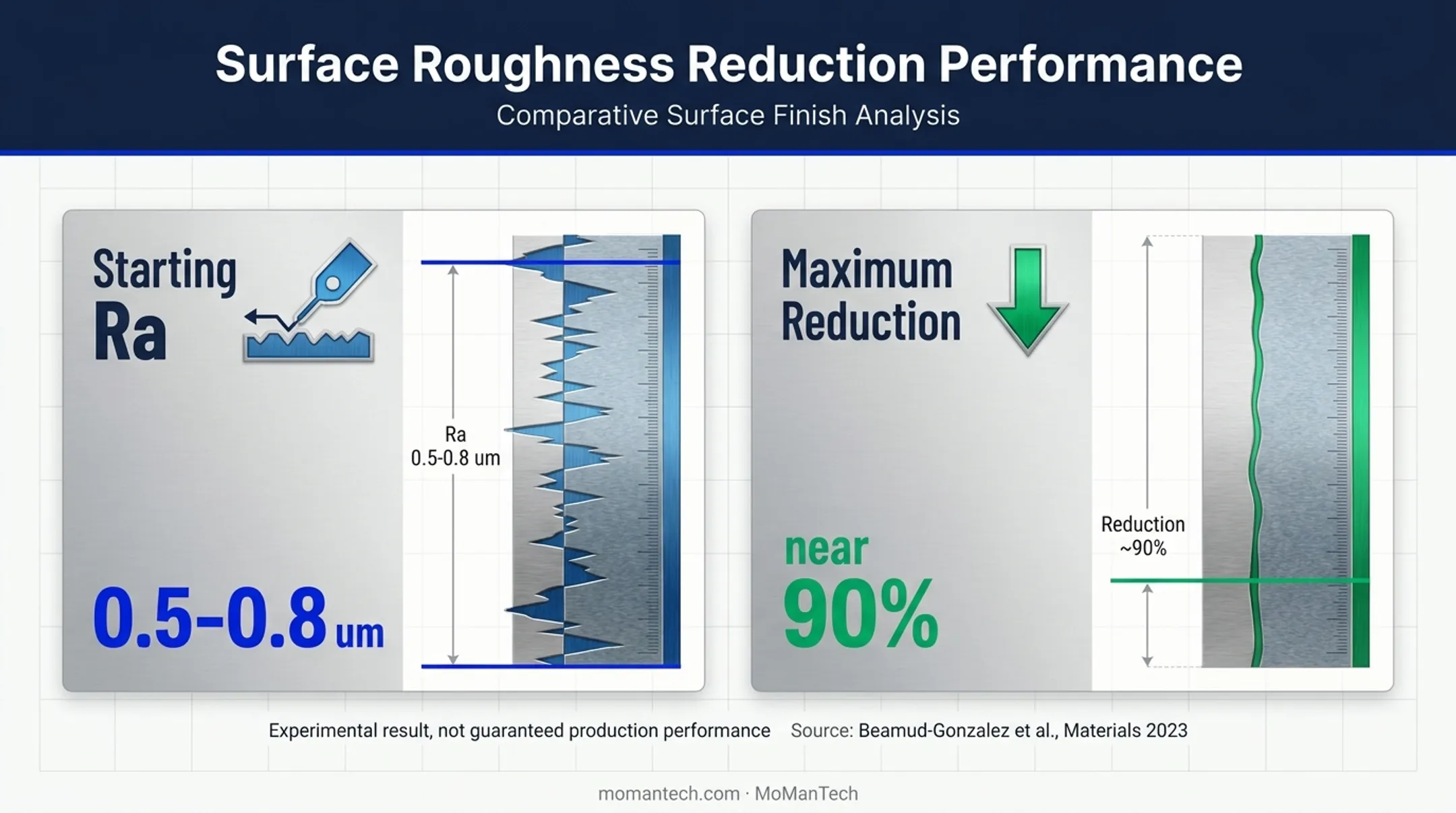

Numbers help. A 316L experiment in Beamud-Gonzalez et al. reported a maximum roughness reduction near 90%, from a starting Ra of 0.5-0.8 µm. Those are experimental extremes, not guaranteed production results.
Fatigue data also matter for medical steels. Tested 316L and 316LVM materials showed better fatigue performance with electropolishing than with passivation, while static properties did not differ.
Now the counterweight. A Listeria study found no significant adhesion difference between mechanical and electropolished finishes, and a nanoscale study found more viable bacteria on a smoother electropolished surface. Smoother does not automatically mean antimicrobial.
Common applications
Electropolishing appears in medical and surgical equipment, pharmaceutical and food processing, semiconductor and high-purity systems, aerospace, tubing, fittings, and precision hardware. It suits parts with delicate features or cleanliness demands, though fixture design determines how uniformly internal areas are treated. NASA's specification, for instance, excludes deeply recessed areas where internal cathodes can't be applied.
Not every stainless implant or medical part needs electropolishing. ASTM F86 ties treatment to the material and contaminants present, and the FDA evaluates the finished device.
When it may suit orthopedic components
Orthopedic OEMs should consider it when a stainless part needs controlled deburring, better cleanability, a specified finish, weld-oxide removal, or a documented finishing process. Before choosing, review:
- Material grade and part function
- Dimensional tolerances
- Sterilization pathway
- Surface-finish requirements
- Inspection plan and applicable documentation
MoManTech supports orthopedic OEMs with ISO 13485:2016-certified contract machining, design-for-manufacturability consultation, prototypes and first articles (1-10 units), production runs, and comprehensive inspection of every component. Finishing choices like this are best raised during DFM, before the drawing is frozen.
Electropolishing Compared With Other Stainless Steel Finishing Methods

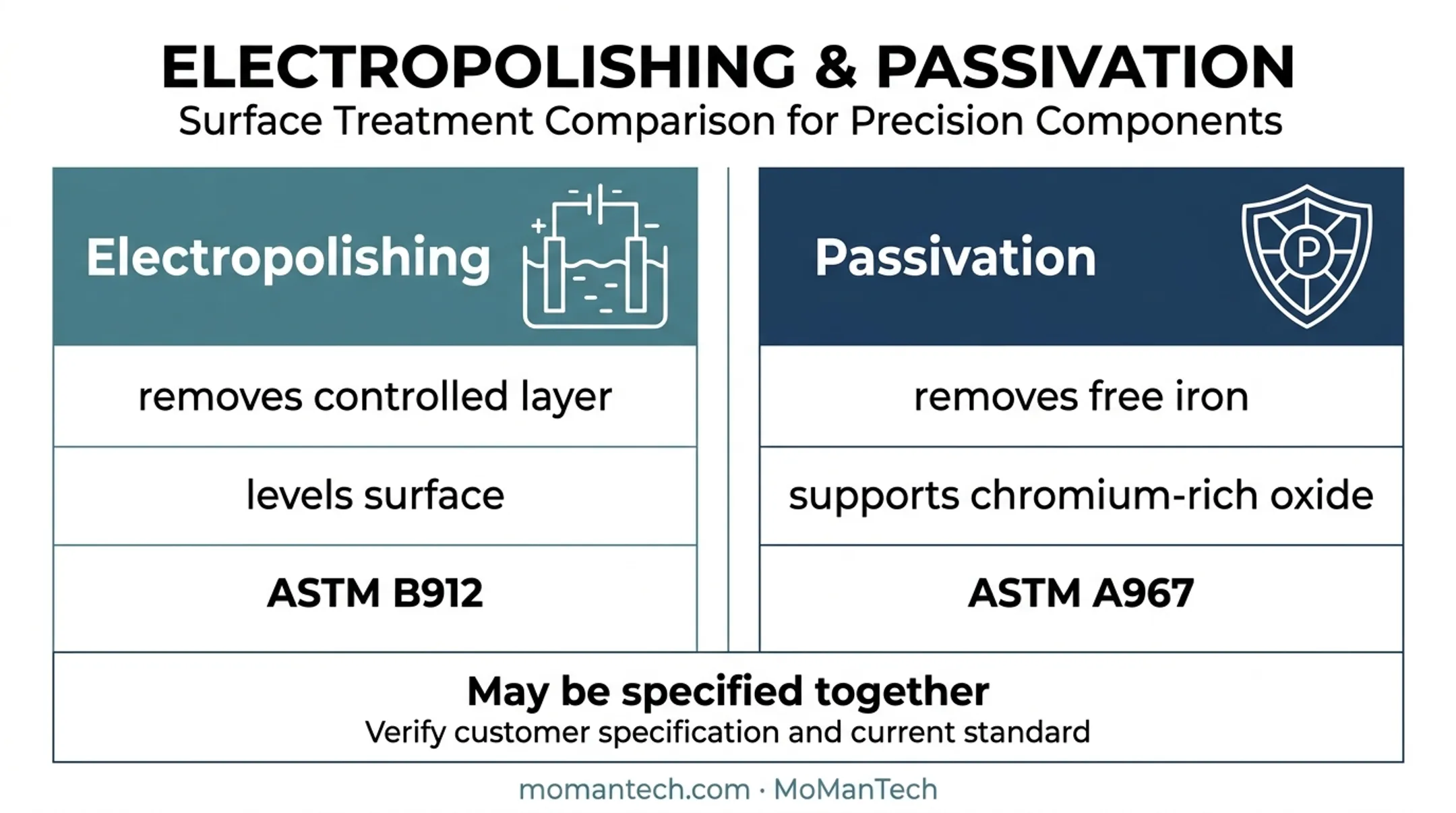

Electropolishing versus passivation
Electropolishing removes a controlled layer and levels the surface. Passivation is a chemical treatment that removes free iron and supports a protective chromium-rich oxide film. ASTM A967 covers chemical passivation, and its acceptance tests are qualitative.
Neither method is universally better. Choose based on your primary need:
- Surface smoothing and leveling
- Chemical conditioning
- Corrosion performance
- Cleanliness requirements
- A mix of these goals
ASTM B912 describes passivation using electropolishing, with simultaneous passivation depending on proper operating conditions.
Some workflows combine both. NASA's specification generally omits separate passivation, but requires it for straight-chromium martensitic grades with 12-14% chromium and Custom 455. Always verify the customer specification and current standard.
Electropolishing versus mechanical polishing
Mechanical polishing abrades the surface and can leave scratches, strains, debris, and embedded abrasives. Electropolishing reaches complex geometry and treats burrs without those risks. Existing scratches, porosity, and inclusions can still impair electropolishing results, so mechanical work may come first for larger defects.
Electropolishing versus electroplating
Plating and coatings add material; electropolishing removes it. Stainless can be plated per ASTM B254, but activation removes the passive film, and re-passivation before deposition can cause poor adhesion. Adhesion, dimensional impact, and corrosion behavior need separate evaluation.
Design, Material, and Quality Considerations
Material and geometry
ASTM B912 covers 200-, 300-, and 400-series and precipitation-hardening stainless, but response varies by alloy, so qualify every material.
Flag these features early:
- Edges and corners, which see greater removal unless shielded
- Threads, thin walls, and blind holes
- Welds and dissimilar materials
- Fixturing points, which leave witness marks
NASA specifies 0.0002-0.0005 in per surface removal. That's a specification example, not an industry norm, so state your own removal limits on the drawing and validate critical dimensions on representative parts.
Specification, inspection, and documentation
Define these before production:
- Alloy and visual finish
- Surface roughness and dimensional limits
- Cleanliness and post-treatment
- Inspection method and acceptance criteria
- Packaging and handling controls
Requirements differ by application. ASTM F86 covers implant surface preparation, F138 covers wrought implant stainless (UNS S31673), and ISO 16061 covers instruments used with non-active implants. None is a universal electropolishing standard.
A qualified supplier should provide process records and inspection evidence suited to the part's risk. Dimensional verification matters too. MoManTech uses an OGP Flash 302 with CMM and laser measurement for inspection.
Limitations and supplier selection
Common failures include:
- Pitting, streaking, or staining
- Dull areas and inadequate deburring
- Dimensional drift
Trace each defect to its source: material, cleaning, chemistry, fixturing, or process control.
For complex parts, run prototype or first-article trials first, especially with internal surfaces, tight tolerances, or medical documentation. Chemical handling, ventilation, and wastewater treatment usually put this work with a professional finisher.
Frequently Asked Questions
Can you electropolish stainless steel?
Yes. Many stainless grades can be electropolished. Alloy, geometry, starting finish, tolerances, and process qualification determine the result.
What's the best thing to polish stainless steel?
It depends on the goal. Electropolishing suits controlled smoothing, deburring, and cleanability. Mechanical polishing fits certain appearance or defect-correction needs. Passivation conditions the surface chemically.
Can stainless steel be electroplated?
Yes, in some applications. Plating adds a coating while electropolishing removes material, and adhesion depends on proper surface activation and preparation.
What metals can be electropolished?
Stainless steel is the most common. Nickel alloys, titanium, cobalt-chrome, copper alloys, and aluminum can also be processed, but each needs alloy-specific testing.
Is electropolishing better than passivation?
Not categorically. Electropolishing changes topography and removes material; passivation conditions the surface chemically. One may not replace the other.
