Manufacturability affects quality, consistency, performance, and compliance. A feature that looks fine in CAD can be hard to machine, impossible to inspect, or awkward to assemble. Teams hear DFM, DFA, and DFMA constantly during development, yet few define them at an operational level.
Below: the terminology, the workflow, the factors that move the result, and when a full review is overkill.
Key Takeaways
- DFM makes individual parts easier to produce; DFA makes the complete assembly easier to put together.
- DFMA combines both while protecting function, quality, and performance.
- Start during concept and engineering, not after release.
- Material, geometry, tolerances, tooling, inspection, volume, and supplier capability all shape the outcome.
What Is Design for Manufacturing and Assembly, and Why Is It Used?
The three terms in plain language

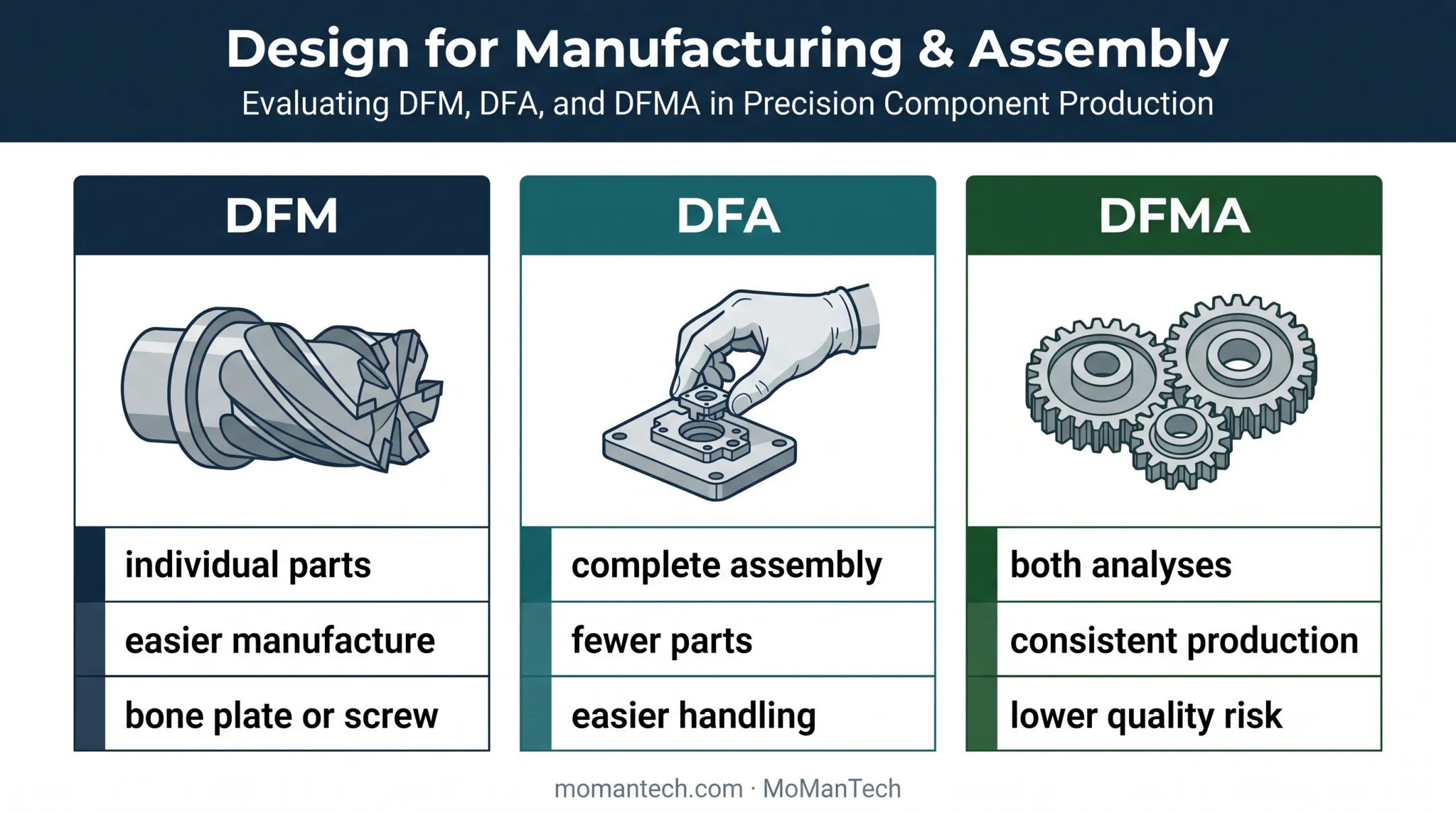

According to Boothroyd Dewhurst, DFM designs each part for easier, more consistent, lower-cost manufacture at the target volume. DFA reduces part count and makes the remaining parts easier to handle and assemble. DFMA runs both analyses together.
The goal is a product that can be produced, inspected, and assembled consistently without needless cost, delay, rework, or quality risk.
In orthopedics the distinction has practical weight:
- A single bone plate or screw may need mainly DFM analysis.
- A multi-part instrument or implant system needs DFM and DFA together.
Why organizations use it
- Remove unnecessary operations
- Improve repeatability
- Make inspection easier
- Shorten development cycles and control lead times
- Make production scale-up more predictable
What goes wrong without early input
Difficult-to-machine features, excessive tolerances, inaccessible inspection points, and awkward assembly steps are the usual culprits. They lead to redesigns, scrap, and delays at first article or launch. Changes also get more expensive the further into development they occur, though no single cost multiplier holds across every program.
What DFMA is not
DFMA is an engineering and operational practice. It does not replace design controls, risk management, validation, or quality-system requirements.
FDA's Quality Management System Regulation (QMSR), effective February 2, 2026, incorporates ISO 13485:2016. A favorable DFM review does not substitute for the documented design reviews, verification, validation, and transfer evidence that apply to your device class.
How DFM and DFMA Work Across Product Development

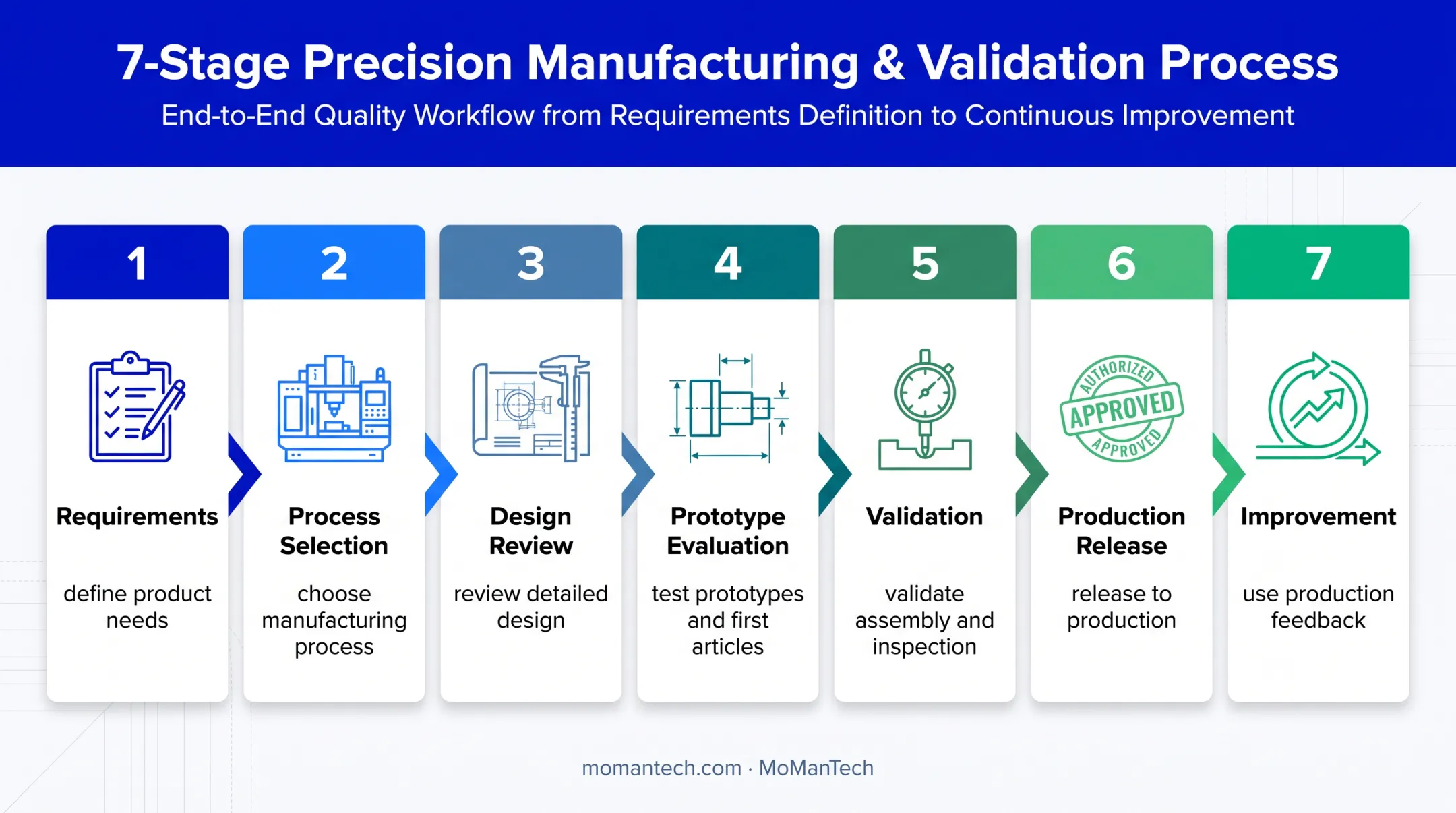

The flow runs from requirements to process selection, detailed design review, prototype or first-article evaluation, assembly and inspection validation, production release, and feedback-driven improvement.
Step 1: Define requirements and manufacturing context
Before optimizing geometry, settle:
- Intended function and critical interfaces
- Materials and expected quantities
- Target cost and production timing
- Inspection and assembly needs
- Quality and documentation constraints
Step 2: Review the design against processes and assembly realities
Review manufacturing factors first:
- Part geometry and machining or forming access
- Material availability and datum structure
- Tolerance stack-up
Then check assembly realities:
- Tooling, fixturing, and surface requirements
- Fasteners, handling, and orientation
- Order of manufacturing and assembly operations
Step 3: Prototype, inspect, assemble, and refine
Prototypes, first articles, pilot lots, and simulated assembly expose problems CAD hides. Record the findings and feed them into a controlled design revision so the lesson stays in the design history.
An experienced contract manufacturer can help here. MoManTech, for example, provides DFM consultation for orthopedic components, supports prototype quantities of 1-10 and production runs of 100+, and inspects every component with documentation before it ships.
Where DFM and DFMA Are Applied
DFM and DFMA run from early concept through detailed engineering, prototyping, first article, production ramp-up, and later engineering changes. Review depth should match design maturity and risk.
Common triggers for a review:
- A new product
- A change in material or process
- A volume increase
- Recurring defects
- Difficult assembly
- A supplier transition
- A push to cut lead time
Reviews can be recurring, tied to milestones, or triggered by a specific issue.
Key Factors, Methods, and Checklist Items That Affect DFM/DFMA
Methods used in DFM and DFMA
- Cross-functional design reviews
- Process-specific design rules
- Tolerance stack-up analysis
- Prototype and first-article evaluation
- Manufacturability software or simulation
- Supplier feedback and assembly walkthroughs
- Targeted DFMEA
DFMEA is not another name for DFM. ASQ's FMEA guidance frames it as identifying and prioritizing potential failures during design. DFM asks how parts get made; DFMEA asks what could fail.
Tolerance stack-up analysis belongs on that same list and often gets shortchanged. An MDDI example of a polyaxial spinal screw showed a worst-case stack failing its gap requirement while a root-sum-square calculation passed. The author warned that RSS ignores process capability, so analyze the full chain rather than loosening tolerances blindly.
DFM checklist considerations
Build a concise checklist around:
- Part geometry and orientation
- Material and availability
- Critical dimensions, datums, and tolerances
- Tooling and fixturing
- Assembly access
- Inspection points and documentation
- Production quantity
- Change control
Adapt it to the specific component, process, quality requirements, and supplier. It is a conversation guide, not a universal pass/fail form.
Inputs and materials
Material choice drives machinability, dimensional stability, inspection, cost, and delivery.
- Ti-6Al-4V ELI (ASTM F136): poor thermal conductivity and retained high-temperature strength make it hard to machine.
- Cobalt-chrome (ASTM F1537): abrasive, demands tool endurance and often dedicated fixturing.
- Stainless steel (ASTM F138): work hardening can drive tool wear; thin, slender parts risk burrs and distortion.
- PEEK (ASTM F2026): heat, burrs, and dimensional stability need attention, and machining or sterilization can change properties.
Heat treatment, finishing, and lot-to-lot consistency matter as well.
Operating conditions and design geometry
Watch for:
- Deep or narrow features and long tool overhangs
- Thin sections
- Sharp internal corners, which raise cutter engagement and can cause vibration
- Difficult tool access and complex surfaces
- Unnecessarily tight tolerances
- Geometry that complicates cleaning, handling, or inspection
No universal minimum radius or depth ratio exists. Review each against the process.
Equipment, tooling, and throughput
Available machines, cutting tools, workholding, automation, and inspection gear decide which designs are practical. Setup count and batch size matter most.
Mach Medical, for instance, reported that setup time drives minimum order quantities, and that its automated cell handles orders as small as one part. Treat its lead-time improvement (20 weeks to three) as one manufacturer's result, not a benchmark.
Safety, quality, and regulatory constraints
Weigh critical-to-function features, traceability, inspection records, and process validation alongside cost and speed. Validation applies when a process result cannot be fully verified. Changes to validated processes need evaluation and possible revalidation. Confirm which requirements apply to your device class and role in the supply chain.
Common Issues, Misconceptions, and When DFM/DFMA May Not Be Appropriate
Misconceptions
- "It's just cost-cutting." It also improves consistency, inspectability, and lead time.
- "Only for high volume." Low-volume implants benefit from fewer setups too.
- "It's done once." Material, process, and volume changes call for new reviews.
- "Simplest is best." Clinical and functional requirements come first.
Common misuse
- Tightening every tolerance without functional justification. Reserve extreme precision for clinically critical features only; unnecessary precision raises cost, inspection burden, and scrap risk.
- Picking a process before understanding requirements.
- Treating software output as a substitute for engineering judgment.
- Involving the manufacturer after tooling or production has begun.
When a full review may be too much
A low-risk, unchanged component with proven process capability may not need a full DFMA workshop. A proportionate review, targeted process analysis, or focused DFA or DFMEA assessment is usually enough. Manufacturability thinking still applies.
Conclusion
DFM makes parts easier to manufacture. DFA makes products easier to assemble. DFMA joins the two so design requirements translate into reliable production.
Early collaboration among design, manufacturing, quality, inspection, and supplier teams beats a rigid checklist. Apply DFMA with judgment, document the decisions, and feed production results back into the next design cycle.
Frequently Asked Questions
What are the methods used in Design for Manufacturing (DFM)?
Common methods include design reviews, process selection, tolerance analysis, prototyping, simulation, supplier collaboration, inspection planning, and targeted risk analysis.
What is a DFM checklist?
A structured review of geometry, materials, tolerances, tooling, assembly, inspection, volume, quality, and documentation. Tailor it to each component.
What is Design for Manufacturing and Assembly (DFMA)?
DFMA applies DFM and DFA together to optimize both individual parts and the complete assembly.
What is Design for Manufacturing (DFM)?
DFM means designing a product's parts around available materials, processes, equipment, tolerances, inspection methods, and production requirements.
What is the difference between design for assembly (DFA) and Design for Manufacturing (DFM)?
DFM focuses on producing individual parts. DFA focuses on handling, aligning, joining, and assembling those parts efficiently.
What is DFA, DFM, and DFMEA?
DFA simplifies assembly, DFM improves part manufacturability, and DFMEA analyzes failure risk. Used together, they cover how a product goes together, how its parts are made, and what could go wrong.
