Introduction
Small, slender, complex parts pose a specific engineering problem: unsupported stock flexes under cutting force. A thin pin or shaft held only at one end can deflect, chatter, or come off the lathe out of tolerance.
Medical-device OEMs feel this acutely. Orthopedic components for spine, trauma, large joint, and foot-and-ankle applications often combine tight dimensional requirements with narrow diameters and difficult-to-machine alloys. Add multiple setups and tolerance stack-up, and consistency becomes harder to hold across a production run.
Swiss CNC machining and turning addresses this directly. A sliding headstock advances bar stock through a guide bushing positioned close to the cutting tool, keeping the unsupported length short throughout the cut. Research on sliding-headstock systems confirms that this close support is the core mechanical advantage of the process (Tsugami, "Recognizing the Swiss Advantage").
This article explains how Swiss machines work, how they compare to conventional CNC turning, where the process fits best, and what to evaluate in a manufacturing partner.
Key Takeaways
- Guide bushings and sliding headstocks support bar stock at the cut, limiting deflection on slender parts
- One setup can combine turning, drilling, threading, and milling when the machine is configured for it
- Best fit for orthopedic screws, pins, shafts, and other small parts that need repeatable geometry
- Select the process on geometry, volume, material, and total cost—not tolerance alone
How Swiss CNC Machining and Turning Works
Swiss CNC machining isn't a separate manufacturing category. It's a specialized form of CNC turning built around one mechanical difference: how the workpiece is supported during the cut.
Swiss-type lathes use a sliding headstock. A collet grips the bar, rotating and advancing it along the Z-axis through a guide bushing. The cutting tool engages the bar right at the bushing face, so very little stock is ever left unsupported.
The Role of the Guide Bushing
Conventional turning holds a workpiece in a fixed chuck while tools move to the cut. Swiss turning flips that relationship. The bar advances through a stationary guide bushing, so:
- The cutting zone stays at the support point as the part lengthens
- Radial deflection and bending drop on long, narrow features
- Chatter risk falls, though bushing clearance can still allow slight movement under cross-tool loads
Coordinating Multiple Operations
Modern Swiss platforms carry fixed tools, live (rotating) tooling, and often a sub-spindle for back-working. The CNC control sequences these elements so a part can move from front-side turning to sub-spindle finishing without a second setup.
MoManTech runs this kind of multi-axis Swiss capability, including a NexTurn SA20PYII 8-axis lathe and a Citizen M20, alongside a 9-axis Quicktech S42ATM with full C-axis on its sub-spindle. That combination lets complex orthopedic components move through turning, cross-drilling, and secondary features in a single planned sequence rather than multiple handoffs.

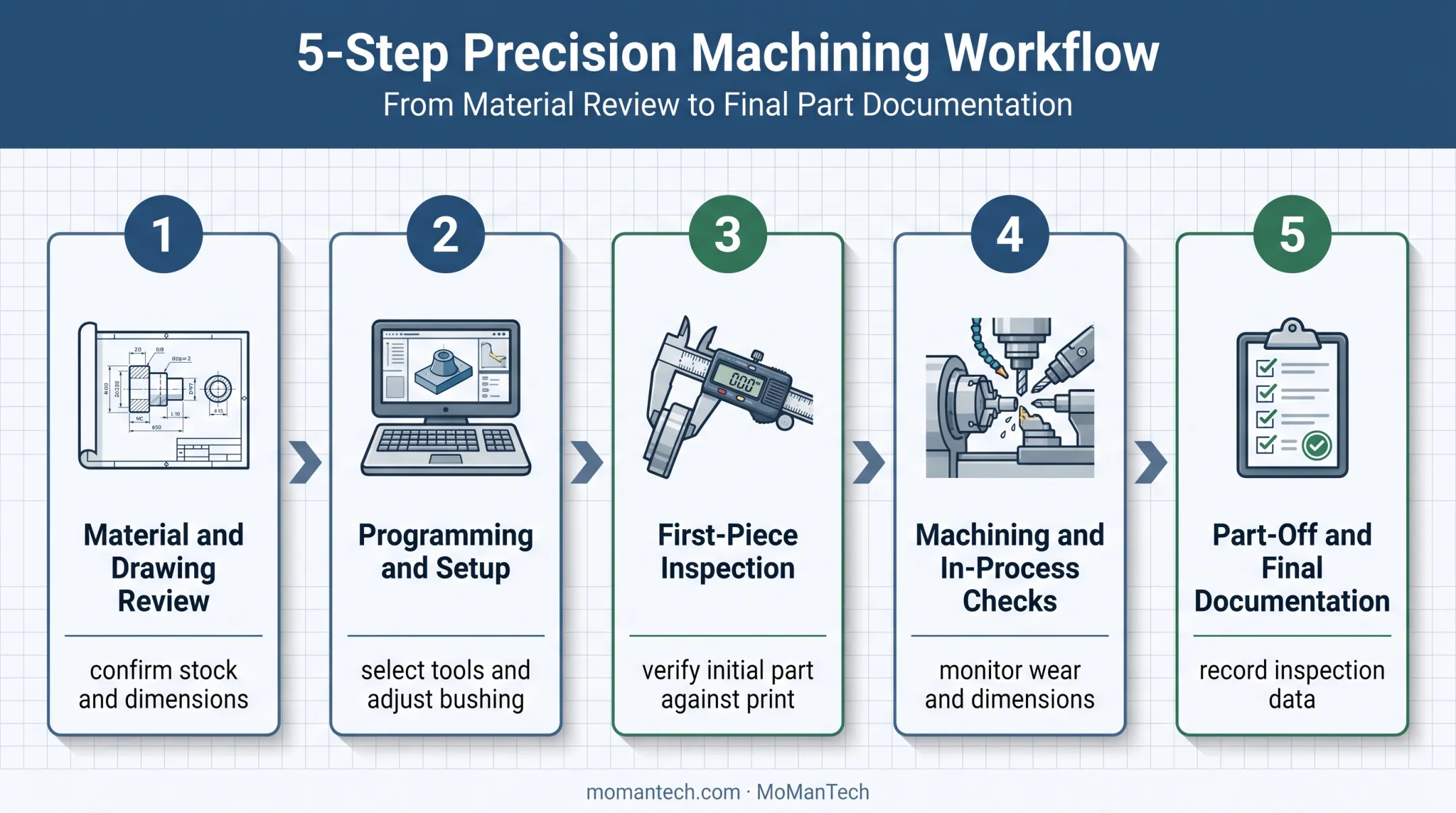

A Typical Production Sequence
- Material and drawing review: confirm bar stock, critical dimensions, and functional requirements
- Programming and setup: CAD/CAM programming (MoManTech uses Autodesk/PartMaker), tooling selection, and guide-bushing adjustment
- First-piece inspection: verify the initial part against the print before full production
- Machining and in-process checks: monitor tool wear and dimensions throughout the run
- Part-off and final documentation: separate the finished part and record inspection data
No single tolerance, cycle time, or length-to-diameter ratio applies to every Swiss-turned part. Capability depends on the machine, material, geometry, and tooling involved, so ask for a part-specific proposal rather than a generic claim.
Swiss Turning vs. Conventional CNC Turning
Both processes cut rotating stock. The difference is in how that stock is supported and how the cut unfolds.
| Factor | Swiss-Type Turning | Conventional CNC Turning |
|---|---|---|
| Workholding | Bar advances through a guide bushing close to the tool | Workpiece held in a fixed chuck or collet |
| Best-suited geometry | Long, slender, bar-fed parts | Shorter, stouter, or larger-diameter parts |
| Operation consolidation | Can combine turning, drilling, threading, and milling in one setup | Often requires secondary operations or re-fixturing |
| Setup complexity | Guide-bushing adjustment and programming add upfront work | Generally simpler for straightforward geometries |
Why Support Location Matters
A part with a high length-to-diameter ratio flexes more under cutting pressure when it's only held at one end. Swiss support addresses that directly. For shorter or larger-diameter parts, that advantage shrinks. Conventional turning can be the more practical, less complex choice.
The Economics Aren't One-Size-Fits-All
Production experience across the industry shows volume alone doesn't decide which process wins. One shop reported running Swiss-type equipment even for five-piece jobs, because operation consolidation still paid off. Another moved a part back to conventional turning after improving its process enough to make heavier cuts practical there (Production Machining; Modern Machine Shop).
A Quick Decision Framework
Ask these questions before committing to a process:
- Is the part slender or long relative to its diameter? Favors Swiss support
- Does it need multiple features in one setup (cross-holes, threads, flats)? Favors Swiss consolidation
- Is volume low and geometry simple? Conventional turning may be faster to quote and run
- What's the total cost, including secondary operations and inspection? Not just machine time
None of these questions has a universal answer. The right call depends on your specific drawing.
Applications and Materials for Swiss Machining
Swiss turning fits orthopedic manufacturing particularly well because so many components are small, elongated, and rotationally symmetric.
Where It Fits in Orthopedics
MoManTech applies multi-axis Swiss machining to surgical device components across:
- Spine — pins, shafts, and small rotational components
- Trauma — plates, pins, and related fixation hardware
- Large joint — shafts and instrument components
- Foot and ankle — small, geometrically complex extremity parts

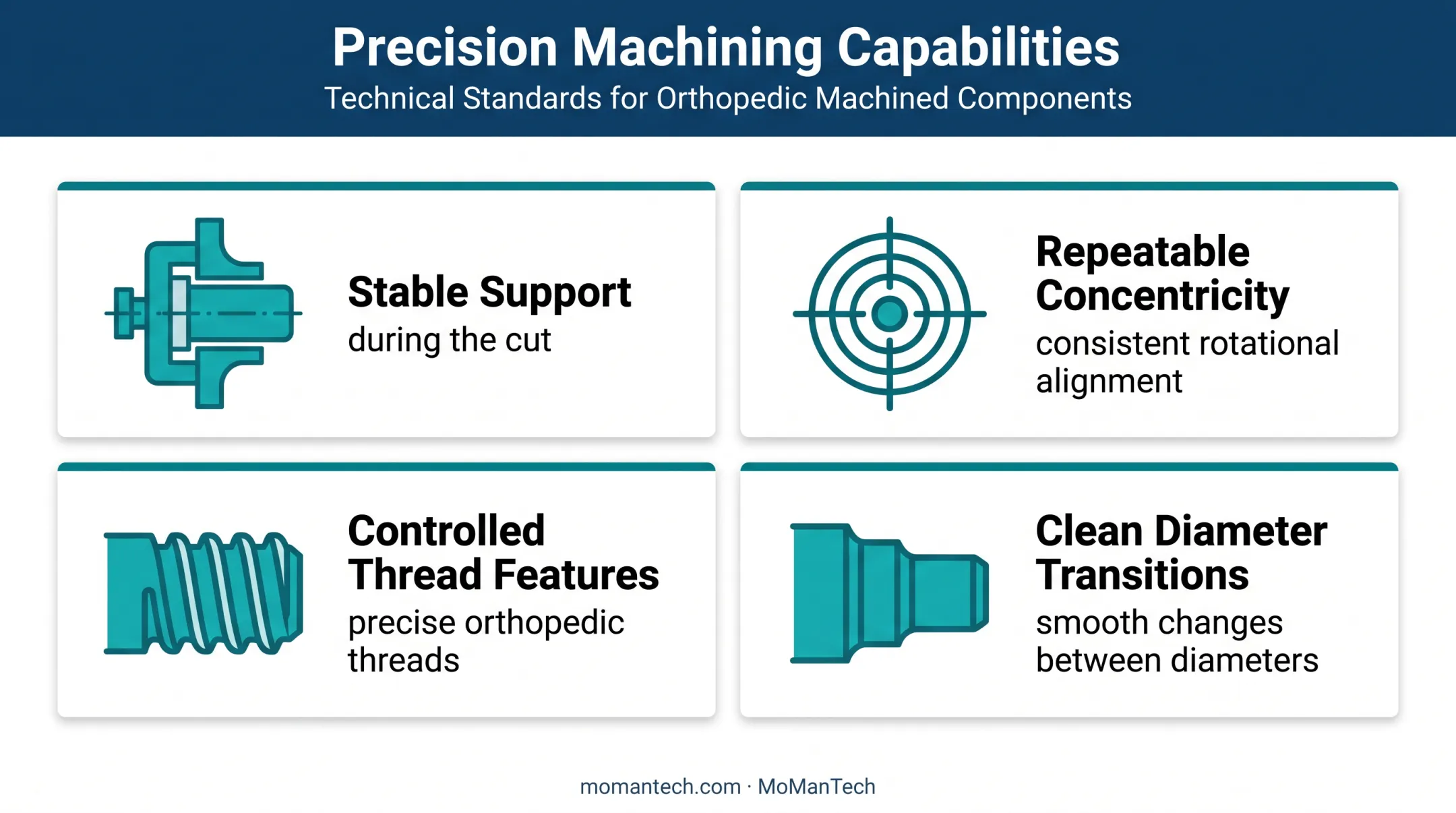

These parts benefit from stable support during the cut, repeatable concentricity, controlled thread features, and clean transitions between diameters. That combination is why slender orthopedic components move onto Swiss platforms rather than conventional lathes.
One documented industry case is Smith & Nephew's use of Tornos Swiss-type equipment, which consolidated front-side and sub-spindle operations on orthopedic components in a single setup, though some finishing work still remained (SME, "Medical Implants in One Setup").
Beyond orthopedics, Swiss turning also serves aerospace fasteners, connector pins, miniature shafts, and instrumentation components: any application where slender, repeatable turned geometry matters.
Material Considerations by Machining Behavior
Material choice drives chip control, heat generation, tool wear, and surface finish. Group materials by machining behavior rather than by grade alone:
- Stainless steels — generally good machinability, common for orthopedic components
- Titanium alloys — low thermal conductivity concentrates heat at the cutting edge; thin, segmented chips demand careful tooling
- Cobalt- and nickel-based alloys — retain strength at elevated temperatures and work-harden quickly, which affects tool life
- Aluminum, brass, and copper — typically easier to machine but may have different surface-finish or corrosion requirements
- Engineering plastics — require different cutting parameters entirely
Any specific medical-grade material claim, such as a particular ASTM standard, bar form, or alloy condition, should be confirmed against current process capability during quoting, not assumed from a general materials list.
Downstream Requirements Often Get Overlooked
Medical-device production frequently requires more than machining alone:
- Material certification and full traceability
- Cleaning and passivation (MoManTech runs an ESMA ultrasonic clean/citric passivation line)
- Finishing and part marking
- Specific packaging or handling requirements
Confirm these during quoting rather than assuming they're included by default.
Design and Quality Considerations
Good Swiss-turned parts start with good drawings. A few design-for-manufacturability habits make a measurable difference:
- Design supported geometry where possible: avoid unnecessarily long unsupported features
- Keep tool paths accessible: internal features and tight corners add cost and risk
- Sequence features sensibly: plan which operations happen front-side versus on the sub-spindle
- Reserve ultra-tight tolerances for features that actually require them; tight tolerancing everywhere drives up cost without adding value
On the drawing itself, identify functional datums, critical-to-function dimensions, thread callouts, surface-finish requirements, burr restrictions, and any special handling needs. A "silent" print that leaves these to interpretation is where problems start.
Questions Worth Asking Before You Quote
A medical-device OEM evaluating a Swiss machining supplier should ask about:
- Quality system status: is the shop ISO 13485:2016 certified, and for what scope?
- First-article and in-process inspection: what gets checked, and when?
- Defect prevention: is the philosophy preventing defects or catching them after the fact?
- Documentation and traceability: can material lots be traced back through the process?
- Nonconformance handling: what happens when a part doesn't meet print?
MoManTech operates under ISO 13485:2016 certification for medical-device manufacturing and supplier quality management (ISO 13485:2016). The shop builds quality around defect prevention, not late-stage detection, with trained personnel and in-process controls.
Every component is inspected before it leaves the facility, including CMM and laser measurement on an OGP Flash 302.
Specific inspection equipment capability, measurement uncertainty, and regulatory applicability should always be confirmed directly with a supplier's quality team rather than assumed from general claims.
Choosing a Swiss CNC Manufacturing Partner
Picking a Swiss machining supplier for orthopedic components comes down to more than machine capability. A practical checklist:
- Relevant part experience — has the shop actually produced similar orthopedic geometries?
- Prototype and first-article support — can they take you from drawing to a verified first piece?
- Production scalability — do they handle both low-volume prototypes and repeat production runs?
- Engineering communication — will they flag manufacturability issues before they become problems?
- Lead-time transparency — are quoted timelines realistic and consistently met?
- Quality documentation — is traceability and inspection data available and complete?
- Inspection capacity — do they have the equipment to verify what the drawing actually requires?
Where MoManTech Fits
MoManTech is a Sheridan, Montana-based contract manufacturer focused exclusively on orthopedic surgical device components for spine, trauma, large joint, and foot-and-ankle applications.
The company is ISO 13485:2016 certified and supports production from prototype quantities of 1–10 units through production runs of 100+ units, with no minimum order quantity.

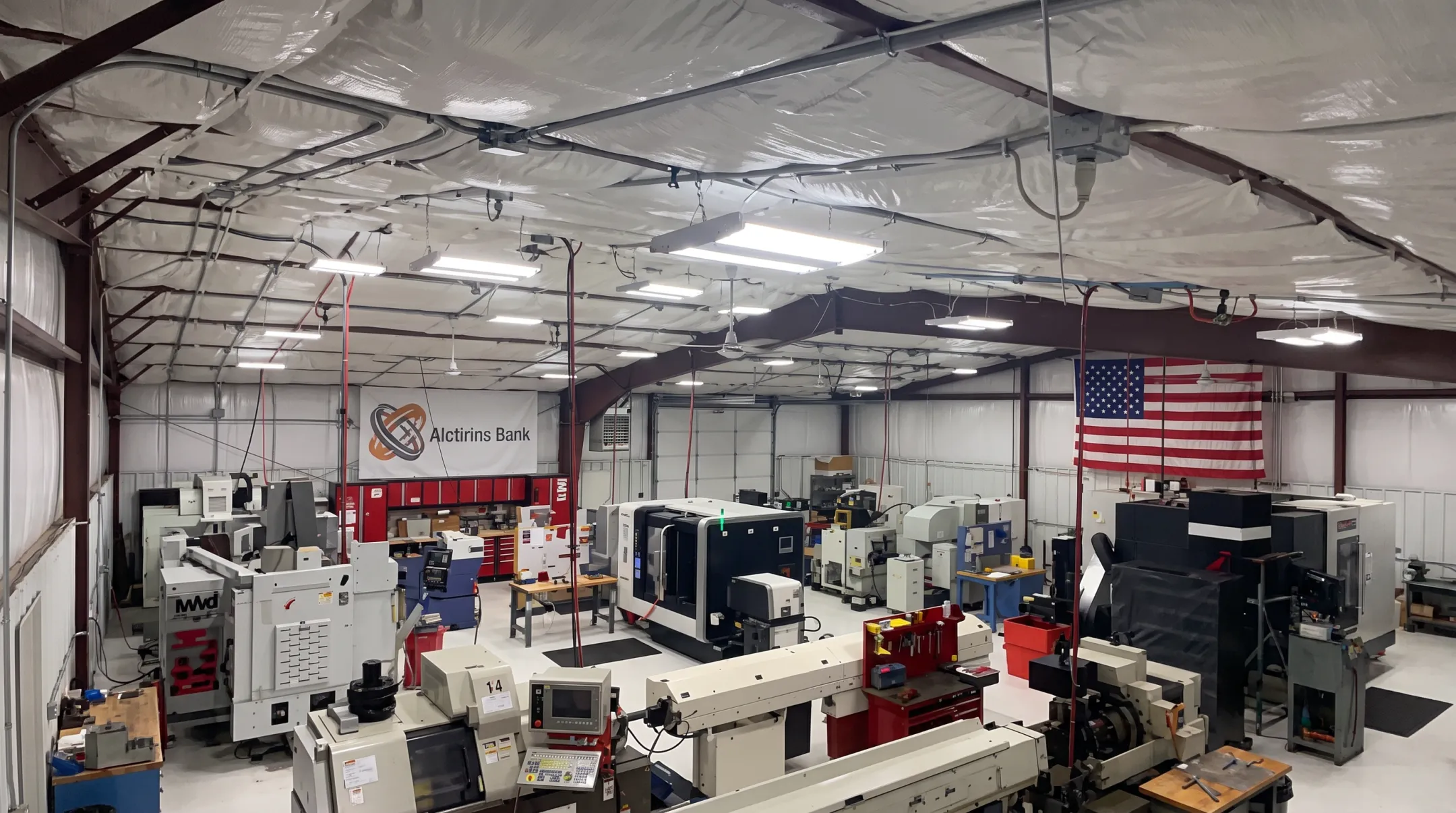

Its Swiss lathe fleet includes a NexTurn SA20PYII 8-axis machine, a Citizen M20, and multi-axis turning centers including the Mazak Integrex I-150 and Quicktech S42ATM. Automated loading and unloading support higher-volume, lights-out production as orders scale.
Design-for-manufacturability consultation is part of the standard engagement, helping optimize part designs for efficient production before the quote is finalized.
For startup and small-to-mid-size spinal, trauma, large-bone, and foot-and-ankle OEMs, this matters because responsive technical collaboration often counts for more than raw volume capacity.
A founder-led device company bringing its first implant design to market needs a partner willing to work through first articles and design questions, not a shop that quotes a number and disappears until the PO arrives.
If you're evaluating Swiss CNC machining for an upcoming orthopedic component, whether it's an early drawing, a prototype batch, or a repeat production run, MoManTech can be reached at 406-842-5403 or kirt.johnston@momantech.com to discuss the specifics.
Frequently Asked Questions
What is Swiss style machining?
Swiss-style machining is a form of CNC turning that uses a sliding headstock and guide bushing to support bar stock close to the cutting tool. It's particularly effective for small, slender, and geometrically complex parts.
Why is it called Swiss machining?
The process traces back to Swiss watchmaking, where manufacturers needed to produce miniature, highly precise components. Tornos credits watchmaker Jakob Schweizer with an early sliding-headstock lathe design in 1872.
What does a Swiss machinist do?
A Swiss machinist sets up guide-bushing workholding, programs or verifies CNC code, loads material, and monitors the process during the run. They also handle tool-offset adjustments, in-process inspection, and quality documentation.
What is CNC lathe machining?
CNC lathe machining uses computer numerical control to rotate the workpiece while programmed tool feeds cut cylindrical features such as diameters, threads, grooves, and holes. Swiss lathe machining is a specialized form that supports bar stock with a sliding headstock and guide bushing, making it well suited to slender, complex parts.
What is the difference between a CNC lathe and a CNC mill?
A CNC lathe primarily machines cylindrical features by rotating the workpiece, while a CNC mill cuts with a rotating tool against a typically stationary workpiece. Swiss lathes may also include live tooling, so they can perform both turning and milling operations.
