Introduction
A titanium bone plate with curved surfaces, angled holes, and bolt-joint features can require five or more separate setups on a 3-axis mill. Each repositioning adds handling time, re-zeroing, and a chance for alignment error to creep into the part.
This guide breaks down what 5-axis CNC machining is and which axes are involved. It also explains how the process differs from indexed 3+2 machining versus true simultaneous 5-axis motion.
You get the workflow from CAD to first-article inspection, a clear comparison against 3-axis approaches, and criteria for when the added complexity is worth it.
Those tradeoffs show up fast in orthopedic device manufacturing, from spinal plates to foot-and-ankle hardware. The right process always depends on part geometry, material, tolerances, volume, and the quality system behind it.
Key Takeaways
- 5-axis machining pairs three linear axes (X, Y, Z) with two rotary axes so multiple sides are reachable in one setup.
- 3+2 indexes the part, then cuts on three axes; simultaneous 5-axis moves all five mid-cut.
- Fewer setups mean less handling, less re-zeroing, and lower cumulative alignment risk.
- More axes don't automatically mean lower cost. Match the process to the part.
- Evaluate medical-device partners on inspection, documentation, and DFM support, not axis count alone.
What Is 5-Axis CNC Machining?
A 5-axis CNC machine combines three linear axes (X, Y, Z) with two rotary axes, typically some combination of A, B, and C. The linear axes position the tool relative to the part. The rotary axes change the orientation between the tool and the workpiece.
Linear and Rotary Axes, Explained
X typically moves left-to-right, Y moves front-to-back, and Z moves up-and-down. A, B, and C describe rotation around the X, Y, and Z axes respectively. Which two rotary axes a machine actually uses depends on its build:
- Trunnion (table-table): both rotary motions occur at the worktable.
- Head-table: the tool head tilts while the table rotates.
- Head-head: both rotary motions occur at the tool head; the table stays fixed.
Each configuration opens up a different reach envelope. None of them, by itself, guarantees an achievable tolerance on a specific implant feature. Fixture clearance, tool length, and rotary travel limits still set the real boundaries.
Why the Extra Axes Matter
Tilting and rotating the tool or part gives access to multiple faces, angled holes, contoured surfaces, and select undercuts in far fewer repositions than a 3-axis setup would need. That's the core appeal for complex orthopedic geometry.
Comparing Axis Configurations
| Configuration | Motion | Typical Use | Programming Complexity |
|---|---|---|---|
| 3-axis | X, Y, Z only | Flat, prismatic parts | Low |
| 4-axis | X, Y, Z + 1 rotary | Cylindrical parts, simple indexed faces | Moderate |
| 3+2 (5-axis) | Rotary axes lock, then 3-axis cut | Multi-sided parts with flat or simple contoured features | Moderate to high |
| Simultaneous 5-axis | All 5 axes move together during the cut | Sculpted surfaces, complex contours | High |
A machine built with five physical axes doesn't mean every job needs simultaneous motion running the whole time. Plenty of orthopedic components do just fine with indexed 3+2 machining, which is simpler to program and verify.
How the 5-Axis Machining Process Works
The workflow starts with the CAD model, engineering drawing, material spec, and tolerance callouts. From there, CAM software generates toolpaths that account for tool position, tool-axis orientation, cutting conditions, and fixture clearance.
Those toolpaths typically run as either indexed 3+2 moves or fully simultaneous five-axis motion.
3+2 vs. Simultaneous Machining
- 3+2 machining: the rotary axes orient the part or tool, lock that orientation, and the machine runs a standard 3-axis cut.
- Simultaneous 5-axis machining: all five axes coordinate continuously, with the tool orientation changing as the cut progresses along a complex surface.
Post-Processing and Verification
The post processor translates CAM output into machine-specific code, accounting for the machine's kinematics, rotary limits, offsets, and tool compensation.
Siemens recommends simulating the fully postprocessed program—not only the original CAM toolpath—because the post can introduce moves that create collisions only after translation.
Setup, Workholding, and Prove-Out

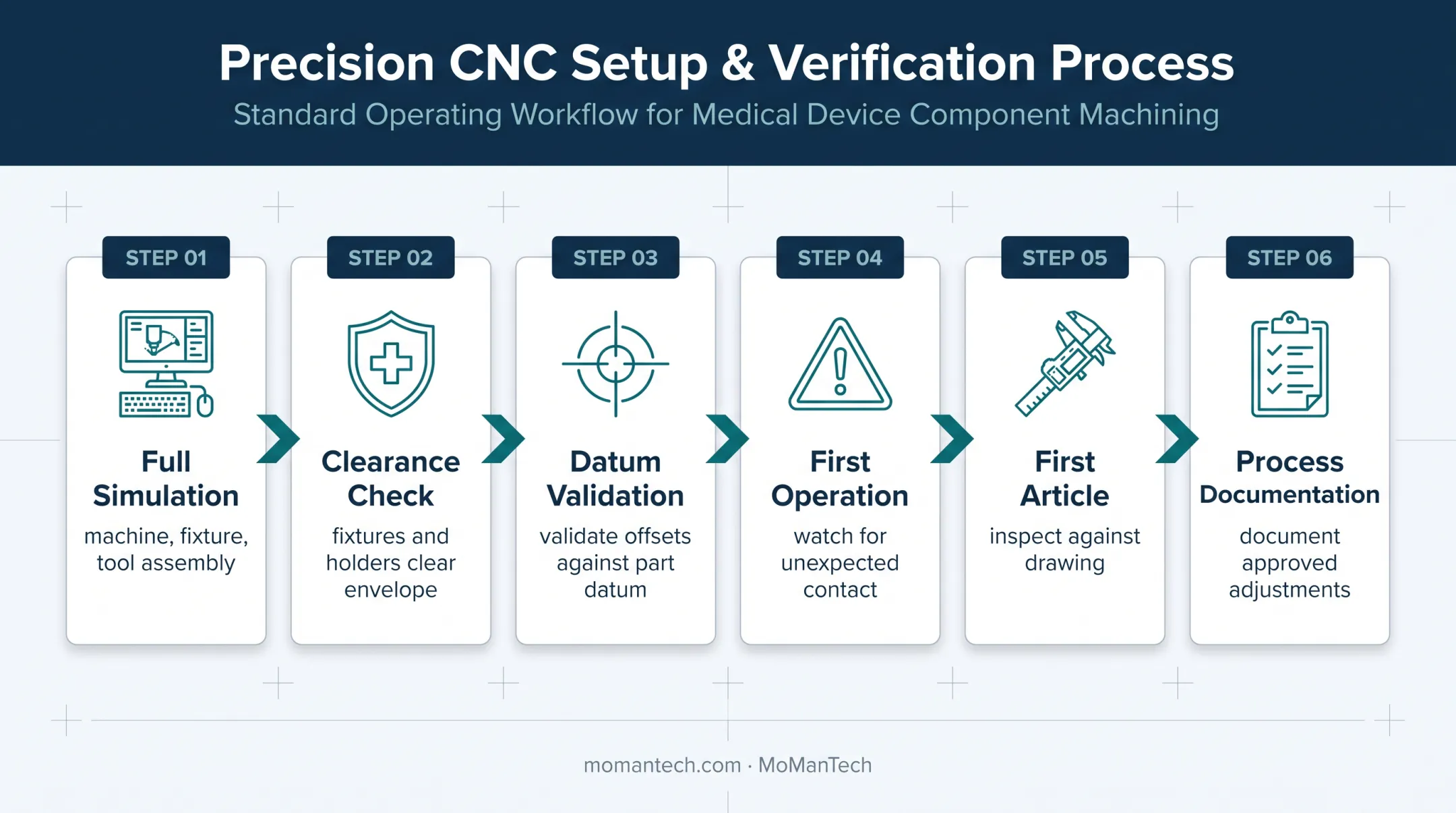

Datum strategy, fixturing, probing, and tool-length measurement all need to protect access to every required surface before the first cut runs. A practical prove-out sequence looks like this:
- Simulate the complete machine, fixture, and tool assembly together.
- Verify fixtures and holders physically clear the tilting/rotating envelope.
- Validate work offsets against the part datum.
- Run the first operation cautiously, watching for unexpected contact.
- Inspect the first article against the drawing.
- Document any approved process adjustments before production.
First-article checks only hold if production parts get the same scrutiny. At MoManTech, every component is inspected on equipment such as the OGP Flash 302 Vision system (CMM and laser measurement) before it leaves the facility.
Benefits, Applications, and When to Use 5-Axis Machining
Fewer Setups, Less Cumulative Error

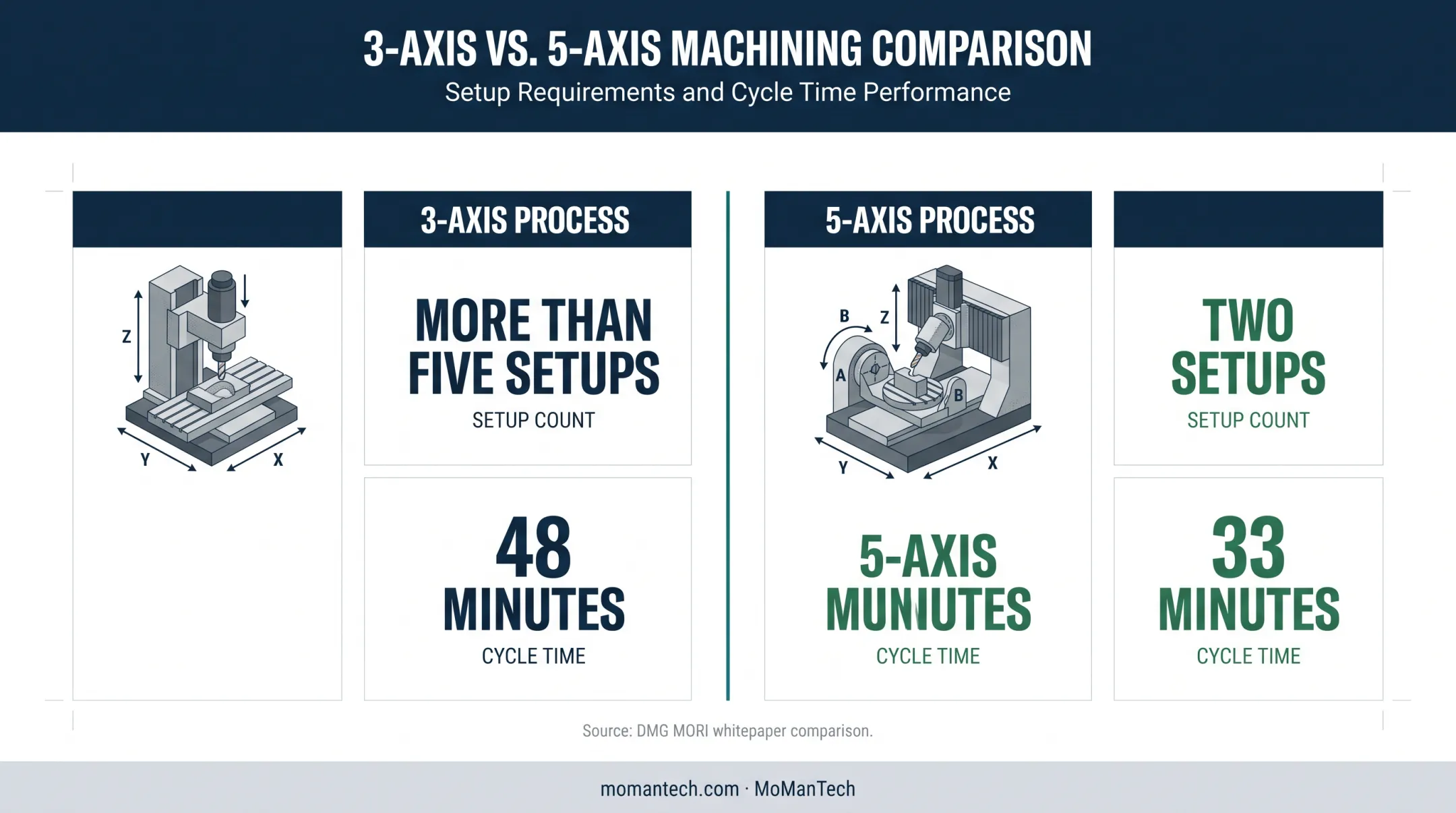

Keeping a multi-sided part in one workholding reference reduces handling and the chances of misalignment between features that need to relate accurately to each other. A DMG MORI whitepaper comparison illustrates the point on a specific example part. More than five setups on a 3-axis process fell to two on a 5-axis process, and cycle time dropped from 48 to 33 minutes. That's a single illustrative case, not an orthopedic benchmark, but it shows the mechanism at work.
Complex Geometry, Real Orthopedic Applications
5-axis capability tends to earn its keep on:
- Sculpted surfaces and freeform contours
- Angled holes and compound-angle features
- Deep pockets with limited tool access
- Orthopedic plates matching bone curvature
- Surgical instruments with multi-sided features Stryker's spine manufacturing operation in Bordeaux is a documented example. After adopting CAM software built for continuous 5-axis paths, the Stryker Medical case study describes progress toward free-form machining of titanium cervical and lumbar plates, PEEK spacers, instruments, and bone screws. That result came from a programming and process change, not from simply owning a 5-axis machine.
5-Axis vs. 3-Axis: The Trade-offs
Choosing 5-axis over 3-axis is a capability trade, not an automatic upgrade. Advantages:
- Broader part access in fewer setups
- Greater design flexibility for complex contours
- Potential reduction in lead time Trade-offs:
- Higher programming complexity
- Heavier reliance on simulation and post-processor accuracy
- Specialized workholding and operator training
- Potentially higher equipment or outsourcing costs
Quick Decision Checklist
5-axis machining is worth considering when a part has:
- Multiple setups currently required to reach all features
- Compound angles or freeform contours
- Tight relationships between features on different faces
- Costly or error-prone manual repositioning A simpler 3-axis or 4-axis process may still be the better call for flat, prismatic, or easily indexed cylindrical parts. More axes isn't automatically better. It's about matching the process to the part.
Choosing a 5-Axis Machining Partner for Medical-Device Components
What to Bring to a Supplier Evaluation
Bring enough detail for partners to quote and risk-assess the job:
- 3D CAD files and 2D drawings
- Material and finish requirements
- Critical-to-quality features
- Expected quantities, including prototype and first-article needs
- Required quality documentation
Questions Worth Asking
Start with process fit and scale:
- How they run design-for-manufacturability review, including tool-access or fixturing risks before cutting starts
- Whether they can support a handful of prototype units through repeat production—not only one or the other
On quality and compliance, ask about:
- ISO 13485:2016 certification status
- Inspection equipment and measurement records
- Traceability and nonconformance controls
- Validation responsibilities on both sides
One important distinction: ISO 13485 certification and FDA clearance aren't the same thing. The FDA's QMSR guidance is clear that FDA doesn't require a certificate and doesn't accept one as a substitute for its own inspection.
A certificate shows a documented quality system exists. It doesn't automatically guarantee regulatory approval for the finished device.
MoManTech is an ISO 13485:2016-certified contract manufacturer in Sheridan, Montana, focused on orthopedic components across spine, trauma, large joint, and foot/ankle. The shop pairs DFM review with prototype lots of 1–10 through production runs of 100+, plus full inspection before shipment.
What Actually Separates Suppliers
Compare partners on:
- Technical fit for your specific geometry
- Communication and responsiveness during design changes
- Lead-time reliability
- Production scalability
- Inspection documentation depth
- Automation capability
- Total project value, not hourly machine rate alone
Those factors matter more than axis count on a spec sheet. Axis count alone tells you very little about whether a supplier can deliver your part to print.
Conclusion
5-axis CNC machining combines three linear axes with two rotary axes to give broader tool access and more efficient machining of complex, multi-sided components. Fewer setups, better tool orientation, and access to compound angles all help, but only when the whole system behind the machine supports it.
That means the full system around the machine has to be in place:
- Validated CAM programming
- Secure workholding
- Experienced operators
- Documented inspection
A fifth axis on the spec sheet is not enough on its own.
If you're a US orthopedic device OEM or startup developing a spinal, trauma, large joint, or foot/ankle component, MoManTech provides DFM support and quality-focused contract manufacturing from early prototype through production scale-up. Reach out to discuss your next part.
Frequently Asked Questions
What is the 5-axis machining process?
CAD and CAM data direct coordinated linear and rotary machine movements to cut a part. Indexed 3+2 machining locks the rotary axes before a 3-axis cut, while simultaneous 5-axis machining moves all five axes together during the cut.
What can a 5-axis CNC machine do?
It can machine multiple sides of a part, angled features, and complex contours in fewer setups than a 3-axis machine. It also allows better tool orientation and access to select undercuts, within the limits of the machine's reach and fixturing.
What is the difference between 5-axis and 6-axis CNC?
5-axis machining uses three linear axes and two rotary axes. Six-axis systems add another controlled degree of movement, though exact configurations vary by machine builder—confirm the layout with the manufacturer.
What is 5-axis CNC programming?
5-axis CNC programming means creating, simulating, post-processing, and validating toolpaths that control both tool position and orientation relative to the part throughout the cut.
What is a 5-axis CNC machine?
A 5-axis CNC machine is a computer-controlled system that combines X, Y, and Z linear movement with two rotary axes. Unlike a 3-axis mill, it can rotate or tilt the tool or workpiece to reach multiple faces without manually repositioning the part.
What are the 5 axes of a CNC?
X, Y, and Z are the linear axes, handling left-right, front-back, and up-down movement. The two rotary axes are selected from A, B, or C depending on the specific machine's configuration.
