There is no universal number for "tight." The right limit depends on the feature's function, the material, the geometry, the machining process, the industry, and how the part will be inspected. A tolerance that is routine on one feature can be demanding on another.
This article covers what tight tolerances represent, how they are specified and measured, why they raise manufacturing difficulty, and when tighter control is worth paying for.
Key Takeaways
- A tolerance is allowable variation from a nominal dimension; "tight" depends on the application.
- Only function-critical features, such as bearing seats and locating bores, usually justify especially tight control.
- Tighter limits add machining control, inspection, documentation, cost, and lead time.
- GD&T and stack-up analysis often beat a blanket tight tolerance on every feature.
What Tight Tolerances Represent in Machining and Their Range
Tolerance is the total permissible variation: the upper limit minus the lower limit. A shaft drawn at 1.000 in. with a ±0.001 in. tolerance has a 0.002 in. band.

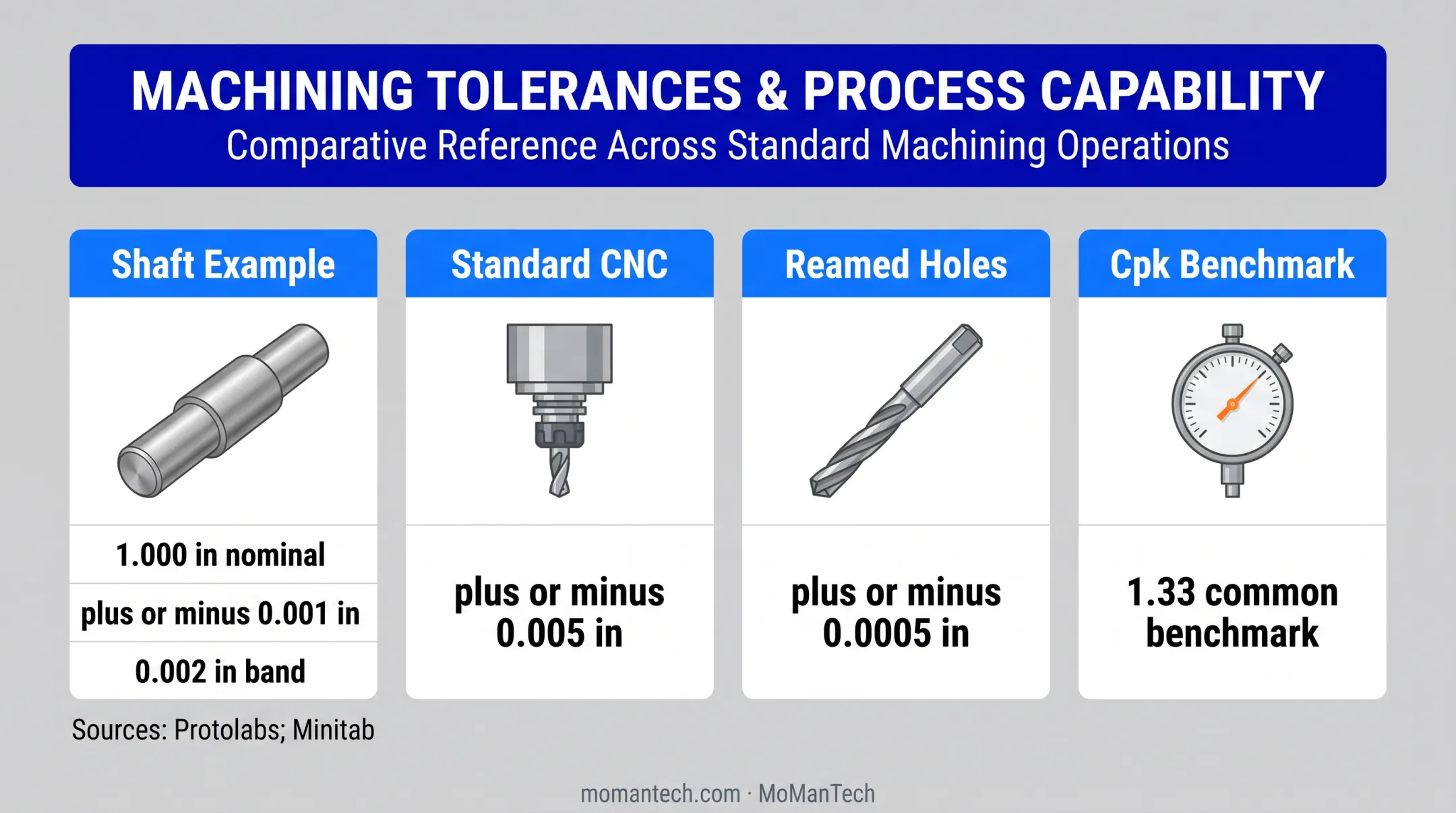

"Tight" is relative. Protolabs publishes ±0.005 in. for its standard automated CNC service and ±0.0005 in. for specified reamed holes, according to Protolabs' tolerance guide. Those figures belong to one supplier, one process, and one feature type. They are not a definition of tight.
Tolerance is also not the same as accuracy, precision, finish, or process capability:
- Accuracy is closeness to the true value; precision (repeatability) is agreement under the same conditions.
- Surface finish (Ra) describes roughness, not size.
- Process capability compares process spread with the limits.
A bore can measure exactly on size and still be out of round or mislocated. Size alone doesn't make it a good bore.
Factors That Influence the Achievable Tolerance
Each factor leads to a specific shop-floor problem:
- Tool wear: flank wear pushes dimensions out of tolerance and degrades finish.
- Cutting forces and weak fixturing: deflection and chatter, especially on thin or slender parts.
- Clamping: thin walls distort when squeezed unevenly.
- Temperature: parts expand and contract, and inspecting a warm part gives a false reading. ISO 1 sets 20 °C (68 °F) as the standard reference temperature.
- Material: some alloys, such as stainless steel, are prone to burrs that complicate edges and measurement.
Range of an Acceptable Machining Tolerance
A drawing has a nominal target plus upper and lower limits. Those limits are the acceptance boundary. The process target is where the shop aims to produce consistent parts, and it should sit safely inside that boundary.
That margin absorbs process variation, measurement uncertainty, stack-ups, and slow tool or machine drift. Aiming at the edge of the spec guarantees eventual scrap.
Short-term capability, batch repeatability, and long-term stability are different questions. Minitab notes that a Cpk of 1.33 is a common benchmark, but the required minimum depends on the application. Ask for the customer's actual acceptance criterion.
Key Technical Properties of Tight Tolerances
Tight control covers more than size. It can govern form, orientation, location, runout, profile, and how features relate to each other.
Stability and Variability
A process that holds a tolerance does so every time, not occasionally. Repeatability, tool wear, thermal change, setup changes, and material lot variation all affect that. A capability index from an unstable process says little about sustained performance.
Geometric Relationships and Tolerance Zones
GD&T with datum references defines function better than unrelated plus/minus dimensions. It suits hole patterns, bores, mating faces, and alignment features, where location and orientation matter as much as diameter.
ASME Y14.5-2018 is the current US standard for these controls. Used well, it can also relax a tolerance: at maximum material condition, departure from the limit can grant bonus geometric tolerance.
Coupling With Adjacent Variables
Tolerance decisions interact with other choices:
- Coatings: hardcoat anodizing changes dimensions, which matters on close-tolerance parts.
- Heat treatment: part design, steel composition, and machining sequence all influence distortion.
- Stack-ups: worst-case analysis assumes every variation lands adversely; statistical (RSS) analysis does not, but requires independence and centering assumptions.
- Finish: a smooth surface does not mean a tight size.
Each tightening trades manufacturability and inspection effort for control. Spend that trade only where it pays.
How Tight Tolerances Are Specified, Measured, and Validated
Specifying on the Drawing
A good drawing identifies:
- Nominal dimensions and bilateral, unilateral, or limit tolerances
- Critical characteristics and datums
- Applicable GD&T controls
- Material and finishing conditions
- Required inspection records
The drawing states what the part must meet. Process studies and production records show whether the method can meet it repeatedly. Those are separate questions.
Choosing Measurement Methods
Match the tool to the feature. No shop uses every method.
| Method | Typical use |
|---|---|
| Micrometers | External sizes; force and temperature affect results |
| Bore gauges | Close-tolerance internal diameters |
| Go/no-go gauges | Fast attribute checks on holes and threads |
| Optical/vision systems | Profiles and small features |
| CMMs | Size, form, and location against datums |
Resolution alone does not equal uncertainty. Calibration, fixturing, part temperature, and operator technique all contribute. For a CMM, uncertainty depends on the probe, point layout, and environment.
A classic guide is a 10:1 ratio of tolerance to measurement uncertainty, as NIST discusses. It concerns uncertainty, not display resolution. Gauge R&R below 10% is generally acceptable, and above 30% needs improvement.
Validating Through Production

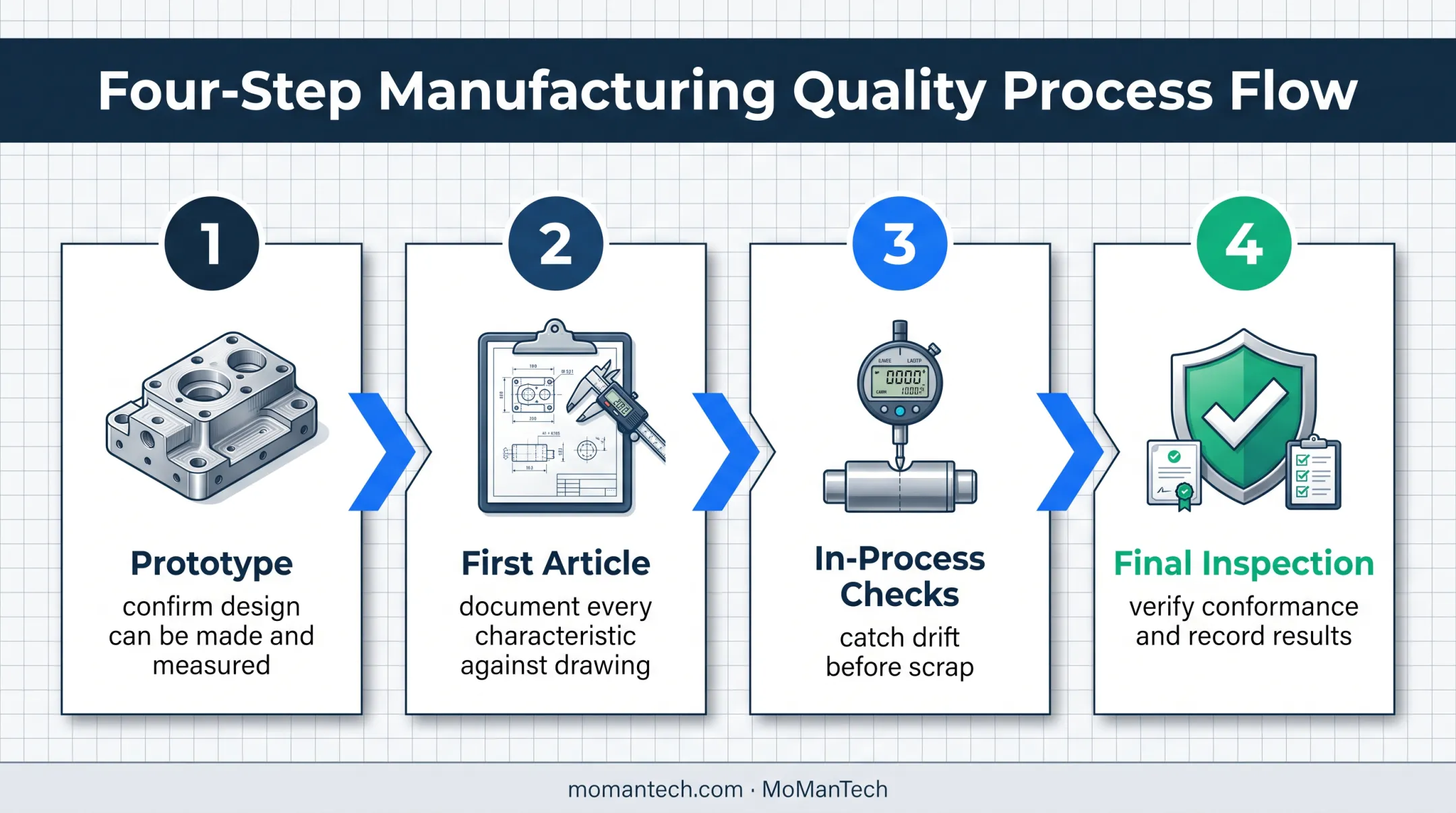

Validation runs through several stages:
- Prototype: confirm the design can be made and measured.
- First article: document every characteristic against the drawing.
- In-process checks: catch drift before it produces scrap.
- Final inspection: verify conformance and record results.
Sampling plans, nonconformance handling, and traceability records round this out. For medical devices, FDA's QMSR, effective February 2, 2026, incorporates ISO 13485:2016.
An Orthopedic Example
Orthopedic components often combine tight GD&T with full traceability. MoManTech machines these parts under an ISO 13485:2016-certified quality system, runs design-for-manufacturability consultation at the planning stage, and inspects and documents parts against the drawing. Sending a drawing for DFM review early shows which tolerances are practical before production starts.
Implications of Operating Outside the Recommended Tolerance
Parts that fall outside recommended tolerances create real problems on the shop floor and in the field:
- Interference or excess clearance
- Misalignment and uneven loading
- Leakage, such as uneven seal-lip loading from shaft misalignment
- Premature wear, such as creep and fretting from a loose bearing fit
- Assembly rework or unusable products when mating tolerances mismatch

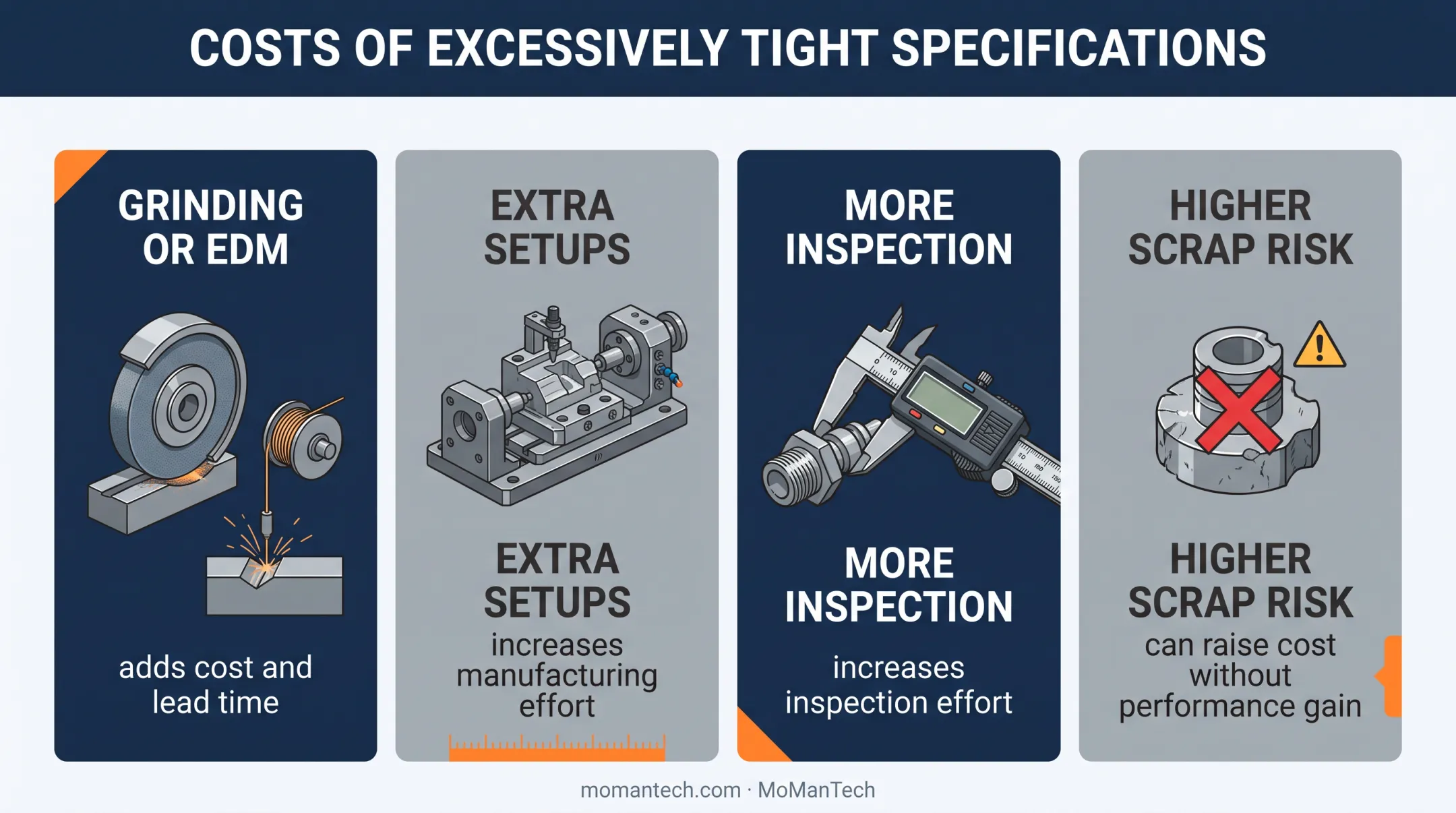

Over-tolerancing has costs too. Protolabs notes that excessively tight specifications can require grinding or EDM, adding cost and lead time. Extra setups, more inspection, and higher scrap risk can drive cost up without any gain in performance.
Common Misinterpretations of Tight Tolerances
- "Tightest is best." Start from the functional requirement and the consequence of variation.
- "Nominal is the limit." Nominal is a target. Acceptance comes from the limits.
- "The title-block tolerance covers everything." General tolerances, such as ISO 2768-1, apply only where individual tolerances are absent. They don't control location or form for critical features.
- "A supplier's best number applies everywhere." Capability varies with material, geometry, tolerance type, volume, and inspection conditions. Review the actual drawing with the shop.
Conclusion
Tight tolerances are functional controls that manage fit, alignment, motion, sealing, load transfer, and assembly. Precision only matters when it serves those functions.
Review your drawing feature by feature:
- Tighten only what function demands
- Use GD&T where relationships matter
- Bring in a qualified machining partner early for manufacturability, inspection, and production planning
MoManTech works with orthopedic OEMs from planning through production, from prototype lots of 1-10 units to runs of 100+.
Frequently Asked Questions
What is considered a tight tolerance?
No universal cutoff exists. It depends on the feature, material, process, industry, and function. As one example, Protolabs publishes ±0.0005 in. for reamed holes.
What are the four types of tolerance?
Terminology varies, so confirm the classification being used. A common grouping is limit, bilateral, unilateral, and geometric tolerancing.
Why are tight tolerances important in machining?
They control fit, alignment, sealing, movement, and repeatable assembly. Not every feature needs the same level of control.
How do tight tolerances affect machining cost?
They call for slower, more controlled processes, special setups or tooling, extra inspection, and less process margin. Lead times can grow too.
Which parts or features need tight tolerances?
Bearing seats, precision bores, locating holes, mating surfaces, seals, and engineered shaft-hole fits. Avoid blanket tight tolerances across a whole part.
How are tight tolerances measured?
The method depends on the feature and tolerance type. Options include calibrated gauges, micrometers, bore gauges, optical inspection, or CMMs, with measurement uncertainty controlled.
