Introduction
Engineers reach for Nitronic 60 when a part needs to survive sliding, rotating, or threading contact without galling. The same nitrogen-strengthened microstructure that resists wear also work-hardens quickly under a cutting tool. Shops therefore treat this alloy differently from standard 300-series stainless.
Buyers evaluating Nitronic 60 typically ask three things:
- Can it actually be machined efficiently?
- How does CNC turning differ from general milling on this material?
- What process controls keep dimensions and surface finish consistent across a production run?
This guide covers the material's properties, machinability challenges, turning and milling practices, common applications, finishing options, and what to look for in a machining partner. We'll also flag where medical-device programs need documentation beyond the alloy name alone.
Key Takeaways
- Choose Nitronic 60 (UNS S21800) when wear and galling resistance matter more than easy machinability
- Plan setups around work hardening, heat buildup, and chip control—the main CNC challenges
- Use CNC turning for rotational parts such as pins, shafts, bushings, and valve components
- Treat medical-device jobs as traceability, validation, and inspection programs, not material swaps alone
What Is Nitronic 60?
Nitronic 60 is an austenitic stainless steel strengthened by nitrogen, manganese, and silicon rather than relying on chromium and nickel alone. That combination raises strength, increases wear resistance, and gives the alloy its standout trait: resistance to galling under sliding or rotating contact.
Composition ranges vary slightly between producer documents, so confirm the applicable specification before ordering. Electralloy's product sheet lists:
- Nitrogen: 0.08–0.18%
- Manganese: 7.0–9.0%
- Silicon: 3.5–4.5%
- Chromium: 16.0–18.0%
- Nickel: 8.0–9.0%
Corrosion, Wear, and Galling Resistance

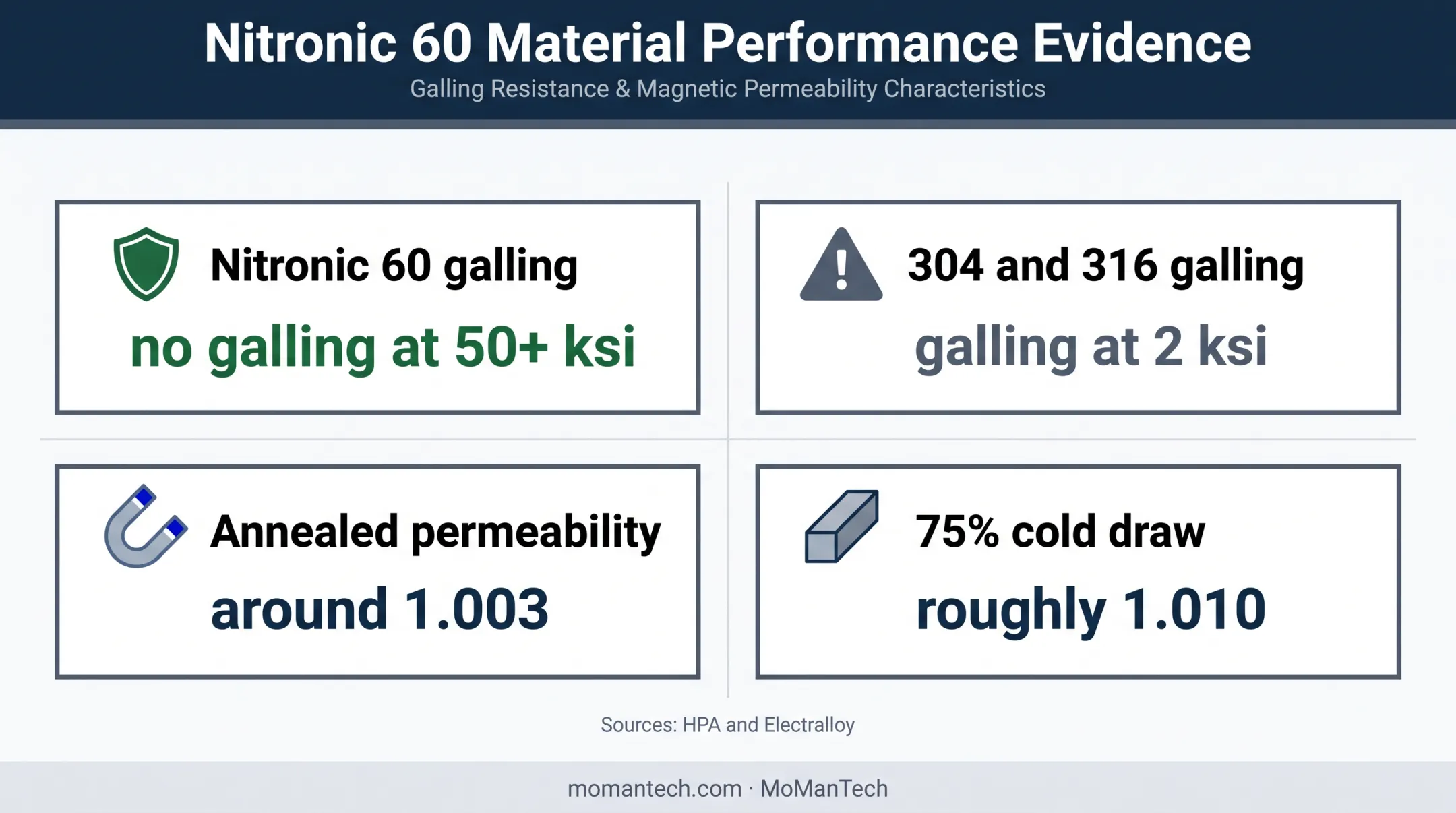

This is where Nitronic 60 earns its reputation. In an unlubricated, self-mated screening test, Nitronic 60 showed no galling at the test limit of 50+ ksi, while 304 and 316 each galled at just 2 ksi. That's a lab screening result, not a design allowable. Actual service conditions still need their own evaluation.
General corrosion resistance falls between 304 and 316, according to Electralloy, with better chloride-pitting performance than 316 in its reported testing.
Magnetic Behavior and Weldability
Magnetic permeability stays low in the annealed condition (around 1.003) but climbs with cold working, reaching roughly 1.010 after 75% cold draw. If magnetic permeability matters for your application, specify the exact condition, not just the alloy name.
The alloy welds readily with conventional processes. Weld-deposit wear properties run slightly below base-metal performance, so welding shouldn't replace machining on wear-critical surfaces.
How It Compares to 304, 316, and Inconel
| Material | Relative strength | Galling resistance | Typical priority |
|---|---|---|---|
| 304 stainless | Lower yield strength | Poor (galls easily) | General corrosion resistance, cost |
| 316 stainless | Similar to 304 | Poor (galls easily) | Chloride/marine environments |
| Nitronic 60 | Nearly double 304's yield | Strong (lab-verified) | Wear, galling, moderate corrosion |
| Inconel 625 | Higher, varies by condition | Not directly compared | Extreme corrosion, high temperature |
No single material wins across every priority. Match the alloy to the dominant failure mode in your application.
A caution for implant work: if a part is orthopedic or implant-related, the OEM and design authority must independently confirm biocompatibility, regulatory suitability, and the applicable material specification. Material producer data sheets alone don't establish implant acceptance.
CNC Machining and Turning Considerations
Nitronic 60 machines, but it doesn't forgive sloppy technique. Three factors make it demanding:
- Work hardening: light or interrupted cuts harden the surface, making the next pass harder to complete cleanly
- Heat retention: the alloy doesn't dissipate heat as quickly as plain carbon steel, concentrating temperature at the cutting edge
- Abrasive/adhesive tool wear: silicon content and strength accelerate insert wear if speeds or feeds aren't matched to the material
HPA reports that Nitronic 60 machines at roughly half the rate of 304 stainless, though coated carbide can improve that. Electralloy's data sheet also recommends coated carbide tooling.

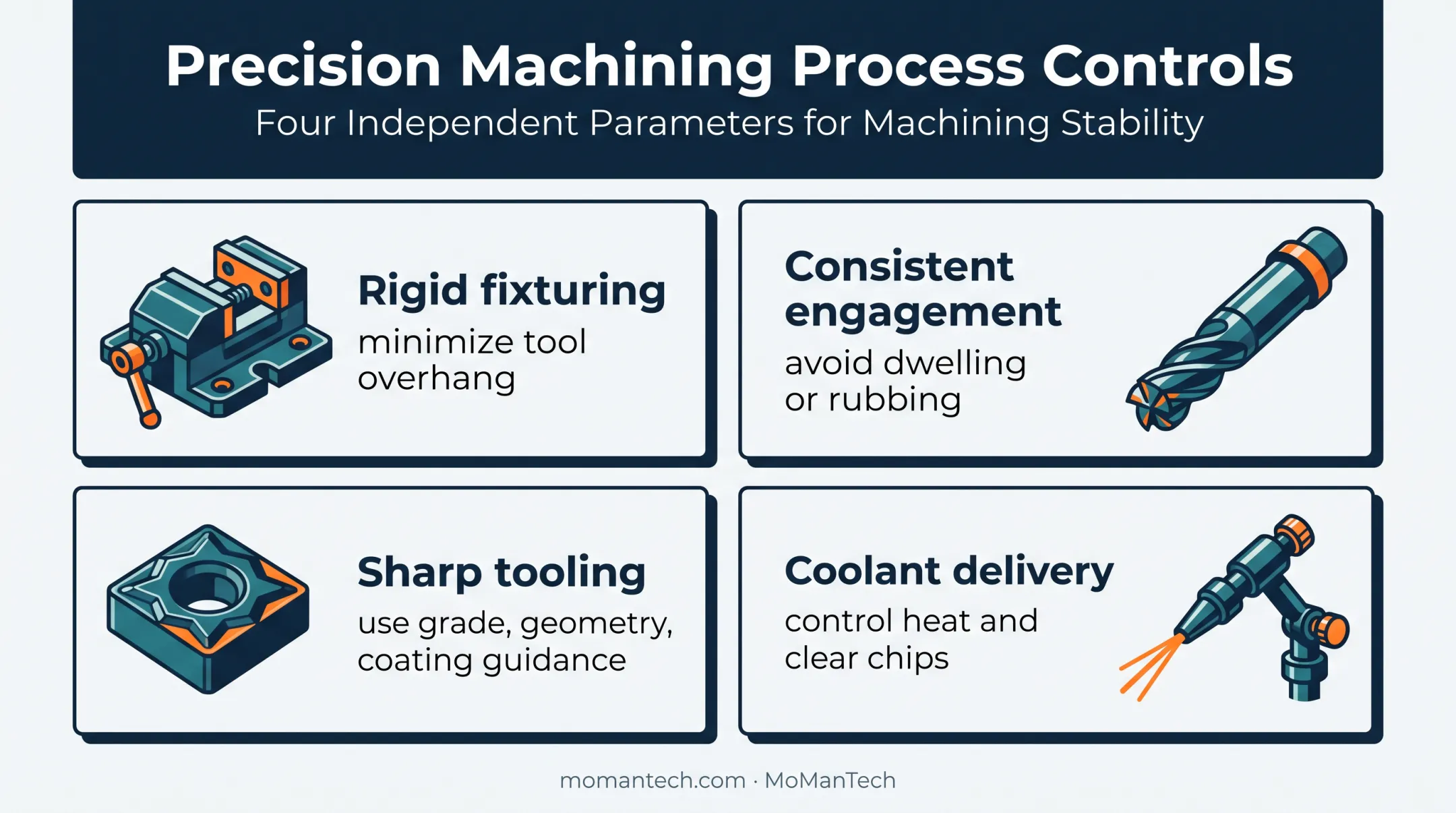

Process Controls That Reduce Risk
A few setup habits matter more here than on easier alloys:
- Rigid fixturing: minimize tool overhang to cut vibration and dimensional drift
- Consistent engagement: avoid dwelling or rubbing the same surface repeatedly, which creates a hardened skin
- Sharp, application-specific tooling: follow the toolmaker's grade, geometry, and coating recommendations rather than reusing general-purpose inserts
- Effective coolant delivery: control heat, clear chips, and prevent chip recutting
No single coolant strategy works for every setup. Flood coolant, through-tool coolant, and minimum-quantity lubrication all have valid use cases depending on the operation and machine.
Turning Practices for Rotational Geometry
Roughing, semi-finishing, and finishing each serve different goals. Roughing removes bulk material quickly; semi-finishing stabilizes dimensions; finishing locks in surface quality and tolerance. Treating them as separate operations, rather than one continuous pass, helps manage heat and tool wear independently.
Small diameters, shoulders, grooves, threads, and thin sections all increase deflection risk. Chip breaking matters more here than on free-machining alloys, especially in automated or unattended production where a tangled chip can stop a cycle cold.
For milling operations after turning (flats, slots, pockets, or cross-holes), toolpath strategies that reduce interrupted cutting and repeated engagement help avoid the hardened-layer problem described above.
Validate cutting parameters on your setup. Any speed, feed, or depth-of-cut figures from a tool catalog are starting points tied to a specific tool, workpiece condition, and machine. They are not guaranteed production values for your shop.
Troubleshooting Common Issues
| Symptom | Likely cause | Corrective action |
|---|---|---|
| Rapid tool wear | Wrong grade/geometry, heat buildup | Review tooling and cutting conditions, verify material cert |
| Work-hardened surface | Rubbing or dwelling instead of cutting | Remove hardened layer with a stable, committed cut |
| Burrs or poor finish | Dull tool, poor coolant delivery | Check edge sharpness, rigidity, finishing pass strategy |
| Dimensional drift | Tool wear, thermal growth | Add in-process inspection, monitor workholding repeatability |
Nitronic 60 Part Design, Applications, and Finishing
Where This Alloy Fits
Nitronic 60's wear and galling resistance makes it a strong candidate for rotational, contact-heavy parts:
- Shafts, pins, bushings, and spacers subject to sliding wear
- Threaded fasteners and components that assemble/disassemble repeatedly
- Sleeves and valve components exposed to repeated mechanical contact
Across industries, the connection to performance matters more than the industry label itself:
- Marine shafts gain corrosion resistance plus strength
- Valve trim gains galling resistance at elevated temperature
- Medical and surgical equipment gains corrosion resistance and non-galling behavior (implant-specific use still needs separate regulatory confirmation)
Designing for Stable Machining
A few design choices make a real difference in cycle time and part quality:
- Avoid unnecessarily deep, narrow grooves that increase deflection
- Skip unsupported thin walls where vibration will hurt surface finish
- Specify tolerances only as tight as the function actually requires
- Design thread, bore, and radius transitions to support stable tooling and reduce stress concentration
- Flag surfaces needing special finish, cleanliness, or passivation before releasing the drawing
Finishing Options

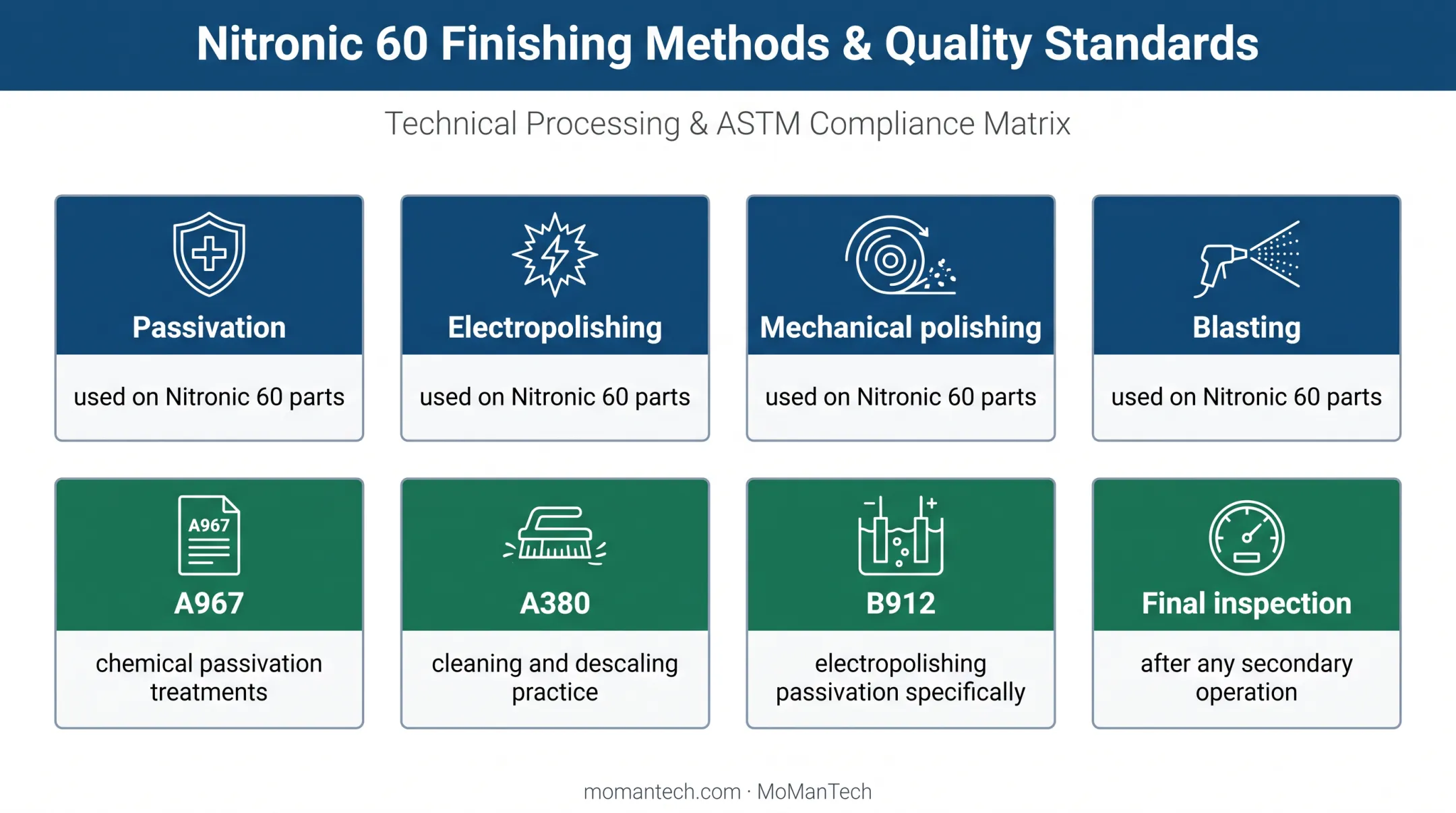

Passivation, electropolishing, mechanical polishing, and blasting are all used on Nitronic 60 parts. Compatibility depends on the service environment and customer specification.
ASTM standards distinguish these processes clearly:
- A967 covers chemical passivation treatments
- A380 covers cleaning and descaling practice
- B912 covers electropolishing passivation specifically
None of them set a universal surface-roughness target. That requirement has to come from the part drawing.
Finishing can change dimensions, edge condition, and cleanliness. Critical features should get a final inspection pass after any secondary operation, not just after machining.
Pre-Production Checklist
Before quoting or releasing a Nitronic 60 part, confirm:
- Material grade, condition, and certification
- Quantity (prototype vs. production)
- Drawing revision and tolerance priorities
- Surface-finish and cleanliness requirements
- Secondary operations (passivation, marking, blasting)
- Inspection criteria and packaging needs
Choosing a Nitronic 60 Machining Partner
What to Verify Before Committing
Not every shop that runs stainless steel is set up for Nitronic 60's quirks. Before signing on with a supplier, check for:
- Demonstrated experience with difficult stainless or other work-hardening alloys
- CNC turning, milling, Swiss, or multi-axis capability matched to your part geometry and volume
- Documented inspection processes, calibrated equipment, and material traceability
- Capacity to scale from prototypes through automated production
Why This Matters More for Medical OEMs
Medical-device programs raise the bar beyond general stainless work. OEMs typically need:
- Design-for-manufacturability feedback during development
- Fast response as drawings and tolerances evolve
- Controlled processes that catch defects before parts ship

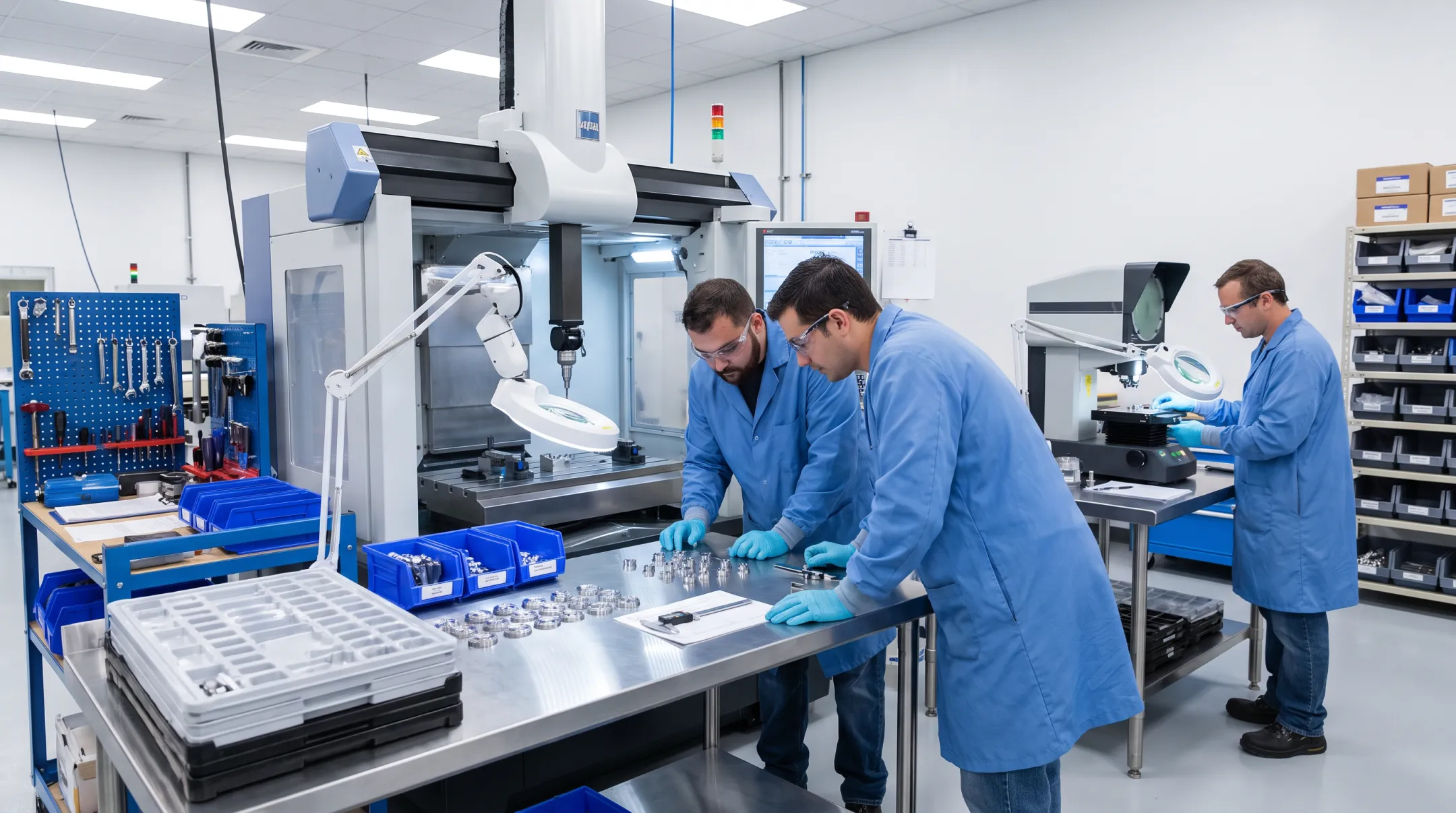

MoManTech, based in Sheridan, Montana, works with orthopedic device OEMs on spinal, trauma, large joint, and foot/ankle components. Shop capabilities include:
- ISO 13485:2016-certified quality system
- Comprehensive inspection on every part, including an OGP Flash 302 vision/CMM system
- Prototype runs of 1–10 units through 100+ unit production
- Automated lights-out capacity on CNC mills
Confirm Nitronic 60 production experience directly. FDA's Quality Management System Regulation incorporates ISO 13485:2016 as the quality framework, but a certificate alone does not prove alloy-specific know-how.
What to Send With Your RFQ
Give a prospective supplier enough to quote accurately and flag problems early:
- 2D drawing and 3D model
- Material specification and condition
- Annual or order quantity
- Tolerance priorities and surface requirements
- Inspection documentation needs
- Target timing and intended application
Conclusion
Nitronic 60 delivers a useful combination of strength, corrosion resistance, and galling resistance. Getting those properties in CNC production depends on disciplined tooling, workholding, heat management, and chip control, not just picking the right alloy.
Treat published cutting parameters as a starting point. Validate them through test cuts, toolmaker input, and documented inspection before committing to a production run.
If you're an orthopedic medical-device OEM developing a Nitronic 60 component, contact MoManTech to discuss your drawings, quantities, and manufacturability questions, or call 406-842-5403 to talk through a prototype or production program.
Frequently Asked Questions
What is the machinability of Nitronic 60?
Nitronic 60 is machinable but work-hardens and generates heat faster than standard 304 or 316 stainless. Rigid setups, sharp application-specific tooling, consistent engagement, and effective coolant are essential for stable results.
What is Nitronic 60 equivalent to?
Nitronic 60 is identified as UNS S21800. There's no single equivalent. Comparable alternatives depend on which mix of strength, corrosion resistance, wear resistance, and cost your application needs.
Can Nitronic 60 be CNC turned?
Yes. It's a strong fit for rotational parts like pins, bushings, and shafts, provided the setup addresses chip control, rigid workholding, and appropriate tooling. Cutting parameters still need validation for your specific geometry and material condition.
How do you prevent work hardening when machining Nitronic 60?
Keep cuts continuous and engaged rather than letting tools rub or dwell on the surface. Use sharp tools, control heat with proper coolant delivery, and remove any hardened layer with a stable, committed cut rather than a light pass.
What information should be included in an RFQ for Nitronic 60 parts?
Include the essentials so quoting stays accurate:
- Drawing revision and 3D model
- Material specification and condition
- Order quantity and tolerance priorities
- Surface-finish needs, secondary operations, and inspection documentation
- Intended application
