This article is written for medical-device OEM engineers, product developers, quality teams, and sourcing managers who need a practical framework for tolerance definitions, process variables, cost tradeoffs, inspection methods, and supplier selection. The focus throughout is orthopedic devices: spinal hardware, joint components, trauma and large-bone implants, and foot-and-ankle or extremity instruments that depend on repeatable interfaces and documented quality.
If you've ever argued with a designer over whether a bore really needs ±0.01 mm, this one's for you.
Key Takeaways
- No universal cutoff defines "tight tolerance"; it varies by feature, material, geometry, process, and function.
- Reserve the tightest tolerances for critical-to-function features—extra precision adds time, cost, and inspection load.
- Repeatable results depend on machine condition, tooling, workholding, thermal control, programming, and metrology.
- Orthopedic programs should vet quality systems, inspection docs, DFM support, and prototype-to-production scale.
What Is Tight Tolerance CNC Machining?
Every machined feature has a nominal dimension (the target size) and a tolerance (the allowable variation around it). A bilateral tolerance like 20.00 mm ±0.05 mm permits a range of 19.95–20.05 mm. A unilateral tolerance like 20.00 +0.05/-0.00 mm permits only 20.00–20.05 mm.
Neither is "tighter" by default. It depends on how the feature mates with its neighbor.
CNC machining doesn't produce a perfectly exact dimension. It produces a controlled range. Four measures matter, and they are not the same thing:
- Accuracy: how close a result lands to the target
- Repeatability: how consistent results stay across cycles
- Precision: how tight the spread is
- Process capability: whether the process can stay within spec over a full production run
A machine can be accurate on one part and still drift on the hundredth.
Where Does "Tight Tolerance" Actually Start?
There's no single industry threshold. ISO 2768 defines general tolerance classes for unspecified dimensions, while ISO 286 governs fits for cylindrical features. They are different systems, not a universal ladder from "general" to "ultra-precision."
As a point of reference, Protolabs lists ±0.13 mm as its standard CNC tolerance, with select features achievable down to roughly ±0.0127 mm. Against that baseline:

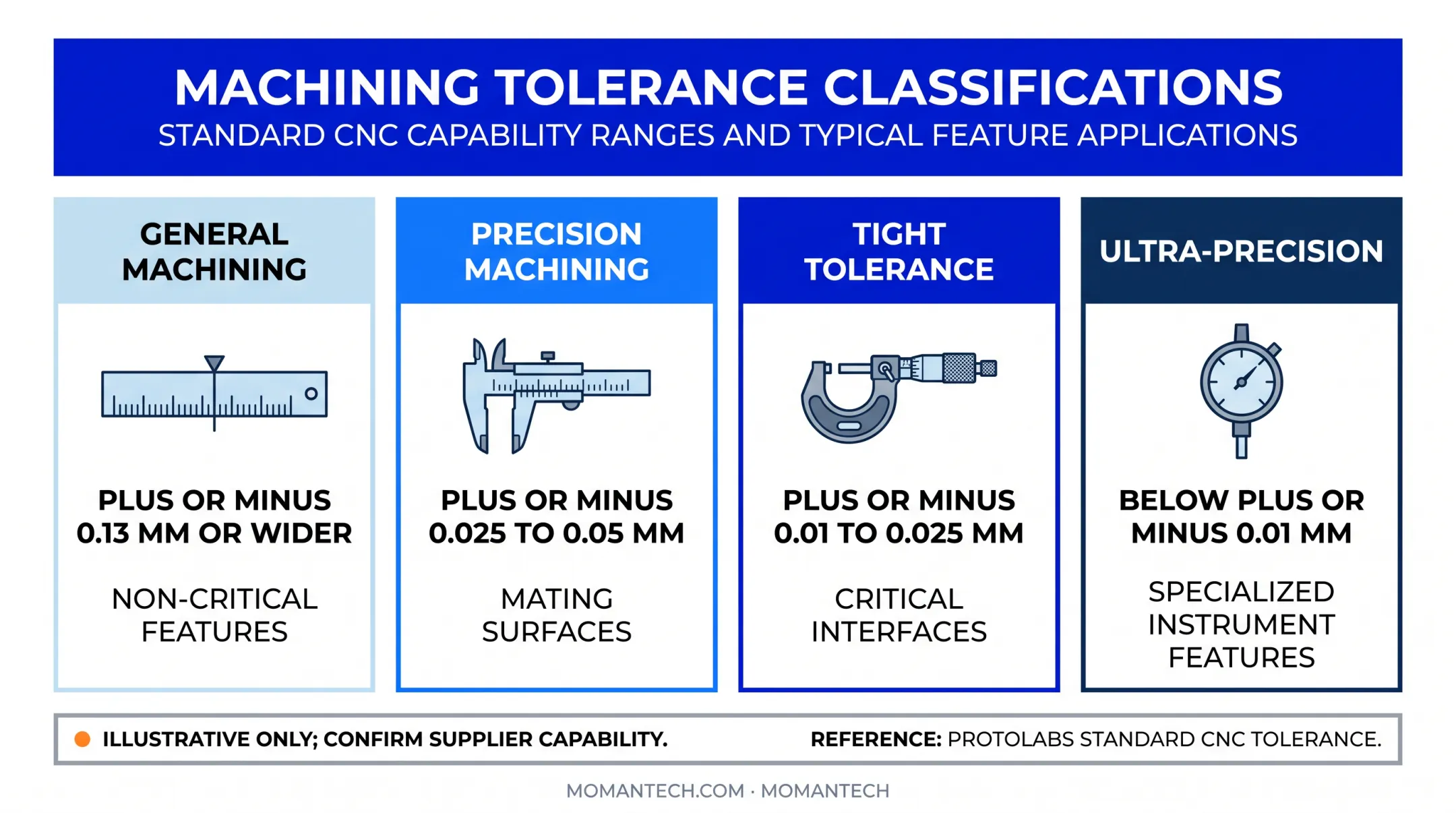

| Classification | Illustrative Total Band* | Typical Application |
|---|---|---|
| General machining | ±0.13 mm or wider | Non-critical features |
| Precision machining | ±0.025-0.05 mm | Mating surfaces |
| Tight tolerance | ±0.01-0.025 mm | Critical interfaces |
| Ultra-precision | Below ±0.01 mm | Specialized instrument features |
*Illustrative only. Confirm actual capability with your supplier for the specific feature and material.
So is ±0.05 mm tight? Compared to a shop's standard capability, yes. Is ±0.01 mm tight? Almost always, and it demands feature-specific capability confirmation before you commit it to a drawing.
A tolerance never stands alone. GD&T plus datum references, surface finish, roundness, concentricity, position, perpendicularity, and runout all shape whether a part actually functions. Two parts can share the same linear tolerance and behave completely differently once form and orientation are considered.
"Zero tolerance" isn't physically achievable. It's shorthand for an extremely strict requirement, not a formally specified engineering tolerance. Every drawing still needs a measurable number and an inspection plan behind it.
Why Tight Tolerances Matter for Orthopedic Medical Devices
Dimensional control directly affects implant and instrument performance: mating interfaces, fixation features, alignment, motion, contact surfaces, and repeatable assembly all depend on it. Excessive variation can cause:
- Poor fit or interference at mating interfaces
- Looseness or wear at moving or fixation points
- Damaged interfaces during assembly
- Inconsistent performance in surgical instruments
That doesn't mean every orthopedic component needs ultra-tight tolerances. It means the critical features do, and identifying which ones takes engineering judgment, not a blanket callout.
Components Worth Closer Scrutiny
Some orthopedic features typically warrant tighter control, though every case should be verified against the applicable drawing and device requirement:
- Spinal components, including rod-connector interfaces (FDA's spinal system 510(k) guidance asks for complete dimensioned drawings showing how components interconnect, rod diameter included)
- Trauma and large-bone hardware with mating or load-bearing surfaces
- Joint-related components that need smooth articulation
- Foot-and-ankle or extremity instruments that are small and geometrically complex
Documented inspection, traceability, and nonconformance control aren't optional extras here. They're how a manufacturer proves a part actually met the print, not just that it probably did.
MoManTech is an ISO 13485:2016-certified manufacturer focused exclusively on orthopedic medical devices. Comprehensive inspection and documented quality are built into spinal, joint, and extremity component programs from first article forward.
Before locking in a tolerance that is safe on paper but not functionally required, talk it through. MoManTech reviews component functional requirements with OEMs early to avoid over-specifying features that don't need it.

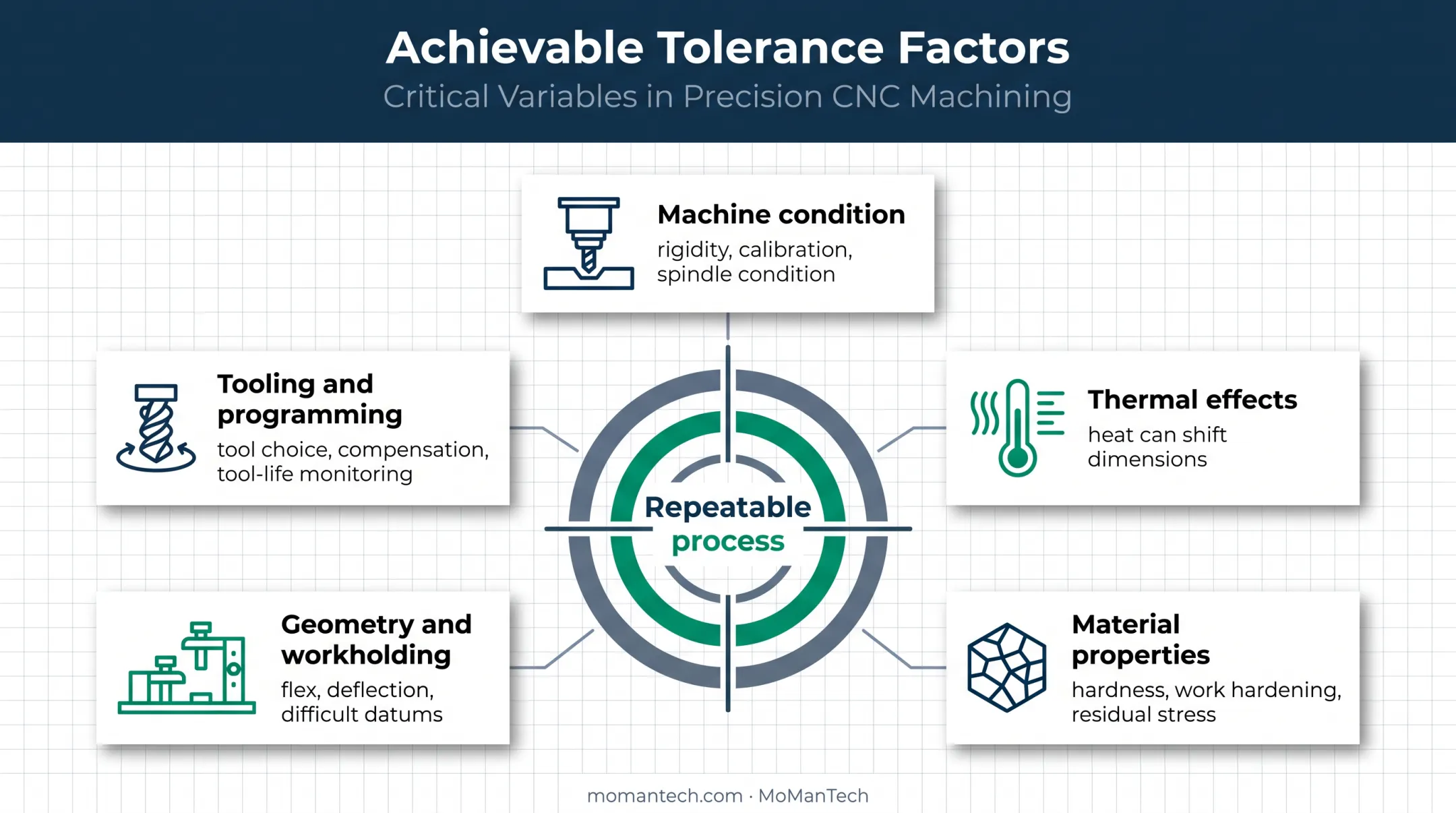

What Determines Achievable Tolerance?
A tolerance on paper means little without a process capable of holding it. Several variables determine what is achievable and repeatable in production.
Machine condition matters first. Rigidity, calibration, spindle condition, axis accuracy, and vibration control all affect repeatability under load, not just in a single test cut.
MoManTech runs multi-axis equipment including 6-axis Mazak Integrex I-150 machines and a 9-axis Quicktech S42ATM built to medical standards. That equipment is selected for the complex, tight-tolerance geometry orthopedic components often require.
Thermal effects come next. Heat from the machine, the cutting process, coolant, and even the shop environment can shift dimensions. That drift becomes significant once tolerance bands shrink below a few hundredths of a millimeter.
Material properties shape the entire strategy. Hardness, work hardening, residual stress, thermal expansion, and tool wear all influence how a cut behaves. Orthopedic materials add their own quirks, so they need process-specific controls rather than one-size-fits-all parameters.
Part geometry and workholding raise the difficulty further:
- Thin walls and deep pockets that flex under cutting force
- Long unsupported features prone to deflection
- Small diameters with limited clamping options
- Complex contours requiring multiple setups
- Datums that are difficult to access reliably
Tooling and programming tie it together. Tool selection, toolpath strategy, cutting parameters, finishing passes, compensation, and tool-life monitoring all help control variation and catch drift before it becomes scrap.
Achieving a tolerance once on a prototype is not the same as holding it across a production run. A single good part proves the design is possible. A validated process proves it is repeatable.
MoManTech's automation, including cobot-assisted loading on high-volume jobs, supports that shift from prototype quantities of 1–10 units to runs of 100-plus without losing dimensional consistency.
How to Specify and Verify Tight Tolerances
The biggest mistake engineers make is applying a tight general tolerance to every dimension on the print instead of isolating the ones that actually matter.
Start by identifying critical-to-function dimensions: features involved in mating, sealing, alignment, or movement. Everything else can typically carry a looser, standard tolerance without affecting performance.
GD&T and datum schemes often communicate functional intent better than tightening individual dimensions one by one. Rather than specifying position and roundness separately with aggressive numbers, use a well-structured datum reference frame under ASME Y14.5. That frame defines how a part locates and functions in its assembly, with less ambiguity for the machinist.
Don't overlook tolerance stack-up. The cumulative effect of several mating features often matters more than any single isolated dimension. A part can pass every individual inspection and still fail to assemble correctly.
What to Include in Your RFQ Package
A complete design package speeds up quoting and reduces surprises later:
- Current CAD files and drawings
- Material and condition specifications
- Surface finish and heat treatment or finishing requirements
- Inspection expectations and acceptance criteria
- Quantities and target timing
- Applicable regulatory or quality requirements
Verification Methods
Inspection equipment should match the feature and tolerance, not the other way around. MoManTech's quality equipment includes an OGP Flash 302 Vision machine with both CMM and laser measurement capability, along with a 14-inch Mitutoyo height gauge with digital readout. These tools are suited to a range of linear, angular, and geometric checks.
A sound verification plan typically includes:
- First-article inspection before production release
- In-process checks during the run
- Final inspection before shipment
- Documented inspection reports and lot traceability
- A defined process for handling nonconformance
Which records your program needs depends on device classification and quality system requirements, so confirm that early with your supplier.
Balancing Tolerance, Cost, and Manufacturability
Tighter tolerances aren't free. They typically increase:
- Cycle time and number of setups
- Finishing operations and tooling consumption
- Inspection effort and documentation
- Scrap risk and engineering review requirements
The real question is how tight each feature actually needs to be. A functionally necessary tolerance protects performance. An unnecessarily restrictive one just adds cost without adding value, and a solid DFM review is usually what separates the two.
MoManTech's design-for-manufacturability consultation happens during planning, before a tolerance gets locked into a released drawing. A few design choices consistently improve repeatability:
- Supporting thin features to reduce deflection
- Minimizing unnecessary setups
- Improving access to datums
- Avoiding extreme depth-to-width ratios
- Choosing materials suited to the application, not just the spec sheet

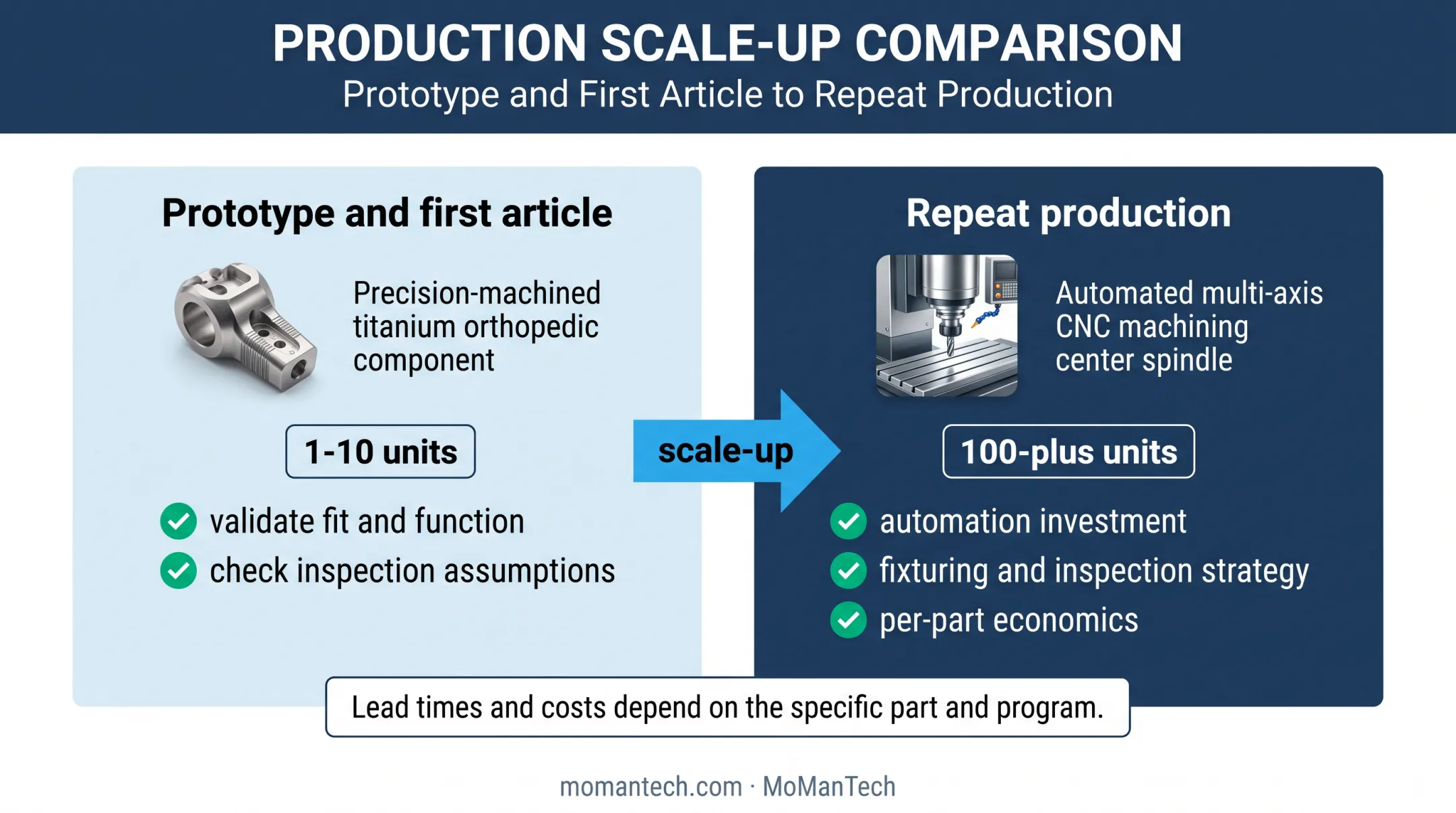

Prototypes and first articles are worth the time they take. Validating fit, function, and inspection assumptions at 1-10 units before scaling into a 100-plus production run catches problems when they're cheap to fix, not after tooling is committed.
Production volume also shapes the whole process plan: automation investment, fixturing, inspection strategy, and per-part economics all shift once a program moves from prototype to repeat orders. MoManTech's automated loading supports that move into repeat production, though lead times and costs still depend on the specific part and program.
Working With a Tight-Tolerance Machining Partner
Choosing a supplier for tight-tolerance orthopedic work is less about who quotes fastest and more about who can prove consistency. A practical evaluation checklist:
- Relevant medical-device manufacturing experience
- ISO 13485:2016 certification where applicable
- Documented quality processes and inspection records
- Active DFM participation, not just order-taking
- Clear communication and response times
Ask direct questions before committing:
- How does the supplier handle tolerance review on a new print?
- What does their first-article process look like?
- Do they support process validation where required, material certification, full traceability, and a defined path for nonconformances and engineering changes?
MoManTech works specifically with US orthopedic OEMs producing spinal, joint, trauma, large-bone, and foot-and-ankle components. Support includes multi-axis machining, automation, and documented quality, backed by more than 70 years of collective hands-on leadership experience in orthopedic manufacturing.
Have a component with critical features and a drawing that needs a second look? Send MoManTech your drawings, CAD files, materials, quantities, and quality requirements for a manufacturability and production discussion. Reach the team at kirt.johnston@momantech.com or 406-842-5403.
Final Thoughts
Successful tight-tolerance machining balances functional precision, process capability, inspection confidence, quality requirements, delivery expectations, and cost. Chasing the smallest number on every feature rarely serves the part or the program.
Involve a qualified machining partner early, especially for orthopedic implants or instruments with complex geometry, critical interfaces, or limited production history. The earlier that conversation happens, the fewer surprises show up at first-article inspection.
MoManTech centers on responsive partnership, documented quality, and support from prototype through production, aligned with what orthopedic OEMs need at each stage.
Frequently Asked Questions
What is considered a tight tolerance in machining?
It depends on the process, material, geometry, and feature function; there's no universal cutoff. As a reference point, anything tighter than a shop's standard capability (often around ±0.005" / ±0.13 mm) is considered tight.
Are tolerances of 0.01 mm or 0.05 mm considered tight in machining?
Yes. Tolerances around 0.0004" (0.01 mm) or 0.002" (0.05 mm) are demanding for most features, and ± versus total band changes the math. Confirm actual capability with your machining supplier before finalizing the print.
What is zero-tolerance engineering?
Zero tolerance isn't physically achievable in manufacturing. It's shorthand for an extremely strict requirement that still needs to be translated into a measurable tolerance and a documented inspection plan.
How do manufacturers inspect tight-tolerance CNC parts?
Inspection typically uses calibrated gauges, CMMs, or optical systems matched to the feature. Shops back that up with in-process checks, first-article inspection, final verification, and documented traceability.
Do tighter machining tolerances increase cost?
Usually yes. Tighter tolerances can add machining time, tooling wear, extra setups, inspection effort, and scrap risk. A DFM review helps reserve tight controls for features that genuinely need them.
