The material's appeal is clear: UHMWPE delivers exceptional wear resistance, impact strength, low friction, and chemical resistance. But the same long molecular chains that create its toughness also make it heat-sensitive, flexible under pressure, and prone to dimensional movement after cutting. Cut it the wrong way, and you get melted edges, warped bores, or parts that measure in tolerance on the machine and drift out of spec a day later.
UHMWPE often gets labeled "difficult to machine" without much explanation of what that actually means in practice. This guide breaks down the material behavior, tooling, heat management, workholding, step-by-step process, inspection timing, applications, and limitations that separate a usable part from a scrapped one.
Key Takeaways
- UHMWPE machines accurately when heat, tool sharpness, chip evacuation, clamping force, and stabilization are controlled
- Treat published cutting parameters as starting points — verify against grade, tooling, and machine rigidity
- Broad, low-pressure workholding beats concentrated clamping; UHMWPE deforms and recovers
- Medical-device parts need verified grade, contamination control, traceability, and documented inspection
- Machining often suits complex geometry and moderate volumes better than molding or thermal cutting
What Is UHMWPE Machining and Why Is It Used?
Ultra-high molecular weight polyethylene gets its name from polymer chains that stretch far longer than standard polyethylene: commercial grades reach molecular weights in the millions of grams per mole. Those long chains give UHMWPE its toughness, impact resistance, low coefficient of friction, abrasion resistance, and chemical resistance.
CNC milling, turning, drilling, boring, and sawing all work well on UHMWPE stock shapes. Injection molding, by contrast, is generally a poor fit for complex UHMWPE geometries. The material's melt viscosity is so high that it resists flowing into intricate cavities the way conventional thermoplastics do. Celanese's UHMWPE polymer guide therefore points fabricators toward machinable stock shapes rather than standard injection molding for intricate parts.
Why Heat Management Drives Every Decision
Cutting generates friction, and friction generates heat. UHMWPE doesn't dissipate that heat quickly. Its thermal conductivity is low, and its softening point is relatively low compared to metals or more rigid plastics. Combine that with a comparatively high thermal expansion rate, and you get a material that moves if cutting temperature isn't controlled.
UHMWPE vs. HDPE: Not Interchangeable
Both are polyethylenes, and both machine reasonably well, but they aren't substitutes:
- UHMWPE delivers superior wear and impact resistance, making it the default for sliding, abrasive, or repeated-impact service
- HDPE machines and welds more easily, typically costs less, and can offer more predictable dimensional behavior for simpler parts
- The choice should hinge on the actual wear mode and load the part sees, not just the material name
Manufacturers reach for UHMWPE in wear strips, bushings, guides, chute liners, bearings, sprockets, and low-friction components, plus select medical applications where its bearing properties matter.
Machining still isn't automatically the right route. Material grade, geometry, production quantity, tolerance, and surface finish should all drive the fabrication decision before cutting begins.
How UHMWPE Machining Works: From Stock to Inspection
UHMWPE machining follows a controlled sequence, not a single cutting operation: review the drawing, verify stock, prepare workholding, rough machine, manage heat and chips, stabilize where needed, finish machine, clean, and inspect.
What this requires in practice:
- Certified or otherwise specified UHMWPE stock matched to the application
- A controlled CNC program built around the material's cutting behavior
- Sharp, plastic-appropriate tooling
- A low-distortion fixture that supports the part without compressing it
- Chip evacuation suited to the geometry
- Inspection equipment capable of the required tolerances
The Cut Should Shear, Not Rub
Good UHMWPE machining shears material cleanly rather than rubbing, pushing, or melting it. Tool geometry, chip load, speed, feed, depth of cut, and tool engagement all influence cutting temperature and surface finish together. Change one variable and the others need adjusting too.
A dull tool rubbing across the surface generates far more heat than a sharp tool shearing through it at the same feed rate.
Published guide values offer a reasonable starting point for trial cuts:
| Operation | Cutting Speed | Feed | Rake/Clearance |
|---|---|---|---|
| Sawing | 3,000–13,000 ft/min | 0.0008–0.0040 in/tooth | Match blade/tooth form to stock |
| Turning | 600–1,300 ft/min | 0.004–0.020 in/rev | Rake 0–15°, clearance 5–15° |
| Milling | 600–12,000 ft/min | 0.010–0.030 in/rev | Rake 0–15° |
| Drilling | 150–500 ft/min | 0.004–0.012 in/rev | Rake 15–25°, clearance 10–12° |
These figures, published in Röchling's Polystone M machining guide, are starting points only. Verify them against your grade, tool manufacturer guidance, machine rigidity, and part geometry.
Roughing, Stabilization, and Finishing Are Separate Operations
Rough machining removes bulk material fast but should leave a controlled allowance for stress relaxation and final finishing. Removing material unevenly tends to produce warping as internal stresses release unevenly; balanced, symmetrical removal reduces that risk.
Finishing is its own operation: sharp, clean tooling, stable workholding, an appropriate toolpath, and a controlled thermal condition on the part. Climb milling often produces a cleaner finish on UHMWPE, but whether it's appropriate depends on machine rigidity, backlash control, and geometry. It is not a universal default.
Inspection timing matters more with UHMWPE than with metal. Dimensions can shift as the part cools and internal stresses relax. Rather than applying a blanket waiting period, qualify a stabilization window and inspection temperature against the specific grade, section thickness, and tolerance band.

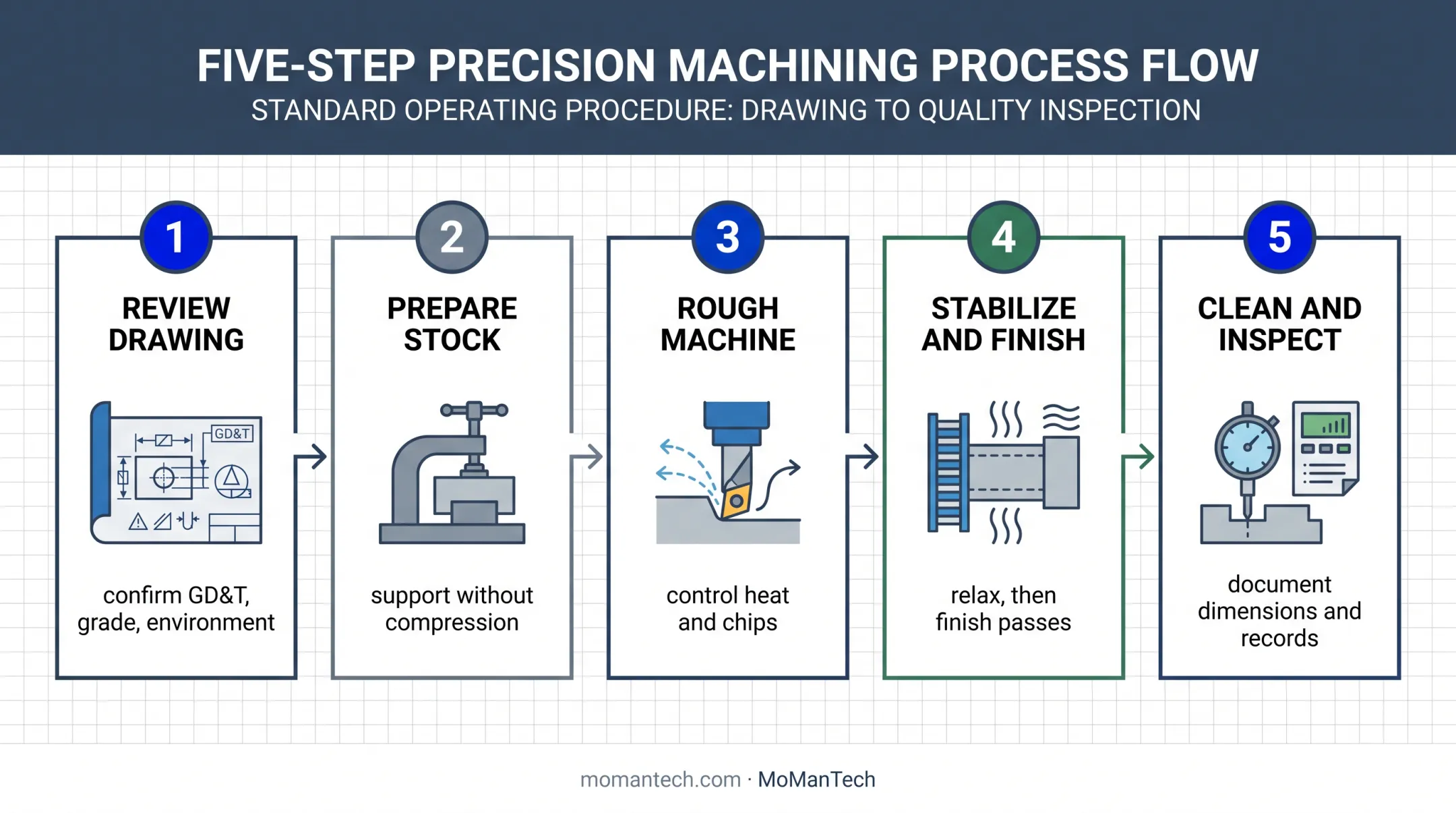

The Five-Step Process
- Review the drawing: Confirm GD&T, surface-finish requirements, material grade, end-use environment, and any cleanliness or traceability requirements before programming.
- Prepare stock and fixture: Confirm broad, even support and establish datums without compressing or distorting the workpiece.
- Rough machine: Use controlled engagement with approved cooling/evacuation; check frequently for stringy chips, gumming, smearing, or heat damage.
- Stabilize, then finish: Let the part cool and relax where tolerances demand it, then run semi-finishing and finishing passes with verified parameters.
- Deburr, clean, and inspect: Avoid scratches, embedded particles, or contamination; document critical dimensions against the drawing and material records.
Where UHMWPE Machining Is Applied
Industrial Applications
UHMWPE's wear resistance and low friction suit parts that slide, abrade, or take repeated impact:
- Conveyor guides and wear strips
- Chute and hopper liners
- Bushings and bearings
- Sprockets and low-friction guides
Each application leans on a specific property — wear strips need abrasion resistance, bearings need low friction, liners need impact tolerance.
Medical and Orthopedic Applications
The same polymer shows up in a very different setting: orthopedic devices. UHMWPE is a proven bearing material for liner and bearing surfaces in hip and knee implants.
Material suitability alone is not a manufacturing path. Grade selection, design, regulatory pathway, and process controls all have to match the specific use before machining a medical component moves forward.
Where Machining Fits in the Product Lifecycle
Machining shows up at several points:
- Prototype development: prove geometry before committing to tooling
- Design-for-manufacturability review: catch features that are hard to hold in production
- First article production: validate the process against the drawing
- Low-volume production: cover runs where dedicated molds do not pencil out
- Repeat production: support ongoing orders once the process is locked in

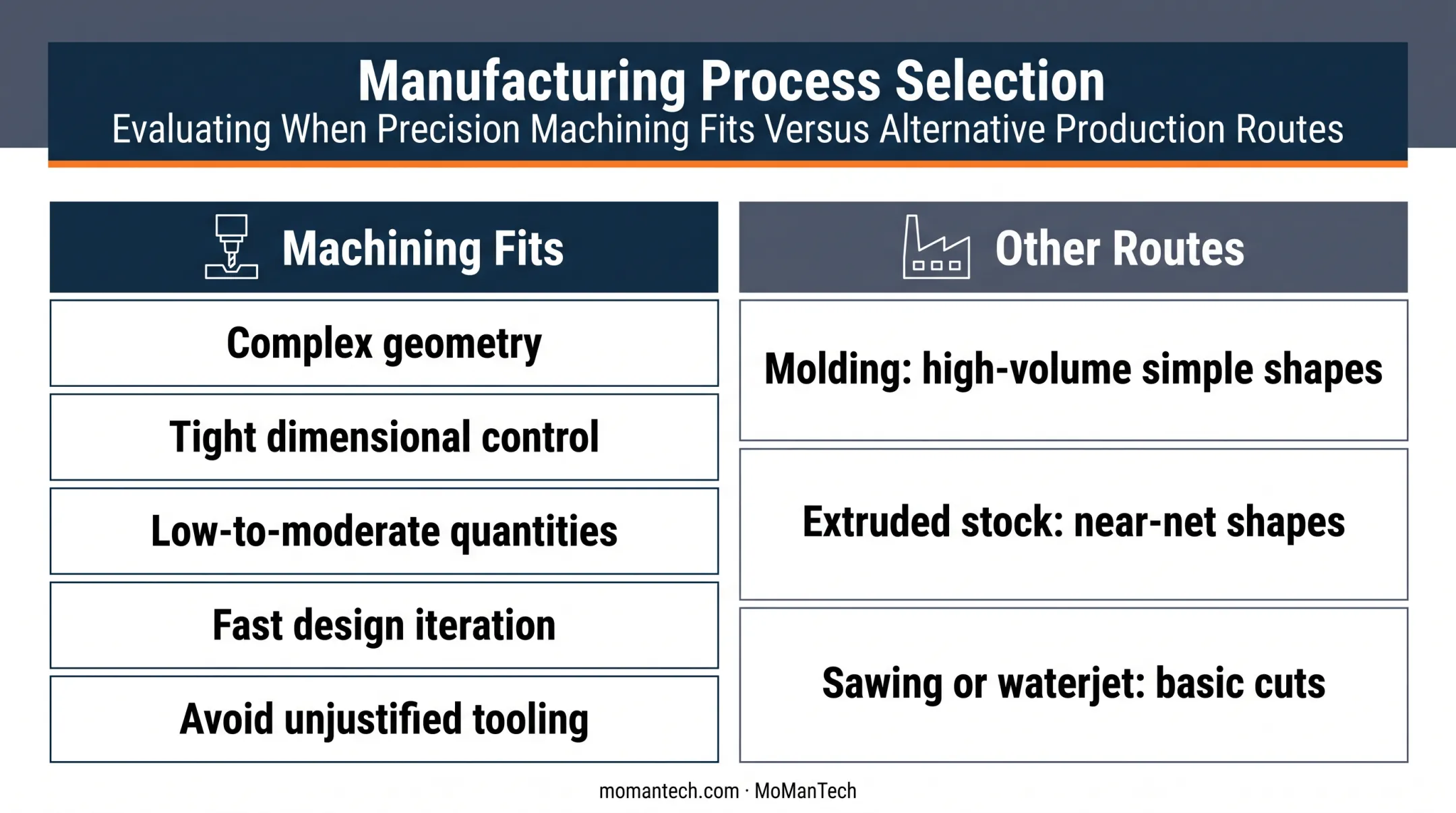

Machining tends to win when a part needs:
- Complex geometry
- Tight dimensional control
- Low-to-moderate quantities
- Fast design iteration
- Avoidance of unjustified molding tooling
Simple, high-volume repeating shapes often favor molding or near-net extruded stock. Flat blanks may be better served by sawing or waterjet cutting before CNC work begins.
For orthopedic OEMs, a partner that supports DFM input, prototypes, and first articles lowers the risk of finding problems late. MoManTech works with spine, trauma, large joint, and foot/ankle OEMs on precision CNC machining and DFM consultation from prototype quantities through production. Confirm UHMWPE-specific capability directly for the grade and application at hand.
Key Factors That Affect UHMWPE Machining
Several variables interact to determine whether a UHMWPE part comes off the machine in spec and stays there.
Material inputs:
- UHMWPE grade (virgin or modified formulation)
- Stock manufacturing method and material certification
- Lot variation and prior thermal history
- Whether the grade is intended for industrial, food-contact, or medical use
Operating conditions:
- Cutting speed, feed, and chip load
- Depth and width of cut, tool engagement, dwell time
- Ambient and workpiece temperature
- Whether the operation is roughing, drilling, turning, or finishing
Tooling dependencies:
- Sharp, positive-rake tools with suitable relief
- Polished cutting surfaces where available
- Carbide or other appropriate tool material
- Controlled tool overhang and edge condition
- Separate tooling for polymers and metals when contamination is a concern
Workholding and chip management:
- Vacuum fixtures, soft jaws, or custom nests with broad contact areas
- Sacrificial support under thin or flexible features, with minimal clamping force
- Compressed air, vacuum, or an approved coolant strategy to prevent chip recutting and smearing
Annealing as an Optional Stress-Relief Step
Annealing or other stress-relief treatments can help demanding parts hold tolerance, but no single thermal cycle works across every UHMWPE grade. Use a validated procedure matched to the specific material and geometry rather than a generic heat-and-cool cycle.
Dimensional stability is only part of the picture for regulated work. Medical-device OEMs also need a production partner whose quality system matches its machining capability.
FDA's Quality Management System Regulation, effective February 2026, incorporates ISO 13485:2016 into the US medical-device framework. Core obligations fall on finished-device manufacturers, so component suppliers and OEMs should spell out traceability and inspection requirements in the purchasing agreement.
MoManTech operates under ISO 13485:2016 certification with comprehensive inspection and documented quality records. Certification alone does not establish approval for every UHMWPE application.
Common Issues, Misconceptions, and When Machining Is Not Appropriate

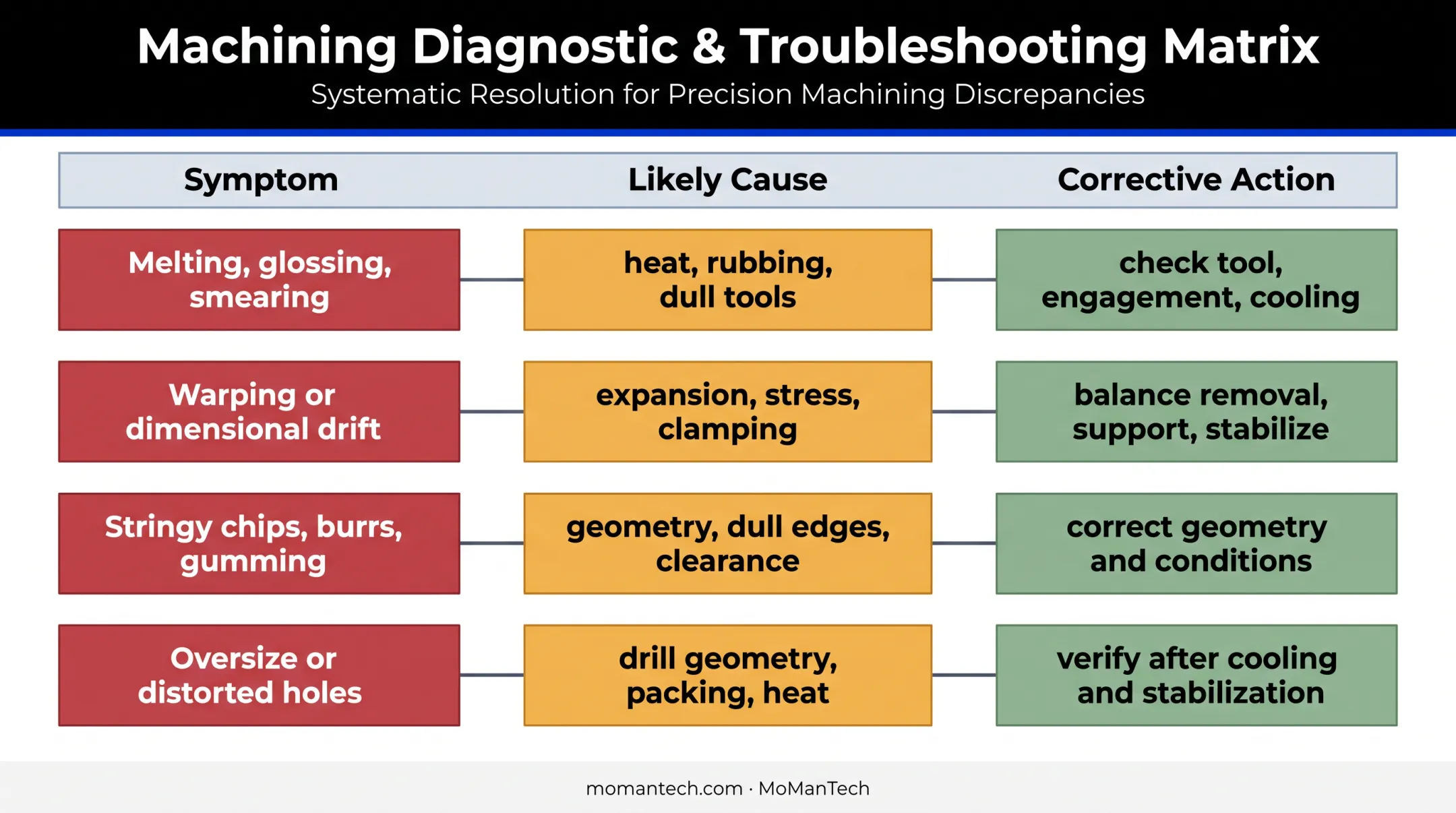

Diagnosing Common Defects
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Melting, glossing, smearing | Excessive heat, rubbing, dull tooling, poor chip evacuation | Check tool condition, engagement, cooling, dwell |
| Warping or dimensional drift | Thermal expansion, residual stress, uneven removal, excessive clamping | Stage machining, balance removal, broaden support, stabilize before inspection |
| Stringy chips, burrs, gumming | Tool geometry, dull edges, poor chip clearance | Correct geometry and cutting conditions |
| Oversize or distorted holes | Drill geometry, peck cycles, chip packing, heat, unsupported material | Verify holes after cooling and stabilization |
Heat during drilling can sometimes produce an undersize hole, not only an oversize one. Treat an oversize result as a cue to check runout, tool size, and clamping distortion rather than assuming melting is always the cause.
Three Misconceptions Worth Retiring
- "UHMWPE is too soft to machine." It machines well with the right tooling and heat control. Heat management is the real constraint, not softness.
- "Slower cutting is always safer." A dull or poorly engaged tool cutting slowly can generate more rubbing heat than a properly set, faster cut.
- "In-tolerance right off the machine means stable." Dimensions can shift as internal stresses relax, so a measurement taken immediately after cutting isn't the final word.
When UHMWPE Isn't the Right Default
Skip UHMWPE when the design needs any of the following:
- High-temperature performance
- High rigidity
- Very tight dimensional stability
- Reliable adhesive bonding
- Strong UV resistance without a stabilized grade
When those requirements dominate, switch materials. Depending on the need, consider:
- HDPE for lower cost and easier welding when wear demands are modest
- Acetal (POM) for greater rigidity and lower expansion in precision parts
- PTFE for chemical resistance and inherent UV stability
- PEEK for elevated-temperature service and dimensional stability, at higher material cost
Very high-volume simple shapes often favor molding or near-net stock over machining. Basic straight cuts may be better suited to sawing or waterjet cutting.
Stop-and-Review Checklist
Pause and reassess if you see:
- Visible melting or glossing on cut surfaces
- Recurring chatter that won't resolve with parameter changes
- Excessive deformation after unclamping
- Dimensional movement that doesn't match expected stabilization
- Contamination risk from shared tooling or fixtures
- Inability to validate the required surface or material condition
Conclusion
UHMWPE machining is entirely feasible once the process is built around the material's real behavior: heat sensitivity, flexibility under clamping force, chip formation, tool sharpness, and dimensional relaxation after cutting. They become design inputs once the process accounts for them.
Reliable results depend on matching six variables to what the part actually needs: material grade, tooling, fixture design, cutting parameters, stabilization plan, and inspection method. No generic UHMWPE recipe covers all of them equally well.
For OEMs developing spine, trauma, large joint, or foot/ankle components, involving a manufacturing partner early, during design-for-manufacturability review, prototype planning, and first-article setup, catches problems before they reach production. MoManTech supports orthopedic device OEMs with precision CNC machining, DFM consultation, and documented quality from prototype quantities through 100+-unit production runs under ISO 13485:2016 certification.
Frequently Asked Questions
Can UHMWPE be machined?
Yes. Use sharp, plastic-appropriate tooling, controlled heat, stable low-pressure workholding, and effective chip evacuation. With application-specific inspection, UHMWPE machines into tight-tolerance parts reliably.
What is the tensile strength of UHMWPE?
Tensile strength varies by grade and test method. Some data sheets report yield values, others report break values, and these aren't interchangeable. Check the applicable material certification for your specific grade.
Is UHMW stronger than HDPE?
UHMWPE offers higher wear and impact performance than HDPE. HDPE is easier to machine and weld, and often wins on cost or dimensional stability for simpler parts.
What does UHMWPE stand for?
UHMWPE stands for ultra-high molecular weight polyethylene. Its unusually long polymer chains (millions of grams per mole in commercial grades) give it the toughness and wear resistance shops rely on.
What tools are best for machining UHMWPE?
Extremely sharp, positive-rake plastic-cutting tools with polished surfaces and appropriate carbide geometry work best. Always verify specific tool recommendations with your tool supplier for the grade and operation involved.
How do you prevent UHMWPE from deforming during machining?
Use distributed, low-pressure fixturing instead of concentrated clamping, keep tools sharp, control heat, and remove material in a balanced sequence. Stage roughing and finishing with a stabilization period before final inspection.
