Introduction
Implantable medical devices cover a wide range, from passive orthopedic hardware and dental implants to active pacemakers, neurostimulators, and drug-delivery systems. All of them sit inside the body to treat, monitor, replace, or support a biological function.
Device developers and care teams often struggle to match the right implant type to each clinical need. In U.S. healthcare, these devices restore mobility, keep hearts beating in rhythm, deliver targeted therapy, and track patients over time. The American Joint Replacement Registry alone captured 4,434,668 hip and knee procedures from 2012 to 2024, per its 2025 annual report.
This article sorts implants by clinical application and by operating principle, explains active, passive, and hybrid devices, and covers how to choose and prepare the right type.
Key Takeaways
- Implants stay in the body temporarily or permanently to support, replace, monitor, or treat a function.
- Clinical categories span cardiac, orthopedic, neurological, vascular, sensory, dental, and more.
- Active devices need power; passive devices rely on mechanics and materials; hybrids combine both.
- Intended use, anatomy, materials, service life, manufacturability, and FDA pathway drive the right choice.
What Are Implantable Medical Devices and Why Are They Important?
Definition and scope
An implantable medical device is introduced into the body through surgery, a medical intervention, or a natural opening, and is meant to remain temporarily or permanently for a specific medical purpose. Implants may deliver therapy, monitor activity, replace tissue, provide structural support, guide healing, or keep a body pathway open.
"Implantable" describes placement and intended duration. It says nothing about whether a device is powered, electronic, or high risk. A stent, a hip replacement, a pacemaker, and an intraocular lens are all implants, yet they work very differently.
Active, passive, and hybrid are functional descriptions, not FDA class labels. Class and premarket requirements depend on intended use, risk, and technology.
One regulatory wrinkle: 21 CFR 812.3 and 860.3 generally define an implant as one intended to remain 30 days or more, with FDA exceptions. That is a regulatory definition, narrower than the everyday meaning.
Why they matter
Implants translate into practical outcomes:
- Restored movement through joint replacement
- Controlled heart rhythm through pacemakers and ICDs
- Improved hearing through cochlear implants
- Targeted medication through implanted pumps
- Fracture stabilization through plates, screws, and rods
- Ongoing monitoring through cardiac recorders and glucose sensors
When selection or design goes wrong, the consequences are real: poor anatomical fit, inadequate mechanical performance, tissue reaction, infection, malfunction, premature wear, or a shortened service life.
FDA describes one recall where joint implants lacked a required oxygen-barrier package layer, allowing oxidation, accelerated wear, and revision surgery.
Types of Implantable Medical Devices
Two classification methods work together. One groups devices by the clinical problem or body system. The other groups them by how they operate or use energy.
Active implantable medical devices
Active implants use electrical, mechanical, chemical, or other power from a battery, external source, or energy-transfer system. Examples include pacemakers, implantable cardioverter-defibrillators (ICDs), deep brain stimulators, spinal cord stimulators, implantable pumps, some glucose-monitoring systems, and ventricular assist devices.
They enable continuous sensing, programmable stimulation, controlled drug delivery, and mechanical assistance. Their strength is adjustability.
Main trade-offs include:
- Batteries that eventually need replacement or recharging
- Electronics, software, and telemetry that add verification work
- Electromagnetic compatibility and MRI considerations
- Cybersecurity obligations for applicable devices

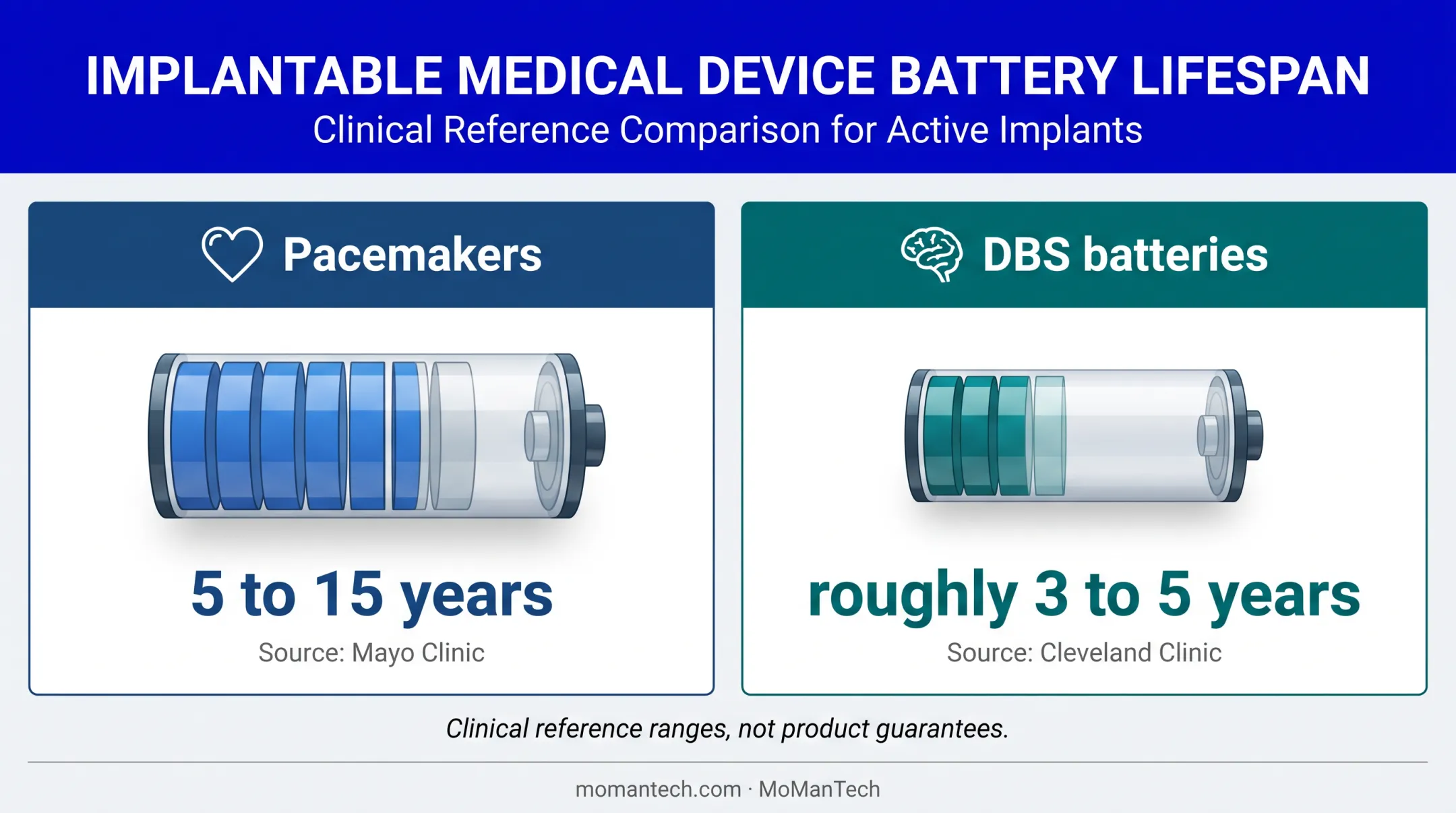

Mayo Clinic gives a typical pacemaker battery range of 5 to 15 years, while Cleveland Clinic cites roughly 3 to 5 years for many DBS batteries. These are clinical reference ranges, not product guarantees.
Passive implantable medical devices
Passive implants work without an internal power source. They rely on strength, shape, material properties, fluid flow, tissue integration, or healing. Examples include joint replacements, spinal cages, plates, screws, rods, dental implants, intraocular lenses, heart valves, hernia mesh, and many stents.
They fit structural replacement, fixation, reinforcement, spacing, and tissue support. Clear advantages include no battery management and mechanical simplicity.
Their risks are different: wear, corrosion, fatigue, loosening, migration, poor anatomical fit, and long-term biocompatibility. Passive does not mean low risk. Representative intraocular lenses and mechanical heart valves are Class III, while pedicle screw systems are Class II.
Semi-active or hybrid implantable medical devices
Hybrid devices pair passive structure with a responsive function: selective drug release, externally triggered adjustment, pressure response, or shape-memory behavior. Drug-eluting stents, pressure-responsive shunt valves, and magnetically programmable CSF shunt valves are common examples.
They can balance functionality and energy use, but they add design, material, interface, testing, and regulatory complexity. FDA warns that strong magnetic fields can unintentionally change programmable valve settings.
"Hybrid" is a descriptive term, so verify the exact classification for each device and intended use.
Clinical application categories
- Cardiac and vascular: pacemakers, ICDs, CRT devices, valves, coronary stents, ventricular assist devices
- Orthopedic and spinal: hip and knee prostheses, pedicle screws, fusion devices
- Neurological: deep brain and spinal cord stimulators, CSF shunts
- Drug delivery and monitoring: infusion pumps, loop recorders, implanted glucose systems
- Sensory, ophthalmic, and dental: cochlear implants, intraocular lenses, dental implants
- Specialty: urological, gastrointestinal, breast, reconstructive, and surgical mesh
Comparing the three operating categories
| Factor | Active | Passive | Hybrid |
|---|---|---|---|
| Energy source | Battery or external power | None | Limited or external trigger |
| Role | Sensing, stimulation, delivery | Support, replacement, fixation | Structure plus responsive function |
| Adjustability | High | Low | Moderate |
| Maintenance | Battery, software, follow-up | Inspection, revision if needed | Depends on function |
| Typical failure modes | Battery, lead, software, interference | Wear, corrosion, fatigue, loosening | Both sets, plus interactions |
| Manufacturing complexity | Electronics and sealing | Materials and precision machining | Combined |
One product can fit more than one category depending on the method used. A drug-eluting coronary stent is a vascular device, a hybrid by operation, and a Class III product by FDA classification.
How to Choose the Right Type of Implantable Medical Device
The right type follows the intended outcome, anatomy, risk profile, service life, and development constraints. It does not follow which device is newest or most complex.
Intended purpose and clinical function
Start with the primary job:
- Supporting bone or replacing a joint
- Maintaining blood flow or regulating rhythm
- Delivering medication or stimulating nerves
- Monitoring a signal or restoring a sense
Then separate therapeutic, diagnostic, monitoring, supportive, and combination functions. Each shapes architecture, testing, usability, and regulatory planning.
Anatomy, implantation method, and patient factors
Implantation site, available space, tissue type, expected loads, movement, and exposure to body fluids drive size, geometry, fixation, flexibility, and material choices.
Clinical and engineering teams should assess patient age, activity level, comorbidities, and expected duration of use.
Energy, control, and maintenance
Ask whether the device needs:
- Continuous power or intermittent activation
- Wireless communication, sensing, or programming
- Drug refills, battery replacement, or no maintenance at all

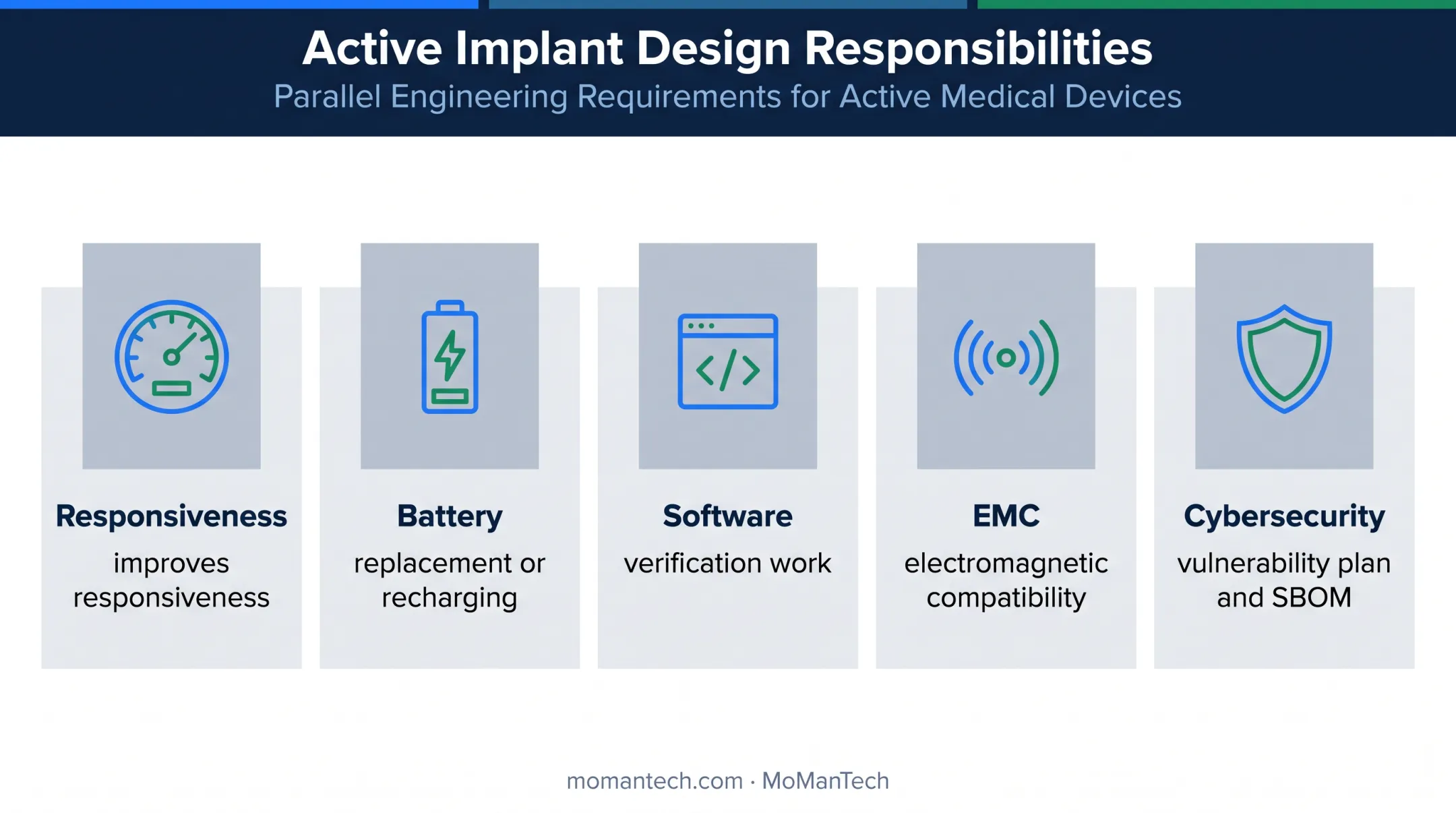

Active functionality improves responsiveness but brings battery, software, EMC, and data-management duties. FDA's February 2026 cybersecurity guidance expects a vulnerability-management plan and software bill of materials for applicable devices.
Materials, durability, and biocompatibility
Evaluate corrosion resistance, wear, fatigue strength, stiffness, surface finish, tissue response, sterilization compatibility, radiopacity, and compatibility between dissimilar metals. Use recognized standards and device-specific evidence rather than claiming one material is universally best.
- ASTM F136 covers Ti-6Al-4V ELI; ASTM F1537 covers cobalt-chromium-molybdenum
- ASTM F2077 and F1717 cover spinal construct testing
- ISO 14242-1 covers hip wear testing
- ASTM F2129 addresses corrosion susceptibility
Passing one test does not prove performance in the others. FDA's ISO 10993-1 guidance also stresses evaluating the final, sterilized device.
Development stage, volume, and regulatory pathway
Prototype, first-article, pilot, and production stages differ in tolerances, inspection, process validation, supplier controls, documentation, and cost. Confirm the applicable FDA pathway (510(k), De Novo, or PMA), risk controls, verification and validation plans, clinical evidence needs, and quality-system requirements before locking the design. The QMSR took effect February 2, 2026 and incorporates ISO 13485:2016.
What to Check Before Finalising a Type of Implantable Medical Device
What to Check Before Finalizing a Type of Implantable Medical Device
Common selection and development mistakes
- Choosing the most advanced option when a simpler passive or selectively responsive design meets the need
- Treating "active," "passive," or "hybrid" as a substitute for formal FDA classification
- Focusing on purchase price while ignoring revision procedures, battery replacement, inspection, sterilization, supply continuity, and end-of-life

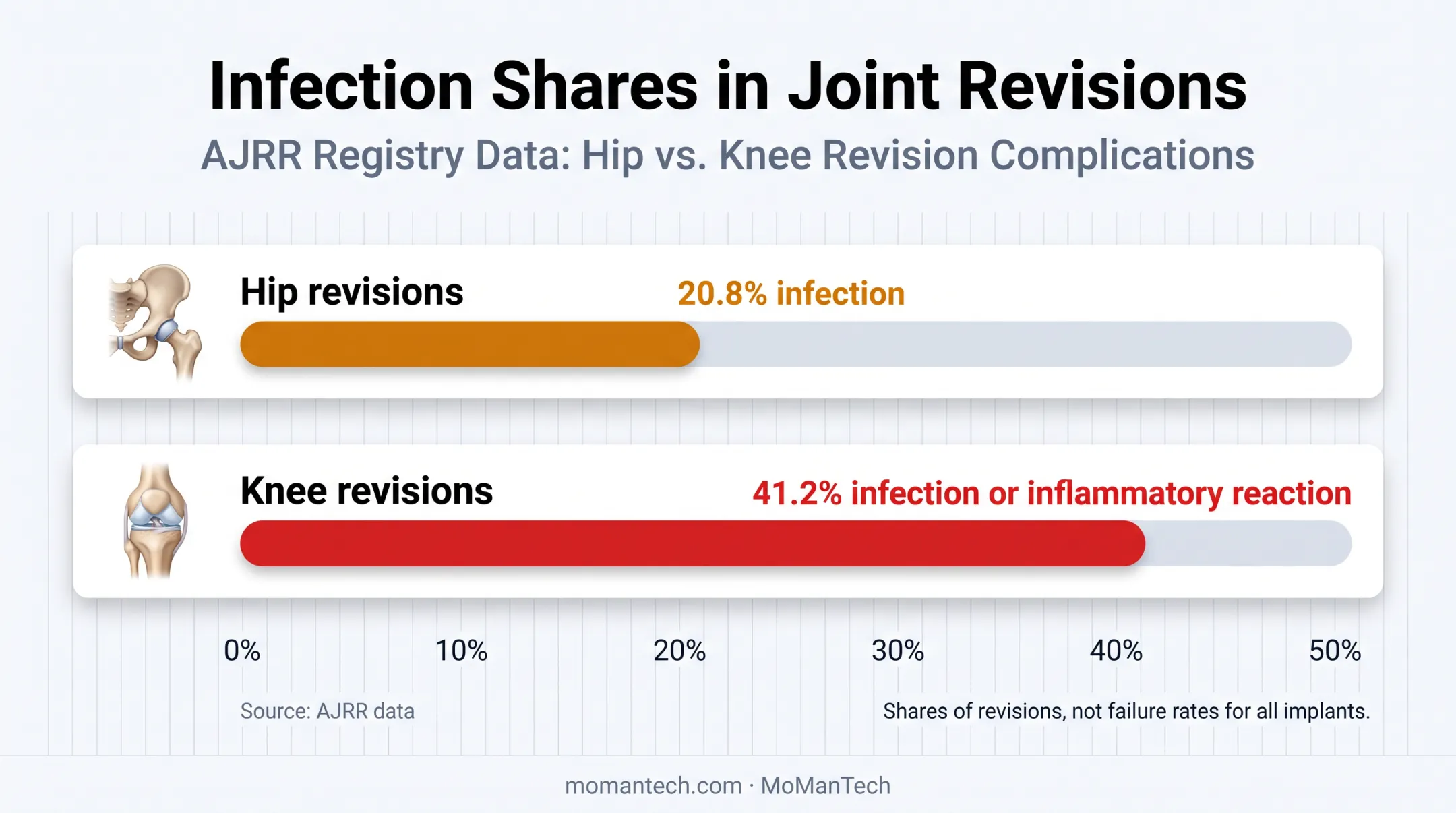

The stakes of revision are real. AJRR data show infection accounts for 20.8% of hip revisions and infection or inflammatory reaction for 41.2% of knee revisions. Those are shares of revisions, not failure rates for all implants.
Manufacturing and quality-readiness checks
Review these before design freeze:
- Design for manufacturability and achievable tolerances
- Machining or forming strategy
- Material traceability
- Surface and edge requirements
- Process controls and inspection methods
- Defect prevention
- Packaging, sterilization, and technical documentation
The process should deliver consistent performance from prototypes and first articles through planned production volumes without compromising critical dimensions. FDA notes that processes need validation when their results cannot be fully verified by later inspection and testing.
Relevant manufacturing partner consideration
For orthopedic OEMs developing spinal, joint, trauma, or foot-and-ankle components, MoManTech is an ISO 13485:2016-certified contract manufacturer focused exclusively on orthopedic devices. It offers design-for-manufacturability consultation, precision CNC machining, wire EDM, and metal and composite 3D-printed prototypes.
Prototype lots run 1 to 10 units, and production runs reach 100+. Parts receive comprehensive inspection, with FDA/ISO 13485:2016 compliance documentation included.
This is a manufacturing and production-support consideration. It is not clinical advice, regulatory approval, or a guarantee that a device suits implantation.
Conclusion
Implantable medical devices include a broad range of temporary and permanent products serving structural, therapeutic, monitoring, drug-delivery, and restorative functions.
Active, passive, and hybrid categories describe how a device operates. Whether a design fits a given use also depends on:
- Clinical application and anatomy
- Materials and durability
- Manufacturing readiness
- FDA requirements
Frequently Asked Questions
What are the different types of implantable medical devices?
By clinical use: cardiac, orthopedic, neurological, vascular, drug-delivery, sensory, dental, and ophthalmic. By operation: active, passive, and hybrid.
What are examples of implantable devices?
Pacemakers, joint replacements, spinal hardware, coronary stents, cochlear implants, intraocular lenses, dental implants, neurostimulators, and implantable drug pumps.
Is a stent an implantable medical device?
Yes. FDA lists coronary and drug-eluting coronary stents as implanted Class III devices. Stents keep a passage open, temporarily or permanently, and exact type and regulatory status depend on design and intended use.
What is a device similar to a pacemaker but not a pacemaker?
An ICD detects and treats dangerous fast rhythms, including with shocks. A CRT device paces both ventricles to coordinate contraction. An implantable loop recorder only records heart activity and delivers no therapy.
What is the new implantable device for heart failure?
Several are FDA-approved for specific indications: CardioMEMS (expanded February 2022), Barostim NEO (2019), and Optimizer (2019). Atrial shunts such as Corvia remain investigational after a sham-controlled trial found no significant overall benefit. Ask a cardiologist what fits a given patient.
What are implantable medical devices?
Devices placed inside the body, temporarily or permanently, to treat, monitor, support, replace, or deliver therapy for a medical condition.
