Introduction
Additive manufacturing has changed how medical-device teams move from concept to clinic. Engineers can print complex geometries, iterate on a design overnight, and produce patient-specific tools without cutting new tooling for every variation.
That speed is real, and it's reshaping how orthopedic OEMs prototype and plan.
But here's the catch many teams miss: a 3D-printed part isn't automatically cleared for clinical use. Whether it belongs in an operating room depends on the application, material, sterilization method, patient contact, quality controls, and regulatory pathway behind it.
This article covers what medical tools and devices can realistically be 3D printed, the processes and materials involved, what validation requires, and when printing works best alongside precision CNC machining for US orthopedic OEMs.
Key Takeaways
- Use 3D printing for prototypes, anatomical models, surgical guides, prosthetics, orthotics, and tooling.
- Match process to accuracy, strength, finish, volume, geometry, and clinical exposure.
- Clear biocompatibility, sterilization, validation, and FDA requirements before patient contact.
- Pair additive speed with CNC machining when hybrid workflows beat either method alone.
What Medical Tools and Devices Can Be 3D Printed?
Not every printed part carries the same risk. Nonclinical models, reusable tools, and regulated end-use devices each demand a different level of validation, and conflating them is one of the most common mistakes OEMs make early in development.
Anatomical Models for Education, Planning, and Testing
CT and MRI data can be converted into patient-specific models for education, surgical planning, design reviews, and bench testing. In orthopedics, this includes spine, bone, joint, trauma, and extremity models that let teams check fit, access, and alignment before a design freeze. A 2023 orthopedic-trauma review documented printed models supporting tibial-plafond and tibial-plateau fracture planning. That is useful context, but these models are planning aids, not diagnostic devices, and shouldn't be marketed with unsupported clinical outcome claims.
Surgical Guides and Procedure-Specific Tools
Patient-specific cutting guides, drill guides, alignment aids, and trial components can shorten design iteration and surface surgeon feedback faster than machined prototypes alone. Before any guide enters an OR workflow, teams need to evaluate:
- Dimensional accuracy against the preoperative plan
- Mechanical loading during the procedure
- Surface finish and cleaning compatibility
- Sterilization method and single-use versus reusable status FDA's final guidance on patient-matched guides for orthopedic implants addresses exactly these factors: imaging quality, fit, alignment accuracy, and the effects of cleaning and sterilization on the finished guide.
Prosthetics, Orthotics, and Wearable Devices
Custom-fit sockets, braces, casts, and splints benefit from additive manufacturing's personalization. Weight, comfort, adjustability, and skin-contact material properties all matter here. A printed fitting model is a starting point, not a finished medical device. Patient fit and functional performance still require clinical or practitioner oversight and appropriate validation before use.

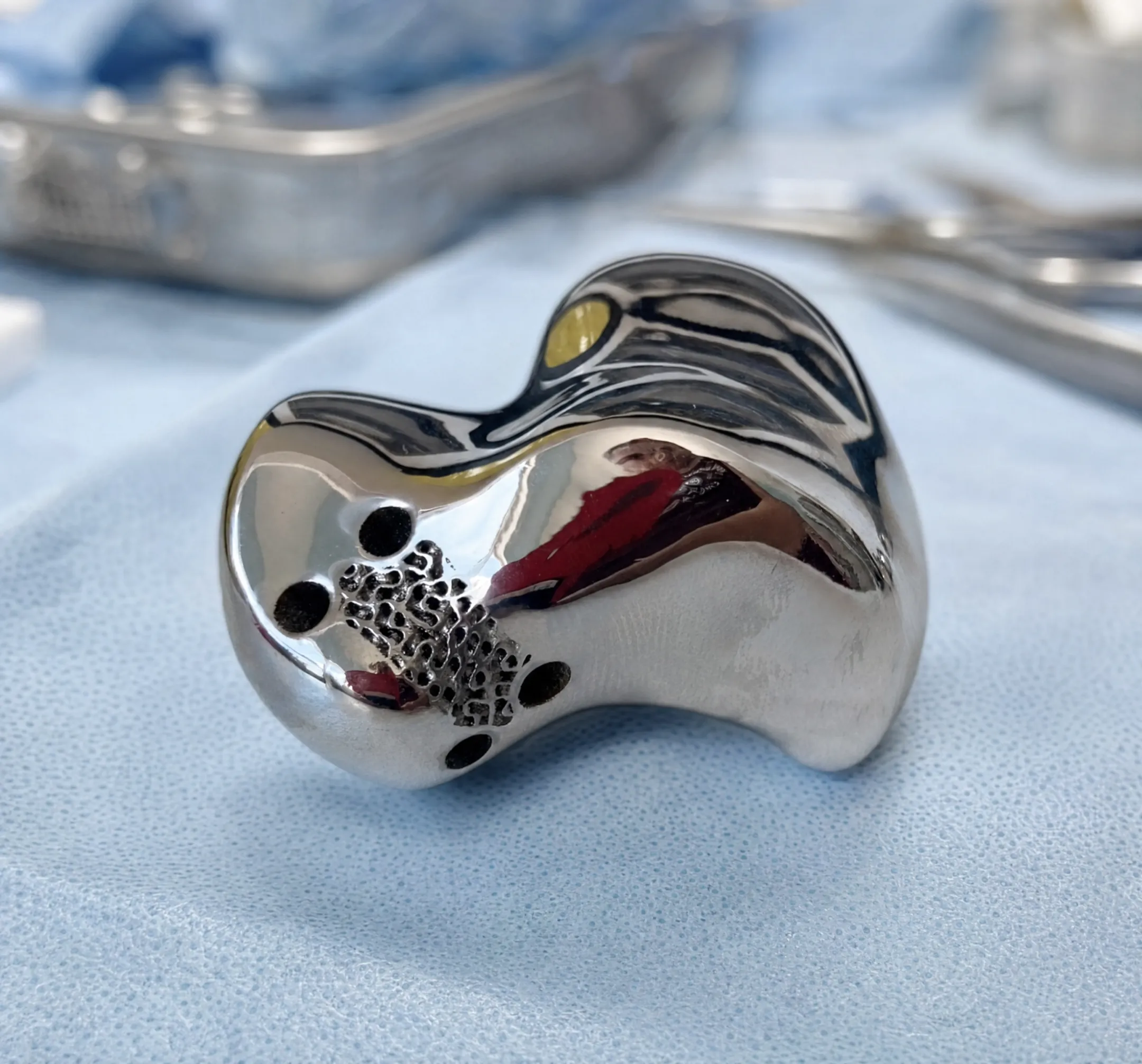

Implants and Orthopedic Components
Metal additive manufacturing can produce porous structures, lattice features, and patient-matched geometries that machining alone can't replicate. FDA's approval of the restor3d Total Talus Replacement, a CT-based, individually designed cobalt-chromium implant cleared through the humanitarian device exemption pathway, shows what's possible when material, biological, and mechanical validation are done thoroughly. That said, most spinal, joint, trauma, foot-and-ankle, and extremity components still rely on machining. The right process depends on geometry, tolerance, surface requirement, material, and production volume — not a blanket preference for additive manufacturing.
Medical-Device Prototypes, Fixtures, and Manufacturing Aids
This is where additive manufacturing earns its keep with the least regulatory burden. Looks-like, feels-like, and works-like prototypes, along with jigs, fixtures, inspection aids, and test tooling, can be produced in days instead of weeks. MoManTech's additive prototyping service, for example, supports custom fixturing and low-risk prototype quantities in metals and composites such as:
- 17-4 stainless steel, 316L stainless steel, and beta titanium
- Onyx, carbon fiber, Kevlar, and fiberglass Those builds help teams validate form and function before a design moves toward production tooling.
3D Printing Technologies and Materials for Medical Applications
Printer selection should follow the application, not the other way around. Four process families cover most medical use cases: FDM/FFF, SLA/DLP resin printing, SLS powder-bed printing, and metal powder-bed fusion.
Polymer Printing: FDM, SLA, DLP, and SLS
Each polymer process has a sweet spot:
| Process | Strength | Best for |
|---|---|---|
| FDM/FFF | Accessible, durable thermoplastics | Fixtures, functional prototypes |
| SLA/DLP | Fine detail, smooth surfaces | Anatomical models, cosmetic parts |
| SLS | Support-free complex geometry | Orthotics, functional nylon parts |
Limitations are real: FDM parts show layer-direction anisotropy, SLA requires resin handling and post-curing, and SLS involves powder management and depowdering. Material choice narrows fast once clinical exposure enters the picture.
Metal Additive Manufacturing
Laser powder-bed fusion builds titanium, cobalt-chrome, and stainless-steel components with internal channels, lattices, or consolidated features that would be difficult to machine conventionally. But printing is rarely the final step.
ASTM's guide for metal laser powder-bed fusion post-processing treats these downstream operations as standard, not optional:
- Support removal
- Heat treatment
- Surface finishing
- Dimensional inspection
Residual stress and porosity evaluation matter too, particularly for load-bearing orthopedic components.
Material Selection and Biocompatibility
"Medical-grade" is not a universal safety label. Material selection has to account for:
- Tissue contact type and duration
- Sterilization method compatibility
- Mechanical loading in service
- Chemical exposure over the device's life
FDA's biocompatibility guidance evaluates biological safety at the finished-device level, not just the raw material. A supplier's material data sheet alone doesn't validate a printed implant or tool.
ISO 10993 remains the relevant framework for that evaluation, but testing the material isn't the same as testing the final printed, cleaned, and sterilized part.
Design for Additive Manufacturing
Orientation, support strategy, wall thickness, and build direction all affect final dimensions and mechanical properties. Teams also need to plan for:
- Escape holes for powder removal in lattice structures
- Shrinkage and tolerance stack-up through post-processing
- Surface requirements that may demand secondary machining
Design-for-additive decisions should be weighed against design-for-machining, assembly, and sterilization needs, especially when a part might eventually transition to production.

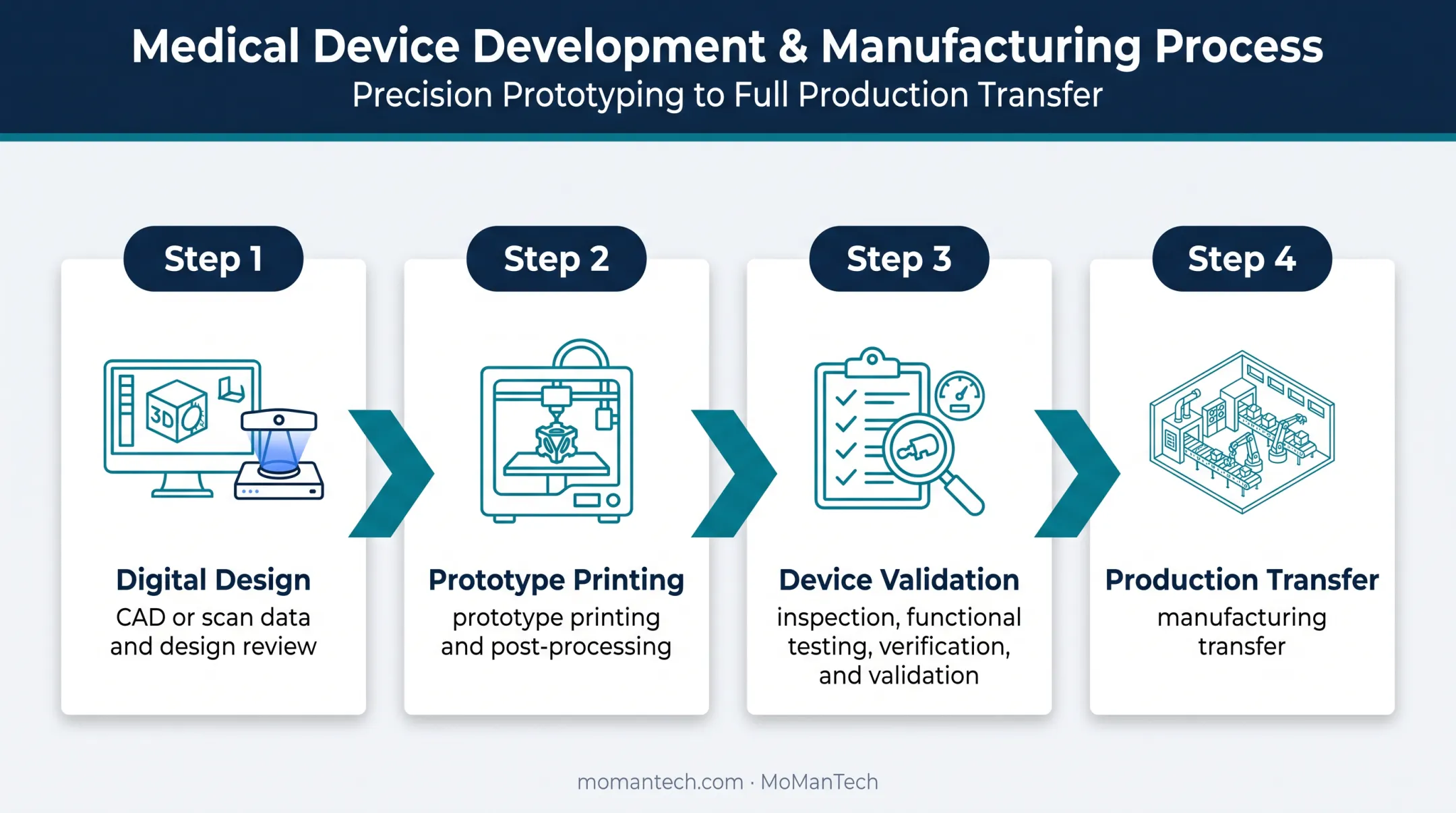

From Digital Design to Validated Medical Device
Getting from a clinical or OEM need to a validated device follows a defined path:
- CAD or scan data and design review
- Prototype printing and post-processing
- Inspection, functional testing, verification, and validation
- Manufacturing transfer
Define Requirements and Control the Workflow
Intended use, patient contact, duration, anatomical location, and reusability all shape how much evidence a device needs. Bring regulatory, quality, clinical, and manufacturing stakeholders in early. Treating compliance as a final-stage checkbox almost always costs more time later.
Even a rapid-iteration process needs controlled revisions when the output feeds a regulated product:
- Version-controlled CAD and build files
- Scan-data handling procedures
- Operator training and machine maintenance records
- Material lot control and production documentation
Validate Printing, Post-Processing, and Quality
Repeatable print parameters, dimensional acceptance criteria, mechanical testing, and sterilization compatibility must be established rather than assumed.
FDA's technical considerations guidance for additive manufactured medical devices recommends testing the finished device after relevant post-processing and sterilization. Porous or internally complex regions make residue removal especially important to verify.
Coordinate measurement, optical inspection, CT scanning, and mechanical testing all have a place. The right method depends on which characteristics are critical to function. Inspection planning should connect back to risk analysis, not apply one method uniformly across every printed device.
Transfer to Production or Hybrid Manufacturing
Some parts stay additive. Others transition to CNC machining once volume or tolerance requirements demand it. Prototypes built through additive design iterations often reveal manufacturability issues early, before surgical instruments or implants are committed to repeat production.
When 3D Printing Makes Sense for Medical OEMs
Additive manufacturing makes its strongest business case in specific scenarios:
- Rapid prototyping and design verification
- Patient-specific or low-volume products
- Complex geometries that would be costly to tool conventionally
- Bridge production while permanent tooling is built
- Fixtures and inspection aids
Conventional machining and molding often remain the better choice for:
- High-volume standardized parts
- Tight-tolerance features
- Established metal implant components
- Applications requiring proven surface and material performance
Skip printer purchase price as the sole filter. Weigh the full set of factors together:
- Volume and lead time
- Geometry and tolerance
- Material and customization needs
- Total validation burden

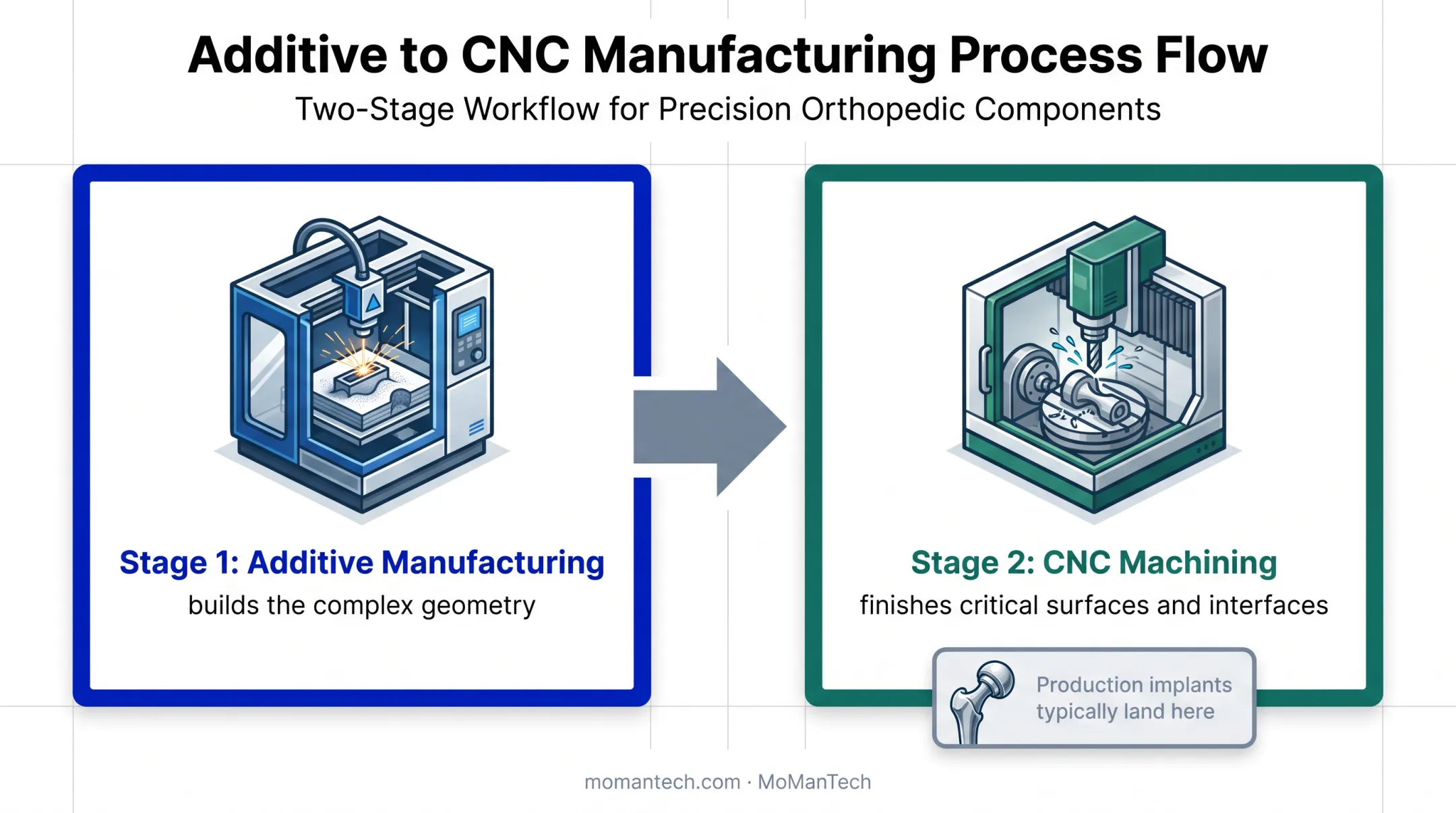

Among orthopedic implant manufacturers, hybrid production is the common path: additive manufacturing builds the complex geometry, then CNC machining finishes critical surfaces and interfaces. That hybrid sequence—not a pure-print approach—is where production implants typically land.
How to Choose a Medical Manufacturing Partner
Medical device programs stall when a partner cannot carry work from prototype into regulated production. Use this due-diligence checklist when you evaluate a manufacturing partner:
- ISO 13485:2016 certification and confirmation the certificate scope actually covers the work you need
- Design-for-manufacturability support during early development, not just after drawings are locked
- Material and process controls, including traceability for metal powders, filaments, and lots
- Inspection capability: coordinate measurement, optical, or laser systems with documented results
- Prototype-to-production capacity without forcing a switch to a new vendor mid-program
- Change control and experience with your specific device category
Clear communication across engineering, quality, regulatory, and production teams is just as critical. Startups and small-to-mid-size OEMs feel the gaps first when they move from prototype to first article.
MoManTech meets these criteria for orthopedic OEMs working in spinal, joint, trauma, large-bone, foot-and-ankle, or extremity components. The company is ISO 13485:2016-certified and offers precision CNC machining (milling, turning, Swiss lathe, wire EDM) alongside additive prototyping.
Every component is inspected before it leaves the facility using CMM and laser measurement equipment. Prototype lots run from 1 to 10 units, scaling to production runs of 100-plus.
MoManTech's role is complementary to additive manufacturing. For orthopedic OEMs, the company can help evaluate manufacturability and transition appropriate designs into precision-machined, inspected components once project requirements and verification needs are defined.
Frequently Asked Questions
Do surgeons use 3D printers?
Surgeons typically work with engineers, medical-device companies, or hospital additive-manufacturing teams rather than printing parts themselves. Common uses include anatomical models, surgical planning guides, and procedure-specific tools. Each requires validation before clinical use.
What medical devices can be 3D printed?
Examples include anatomical models, surgical guides, instruments, prosthetics, orthotics, dental devices, tooling, and select implants or end-use components. Suitability always depends on materials, intended use, and regulatory requirements.
What materials are used to 3D print medical tools and devices?
Common materials include polymers, resins, nylon-based powders, titanium, cobalt-chrome, and stainless steel. Each material needs evaluation against the device's contact type, strength needs, sterilization method, and regulatory requirements.
Are 3D-printed medical devices safe?
Safety depends on design, material, print process, post-processing, inspection, sterilization, and a validated quality system — not the printer alone. A consumer-grade print is never automatically safe for patient or surgical use.
Does the FDA approve 3D-printed medical devices?
The FDA regulates devices based on intended use and risk, not printing method. A 3D-printed device may require 510(k) clearance, PMA approval, De Novo classification, or another applicable compliance pathway.
Can 3D printing replace CNC machining for orthopedic components?
Not generally. The two are complementary. Geometry, material, volume, tolerance, surface finish, and validation burden determine which process fits a given component best.
