The requirements for biological evaluation are influenced by many factors: the device's materials, its final configuration, manufacturing processes, how it contacts the body, and for how long. As the FDA's recent actions show, simply performing a few tests isn't enough. In October 2023, the agency requested additional testing for recalled Philips devices, determining that the initial analysis was insufficient to fully evaluate user risks, according to an FDA testing summary. This highlights the need for a comprehensive, risk-based approach from the very beginning.
Key Takeaways
- Biocompatibility is evaluated for a specific finished device, not just the raw materials used to make it.
- A risk-based biological evaluation follows ISO 10993-1 and FDA guidance, involving a plan, testing, and a final report.
- The required tests depend on the device's body contact, contact duration, materials, and manufacturing processes.
- Controlled manufacturing and documentation are crucial to ensure test samples represent the final production device.
What Is Biocompatibility Testing?
Biocompatibility testing evaluates how a medical device interacts with the human body. Under ISO 10993-1, biocompatibility is the ability of a device or material to perform with an appropriate host response in a specific application.
The goal is to confirm the device does not cause harmful local or systemic effects, such as cell damage (cytotoxicity), allergic reactions (sensitization), irritation, or toxicity.
The depth of evaluation is heavily influenced by the nature and duration of body contact.
Contact Type:
- Direct Contact: The device surface touches the body (e.g., a bone screw).
- Indirect Contact: The device contacts a fluid or gas that then contacts the body (e.g., tubing in a surgical system).
- No Meaningful Contact: The device has no direct or indirect patient contact.
Contact Duration: The total time a device is exposed to the body determines its classification, which dictates the necessary evaluations.
| Category | Total Exposure Period |
|---|---|
| Limited Exposure | Less than or equal to 24 hours |
| Prolonged Exposure | From 24 hours up to 30 days |
| Long-term/Permanent | More than 30 days |
Biological evaluation works alongside related activities, each with a distinct purpose:
- Chemical Characterization (ISO 10993-18): Identifies the chemical substances that make up your device.
- Toxicological Risk Assessment (ISO 10993-17): Evaluates the risk posed by those identified chemicals.
- Mechanical Testing: Assesses the device's physical and structural integrity.
- Sterilization Validation: Confirms that the sterilization process effectively kills microorganisms without harming the device.
A full biological evaluation integrates findings from these areas into one safety profile.
Why Biocompatibility Testing Is Critical for Medical Devices
A thorough biological evaluation is essential for patient safety, regulatory clearance, and commercial success. Without it, device developers risk submission delays, expensive redesigns, and potential product recalls.

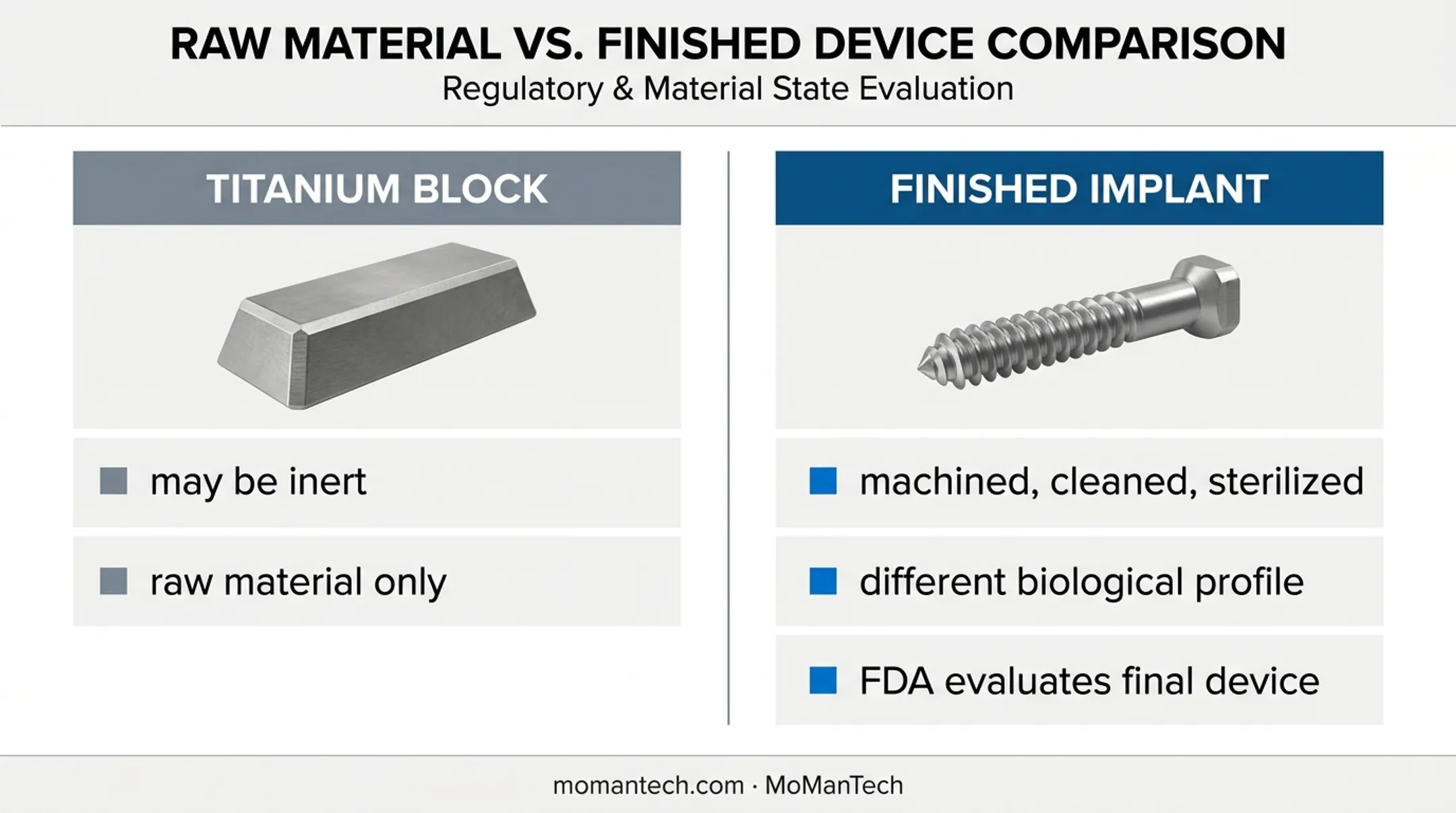

A common mistake is assuming that a "biocompatible" material is automatically safe in any application. However, the FDA evaluates the final finished device, not just the raw materials. A block of titanium may be inert, but the final machined, cleaned, and sterilized implant made from it has a different biological profile.
The Role of ISO 10993 and FDA Guidance
The foundational standard for this process is ISO 10993, "Biological evaluation of medical devices." The FDA's guidance on using ISO 10993-1 emphasizes a risk-based approach. It frames evaluation as a risk-based process for identifying biological hazards and deciding how to assess them.
A risk assessment considers:
- Device materials and composition
- Manufacturing processes
- Type and duration of body contact
- Available data from previous studies or similar devices
This framework helps you justify why certain tests are necessary and why others may not be, saving time and resources by avoiding redundant testing.
How Manufacturing Affects Biocompatibility
The way a device is made can significantly alter its interaction with the body. You must consider every step of the process.
Manufacturing variables that can impact biological safety include:
- Machining: Residual cutting fluids or microscopic metallic particulates.
- Cleaning: Leftover cleaning agents or detergents.
- Surface Treatments: Changes in passivation, coatings, or polishing.
- Packaging: Leachables from the packaging material.
- Sterilization: Residues from agents like ethylene oxide (EtO) or changes to the material caused by gamma radiation.
Because of these variables, strong process controls and traceability are non-negotiable. Having detailed records ensures that the samples you send for testing are truly representative of the final device you plan to sell.

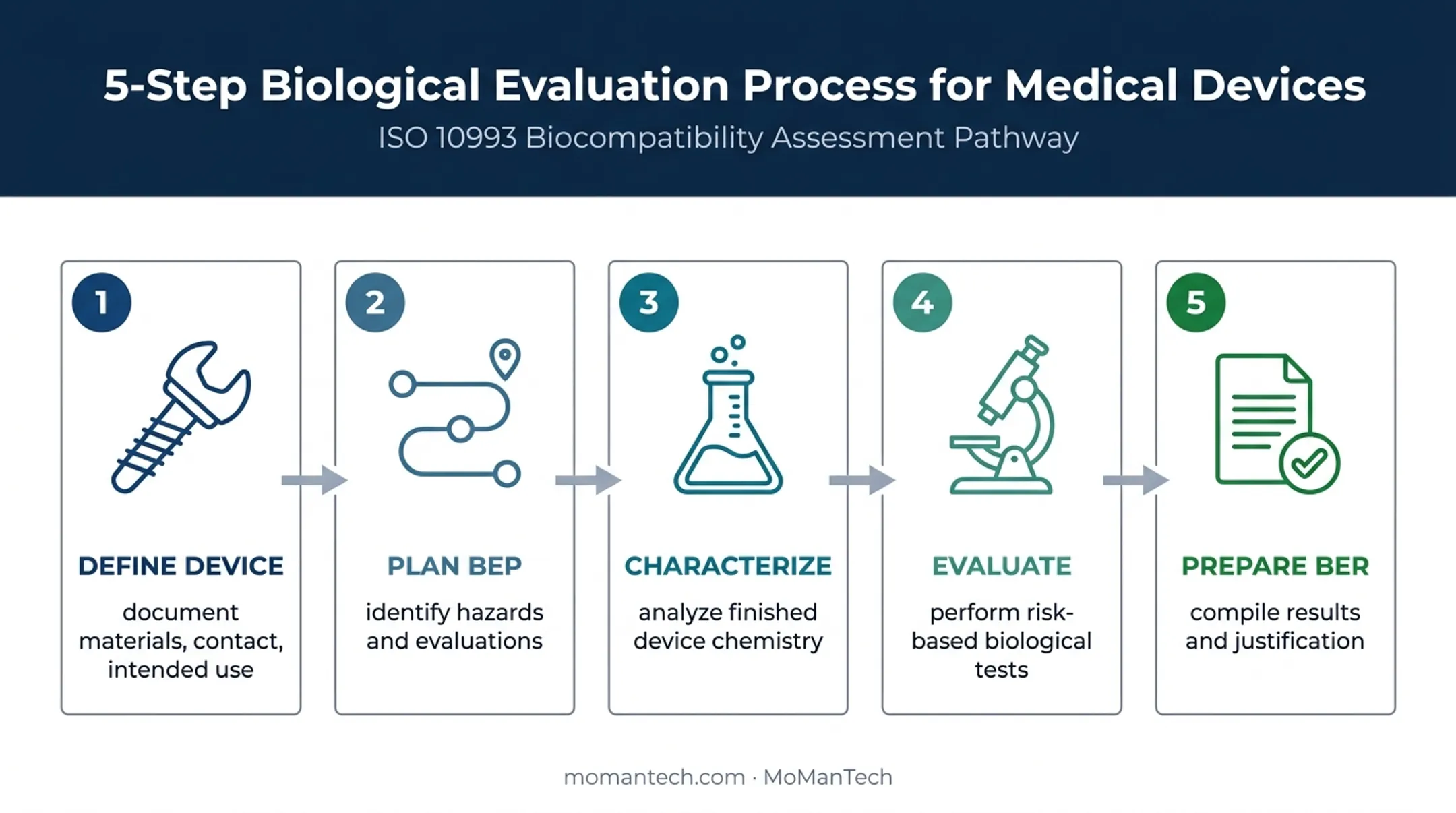

How Biocompatibility Testing Works—Step by Step
A successful biological evaluation is a systematic process. Rushing to test without a plan is a common and costly mistake. The workflow involves defining the device, creating a plan, characterizing the materials, performing the right evaluations, and documenting everything in a final report.
1. Define the Device and Intended Use
The first step is to document everything about your device. This isn't just about what it's made of, but its entire life cycle.
- Materials: All components, alloys, and polymers.
- Device Category: Is it a spinal implant, trauma plate, surgical instrument, or joint component?
- Patient Contact: Where, how, and for how long will it contact the body?
- Intended Use: Its function, patient population, and clinical environment.
- Processing: How will it be manufactured, cleaned, packaged, and sterilized?
2. Build the Biological Evaluation Plan (BEP)
The BEP is your roadmap. It outlines your strategy for assessing the device's safety. It should identify potential biological hazards based on your device definition and propose a plan to address them.
This plan might include a mix of literature reviews, chemical characterization, and specific biological tests. A well-constructed BEP justifies skipping certain tests by using existing data from similar devices or materials, which prevents redundant work.
3. Characterize Materials and Manufacturing
This step goes beyond a simple material spec sheet. It involves a detailed analysis of the chemical makeup of the finished device. This may include testing for extractables and leachables, chemicals that could migrate from the device into the body.
Critically, the test samples must be representative of the final product. They should be manufactured, cleaned, finished, packaged, and sterilized using the exact same processes planned for production.
4. Select and Perform Appropriate Evaluations
With a solid plan and well-characterized samples, you can proceed with testing. The specific tests depend on the risk assessment in your BEP. Common evaluation categories include:
- Cytotoxicity: Does the device harm cells?
- Sensitization: Does it cause an allergic reaction?
- Irritation: Does it cause redness or inflammation?
- Hemocompatibility: How does it interact with blood? (For blood-contacting devices)
- Implantation: How does tissue react to the device over time?
- Genotoxicity: Can it damage genetic material?
These evaluations can be done through a combination of lab tests (in vitro), chemical analysis, and, when necessary, animal studies (in vivo).
5. Interpret Results and Prepare the Biological Evaluation Report (BER)
The BER is the final deliverable. It brings together the device description, risk analysis, test results, and scientific justification for your conclusions. The BER makes the final case that your device is biologically safe for its intended use.
If a test yields an unexpected or adverse result, the BER documents the investigation and any additional steps taken to resolve the issue.
Practical Example: A Machined Orthopedic Implant
Let's consider a new titanium alloy pedicle screw system.
- Define: The device is a long-term implant (permanent contact) made of a specific titanium alloy. It will be CNC machined, ultrasonically cleaned, passivated, and packaged before gamma sterilization.
- Plan (BEP): The BEP identifies endpoints like cytotoxicity, sensitization, genotoxicity, and implantation effects based on its permanent contact with bone and tissue. It draws on existing literature on the titanium alloy but notes that testing is needed for the final, sterilized device due to manufacturing residuals.
- Characterize: Chemical analysis is planned to confirm no toxic residuals remain from the cutting fluid or cleaning agents.
- Evaluate: Samples are machined, cleaned, and sterilized exactly like production parts. They are then sent to a lab for the tests outlined in the BEP.
- Report (BER): The BER compiles the successful test results, chemical analysis, and existing literature to conclude the device is safe. It also includes the manufacturing control plan to ensure all future devices are made the same way.
How MoManTech Can Help

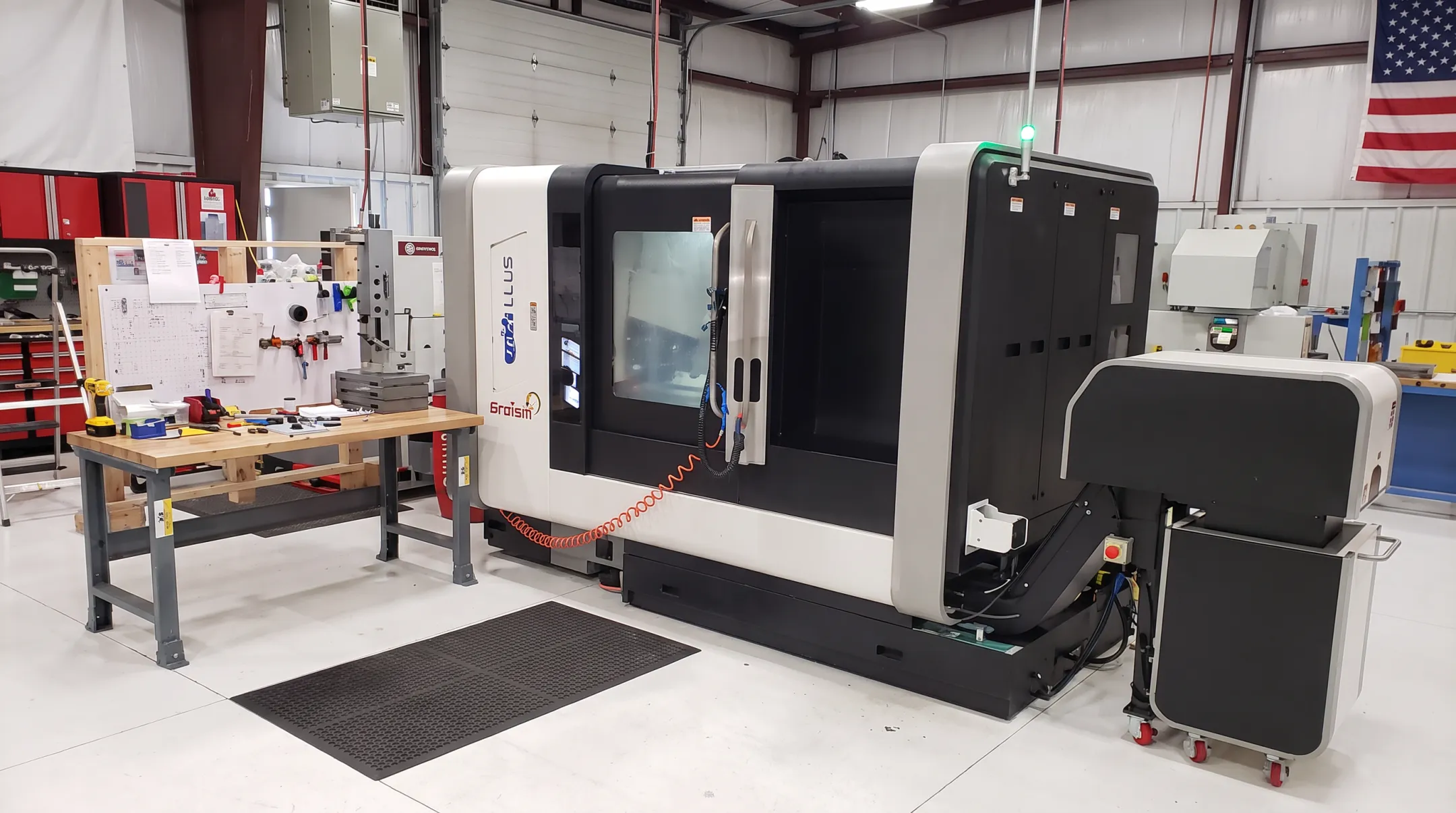

While MoManTech does not perform biological testing, we are an ISO 13485:2016-certified contract manufacturer specializing in precision components for orthopedic devices. The parts we make for you are often destined for this rigorous evaluation process. Our role is to deliver documented, repeatable components that give you confidence in your test results.
We support device OEMs by:
- Produce representative parts from prototype quantities (1-10 units) to production runs (100+ units) using controlled processes, so the parts you test match the ones you will sell
- Manage biocompatibility-related variables with advanced CNC machining, automated systems, and documented quality practices (including ultrasonic cleaning and passivation)
- Provide comprehensive inspection and traceability so you know exactly how your parts were made
- Collaborate early in design-for-manufacturability (DFM) on material selection, surface finish, and cleaning to prevent costly delays before biological evaluation
Working with a manufacturer that prioritizes quality and process control shortens the path to preparing samples for external biocompatibility evaluation.
Conclusion
Successful biocompatibility testing is a comprehensive process. It begins with risk-based planning and depends on a deep understanding of your device, its materials, and its manufacturing methods. By following the framework of ISO 10993 and current FDA guidance, you can build a safety profile that protects patients and accelerates regulatory approval.
Addressing manufacturability and process control from the start is essential. When you’re ready to move from design to physical parts, choose a manufacturing partner who understands the stakes. If you are an orthopedic device OEM looking for support with prototype, first-article, or production machining, contact MoManTech to discuss your project.
Frequently Asked Questions
What are the "Big Three" in biocompatibility testing of medical devices?
The "Big Three" commonly refers to cytotoxicity, sensitization, and irritation. These tests form the baseline for most medical devices, but the final test plan always depends on a device-specific risk assessment based on contact type and duration.
What is the standard for biocompatibility of medical devices?
The primary standard is the ISO 10993 series, particularly ISO 10993-1, which outlines the general principles for biological evaluation within a risk management process. This is used alongside applicable FDA guidance and other market-specific requirements.
How much does biocompatibility testing for medical devices typically cost?
Costs typically range from a few thousand to over $100,000, depending on device complexity, contact classification, and required tests. Cytotoxicity can run around $500; a sensitization study can exceed $11,000. Always get a device-specific quote from a qualified lab.
What are examples of biocompatible medical devices?
Examples include orthopedic implants like spinal components and joint replacements, surgical instruments, catheters, and skin-contacting monitors. Even materials with a history of safe use still require biological evaluation of each finished product.
