Introduction
A prototype proves a concept works. Production proves you can make the part again and again, inspect it the same way every time, and show the paperwork to back it up.
That gap trips up many startups and growing OEMs. Common culprits include designs that are hard to machine, vague specifications, materials that were fine for a model but not for a final part, revisions nobody tracked, and a manufacturing partner brought in too late.
This guide walks through the path from prototype to low-volume builds to recurring production, with a focus on spinal, joint, trauma, and extremity components.
Key Takeaways
- Judge a design on manufacturability, material, tolerances, and inspection, not only on whether the first prototype works.
- Bring a qualified manufacturer in before design freeze.
- Use a controlled low-volume build to surface problems before scaling.
- Choose a partner for orthopedic experience, documented quality, and responsiveness.
What Prototype to Production Means
Prototype to production is the controlled progression from an early physical representation to a repeatable, production-ready part. Typical stages include:
- Proof-of-concept: StarFish Medical describes these as isolating major technical risks and answering specific questions before a full device exists.
- Functional prototype: tests whether the device works. Appearance is secondary.
- Engineering prototype: refines the design toward manufacturing readiness (exact scope varies by vendor).
- Pre-production or first-article build: made with production methods, then inspected and documented.
Why It Isn't Just "Make More Units"
Production adds requirements a prototype never faced: material consistency, defined tolerances, inspection records, scheduling, and supply planning. A part that was hand-finished once must now be produced the same way on the fiftieth run.
What Prototyping Catches Early
Good prototyping exposes form, fit, function, assembly, and machining problems before volume commitments. In one Autocam case study, a manufacturer delivered 50 complete orthopedic kits in four weeks so surgeons could give feedback before final production. That is one vendor's program, not a benchmark, but it shows the value of learning before you lock in.

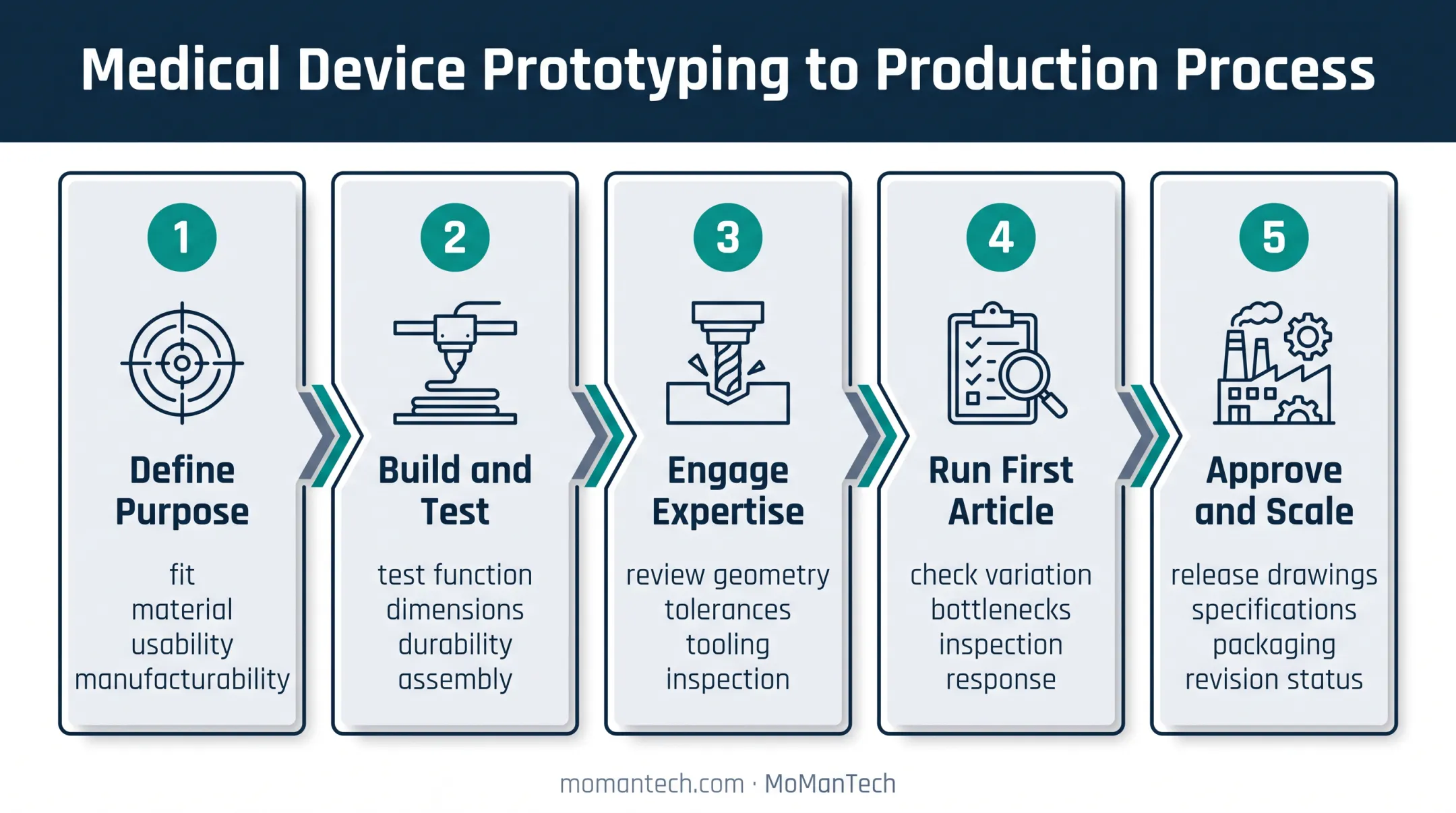

A Step-by-Step Prototype-to-Production Process
1. Define the Prototype's Purpose and Production Requirements
Decide what the prototype must prove: fit, instrument interaction, material performance, surgical usability, or manufacturability. Then document:
- Intended material and finish
- Critical dimensions and tolerances
- Expected quantities
- Inspection needs
2. Build, Test, and Refine
Pick a build method that matches the question you're asking:
- Additive manufacturing for quick form-and-fit checks
- CNC machining for parts that must behave like the final material
Test against functional, dimensional, durability, assembly, and user requirements. Record every failure and design change. Informal feedback fades; written records don't.
3. Engage Manufacturing Expertise Before Design Freeze
An experienced machinist can review geometry, tolerances, material, fixturing, tooling, and inspection access before release. Changes at this stage cost a redline. After release, they cost rework, delays, and sometimes repeat testing.
4. Run a First-Article or Low-Volume Phase
A controlled initial run checks that the design, process, inspection plan, and documentation work together. Look for:
- Part-to-part variation
- Process bottlenecks
- Whether the inspection method actually catches problems
- How quickly the supplier responds when something goes wrong
5. Approve the Production Baseline and Scale
Hand off the full production package:
- Released drawings and CAD files
- Specifications and inspection requirements
- Packaging expectations and revision status
Scale when objective acceptance criteria are met, not because a launch date is looming.

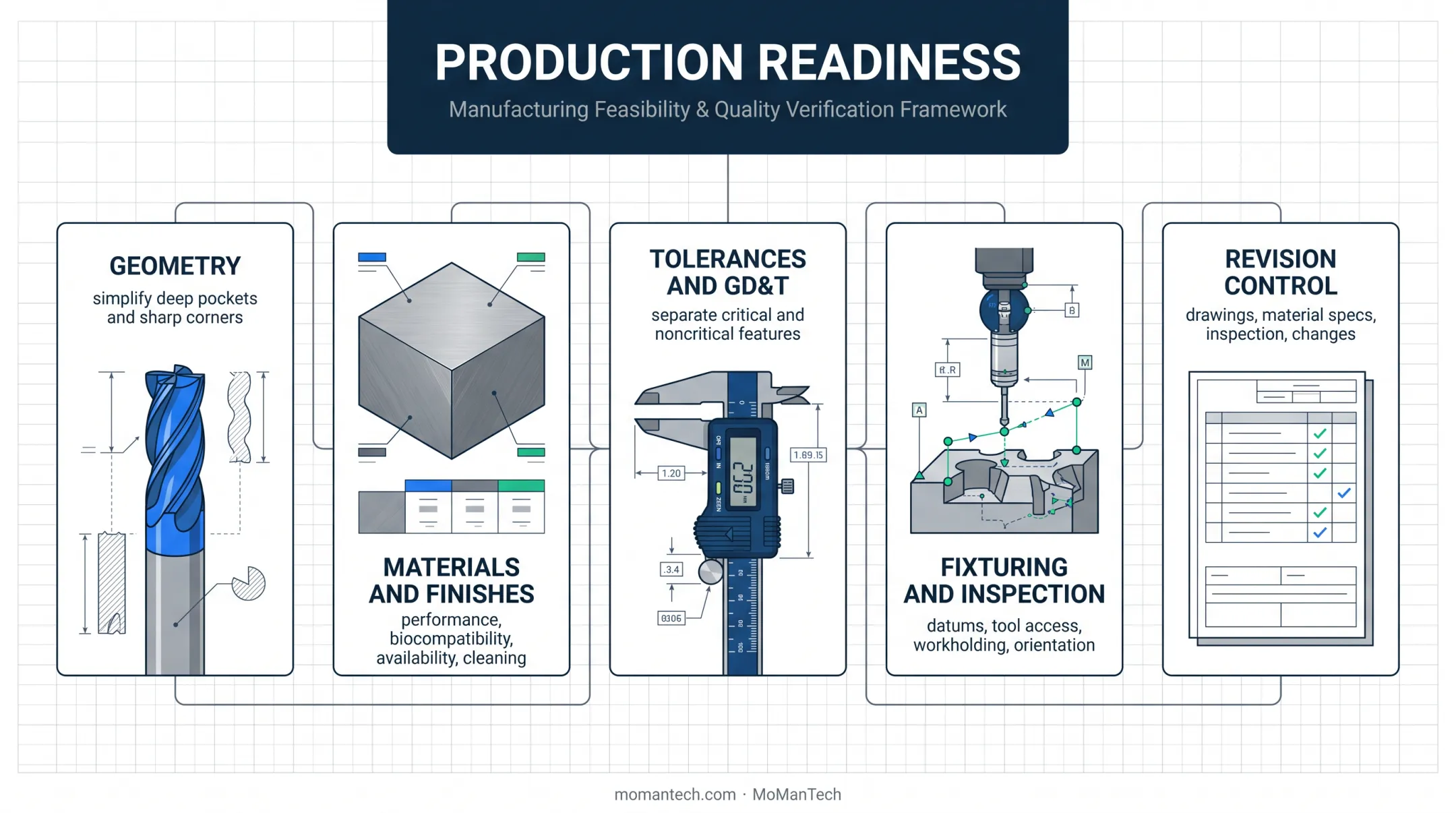

Design for Manufacturability and Production Readiness
Simplify Geometry Without Compromising Function
Deep, narrow cavities, hard-to-reach features, and sharp internal corners add machining time and risk. Protolabs' DFM guidance notes that deep pockets invite vibration and deflection, and square internal corners can require EDM or slow cutting with small tools.
Simplify where the clinical function allows. Never strip a feature the surgeon or the implant actually needs.
Select Materials and Finishes for the Full Production Path
A prototype material isn't automatically the right production material. Consider:
- Mechanical performance and biocompatibility
- Availability and machinability
- Surface treatment and cleaning
Orthopedic materials carry specifications. Examples include ASTM F136 for Ti-6Al-4V ELI and F1537 for CoCrMo. Generic stock labeled 316L doesn't establish conformity to the implant stainless specification F138.
Titanium and cobalt chrome are also hard on tools, so machinability affects cost and lead time.
Set Realistic Tolerances and Use GD&T Where It Helps
Overly tight tolerances raise cost and lead time. Poorly defined datums cause fit and assembly problems.
- Separate critical characteristics from noncritical ones
- Make sure your inspection method can actually measure what you specify
Design for Fixturing and Inspection
These factors decide whether a part can be made and verified consistently:
- Datum strategy
- Tool access
- Workholding surfaces
- Part orientation
A complex implant feature that must align with an instrument, for example, needs a reliable measurement path built into the design.
Control Revisions
Production readiness requires:
- Approved drawings and revision identifiers
- Material and finish specs
- Inspection criteria
- Change control
Uncontrolled changes between iterations make test results hard to trust and production records unreliable.
How to Choose a Prototype-to-Production Manufacturing Partner
Verify Relevant Experience
Look for demonstrated work on:
- Comparable orthopedic implants or instruments
- Complex geometries
- Small initial quantities and recurring production
General prototype shops and high-volume suppliers each cover only part of the path.
Evaluate Quality Systems and Inspection
Ask about:
- Certifications and trained personnel
- Process controls and measurement equipment
- Inspection reports and nonconformance handling
- Documentation practices
ISO 13485:2016 is the relevant quality management standard. The FDA doesn't require a certificate, but the standard is incorporated into the current Quality Management System Regulation, effective February 2, 2026. Confirm the supplier's approach fits your device's risk.
Compare Prototype, First-Article, and Production Capability
Ask whether one supplier can handle prototype quantities, design-for-manufacturability (DFM) feedback, low-volume builds, and later production. Switching suppliers mid-program means re-qualifying everything.
Prepare a Complete RFQ
Give the manufacturer what it needs to quote responsibly:
- Current CAD and 2D drawings
- Material and finish requirements
- Critical tolerances
- Quantities and target timing
- Inspection, packaging, and cleanliness requirements
- Confidentiality terms
Where MoManTech Fits
MoManTech is an ISO 13485:2016-certified contract manufacturer focused on spinal, joint, and extremity orthopedic components. Its team brings more than 70 years of collective orthopedic manufacturing experience and offers design-for-manufacturability consultation during planning.
The company supports lots from 1-10 prototypes through production runs of 100+. Parts are inspected using equipment such as an OGP Flash 302 Vision system and a Mitutoyo PHA 14.
Contact MoManTech at 406-842-5403 to discuss a prototype or production machining requirement.

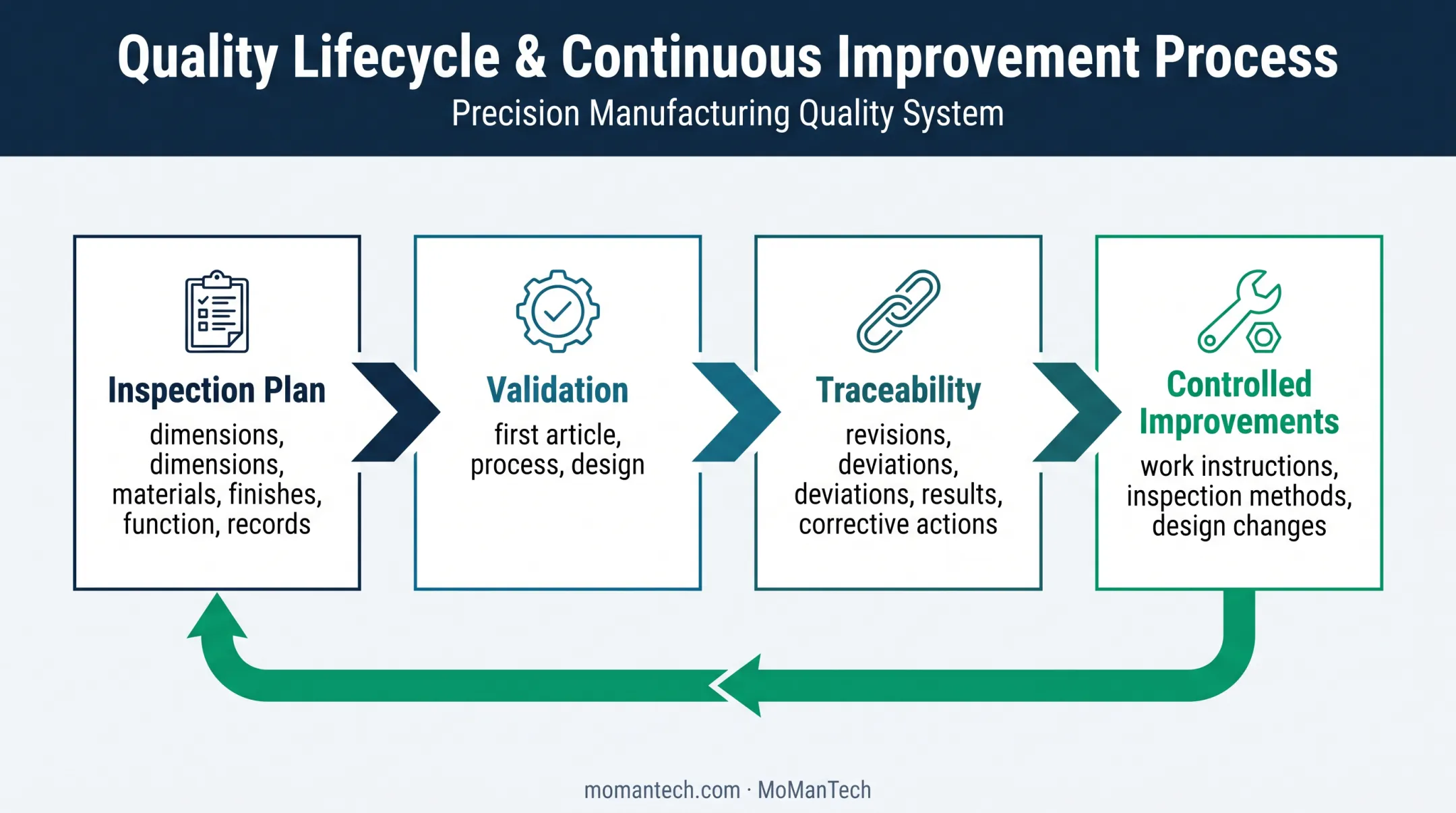

Quality, Validation, and Documentation
Build a Practical Inspection and Validation Plan
Build a plan that covers critical dimensions, material verification, finish requirements, functional checks, and the records that show conformity. Keep these distinctions clear:
- First-article inspection documents that a part meets its drawing.
- Process validation applies where results can't be fully verified by inspection.
- Design validation confirms the device meets intended-use requirements.
A machining or inspection report supports your file, but it doesn't replace 510(k) or PMA responsibilities.
Traceability and Change Control
Maintain complete records across the production lifecycle:
- Revision history and approved deviations
- Inspection results and nonconformance records
- Corrective actions
- Notes on supplier or material changes
Lot-level traceability should carry from raw material through the finished part.
Turn Early-Build Feedback Into Controlled Improvements
Findings from initial builds should become updated work instructions, refined inspection methods, or formal design changes before recurring production is released.
Frequently Asked Questions
How much does it cost to get a prototype made?
Cost depends on complexity, material, tolerances, method, quantity, finishing, inspection, and iterations. Request a quote with complete technical information instead of relying on generic price ranges.
How do I get my prototype manufactured?
Prepare CAD files, drawings, material and tolerance requirements, intended use, quantity, and inspection expectations. Submit an RFQ, then request a manufacturability review with a qualified partner.
How do I develop a prototype?
Define requirements, create the design, choose a prototype method, and test form and function. Gather feedback and iterate until the design is ready for a production-focused review.
Is there a company that makes prototypes?
Yes. Contract manufacturers, precision machine shops, engineering firms, and prototyping specialists all make prototypes. Orthopedic OEMs should prioritize device experience, quality systems, inspection, confidentiality, and scalability.
What is prototype production?
Prototype production is the creation of early units to evaluate design, function, fit, materials, and manufacturability before repeatable production. These parts may not yet use the final process or fully released documentation.
Is rapid prototyping the same as additive manufacturing?
No. Rapid prototyping means iterating quickly and can use CNC or 3D printing, as Protolabs notes. Additive builds layer by layer; CNC cuts from stock. Choose based on material, tolerances, function, and production intent.
